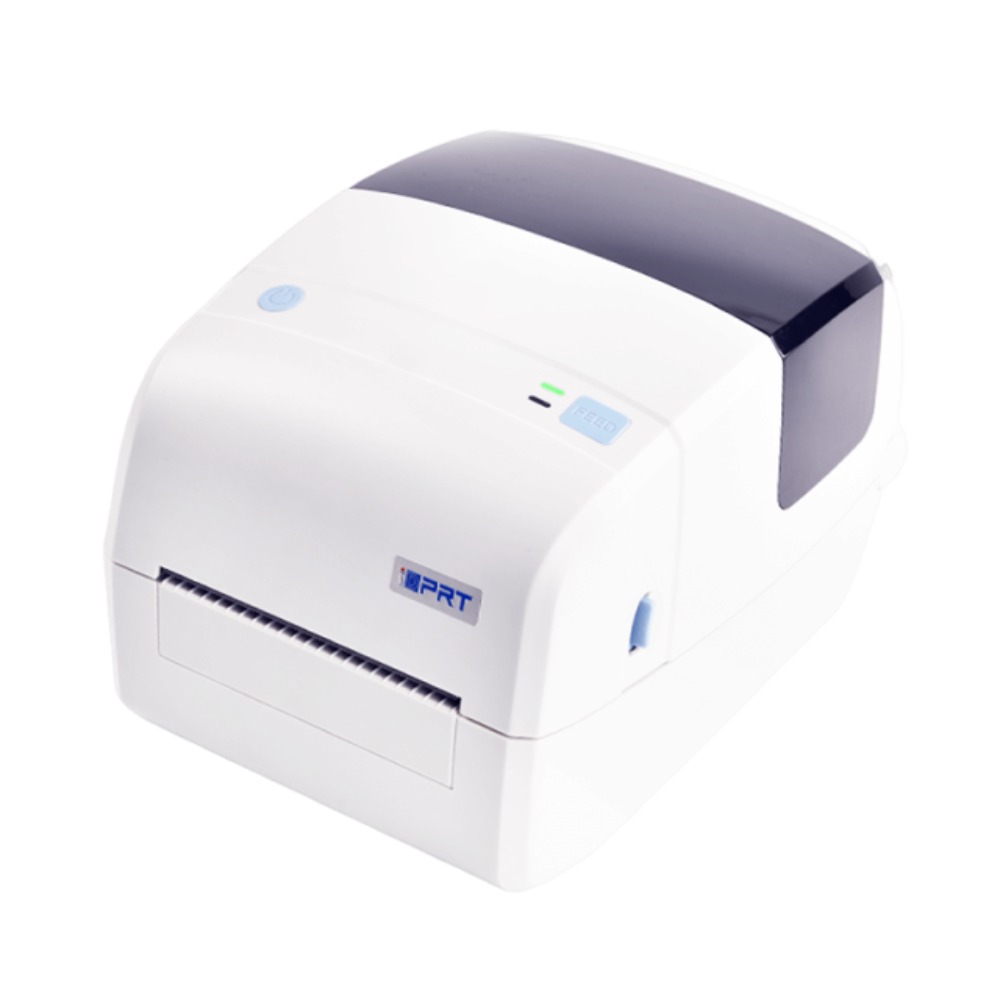

iD4S Direct Thermal label printer,203dpi

iD4S-Product Manual

iD4S Direct Thermal label printer,203dpi

Print Method Direct thermal

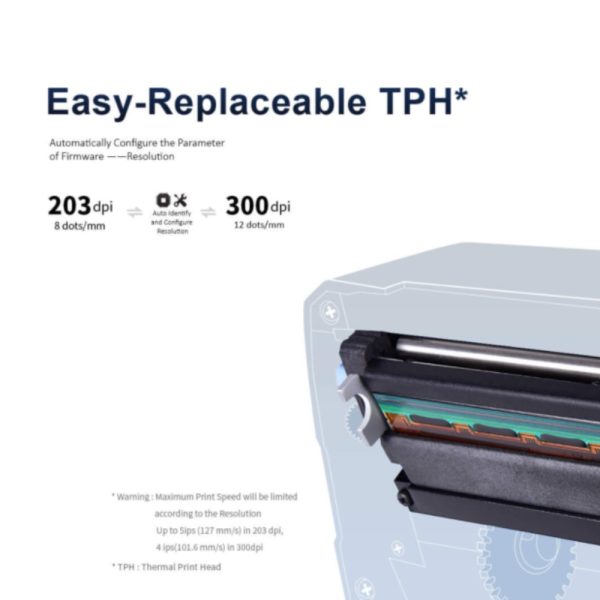

Resolution 203 dpi / 300 dpi
Max. Printing Speed 5 ips (203 dpi) / 4 ips (300 dpi)
Max. Printing Width 108 mm(203 dpi) / 106 mm(300 dpi)
Printing Length 2286 mm(203 dpi) / 1524 mm(300 dpi)
Protocol Compatible ZPL-II, EPL2, DPL
Resident Fonts Alphanumeric, Simplified Chinese, Traditional Chinese,
29 International Character Sets
Download Fonts Support
1D Barcodes UPC-A, UPC-E, EAN128, Codabar, CODE128, CODE39,
CODE93, EAN-8, EAN-13, UCC/EAN128, POSTNET,
ITF14, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar,
German Post Code, Planet 11 & 13, Japanese Postnet,
Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5,
Logmars, CODE11
2D Barcodes CODE49, CODABLOCK, PDF417, Data Matrix, Maxicode,
QR Code, MicroPDF471, Aztec

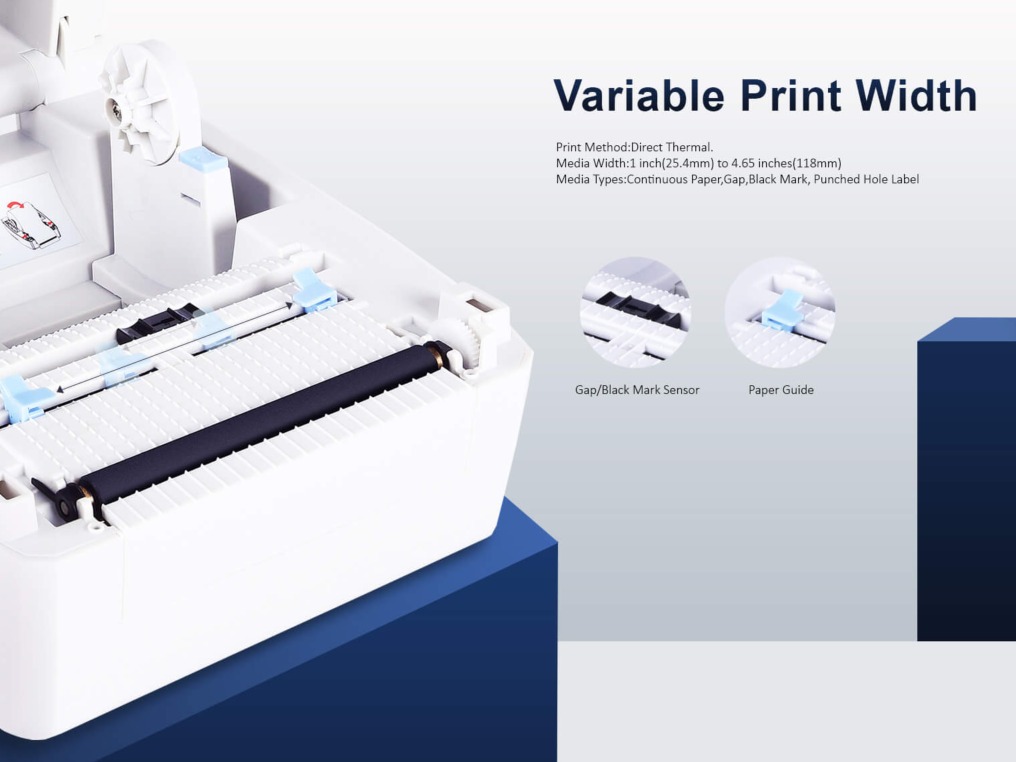

Gap Sensor Transmissive (Fixed, Dual)
Black mark Sensor Reflective (Adjustable, Full-Range)
Other Sensor Paper out detect, Print head left detect,
Print head temperature detect
Interfaces Standard USB Type B
Interfaces Optional Wi-Fi and Bluetooth
RAM 128 MB
Flash 8 GB
Electrical AC 100~240 V, 50/60 Hz
DC 24 V, 2A
Driver Windows 7/8/8.1/10, Windows Server 2008/2012/2016,
Linux, MacOS
Label Design Software BarTender 2016 UltraLite
Options & Accessory White E4P External label Peeler Module,
White E4GC External Cutter Module, External Label Roll Holder

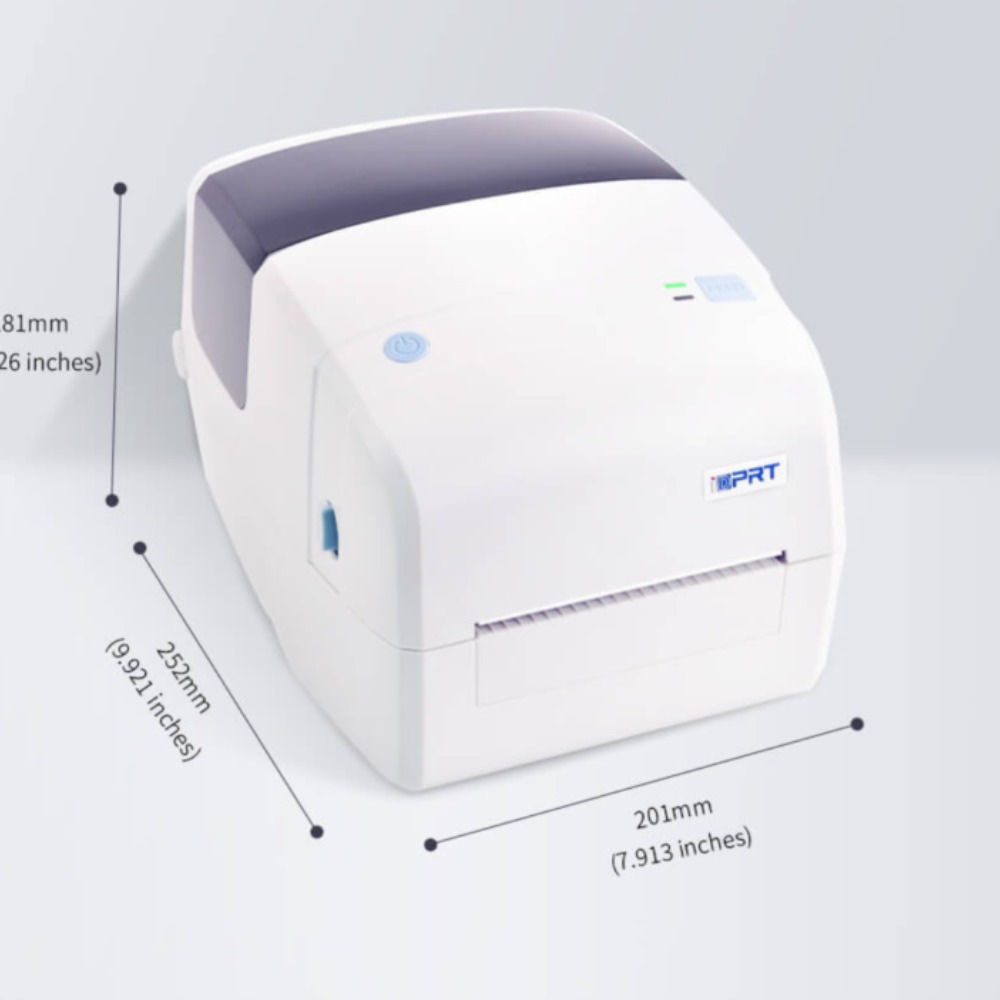

Dimension（L×W×H，mm） 252×201×181
Weight（Kg） 1.95
Warranty 1 Year
Note! IDPRT reserves the right to enhance and modify the specification without prior notice.
