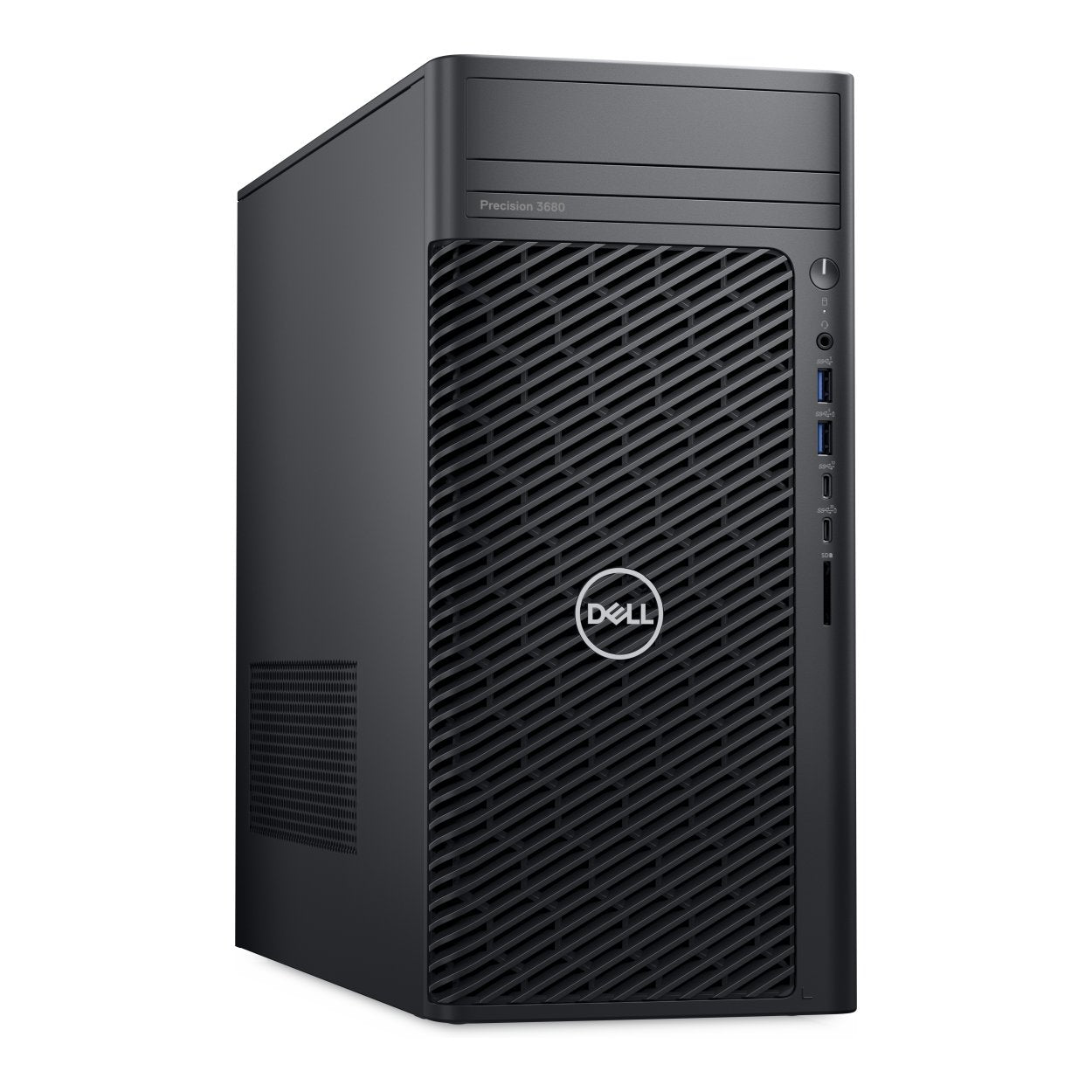

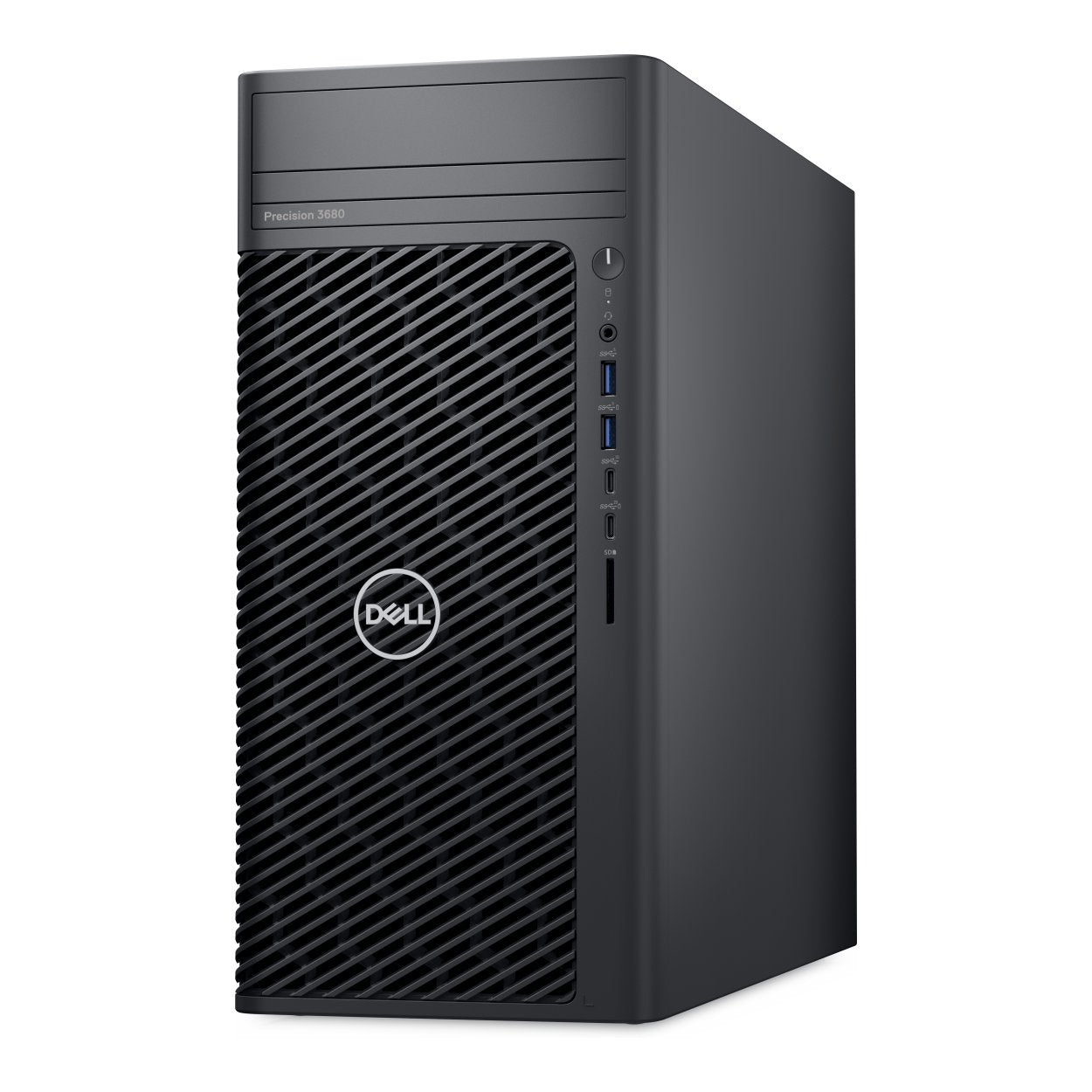

Dell Precision 3680 Core i7-14700 16GB RAM 512GB SSD 2TB HDD RTX A1000 Win 11 Pro Tower Workstation

Technical Specification

Product: Dell Precision 3680

Chassis type: Tower

Product type: Workstation

Processor family: 14th Generation Intel Core i7

Processor model: i7-14700 (65 W)

Processor frequency: 2.10 / 5.40 GHz (33 MB Cache, 20 Cores)

Internal memory: 16 GB 4400 MHz (2 x 8 GB)

Internal memory type: DDR5-SDRAM

Storage capacity 1: 512 GB M.2 2280 Gen 4 PCIe NVMe SSD

Storage capacity 2: 2 TB 7200 RPM 3.5-inch SATA HDD

Total storage capacity: 2.5 TB

Storage media: SSD + HDD

On-board graphics card model: Intel UHD Graphics 770

Discrete graphics card model: Nvidia RTX A1000 8 GB GDDR6

Connectivity: No Wi-Fi

Keyboard and Mouse: Wired USB Keyboard and Mouse combo

Operating system installed: Windows 11 Pro

Power supply: 500 W

Product colour: Black

Warranty: 3-year ProSupport Onsite

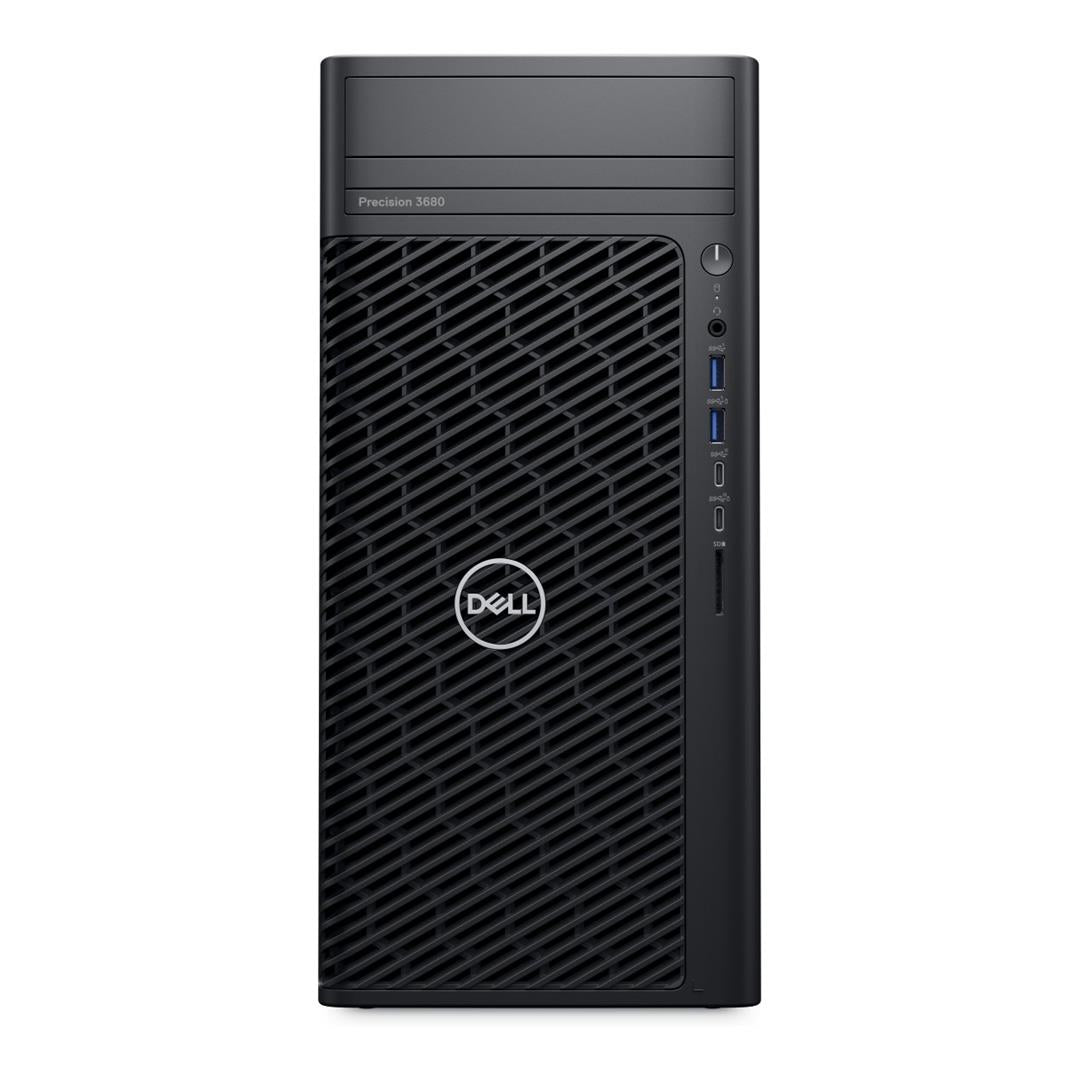

Front Ports and slots

1. Power switch with LED
2. HDD activity LED
3. Universal audio port
4. (2) USB 3.2 Gen1 (5Gb/s) Type-A (Lower one with PowerShare)
5. (2) USB 3.2 Type-C Gen2 (10Gbps) data only - (Lower one with 2x2 (20 Gbps) Type-C port with PowerShare)
6. SD-card slot

Rear ports and slots

1. Lock slot
2. Audio out (3.5mm jack)
3. (2) DP1.4a HBR2
4. (2) USB 3.2 Type-C Gen2 (10Gbps) (lower port has PowerShare)
5. (2) USB 3.2 Type-A Gen2 (10Gbps)
6. (2) USB 2.0 Type-A (480 Mbps) ports with SmartPower
7. RJ45 i219 LAN (1GbE)
8. Power connector
9. LED indicator light
10. (4) mDP ports on GPU

Dimensions

1. Height: 372.90 mm
2. Width: 173.00 mm
3. Depth: 420.20 mm

Features & Design

Exceptional performance

Tear through workloads with new performance enhancements

With Unlimited Turbo Duration, processors run at unbelievable power levels and achieve turbo frequency whenever your workload demands it (125W CPUs only).

Best-in-class graphics

Configure up to 450W professional graphics from NVIDIA or AMD, with dual graphics options available.

Scalable performance

Up to 28TB of storage, configurable with 3x on-board M.2 SSDs and 3x SATA hard drives. Up to 128GB of DDR5 memory.

Reliable and secure

Mission-critical reliability

Available with Error Code Correcting (ECC) memory and Dell exclusive Reliable Memory Technology Pro, which detects and corrects single bit memory errors and maps out bad memory sections to avoid them being written to. RMT Pro also alerts you when your memory is at a critical level and needs replaced --- no more guessing.

Guarded and secure

Designed with security features such as TPM 2.0, lockable chassis, chassis intrusion detection, lockable and removeable storage, self-encrypting storage, and more.

Independent Software Vendor (ISV) certification

Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly.

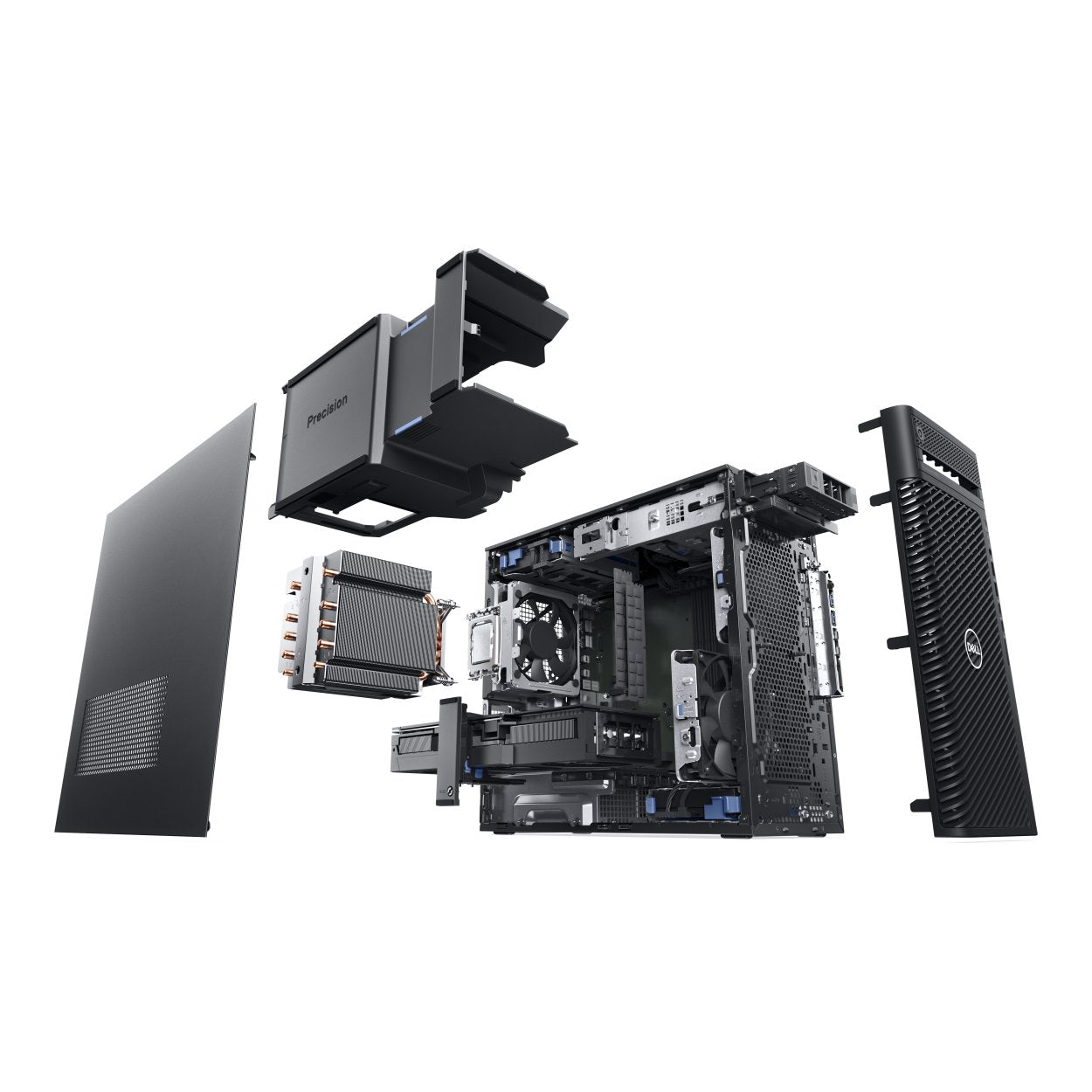

Extreme scalability in mini-tower design

Lockable, removable front storage

Secure and accessible data storage.

Fast network speeds

Upload, download and stream with 1Gbe Ethernet (2.5GbE optional) and optional M.2 Wi-Fi 6E wireless.

Built-in upgradeability

Includes brackets and cables for easily installing SATA HDDs, even after purchase.

Experience a cooler and quieter system

Our new Premium Air Cooler & Air Shroud creates a cool air chamber over the CPU to manage thermals and stay quiet, even under heavy load.

Ready for Virtual Reality

Create fully-immersive AR and VR content with next generation AMD Radeon PRO and NVIDIA RTX professional graphics, and powerful performance normally found only in tower workstations.

AI ready workstation

Intelligently designed to support your latest AI initiatives, with scalable performance to meet the demanding requirements around training and testing models locally, as part of your AI infrastructure and strategy.
