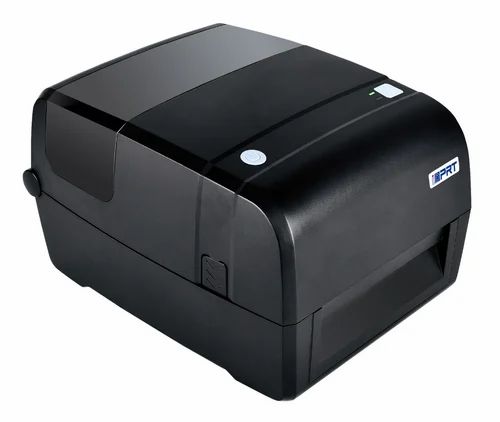

iT4B label printer,203dpi

Description

Resolution 203dpi, 300dpi
Printing method Direct Thermal and Transfer Thermal
Max. print speed 6ips @ 203dpi, 4ips @ 300dpi
Max. print width 4.25″(108mm) @ 203dpi and 4.17″(106mm) @ 300dpi
Max. print length 90″(2,286mm) @ 203dpi, 60″(1,524mm) @ 300dpi
Physical dimension(W x H x D) 7.09″(180mm) × 11.54″(293mm) × 9.33″(237mm)
Weight 6.17lbs(2.8kg)
Processor 32-bit RISC CPU
Memory 16 MB Flash / 16 MB RAM
Interface Standard: USB-B and Ethernet 10/100Base T
Optional: Bluetooth 5.2/LE(factory option)
WiFi security encryption N/A
WiFi security authentication N/A
Power External universal switching power supply
Input: AC 100~240V, 2.5A, 50~60 Hz
Output: DC 24V 2A, 48W
User interface 2 operation buttons(power,feed)
2 LEDs with 3 colors
Sensors Gap transmissive sensor
Black mark reflective sensor (position adjustable)
Head open sensor
Ribbon end sensor
Internal fonts 8 resident expandable ZPL II bitmap fonts
Simplified Chinese, Traditional Chinese
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1251, 1252, 1253, 1254, 1255, 1256 Support with font 0
Graphic formats PCX,BMP
Bar code 1D barcode: UPC-A, UPC-E, Codabar, CODE128, CODE39, CODE93, EAN-8, EAN-13, UCC/EAN128, POSTNET, ITF14, MSI, Plessey, Telepen, GS1 DataBar, German Post Code, Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5, CODE11, EAN14
2D barcode: PDF417, Data Matrix, Maxicode, QR Code, MicroPDF471, Aztec
Font and barcode rotation 0, 90, 180, 270 degree
Printer Language ZPL-II, TSPL, DPL, EPL2
Media type Continuous, die-cut, black mark, fan-fold, notch
Media handling Standard: Continuous, Tear-Off / Options: Peel-Off, Cut
Media width Min 1″(25.4mm) / Max 4.65″(118mm)
Media thickness 0.002″(0.06mm) to 0.010″(0.250mm)
Media core diameter 0.5″(12.7mm)/ 1″(25.4mm)/ 1.5″(38.1mm)
Media max. roll diameter 5.0″(127mm)
Media length Min.: Tear-Off 0.24″(10mm) @ 203dpi, 0.2″(8mm) @ 300dpi
Min.: Peel-Off , Cutter 1.0″(25.4mm)
Max.: 90″(2,286mm) @ 203dpi, 60″(1,524mm) @ 300dpi
Ribbon type Wax, Wax/Resin, Resi
Ribbon length 984.3 ft(300m)
Ribbon core diameter 1.0″(25.4mm)
Ribbon width Min 1.18″(30mm) / Max 4.33″(110mm)
Environment condition Operating Temperature: 41° to 122°F (5° to 50°C) (limitations based on selected media) / Operating Humidity: 25 to 85% RH Non-Condensing
Storage Temperature: -4° to 140° F (-20° to 60° C) / Storage Humidity: Non-Condensing
Safety Certification CCC, FCC, CE, CB, Energy Star
Environmental concer RoHS, WEEE
Options Bluetooth 5.2/LE(factory option)
Peel
Guillotine Cut
