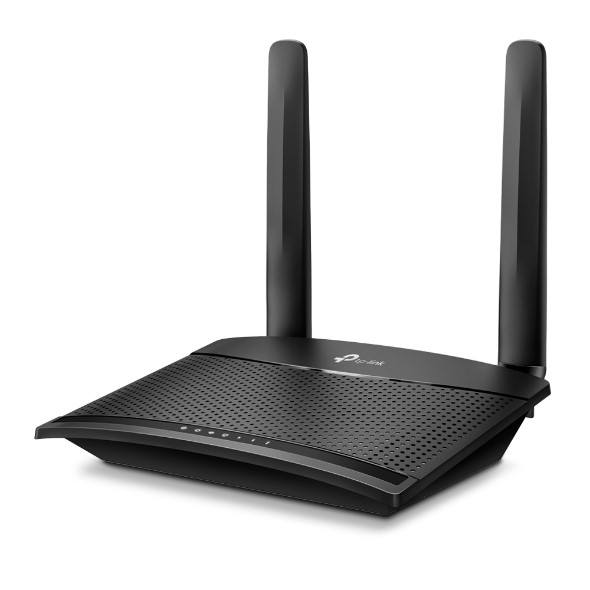

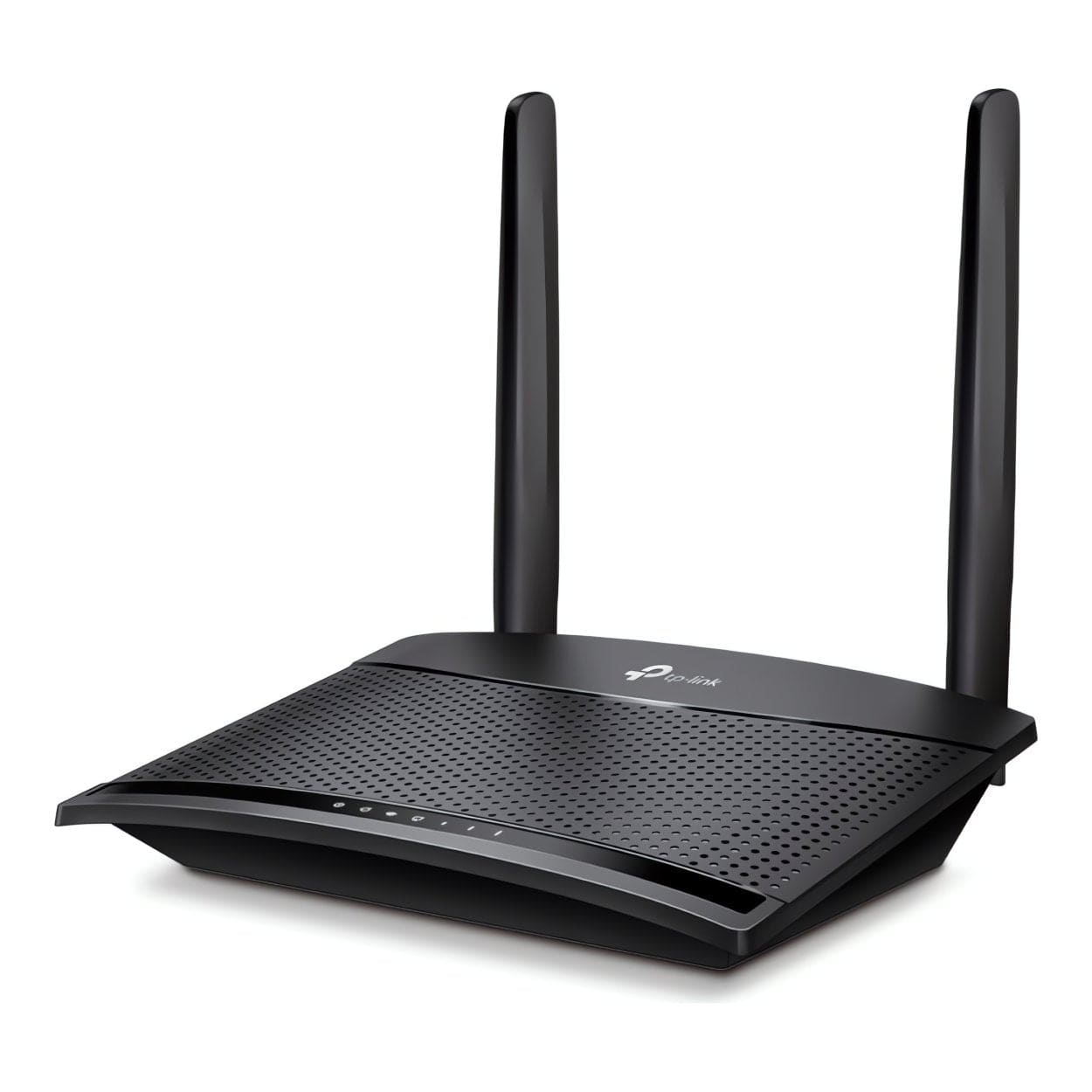

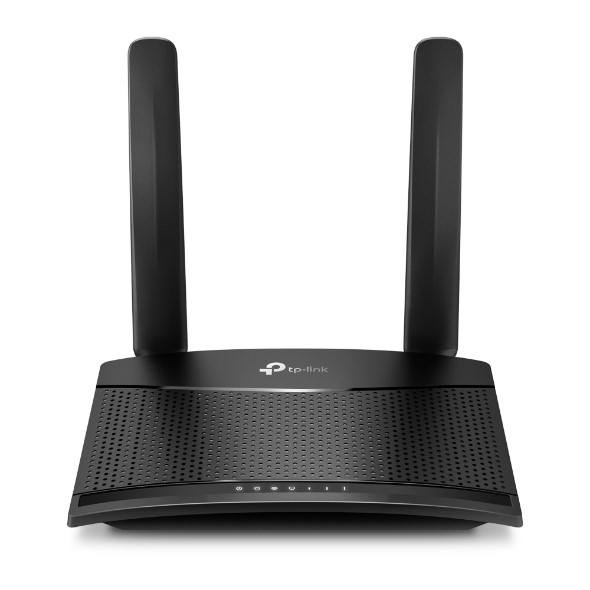

TP-LINK 300 MBPS WIRELESS N 4G LTE ROUTER

TP-Link 300Mbps Wireless N 4G LTE Router TL-MR100

Enjoy 4G LTE Sharing Wherever You Want

300 Mbps Wireless N 4G LTE Router

Features:

• Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
• Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
• Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
• Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

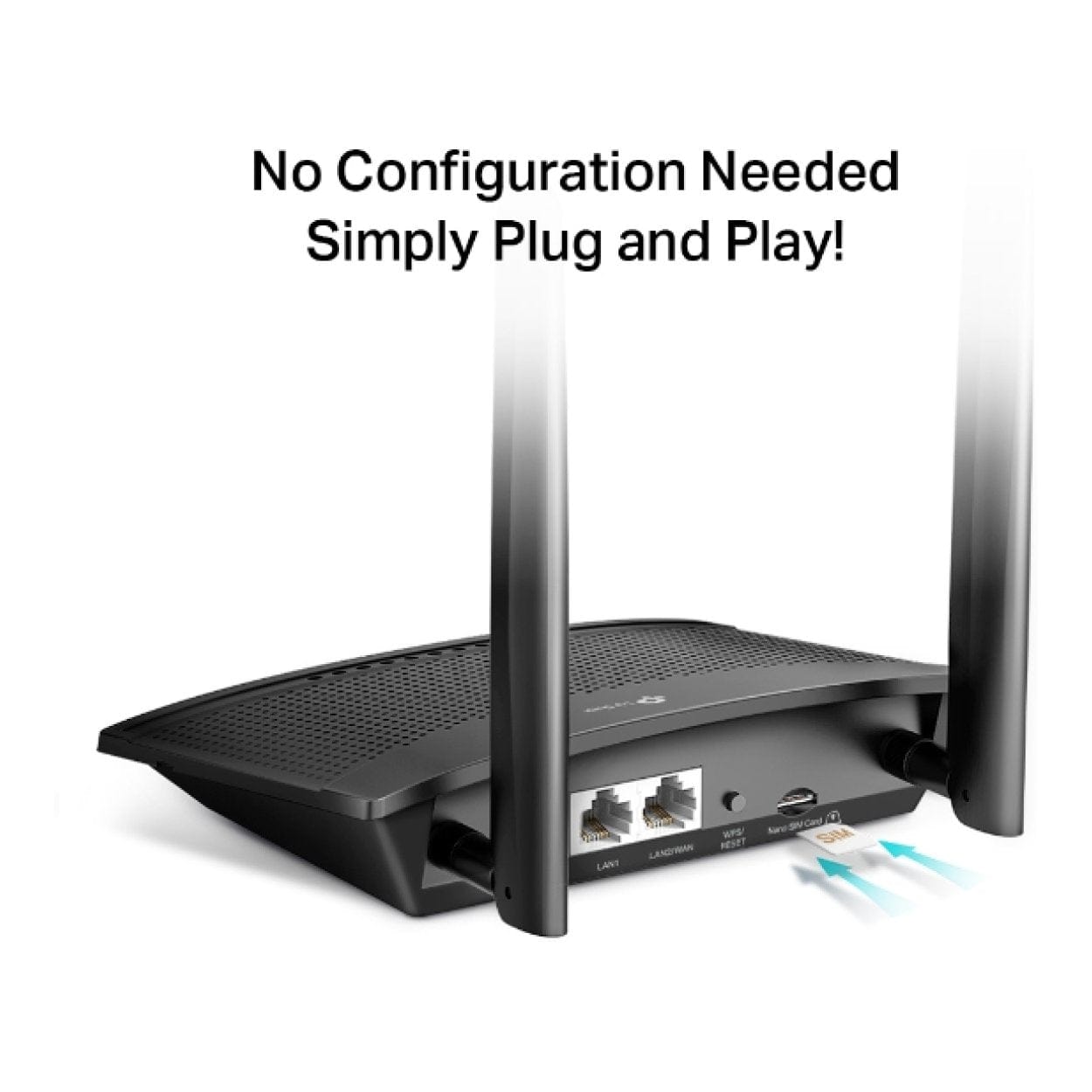

No Configuration Needed Simply Plug and Play!

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.

Share Your 4G LTE Network

Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Wi-Fi Where You Need It

Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

Reliable Access for Up to 32 Devices Simultaneously

Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.

Technical Specifications:

Hardware Features

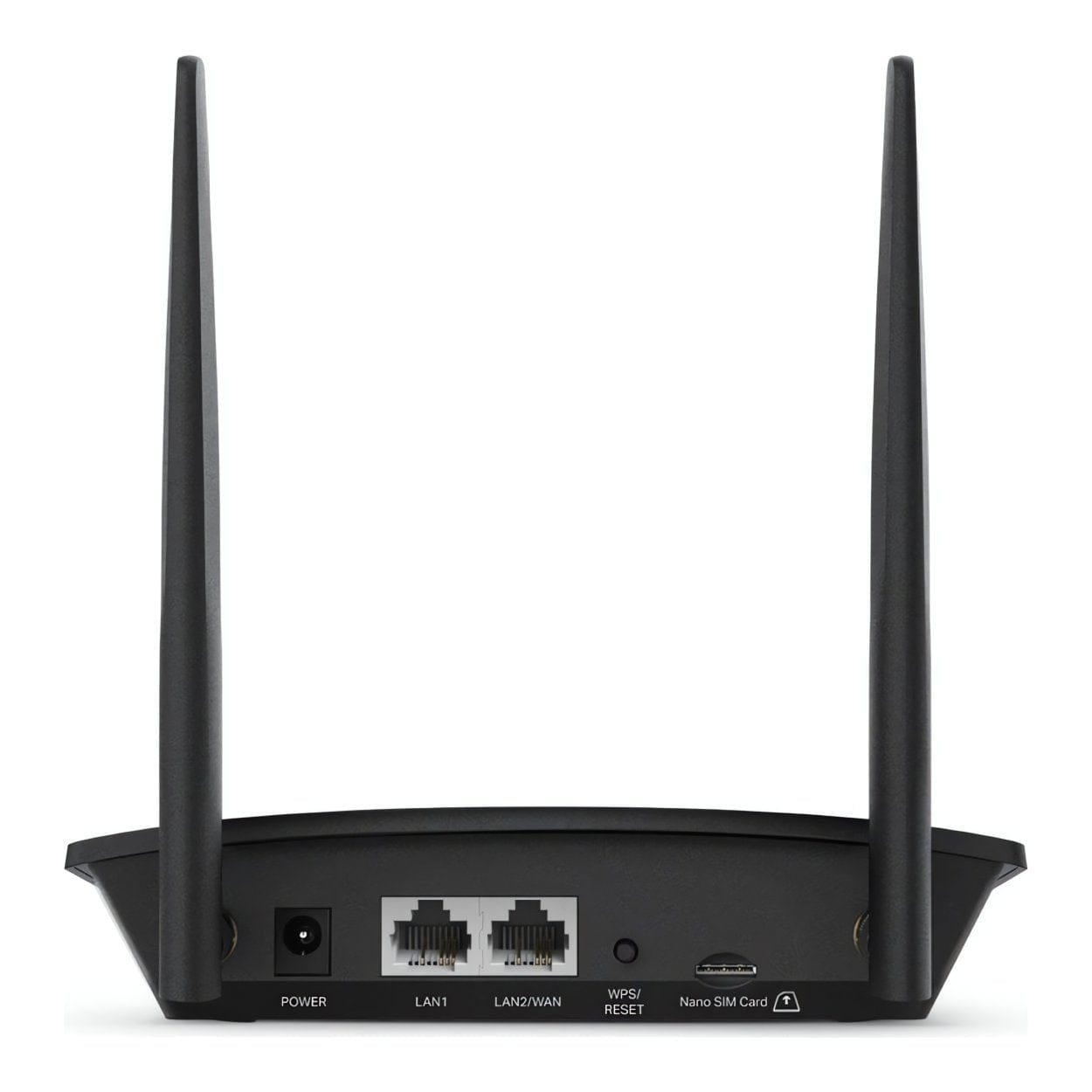

Interface: 1 × 10/100 Mbps LAN port, 1 × 10/100 Mbps LAN/WAN port, 1 × Nano SIM card slot
Button: WPS / Reset button
External Power Supply (EU): 9 V / 0.85 A
Dimensions (W × D × H): 6.06 × 4.49 × 1.42 in (154 × 114 × 36 mm)
Antenna: 2 detachable external 4G LTE antennas

Wireless Features
Wireless Standards: IEEE 802.11b/g/n
Frequency: 2.4 GHz
Signal Rate: 300 Mbps
Reception Sensitivity: 11g 54M: -74 dBm; 11n HT20: -71 dBm; 11n HT40: -68 dBm
Transmit Power: < 20 dBm (2.4 GHz)
Wireless Functions: Enable/Disable wireless radio, wireless schedule, WMM, wireless statistics
WAN Failover: Yes
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type:
4G FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
4G TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software Features
Security: IPv4 SPI firewall, IP and MAC address binding
Operating Modes: 3G/4G router, wireless router
WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
Management: Local management, remote management
DHCP: Server, DHCP client list, address reservation
Port Forwarding: ALG, virtual server, port triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
Protocols: IPv4, IPv6
Guest Network: 2.4 GHz guest network
Administration: Firmware upgrade, factory default, system log, diagnostic tools

Others
Certification: CE, RoHS
Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser; Nano SIM card

What’s in the Box:

• 300 Mbps Wireless N 4G LTE TL-MR100
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
