TP-Link XN020-G3 300Mbps Wireless N Gigabit GPON Router

TP-Link XN020-G3 300Mbps Wireless N Gigabit GPON Router

Features

• A GPON modem with wireless AP and 1-port Switch
• Compliant with the ITU-T G.984/G.988 GPON standards, XN020-G3 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream.
• TR-069 protocol enables an operator to remotely configure and manage end-user devices.

Bring Home Fiber-to-the-Home

TP-Link’s N300 Wireless GPON router is a Gigabit Passive Optical Network (GPON) terminal, the ideal Fiber-to-the-Home (FTTH) solution. Enjoy a high-speed internet connection via the GPON port or wireless speeds of 300Mbps. XN020-G3 is the perfect terminal and future-oriented service, with full capabilities for FTTH deployment.

High-Speed GPON Service

Compliant with the ITU-T G.984 GPON standards, XN020-G3 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream. Along with a 10/100/1,000Mbps LAN port, users can enjoy high-speed GPON services and bandwidth-intensive multimedia applications—such as interactive gaming, streaming, and real-time audio—much faster and easier than ever before.

All-in-One Device

With a GPON modem, 300Mbps wireless AP and 1-port Switch, the XN020-G3 is everything your home or office needs to be fully connected.

Technical Specification

Product: TP-Link XN020-G3 300Mbps Wireless N Gigabit GPON Router

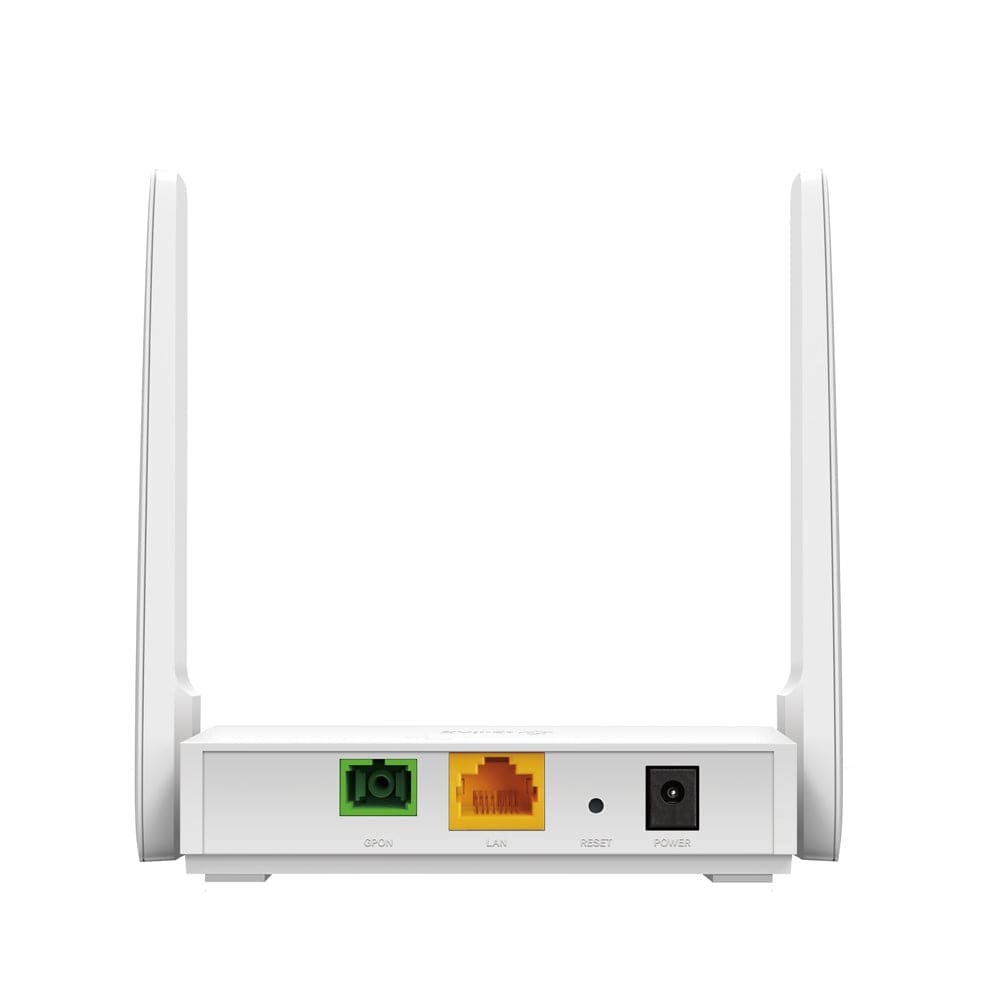

Interface: 1x SC/APC Port, 1x 10/100/1000Mbps LAN Port

Wireless Standards: IEEE 802.11g, 802.11b,802.11n

IEEE Standards: IEEE 802.3, IEEE 802.3u, 802.3ab

Frequency: 2.4 GHz

Signal Rate: 300Mbps at 2.4 GHz

Antenna Type: External, 2 x 2 5dBi for 2.4GHz

GPON Standards: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4, ITU G.988

Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics

External Power Supply: 12V/0.6A

Package Contents

• 300Mbps Wireless N Gigabit GPON Router XN020-G3
• RJ45 Ethernet Cable
• Quick Installation Guide
• Power Adapter
