TP-LINK 300MBPS WIRELESS N CEILING MOUNT ACCESS POINT

TP-Link EAP115 Wireless Access Point 300 Mbit/s Power over Ethernet (PoE) White

An Affordable, Scalable Business Wi-Fi Solution
300Mbps Wireless N Ceiling Mount Access Point.

Features:

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• PoE Support: Supports Power over Ethernet (802.3af/at) for convenient deployment.
• Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
• Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.

Cloud Centralized Management

- Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Timesaving and Flexible Deployment

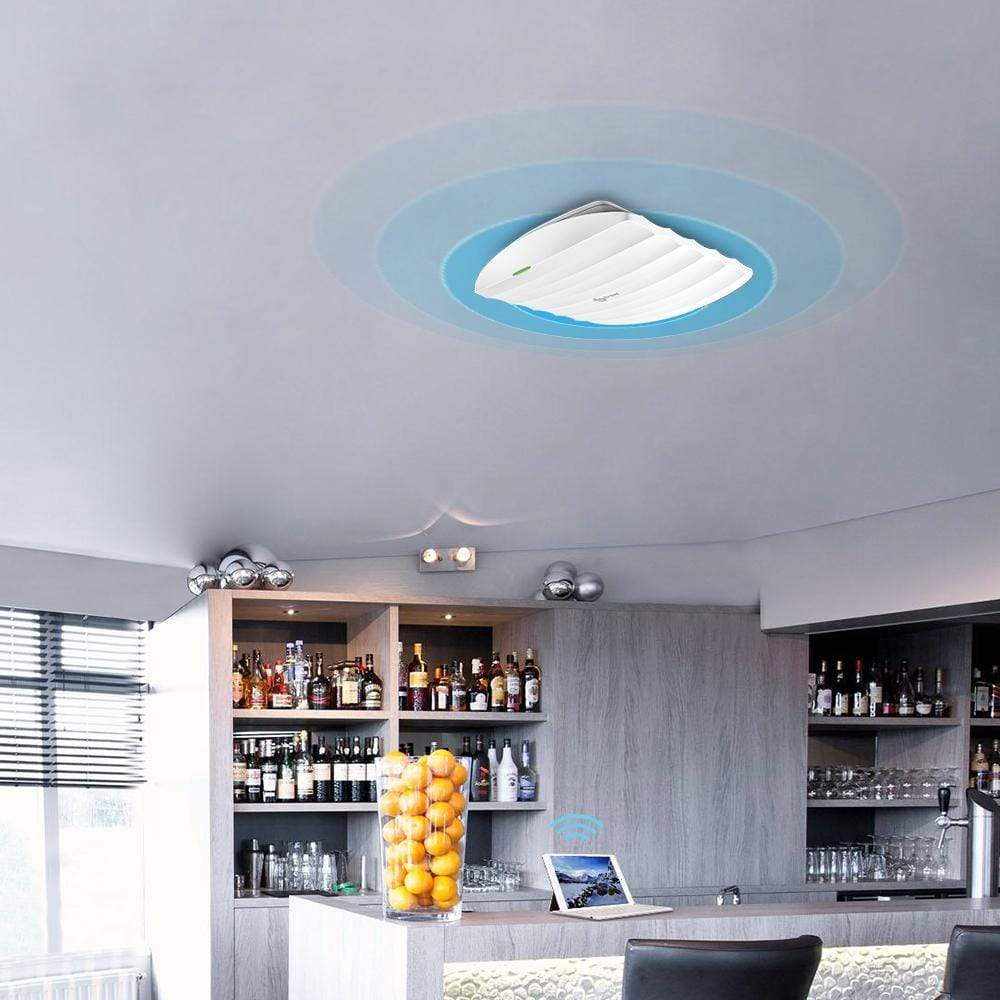

The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Technical Specifications:

Hardware Features
Interface: 1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE)
Button: Reset
Power Supply: 802.3af PoE or external 9VDC/0.6A power supply
Power Consumption: 2.8 W
Dimensions: 7.5 × 6.8 × 1.2 in (189.4 × 172.3 × 29.5 mm)
Antenna Type: Internal 2× 4 dBi Omni
Mounting: Ceiling / Wall Mounting (Kits included)

Wireless Features
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.4–2.4835 GHz
Signal Rate:

• 11n: Up to 300 Mbps (dynamic)
• 11g: Up to 54 Mbps (dynamic)
• 11b: Up to 11 Mbps (dynamic)

Reception Sensitivity:

• 300M: -71 dBm @10% PER
• 150M: -75 dBm @10% PER
• 54M: -78 dBm @10% PER
• 11M: -93 dBm @8% PER
• 6M: -92 dBm @10% PER
• 1M: -96 dBm @8% PER

Wireless Functions: Multiple SSIDs (Up to 8 SSIDs), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power: CE: ≤19 dBm (EIRP), FCC: ≤21 dBm

Management
Omada App: Yes
Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
System Logging Local/Remote Syslog: Yes
SSH: Yes
Web-based Management: HTTP/HTTPS
Management VLAN: Yes

Others
Certification: CE, FCC, RoHS
System Requirements: Microsoft Windows 10/8/7/Vista/XP

What’s in the Box:

• 300Mbps Wireless N Ceiling Mount Access Point EAP115
• Power Adapter
• Mounting Kits
• Installation Guide
