TP-LINK AC750 WIRELESS DUAL BAND 4G LTE ROUTER

TP-Link Archer MR200 AC750 Dual-Band Wi-Fi 5 4G LTE Router

Enjoy 4G Wireless Sharing Everywhere

AC750 Wireless Dual Band 4G LTE Router

Archer MR200

Features:

• Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
• Powerful, integrated antennas provide stable wireless connections and better coverage
• Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
• Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band
• Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

Share Your 4G LTE Network

Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which can achieve download speeds of up to 150Mbps. The Archer MR200 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up.

Great Coverage and Dual Band Wi-Fi

The 4G LTE router creates a simultaneous dual band Wi-Fi network that can deliver data at speeds of up to 733Mbps. The two distinct wireless networks, utilizing the 2.4GHz and 5GHz bands, provide optimized performance and minimize signal interference. The incorporation of advanced antennas and the latest wireless technology allows you to enjoy stable connections and incredible coverage.

No Configuration Required

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Wi-Fi Where You Need It

The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered.

Available WAN Connection

With the inclusion of the WAN/LAN port, the Archer MR200 can also support a wide variety of connection types, including cable, fiber, and DSL modems.

Technical Specifications:

Hardware Features

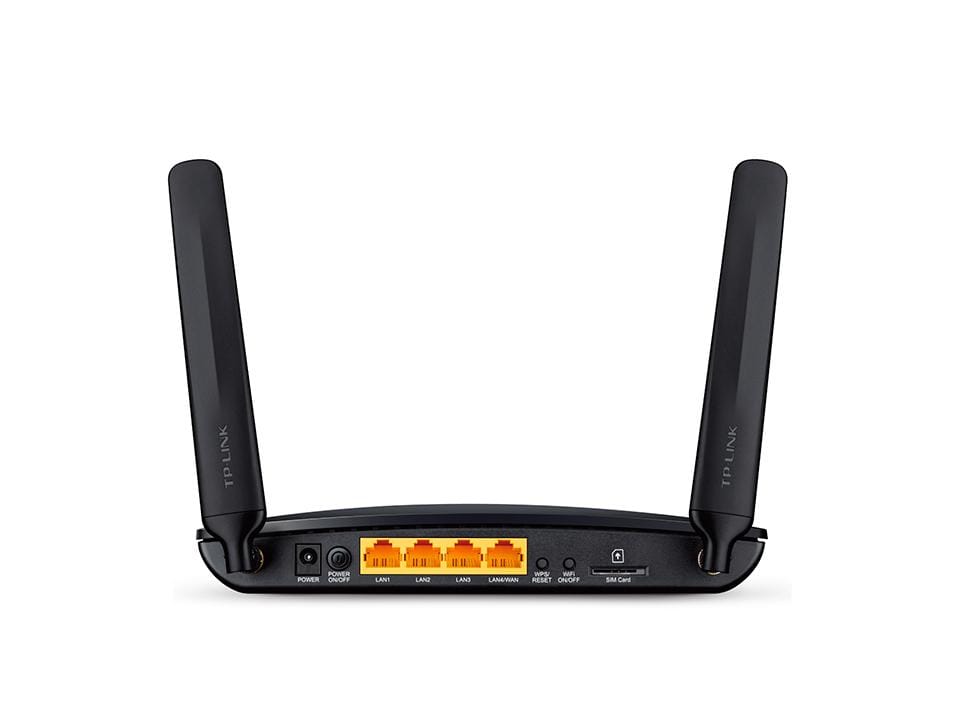

Interface: 3 × 10/100Mbps LAN Ports, 1 × 10/100Mbps LAN/WAN Port, 1 × Micro SIM Card Slot
Button: WPS/Reset Button, Wi-Fi On/Off Button, Power On/Off Button
External Power Supply: 12V / 1A
Dimensions (W × D × H): 7.95 × 5.55 × 1.32 in. (202 × 141 × 33.6 mm)
Antenna: V4/V2/V1 – 2 detachable 4G LTE antennas; V3 – 2 internal 4G LTE antennas

Wireless Features
Wireless Standards: IEEE 802.11ac/n/a (5GHz), IEEE 802.11b/g/n (2.4GHz)
Frequency: 2.4GHz and 5GHz
Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz
Reception Sensitivity:
5GHz – 11a 54M: -74dBm; 11ac HT20: -67dBm; 11ac HT40: -64dBm; 11ac HT80: -60dBm; 11n HT20: -71dBm; 11n HT40: -70dBm
2.4GHz – 11g 54M: -76dBm; 11n HT20: -73dBm; 11n HT40: -67dBm
Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
WAN Failover: Yes
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power: CE < 20dBm (2.4GHz), < 23dBm (5GHz)
Network Type:
4G FDD-LTE: B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
4G TDD-LTE: B38/B39/B40/B41 (2600/1900/2300/2500 MHz)
3G DC-HSPA+/HSPA+/HSPA/UMTS: B1/B8 (2100/900 MHz)

Software Features
Quality of Service: Bandwidth Control
Operating Modes: 3G/4G Router, Wireless Router
WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
Management Features: Access Control, Local Management, Remote Management, reboot schedule
DHCP: Server, Client, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
VPN Pass-Through: PPTP VPN, IPSec VPN, OpenVPN
VPN: PPTP VPN, IPSec VPN, OpenVPN
Access Control: Parental Control, Local Management Control
Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols: Supports IPv4 and IPv6
Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1
IPSec VPN: Supports up to 10 IPSec VPN tunnels

Others
Certification: CE, RoHS
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7/8/8.1/10, macOS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or higher, or other Java-enabled browsers

What’s in the Box:

• AC750 Wireless Dual Band 4G LTE Router (Archer MR200)
• RJ45 Ethernet Cable
• Power Adapter
• Quick Installation Guide
• Micro SIM Card
