TP-Link Archer AX55 AX3000 Dual-Band Gigabit Wi-Fi 6 Router

TP-Link Archer AX55 AX3000 Dual-Band Wi-Fi 6 GbE Router

The New Era of
Home Connectivity

AX3000 Dual-Band Gigabit Wi-Fi 6 Router

Features:

• Next-Gen Gigabit Wi-Fi 6 Speed - 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
• Connect More Devices - OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
• Ultra-Low Latency - Enables more responsive gaming and video chatting.
• Expanded Wi-Fi Coverage - 4x high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
• TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
• Improved Battery Life - Target Wake Time helps your devices to communicate more while consuming less power.
• Compatible with Alexa - Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

The New Era of Home Connectivity

AX3000 Dual-Band Gigabit Wi-Fi 6 Router

Wi-Fi 6 Upgrades Everything

The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Incredible Speed

Drastically improved speeds enable streaming, fast downloading, and gaming—all at the same time. 5 GHz with 160 MHz channel support doubles the bandwidth, enabling 8K video without lag.

More Responsive Experiences

Less Loading Wheels

Enjoy smooth gaming, video streaming, and live feed simultaneously. OFDMA makes your WiFi stronger by allowing multiple clients to share one band at the same time, which cuts latency and jittering.

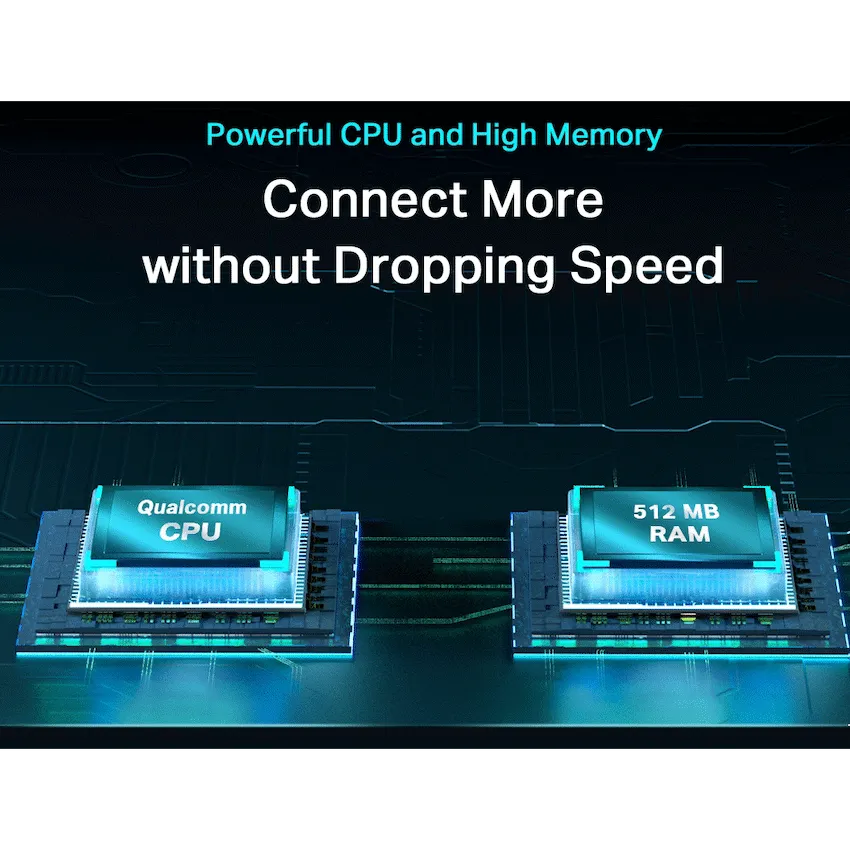

Powerful CPU and High Memory

Connect More without Dropping Speed

Behind the Wi-Fi 6 technology structure are the advanced Qualcomm chipset and high memory. Enjoy fast connections with minimal latency even under a heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.

Improved Cooling Design Consistent Full Output

No heat ups, no throttles. A larger heat sink and refined case design cool the WiFi 6 system and enable your network to stay at top speed in more versatile environments.

WiFi Coverage Throughout Your Home

4x high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.

USB 3.0 Ports

Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.

Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

• WiFi Dead Zone Killer - Eliminate weak signal areas with WiFi coverage for the whole house.
• Smart Roaming - Uninterrupted streaming when moving around your home.
• One WiFi Name - No more switching WiFi network names.

Technical Specifications:

Wireless
Standards and Protocols: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds: AX3000

• 5 GHz: 2402 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax)

WiFi Range: 3 Bedroom Houses, 4× Fixed High-Performance Antennas

• Beamforming: Concentrates wireless signal strength towards clients
• High-Power FEM: Improves transmission power

WiFi Capacity: High, Dual-Band

• OFDMA: Communicates with multiple Wi-Fi 6 clients
• Airtime Fairness: Improves network efficiency
• DFS: Access an extra band to reduce congestion
• 4 Streams: Connect more devices

Working Modes: Router Mode, Access Point Mode

Security
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner

Guest Network: 1× 5 GHz, 1× 2.4 GHz

VPN Server: OpenVPN, PPTP, L2TP
VPN Client: OpenVPN, PPTP, L2TP

WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

Hardware
Processor: Dual-Core CPU

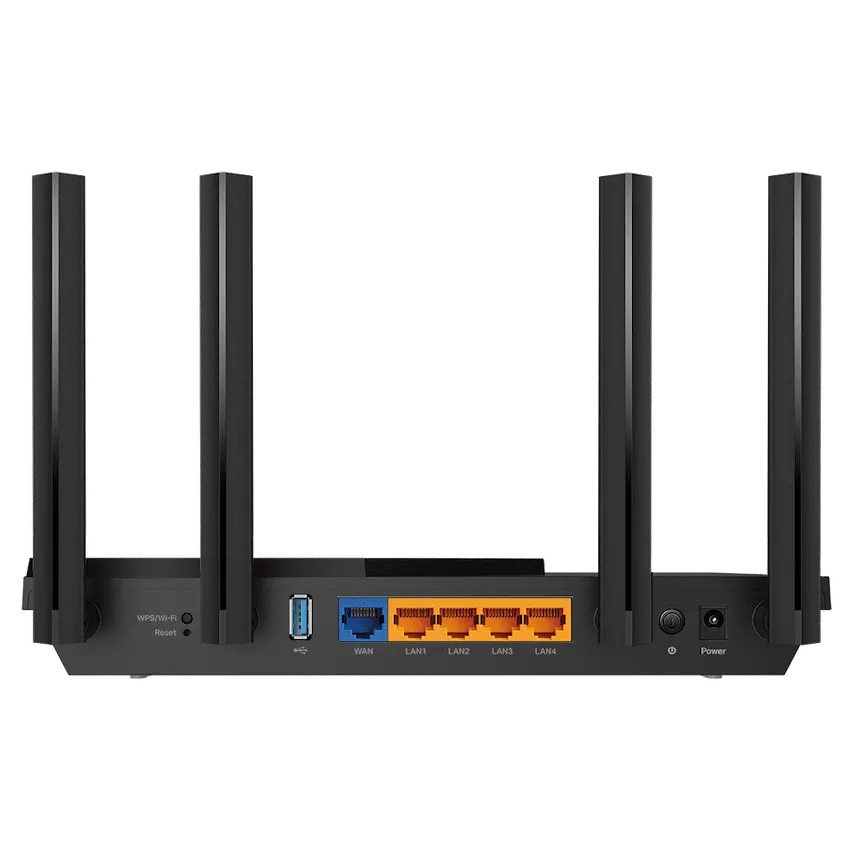

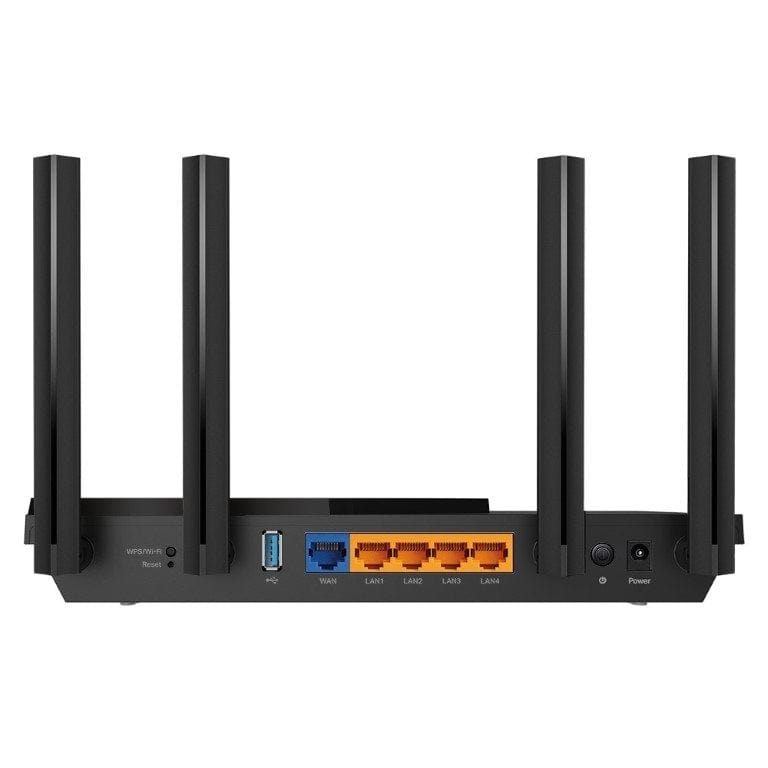

Ethernet Ports: 1× Gigabit WAN, 4× Gigabit LAN

USB Support: 1× USB 3.0 Port

• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
• Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server

Buttons: Wi-Fi/WPS, Power On/Off, Reset

Power: 12 V ⎓ 2 A

Software
Protocols: IPv4, IPv6

Service Kits: HomeShield

OneMesh™: Supported

EasyMesh: Supported, creates seamless Wi-Fi roaming with compatible devices

Parental Controls: HomeShield Parental Controls, Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports

WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Quality of Service: QoS by Device

Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS

NAT Forwarding: Virtual Servers, Port Forwarding, Port Triggering, DMZ, UPnP

IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

DHCP: Address Reservation, DHCP Client List, Server

DDNS: TP-Link, NO-IP, DynDNS

Management Features: Tether App, Webpage

Others
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem if needed; Internet subscription

Certifications: FCC, CE, RoHS

Environment: Operating Temperature: 0℃~40℃, Operating Humidity: 10%~90% non-condensing

Test Data
WiFi Transmission Power: CE: <20dBm(2.4GHz), <23dBm(5.15~5.35GHz), <30dBm(5.47~5.725GHz); FCC: <30dBm(2.4GHz & 5.15~5.825GHz)

WiFi Reception Sensitivity: 2.4GHz & 5GHz detailed MCS level values

Physical
Dimensions (W×D×H): 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm)

What’s in the Box:

• Wi-Fi Router Archer AX55
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
