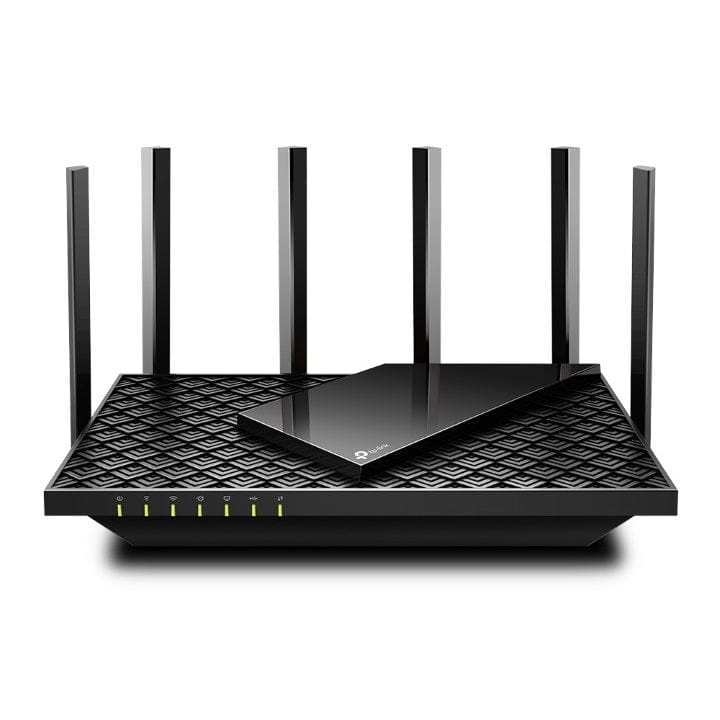

TP-Link Archer AX72 AX5400 Dual-Band Gigabit Wi-Fi 6 Router

TP-Link Archer AX72 AX5400 Dual-Band Gigabit WiFi 6 Router

nn

High-End Wi-Fi 6 for Everyone

nn

AX5400 Dual-Band 6-Stream Gigabit
nWi-Fi 6 Router

nn

Features:

nn

n
• nGigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.

n

• nFully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.

n

• nConnect 100+ Devices – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.

n

• nExtensive Coverage – 6x antennas and Beamforming ensure broad coverage.

n

• nHomeShield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.*

n

• nMore Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.

n

• nUSB Sharing – 1x USB 3.0 port enables easy media sharing and private cloud building.

n

• nEasy Setup – Set up the router in minutes with the Tether app.

n

nn

nn

Wi-Fi 6 Upgrades Everything

nn

The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

nn

Warp Speed for Smooth 8K Streaming

nn

Drastically improved speeds enable streaming, fast downloading, and gaming, all at the same time. Need to go faster? Hop on 5 GHz with full speed-boosting features, to stream multiple 8K videos without lagging.

nn

Extensive Wi-Fi Coverage with Advanced Technology

nn

Enjoy stable Wi-Fi connections even in the kitchen and bedroom. High-Power FEM, 6x Antennas, Beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.

nn

*Same Coverage Performance as Its Brother Archer AX72

nn

nn

Technical Specifications:

nn

Wireless
nStandards and Protocols: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz

nn

WiFi Speeds: AX5400

nn

n
• 5 GHz: 4804 Mbps (802.11ax, HE160)

n

• 2.4 GHz: 574 Mbps (802.11ax)

n

nn

WiFi Range: 3 Bedroom Houses, 6× Fixed High-Performance Antennas

nn

n
• Beamforming: Concentrates wireless signal strength towards clients

n

• High-Power FEM: Improves transmission power

n

• 4T4R: Multiple streams strengthen fault tolerance

n

nn

WiFi Capacity: High, Dual-Band

nn

n
• 4×4 MU-MIMO: Communicates with multiple MU-MIMO clients

n

• OFDMA: Communicates with multiple Wi-Fi 6 clients

n

• Airtime Fairness: Improves network efficiency

n

• DFS: Reduces congestion

n

• 6 Streams: Connect more devices

n

nn

Working Modes: Router Mode, Access Point Mode

nn

Security
nNetwork Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
nHomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner

nn

Guest Network: 1× 5 GHz, 1× 2.4 GHz

nn

VPN Server: OpenVPN, PPTP, L2TP

nn

VPN Client: OpenVPN, PPTP, L2TP

nn

WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

nn

Hardware
nProcessor: 1 GHz Dual-Core CPU

nn

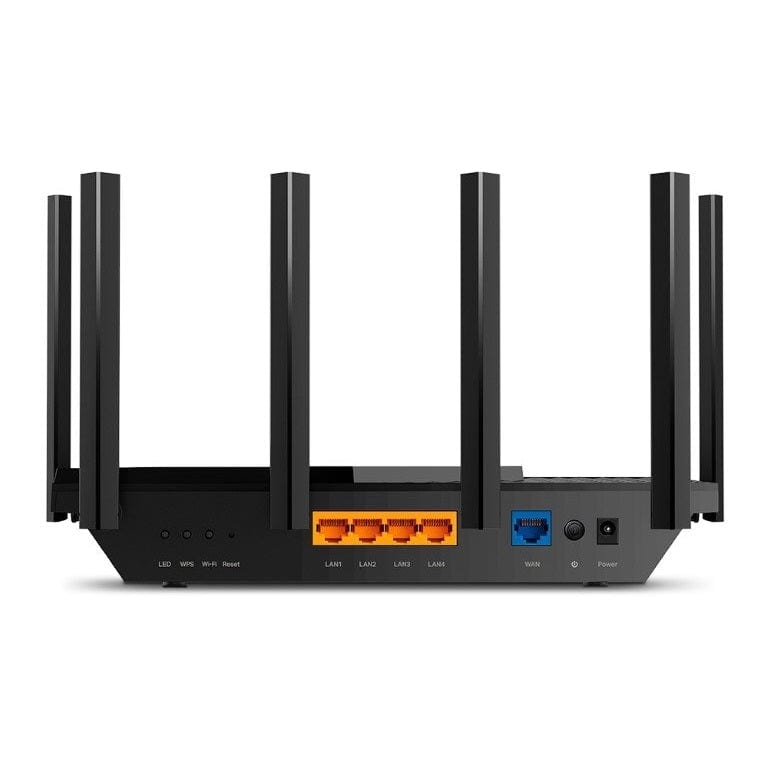

Ethernet Ports: 1× Gigabit WAN, 4× Gigabit LAN

nn

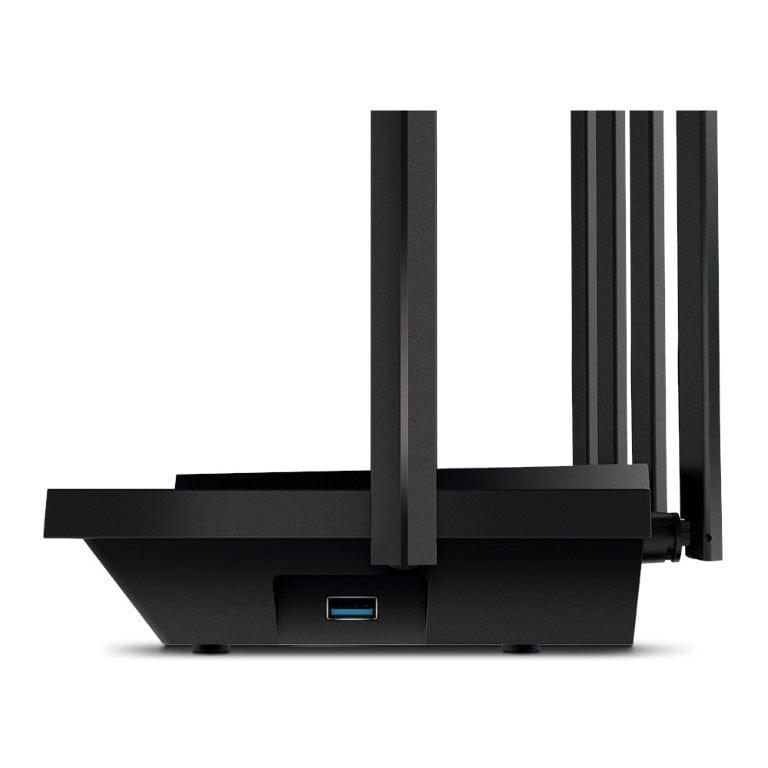

USB Support: 1× USB 3.0 Port

nn

n
• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32

n

• Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server

n

nn

Buttons: Wi-Fi On/Off, Power On/Off, LED On/Off, WPS, Reset

nn

Power: 12 V ⎓ 2.5 A

nn

Software
nProtocols: IPv4, IPv6

nn

Service Kits: HomeShield

nn

OneMesh™: Supported

nn

Parental Controls: HomeShield Parental Controls, Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly/Monthly Reports

nn

WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

nn

Quality of Service: QoS by Device

nn

Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS

nn

NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server

nn

IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

nn

DHCP: Address Reservation, DHCP Client List, Server

nn

DDNS: TP-Link, NO-IP, DynDNS

nn

Management Features: Tether App, Webpage

nn

Others
nSystem Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Internet subscription

nn

Certifications: FCC, CE, RoHS

nn

Environment: Operating Temperature: 0℃~40℃, Storage Temperature: -40℃~70℃, Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

nn

Test Data
nWiFi Transmission Power: CE: <20dBm(2.4GHz), <23dBm(5.15~5.35GHz), <30dBm(5.47~5.725GHz); FCC: <24dBm(5.25~5.35GHz & 5.47~5.725GHz), <30dBm(2.4GHz & 5.15~5.25GHz & 5.725~5.825GHz)

nn

WiFi Reception Sensitivity: 2.4GHz & 5GHz detailed values for 802.11ac/ax MCS levels

nn

Physical
nDimensions (W×D×H): 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)

nn

What’s in the Box:

nn

n
• Wi-Fi Router Archer AX72

n

• Power Adapter

n

• RJ45 Ethernet Cable

n

• Quick Installation Guide

n
