TP-Link Archer MR402 AC1200 Wireless Router - Dual Band 2.4GHz and 5GHz 4G LTE

TP-Link Archer MR402 AC1200 Wireless Router - Dual Band 2.4GHz and 5GHz 4G LTE

nn

Features:

nn

n
• Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

n

• AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band

n

• Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests

n

• Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas

n

• Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

n

nn

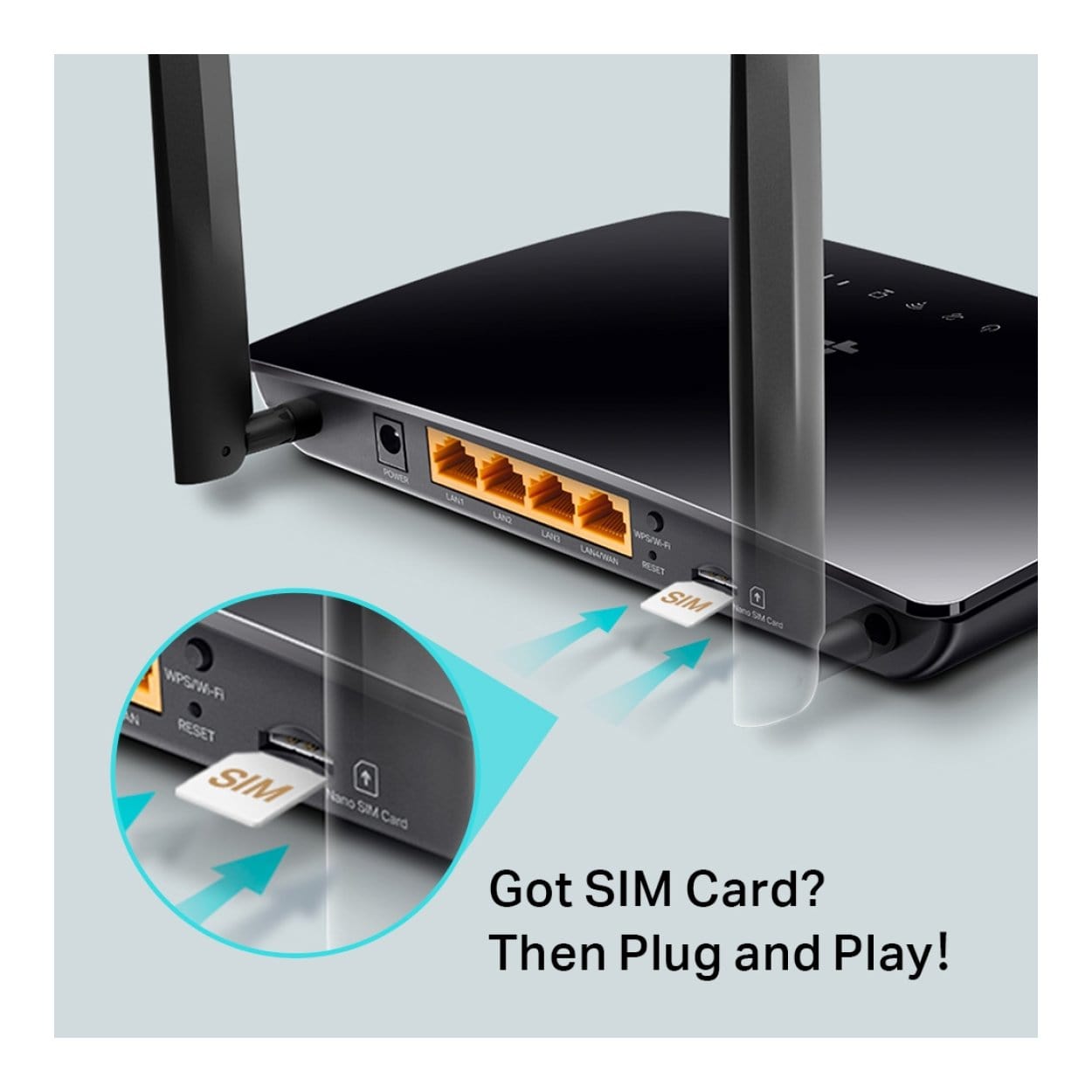

Got SIM Card?
nThen Plug and Play!

nn

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a nano SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

nn

Share Your 4G LTE Network

nn

Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

nn

Wi-Fi Where You Need It

nn

Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a nano SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

nn

Internet Access for up to 64 Devices Simultaneously

nn

Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.

nn

Technical Specifications:

nn

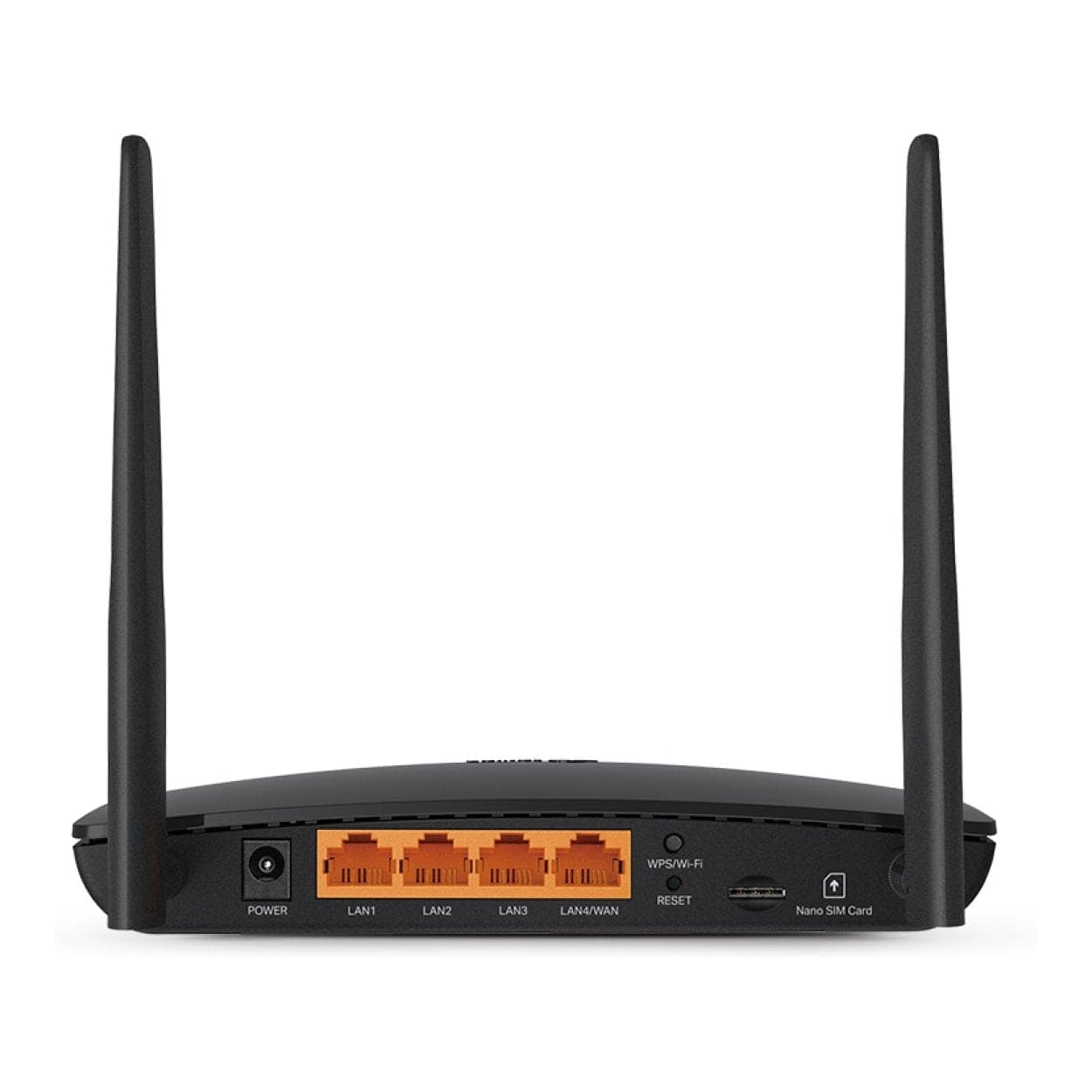

Interface
nLAN Ports: 3 × 10/100 Mbps
nLAN/WAN Port: 1 × 10/100 Mbps
nNano SIM Card Slot: 1
nExternal Antenna Interface: 2 × SMA-F
nButtons: WPS/Wi-Fi Button, Reset Button
nExternal Power Supply: 12V/1A
nDimensions (W × D × H): 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)
nAntenna: 2 × Detachable External 4G LTE Antennas

nn

Wireless Features
nWireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
nFrequency: 2.4 GHz and 5 GHz
nSignal Rate: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
nReception Sensitivity:

nn

n
• n

  5 GHz: 11a 54M: -77 dBm; 11ac VHT20 MCS0: -95.5 dBm; 11ac VHT20 MCS8: -73 dBm; 11ac VHT40 MCS0: -93 dBm; 11ac VHT20 MCS9: -68 dBm; 11ac VHT80 MCS0: -90 dBm; 11ac VHT20 MCS9: -65 dBm

  n

n

• n

  2.4 GHz: 11g 54M: -74.5 dBm; 11n HT20 MCS0: -92 dBm; 11n HT20 MCS7: -73 dBm; 11n HT40 MCS0: -89 dBm; 11n HT40 MCS7: -70 dBm
  n Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
  n WAN Failover: Yes
  n Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
  n Transmission Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

  n

n

nn

Network Type
n4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
nTDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
n3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

nn

Software Features
nQuality of Service: Prioritizes network traffic by device or application
nOperating Modes: 3G/4G Router, Wireless Router
nWAN Type: Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)
nManagement Features: Access Control, Local Management, Remote Management, Reboot Schedule
nDHCP: Server, Client, DHCP Client List, Address Reservation
nPort Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
nDynamic DNS: DynDNS, NO-IP
nVPN: PPTP VPN, OpenVPN
nAccess Control: Parental Control, Local Management Control
nFirewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
nProtocols: Supports IPv4 and IPv6
nGuest Network: 2.4 GHz guest network × 1, 5 GHz guest network × 1

nn

Others
nCertification: CE, RoHS
nPackage Content: AC1200 Wireless Dual Band 4G LTE Router, Archer MR402; RJ45 Ethernet Cable; 1.5 m Power Adapter; Quick Installation Guide; Nano SIM Card
nSystem Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/8.1/10; MAC OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or higher, or other Java-enabled browsers
nEnvironment: Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
