TP-Link Archer MR505 4G+ Cat6 AC1200 Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

TP-Link Archer MR505 4G+ Cat6 AC1200 Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

nn

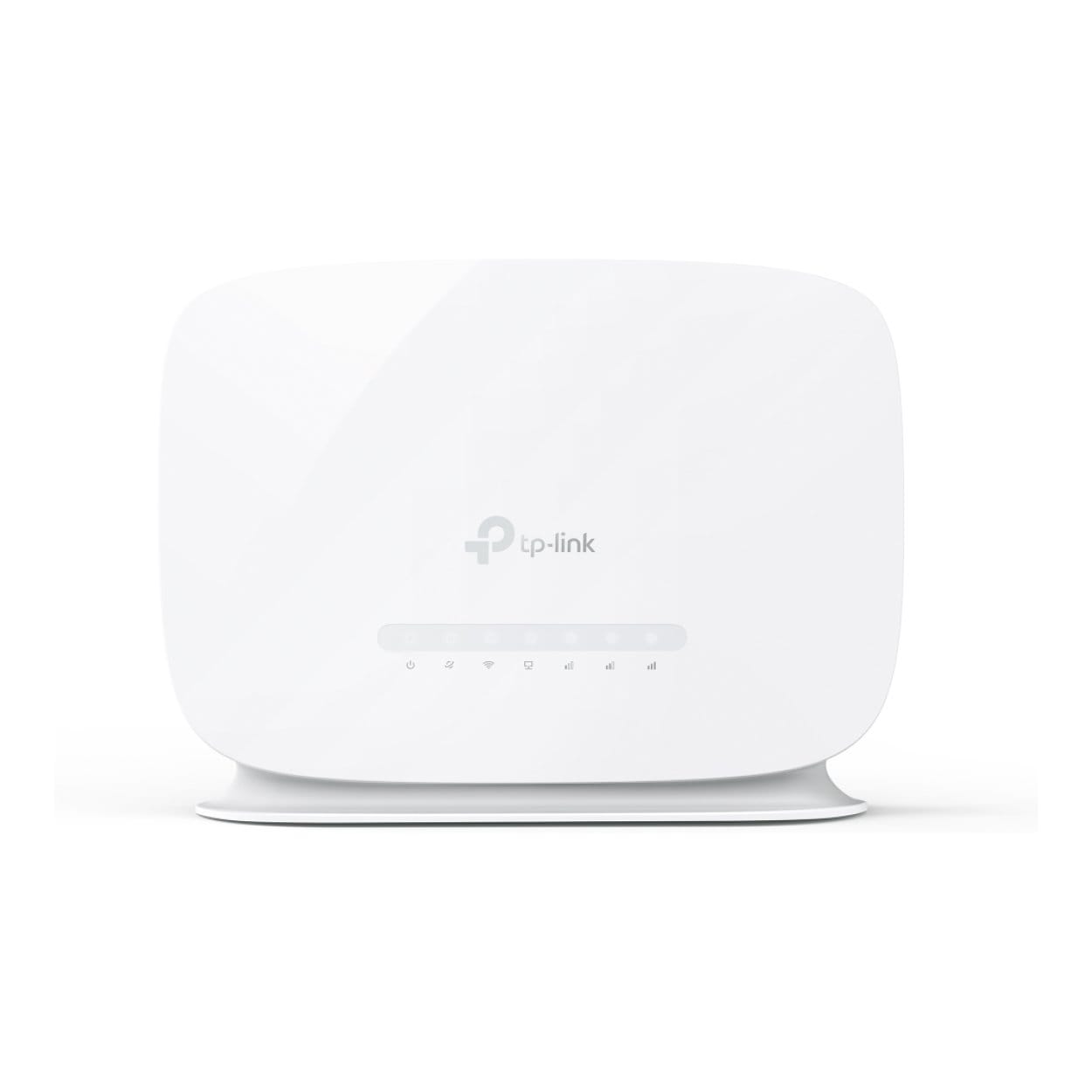

The TP-Link Archer MR505 is an AC1200 dual-band 4G+ LTE Cat6 wireless router that combines fast mobile broadband connectivity with high-performance Wi-Fi for homes, offices and remote locations. Supporting LTE Cat6 with Carrier Aggregation, it delivers download speeds of up to 300 Mbps while providing reliable dual-band wireless coverage for multiple connected devices. Simply insert a nano SIM card to create an instant high-speed wireless network without requiring a fixed-line broadband connection.

nn

Key Features

nn

n
• 4G+ LTE Cat6 mobile broadband with Carrier Aggregation.

n

• LTE download speeds up to 300 Mbps and upload speeds up to 50 Mbps.

n

• AC1200 dual-band Wi-Fi with combined speeds up to 1.2 Gbps.

n

• 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.

n

• Simply insert a nano SIM card for instant internet access.

n

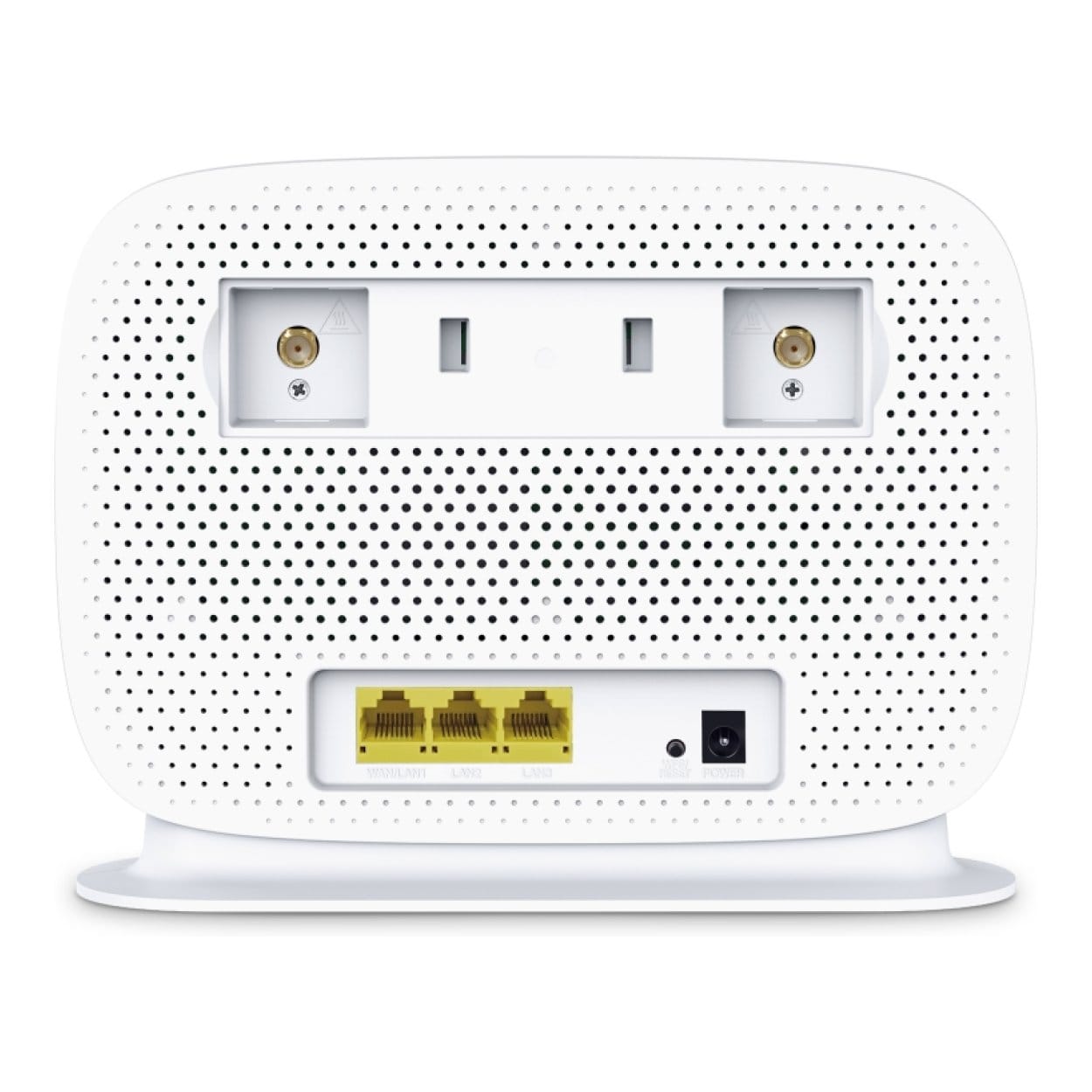

• 1 × Gigabit WAN/LAN port and 2 × Fast Ethernet LAN ports.

n

• Supports TP-Link OneMesh™ for expanded whole-home Wi-Fi coverage.

n

• MU-MIMO and Beamforming technologies improve wireless efficiency.

n

• Easy management using the TP-Link Tether App.

n

• Ideal for homes, holiday properties, temporary offices and rural broadband.

n

nn

nn

Fast 4G+ LTE Connectivity

nn

The Archer MR505 utilises LTE Category 6 technology with Carrier Aggregation to achieve mobile broadband download speeds of up to 300 Mbps. This allows users to enjoy smooth HD streaming, video conferencing, online gaming and fast downloads without requiring a wired broadband connection.

nn

High-Speed AC1200 Dual-Band Wi-Fi

nn

Dual-band wireless connectivity provides up to 300 Mbps on the 2.4 GHz band for everyday browsing and smart devices, while the 5 GHz band delivers speeds of up to 867 Mbps for bandwidth-intensive applications such as 4K streaming and online gaming.

nn

Flexible Networking

nn

A Gigabit WAN/LAN port enables the router to operate with either mobile broadband or a wired internet connection, providing added flexibility for users who require a backup WAN or may transition between fixed-line and LTE services.

nn

Simple Deployment and Smart Management

nn

Simply insert a nano SIM card and power on the router to create an instant wireless network. The TP-Link Tether App allows easy setup, monitoring, parental controls and network management directly from a smartphone or tablet.

nn

nn

Technical Specifications

nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Specification	Details
Brand	TP-Link
Model	Archer MR505
Product Type	4G+ LTE Wireless Router
Mobile Network	4G+ LTE Cat6 with Carrier Aggregation
Maximum LTE Speed	Up to 300 Mbps Download / 50 Mbps Upload
Wi-Fi Standard	IEEE 802.11ac Wave 2, IEEE 802.11a/b/g/n
Wireless Class	AC1200
Wireless Speed	300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
Wireless Bands	Dual-Band (2.4 GHz & 5 GHz)
Wireless Technologies	MU-MIMO, Beamforming, OneMesh™ Support
SIM Slot	1 × Nano SIM
Network Ports	1 × Gigabit WAN/LAN Port, 2 × 10/100 Mbps LAN Ports
Security	WPA/WPA2, SPI Firewall, Guest Network, Access Control
Management	Web Interface, TP-Link Tether App
Operating Modes	4G Router Mode, Wireless Router Mode
Applications	Home Broadband, Remote Offices, Rural Internet Access, Holiday Homes, Temporary Installations and LTE Backup Connectivity
Package Contents	1 × TP-Link Archer MR505 Router n Power Adapter n RJ45 Ethernet Cable n Quick Installation Guide

nn

The TP-Link Archer MR505 provides dependable AC1200 dual-band Wi-Fi combined with fast LTE Cat6 mobile broadband, making it an excellent solution where fixed-line internet is unavailable or as a reliable backup connection. With OneMesh support, flexible WAN connectivity and simple app-based management, it offers fast, stable networking for homes and small businesses.
