TP-Link AX1350 Wireless MU-MIMO Gigabit Ceiling Mount

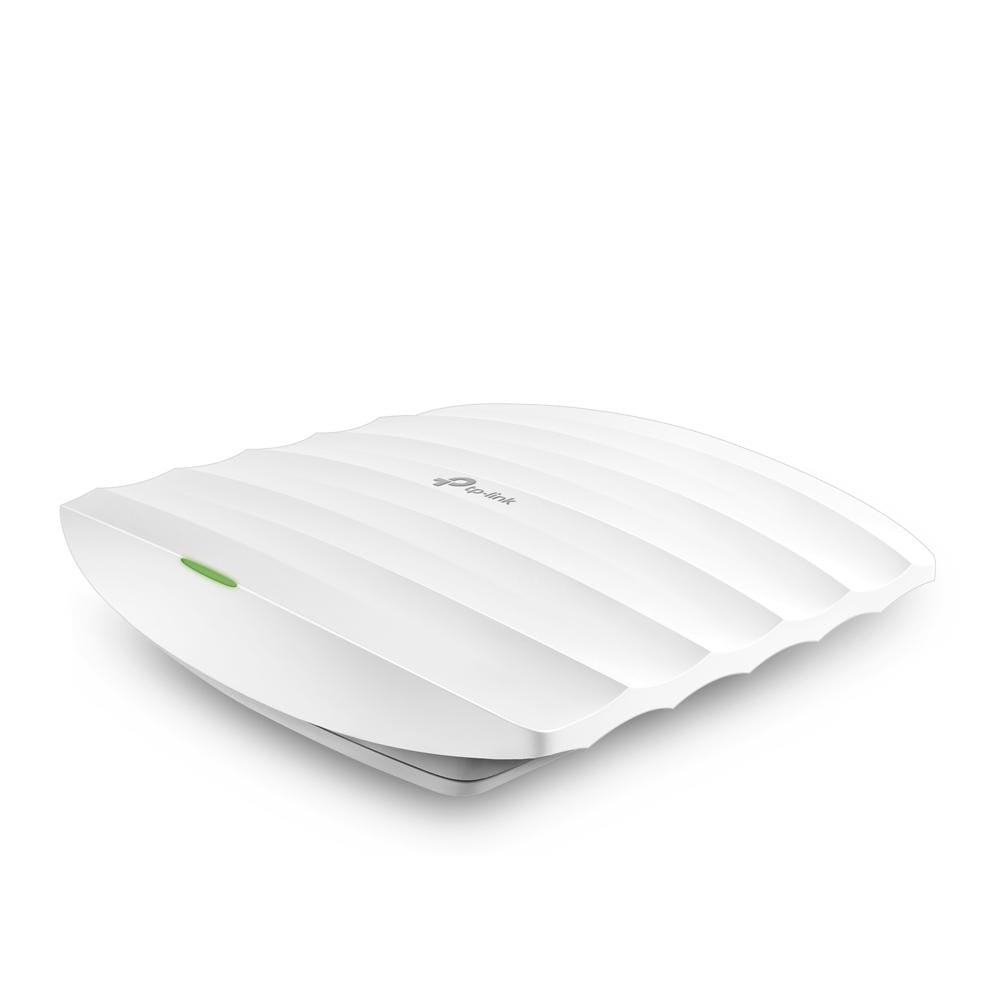

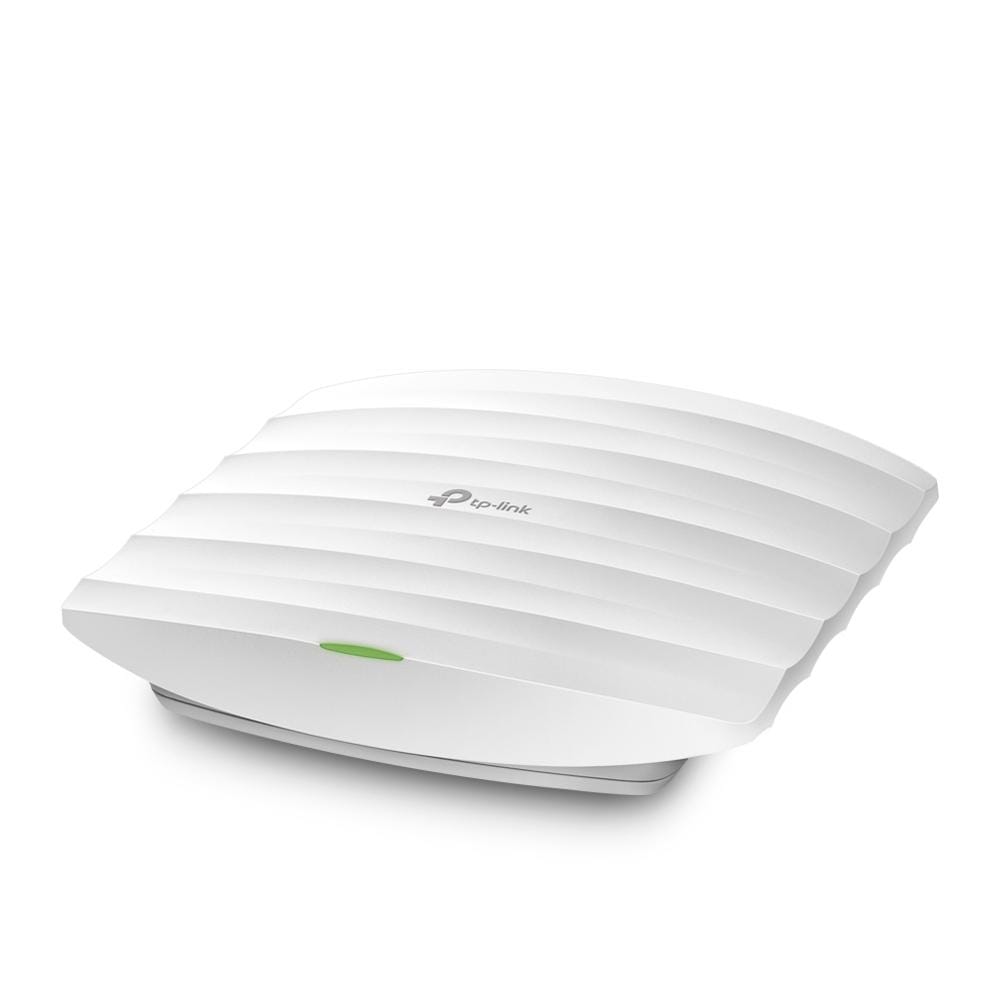

TP-Link EAP225 Wi-Fi 5 Wireless Router Dual-band 2.4GHz and 5GHz Gigabit Ethernet White

Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Features:

• Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
• Free cloud centralized management and Omada app for ultra convenience and easy management
• Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
• Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
• Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose

Cloud Centralized Management
- Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation

EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!

The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

Technical Specifications:

Hardware Features

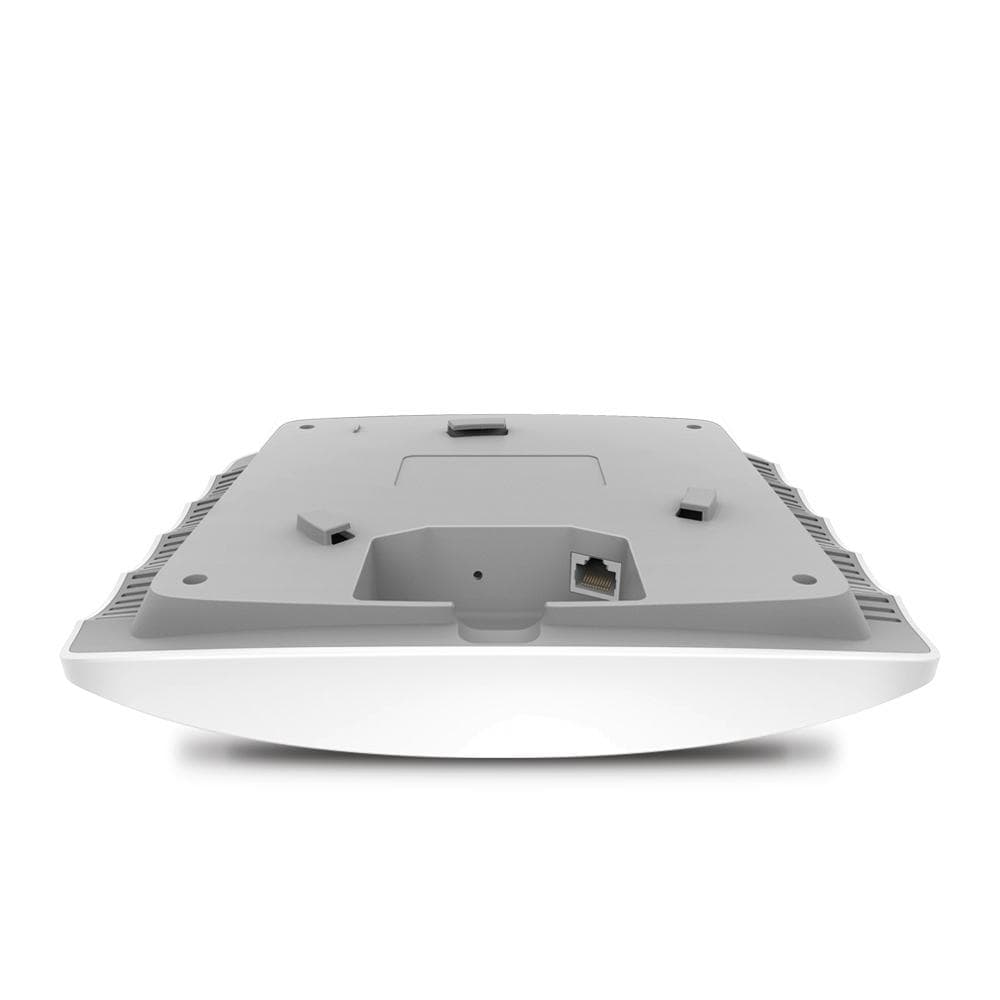

Interface: Gigabit Ethernet (RJ-45) Port ×1 (Support IEEE802.3af PoE and Passive PoE)
Physical Security Lock: Yes
Button: Reset
Power Supply: 802.3af/A PoE, 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption: EU: 10.5 W, US: 12.6 W
Dimensions (W × D × H): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna: 3 Internal Omni (2.4GHz: 4 dBi, 5GHz: 5 dBi)
Mounting: Ceiling / Wall Mounting (Kits included)

Wireless Features
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4GHz and 5GHz
Signal Rate: 5GHz: Up to 867 Mbps, 2.4GHz: Up to 450 Mbps
Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), Seamless Roaming, Band Steering, Load Balance, MU-MIMO, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support
Transmission Power: CE: ≤20 dBm (2.4GHz, EIRP), ≤23 dBm (5GHz, EIRP); FCC: ≤24 dBm (2.4GHz), ≤22 dBm (5GHz)

Management Features
Omada App: Yes
Omada Cloud Controller: Yes
Centralized Management: Omada Hardware Controller OC300, Omada Hardware Controller OC200, Omada Software Controller, Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, not supported by EAP225 V3.20)
Omada Controller Software: Yes
Cloud Access: Yes, through OC300, OC200, Omada Software Controller, Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, not supported by EAP225 V3.20)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
System Logging Local/Remote Syslog: Yes
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller; Supported by EAP225 V3.0, V4.0 and above, not supported by EAP225 V3.20)

Others
Certification: CE, FCC, RoHS
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Linux

What’s in the Box:

• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
