TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE

TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE

nn

MAXtream TDMA

nn

23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission.

nn

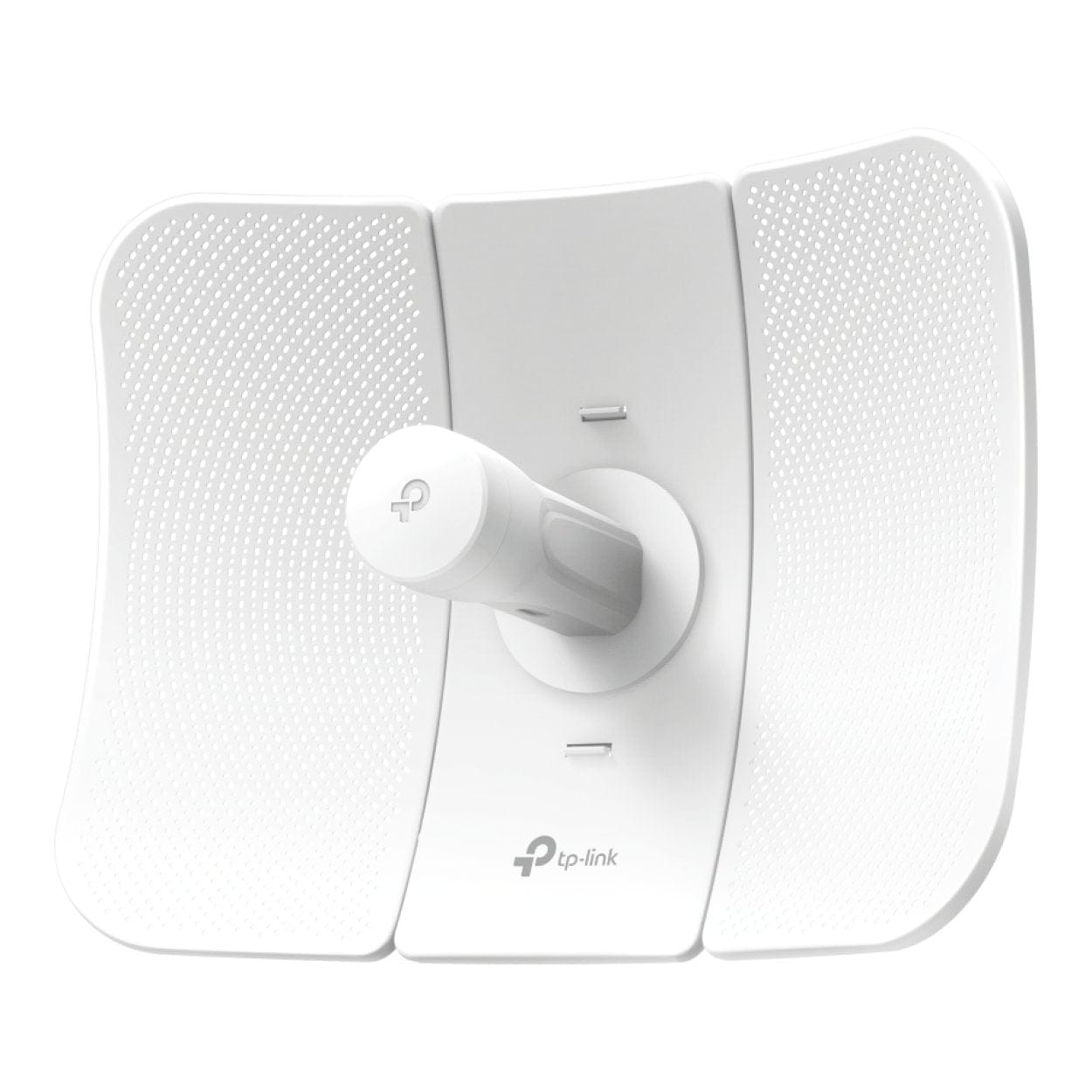

Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission

nn

With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking transmission up to 20 km.

nn

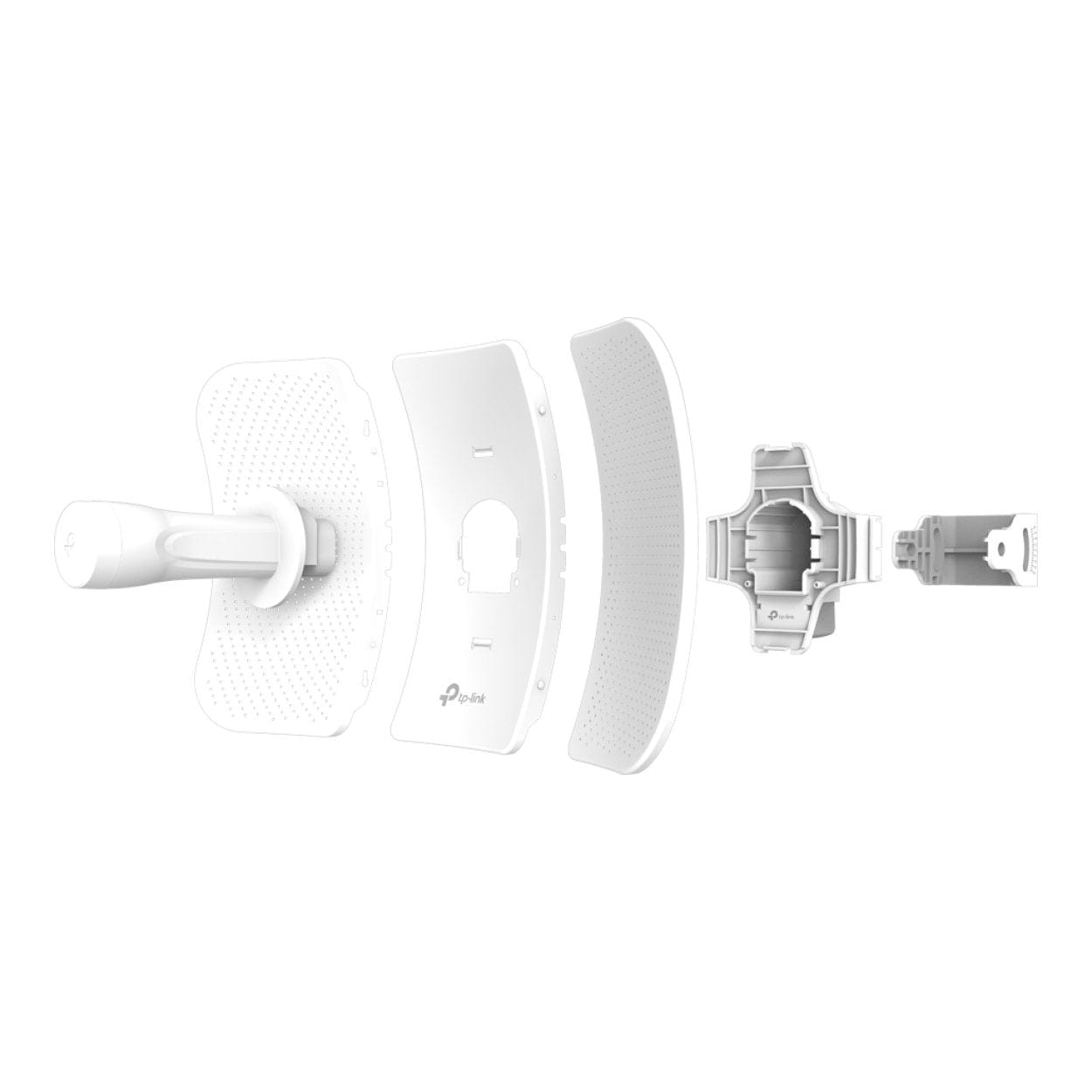

Stable Structural Design and Flexible Installation

nn

n
• Snap-lock parts make assembly simple and convenient

n

• Pole mount kits and the freedom of three-axis alignment facilitate flexible installation

n

• Sturdy design ensures stability in windy conditions

n

nn

Compact and Lightweight Packaging

nn

Small and lightweight boxes benefit shipping, logistics and retail.

nn

Specifications:

nn

HARDWARE FEATURES

nn

Processor: Qualcomm 560MHz CPU, MIPS 74Kc

nn

Memory: 64MB DDR2 RAM,8MB Flash

nn

Interface: 1 10/100: Mbps Shielded Ethernet Port (LAN/POE), 1 Reset Button

nn

Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

nn

Voltage range: 16-27VDC

nn

Dimensions ( W x D x H ): 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)

nn

Antenna Gain: 23dBi

nn

Antenna Beamwidth: 7°(Azimuth), 10°(Elevation)

nn

Protection: 15KV ESD Protection, 6KV Lightning Protection

nn

Enclosure Material: Outdoor PC stabilized plastic

nn

Weatherproof: IP65 water and dust proof design

nn

WIRELESS FEATURES

nn

Wireless Standards: IEEE 802.11a/n

nn

Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)

nn

Wireless Speeds:

nn

n
• Up to 150Mbps (40MHz,Dynamic)

n

• Up to 72.2Mbps (20MHz,Dynamic)

n

• Up to 36.1Mbps (10MHz,Dynamic)

n

• Up to 18.05Mbps (5MHz,Dynamic)

n

nn

Frequency: 5.15~5.85GHz *Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

nn

Transmission Power: Max. 23dBm (Adjustable power by 1dBm)

nn

SOFTWARE FEATURES

nn

IPv6: Yes

nn

Network Configuration

nn

n
• WAN: Static/Dynamic/PPPoE/L2TP/PPTP

n

• LAN: Static/Dynamic/DHCP

n

• Forwarding: ALG/UPnP/Virtual Server/Port Trigger

n

• Security: SPI Firewall/ Ping Forbidden/DoS Protection

n

• Access Control

n

• Static Routing

n

• Bandwidth Control

n

• IP & MAC Binding

n

nn

Wireless Configurations

nn

n
• Pharos MAXtream TDMA Technology

n

• Selectable Channel Width: 5/10/20/40MHz

n

• Auto Channel Selection

n

• Transmit Power Control

n

• Dynamic Frequency Selection(DFS)

n

• WDS Enable/Disable

n

• Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,

n

• 64/128/152-bit WEP Encryption

n

• SSID Broadcast Enable/Disable

n

• Multi-SSID with VLAN Tagging(AP Mode only)

n

• Distance/ACK Timeout Setting

n

• Wireless MAC Address Filter

n

• Wireless Advanced:

n

• Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

n

• Long Range PtP

n

nn

Management Features

nn

n
• Discovery and Remote Management via Pharos Control application

n

• HTTP/HTTPS Web-based management

n

• System log

n

• SNMP Agent(v2c)

n

• Ping Watch Dog

n

• Dynamic DDNS

n

• SSH Server

n

nn

System Tools

nn

n
• Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory

n

• Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP

n

• Spectrum Analyzer

n

• Speed Test

n

• Ping

n

• Traceroute

n

• Antenna Alignment

n

nn

System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications
