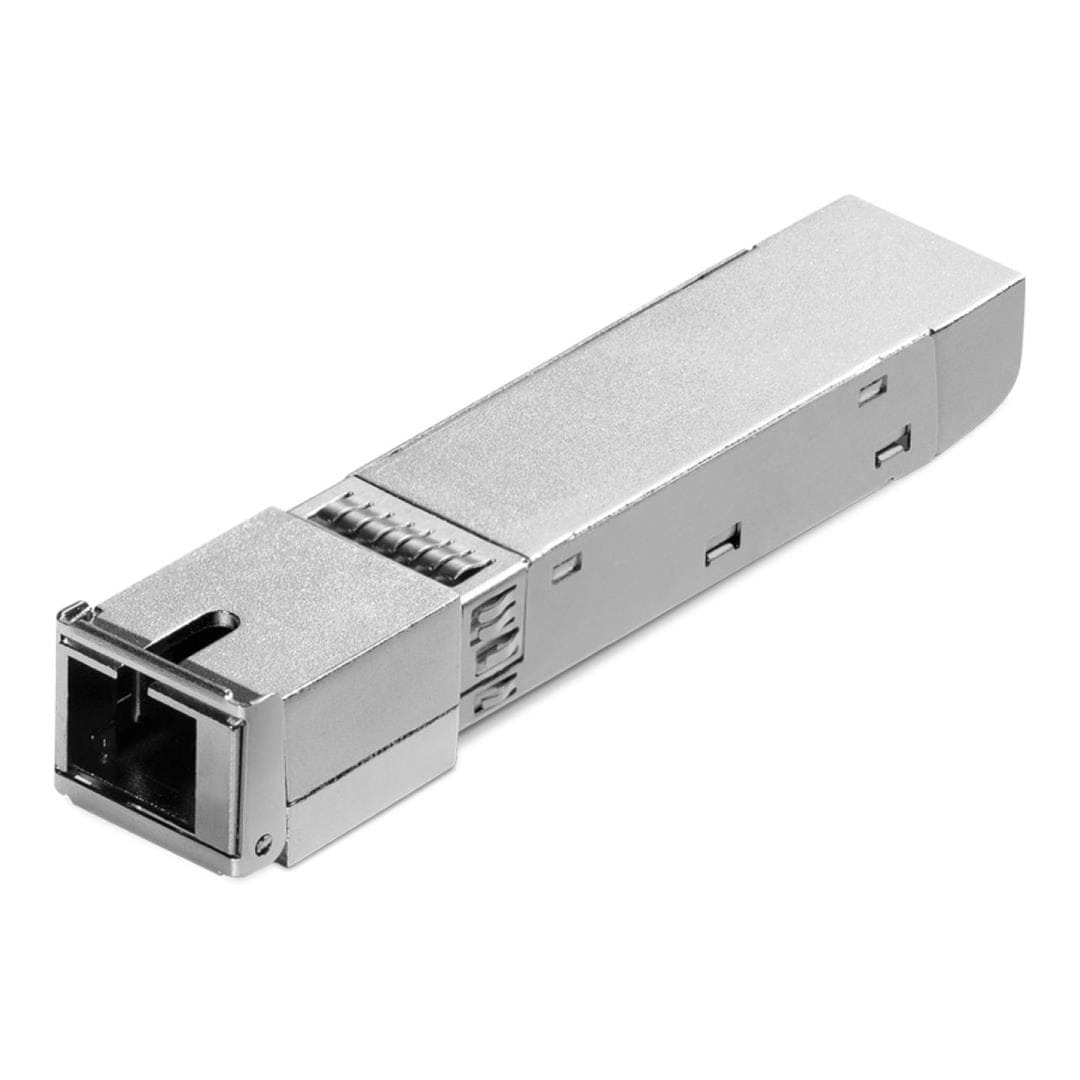

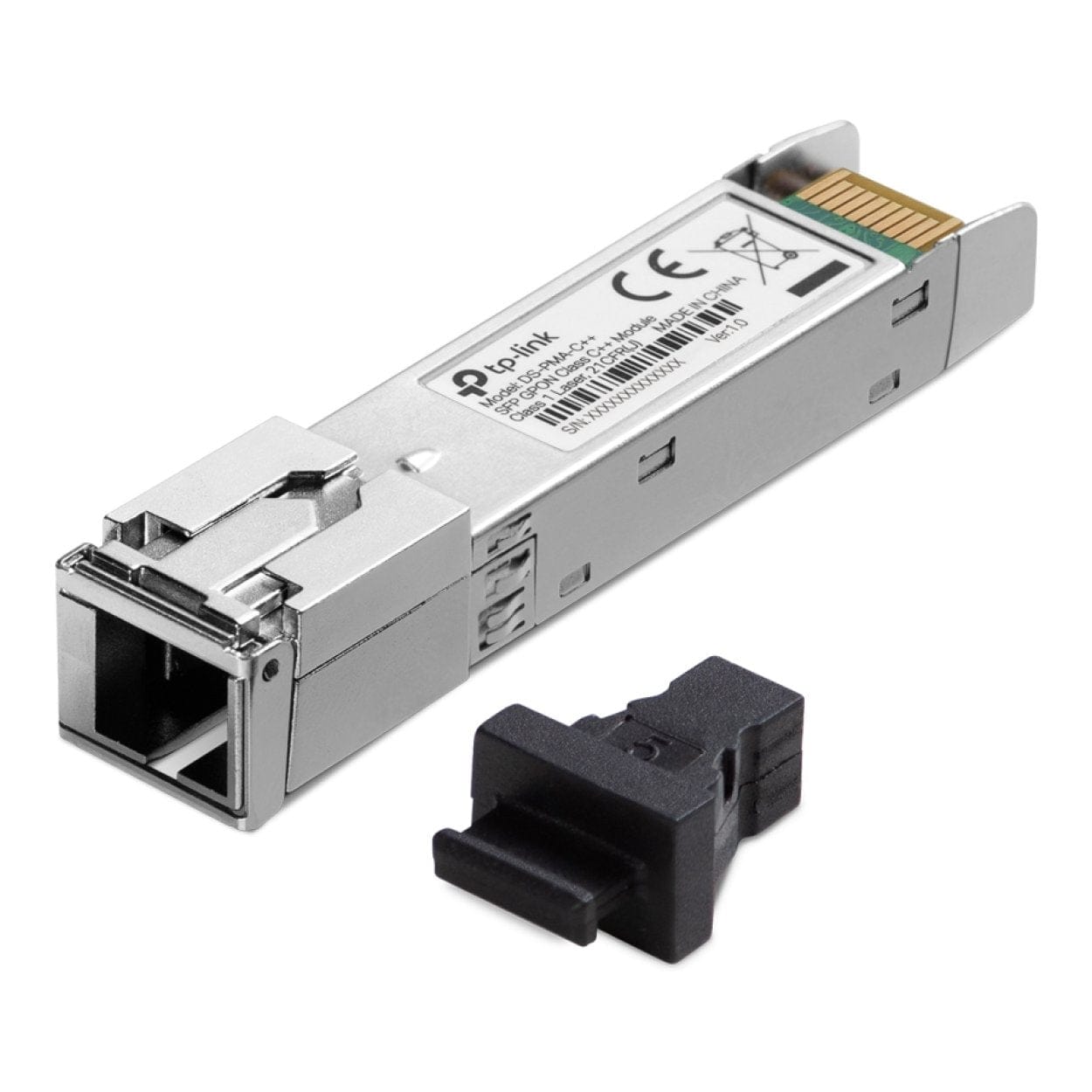

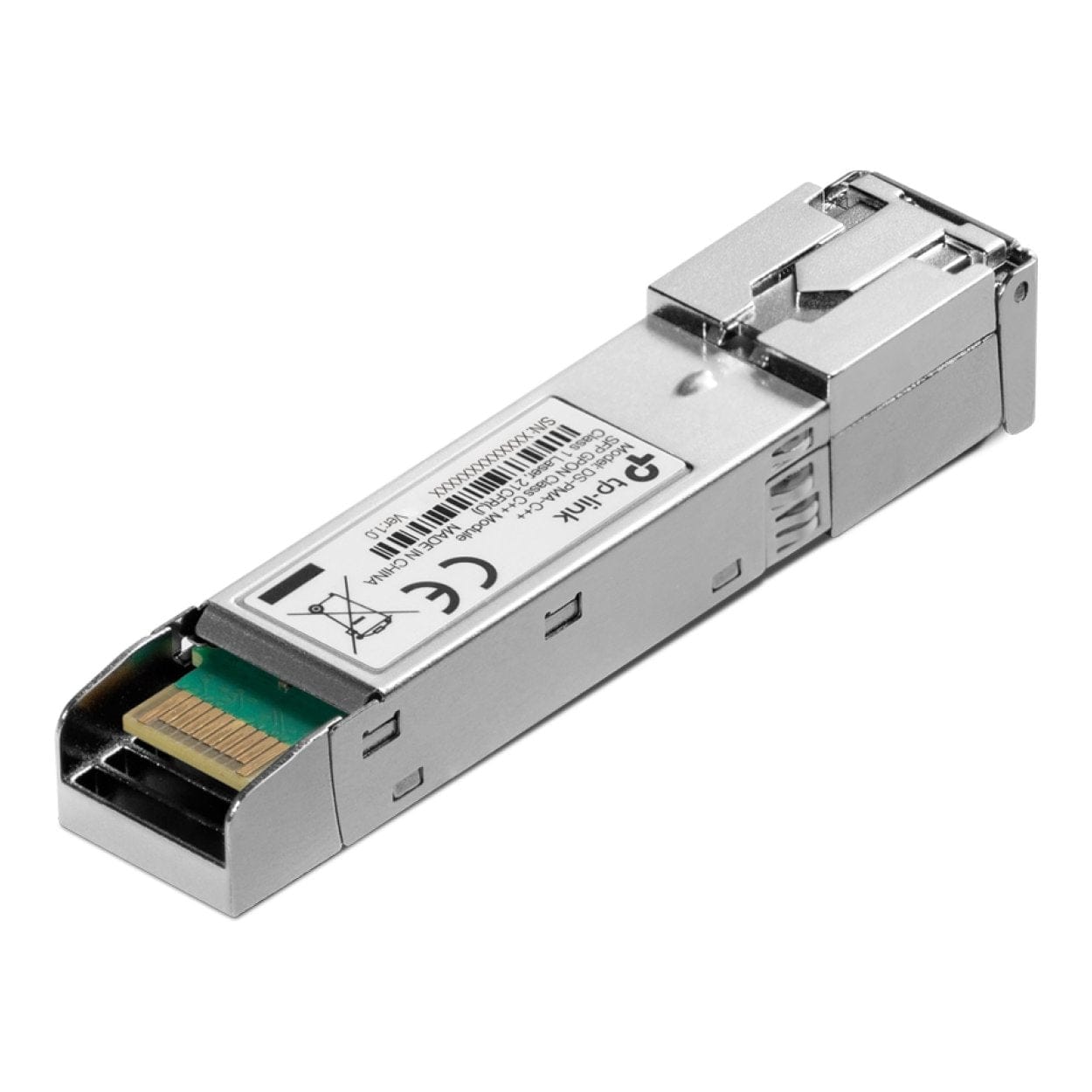

TP-Link DS-PMA-C++ SFP GPON Network Transceiver Module

TP-Link DS-PMA-C++ SFP GPON Network Transceiver Module

nn

Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.

nn

n
• Enables multi-gig fiber internet connections up to 2.488 Gbps downstream and 1.244 Gbps upstream.*

n

• Hot swapping feature allows quick and easy installation and application.

n

• Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring.

n

nn

Specifications:

nn

Wave Length: Tx: 1490 nm, Rx: 1310 nm

nn

Connector: Device: GPON SFP

nn

Fiber: SC/UPC

nn

Fiber Type: Single Fiber (9/125 um)

nn

Data Rate: Tx: 2488.32 Mbps, Rx: 1244.16 Mbps

nn

Power Level: Class C++

nn

Tx Optical Power: +6 dBm – +8 dBm

nn

Rx Sensitivity: < -31 dBm

nn

Extinction Ratio: > 8.2 dB

nn

Rx Optical Power Tolerance: > -12 dBm

nn

Transmission Distance: Max. 60 km

nn

Hot Swap: Yes

nn

Nominal Voltage: 3.3 V (< ± 5ï¼…)

nn

Diagnostic Function: Monitors parameters such as voltage, transceiver power, and temperature

nn

Electrical Level

nn

n
• Data Interface: LVPECL

n

• Control Interface: LVTTL
