TP-Link EAP110-Outdoor Wireless Access Point 300 Mbit/s Power over Ethernet (PoE)

TP-Link EAP110-Outdoor Wireless Access Point 300 Mbit/s Power over Ethernet (PoE)

nn

Enjoy Wi-Fi Outside, Finally

nn

Features:

nn

n
• Built for outdoor Wi-Fi applications

n

• Up to 300Mbps Wi-Fi with 2x2 MIMO technology

n

• High transmission power and high gain antennas provide a long-range coverage area

n

• Durable, weatherproof enclosure to withstand fair and foul weather

n

• Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation

n

• Free cloud centralized management and Omada app for ultra convenience and easy management

n

• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

n

• Supports management vlan for an enhanced network management

n

nn

nn

Weatherproof Enclosure with IP65 Certification

nn

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

nn

Wi-Fi That Goes the Distance

nn

With high transmission power and two high-gain omnidirectional antennas,
nEAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters in outdoor settings.

nn

Supports Passive PoE
nfor Easy Outdoor Set up

nn

Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.

nn

Flexible
nInstallation Options

nn

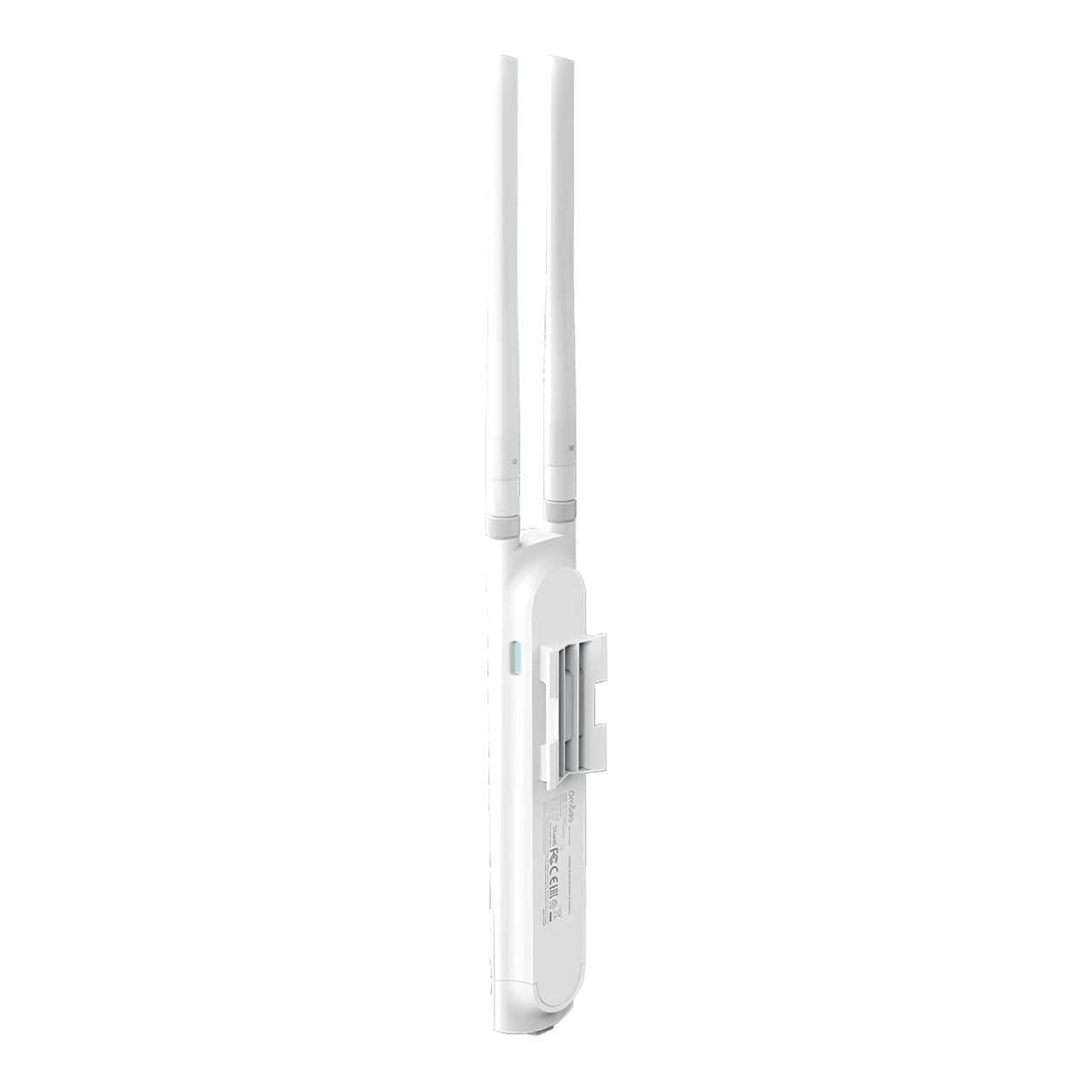

Secure access points to walls or poles with the mounting kits provided.

nn

nn

n

nn

Technical Specifications:

nn

Hardware Features

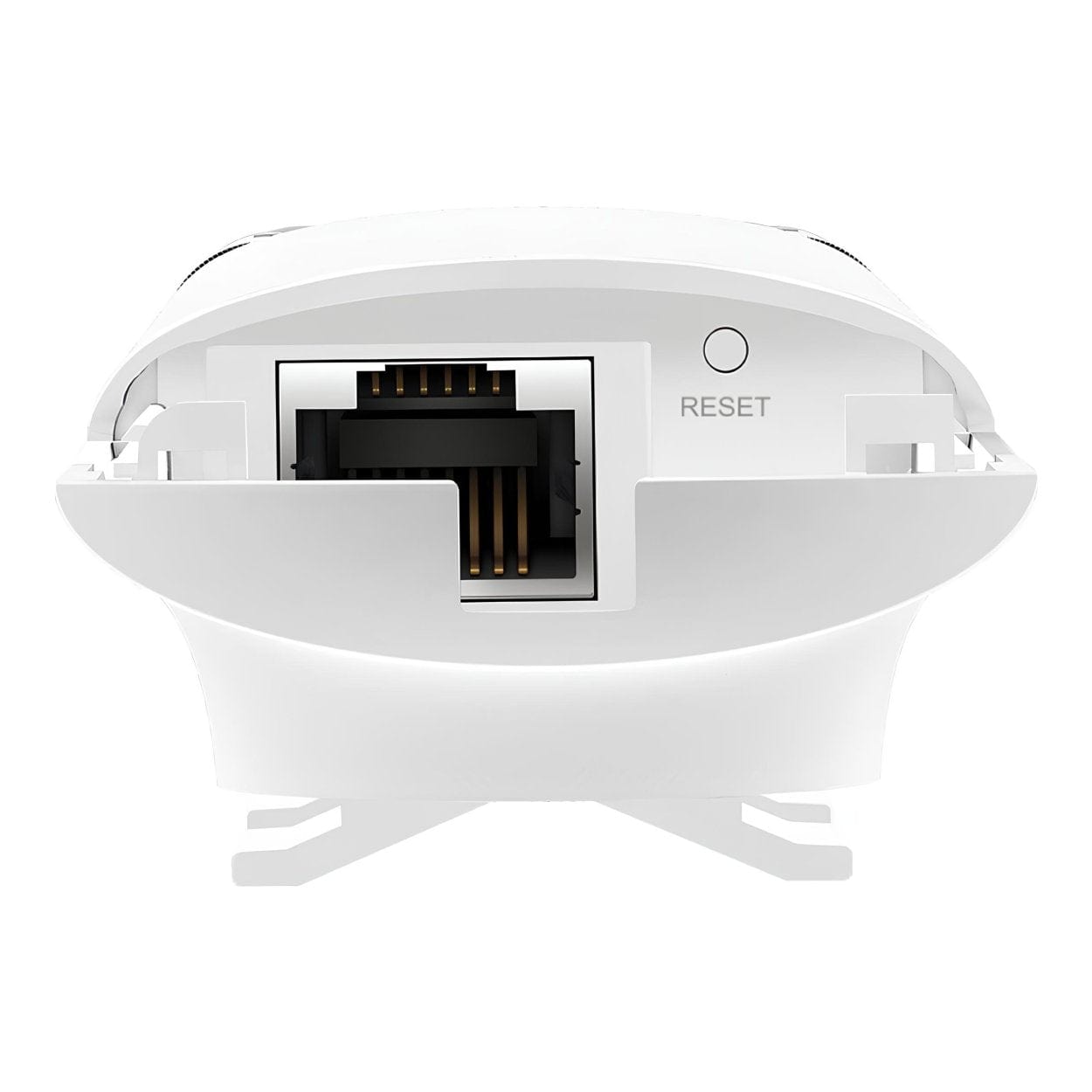

nInterface: Fast Ethernet (RJ-45) Port ×1 (Support Passive PoE)
nButton: Reset
nPower Supply: 24VDC / 0.6A Passive PoE Supply
nPower Consumption: 6.3 W
nDimensions (W × D × H): 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
nAntenna Type: 2×5dBi External Omni waterproof
nWeatherproof Enclosure: IP65
nMounting: Pole / Wall Mounting (Kits included)
nWatch Dog: Yes

nn

Wireless Features
nWireless Standards: IEEE 802.11n/g/b
nFrequency: 2.4GHz
nSignal Rate: 11n: Up to 300Mbps (dynamic), 11g: Up to 54Mbps (dynamic), 11b: Up to 11Mbps (dynamic)
nTransmit Power: CE: ≤20dBm, FCC: ≤30dBm
nWireless Functions: Multiple SSIDs (Up to 8 SSIDs), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), Load Balance, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
nWireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

nn

Management
nOmada App: Yes
nAuranet Controller Software: Yes
nCentralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
nCloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
nEmail Alerts: Yes
nLED ON/OFF Control: Yes
nManagement MAC Access Control: Yes
nSNMP: Yes
nSystem Logging Local/Remote Syslog: Yes
nTelnet: Yes
nSSH: Yes
nWeb-based Management: HTTP/HTTPS
nL3 Management: Yes
nMulti-site Management: Yes
nManagement VLAN: Yes

nn

Others
nCertification: CE, FCC, RoHS

nn

System Requirements

nn

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10

nn

What’s in the Box:

nn

n
• 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor

n

• Passive PoE Adapter

n

• Power Cord

n

• Mounting Kits

n

• Waterproof Rubber Insert

n

• Waterproof Antennas

n

• Installation Guide
