TP-Link EAP653 Promotion: Buy 10 X EAP653 And Get 1 Free OC200 TP-PROMO6

TP-Link EAP653 Promotion: Buy 10 X EAP653 And Get 1 Free OC200 TP-PROMO6

Purchase ten TP-Link EAP653 Wi-Fi 6 access points and receive one OC200 optical modem free. The EAP653 delivers high-speed wireless connectivity for enterprise environments. This bundle offers a cost-effective solution for expanding network coverage with reliable hardware.

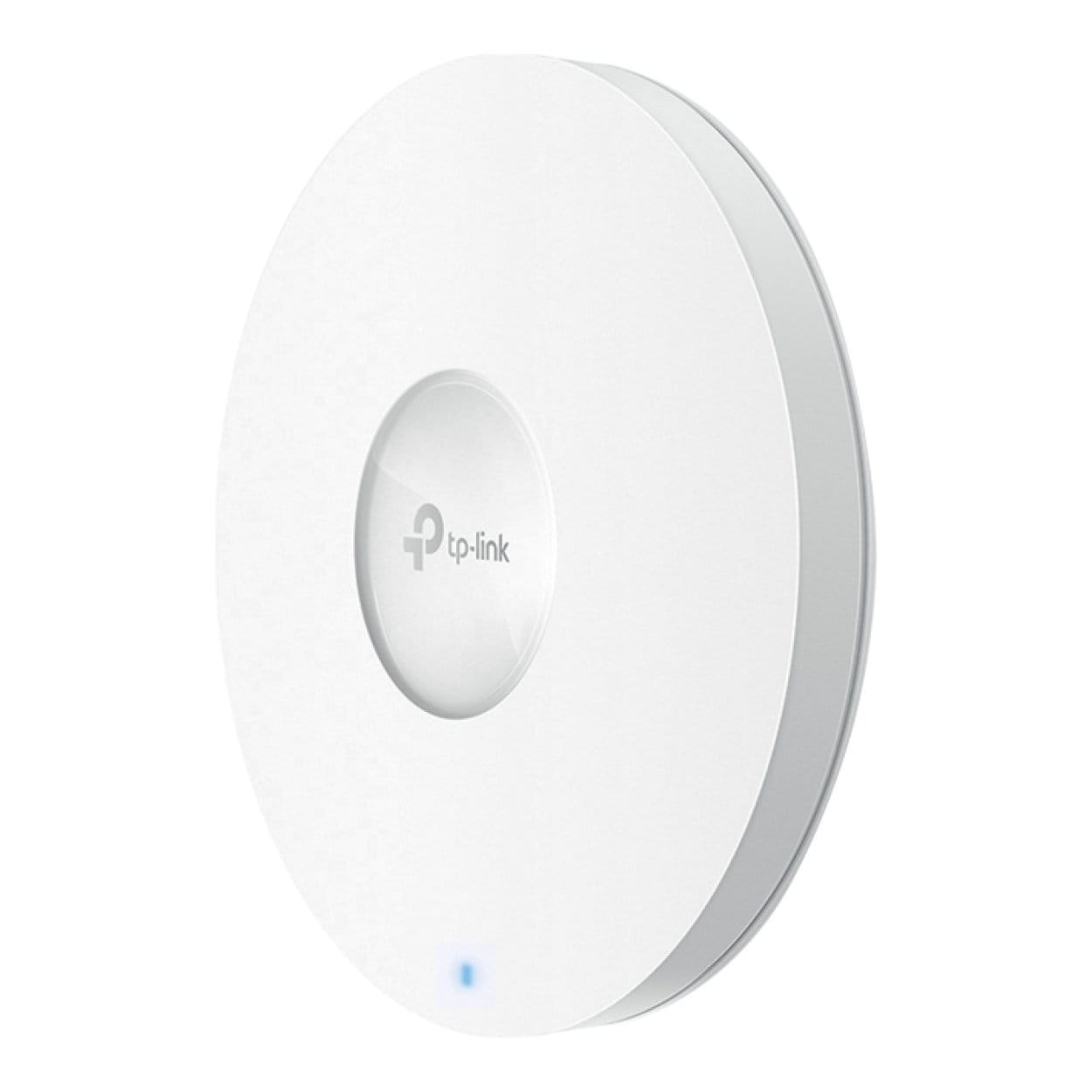

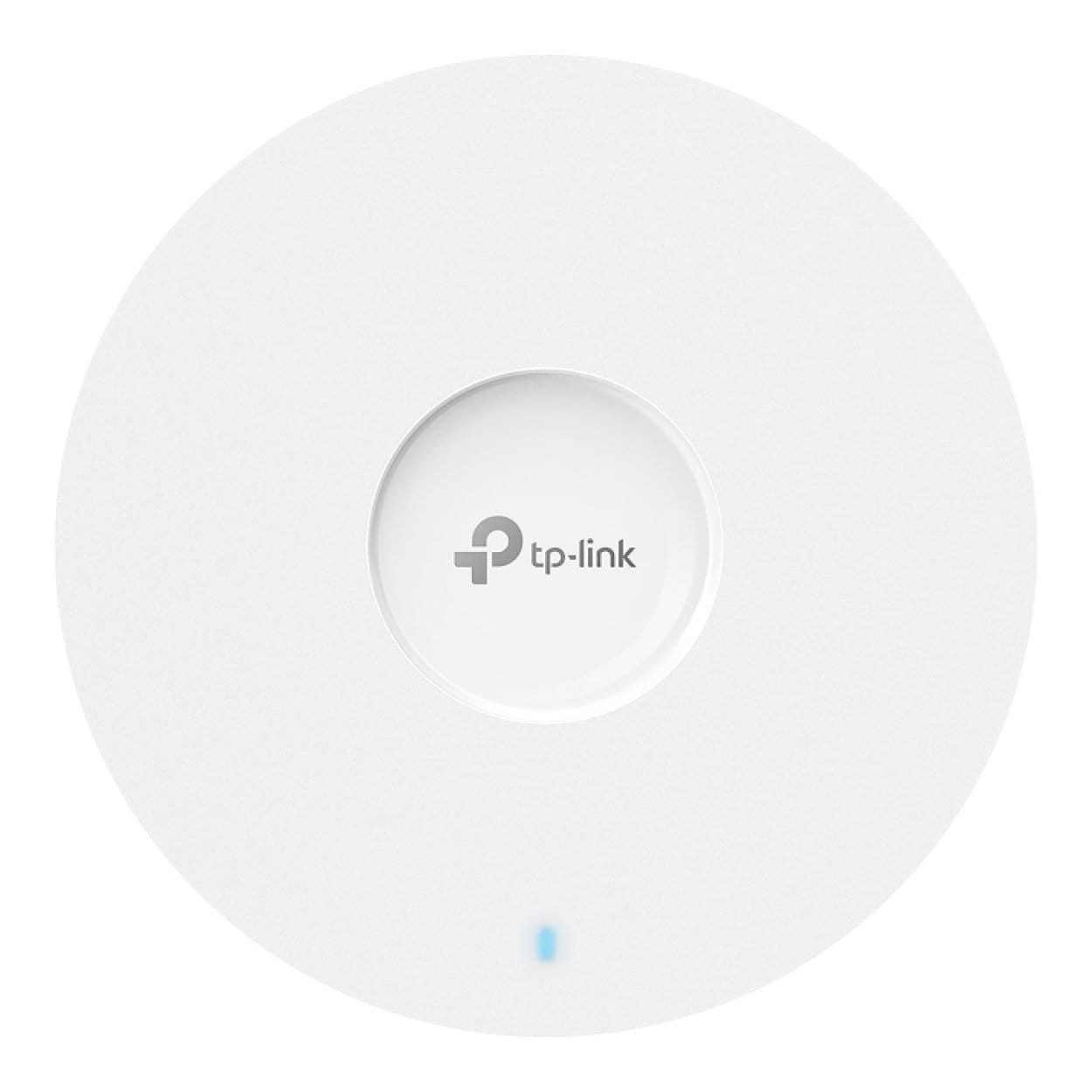

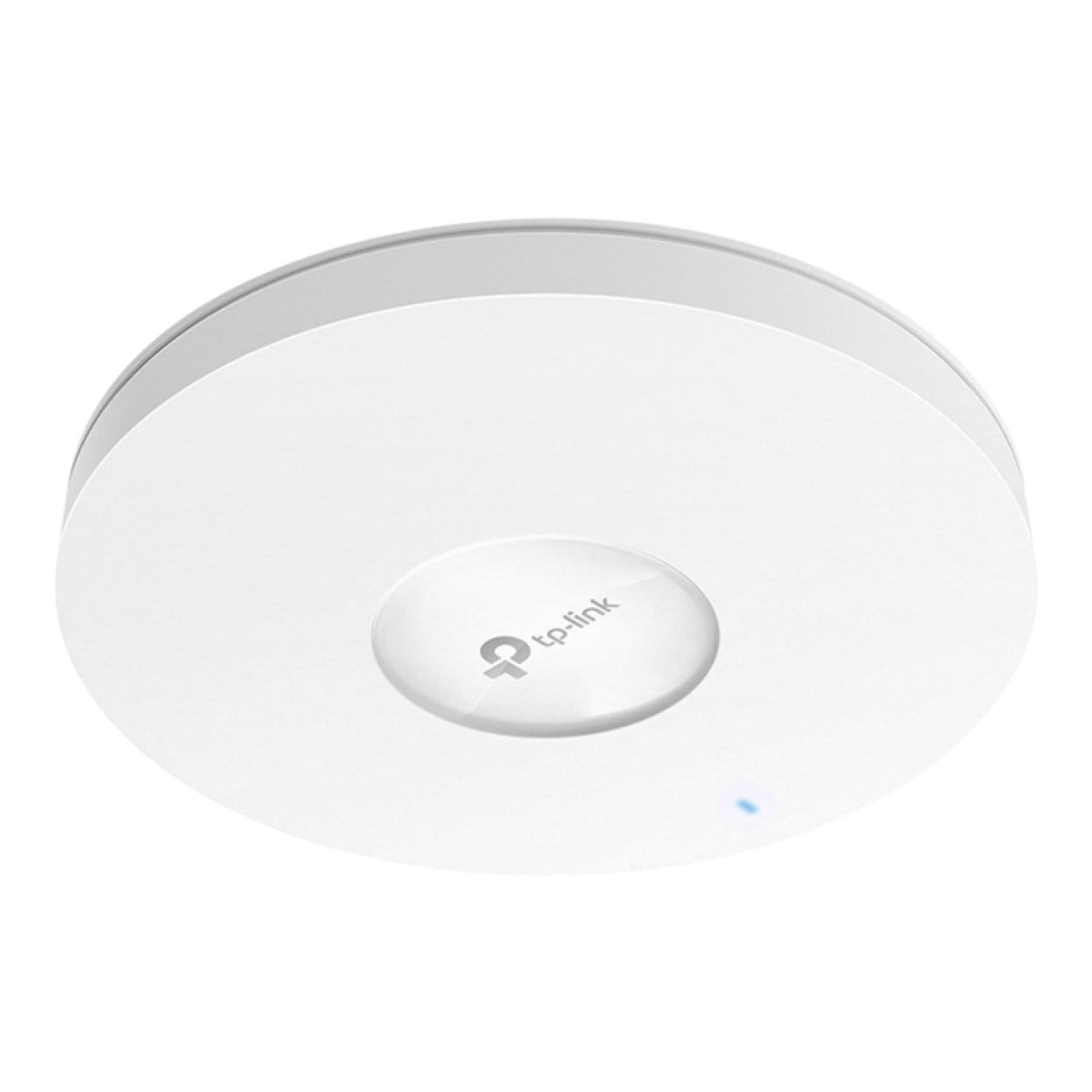

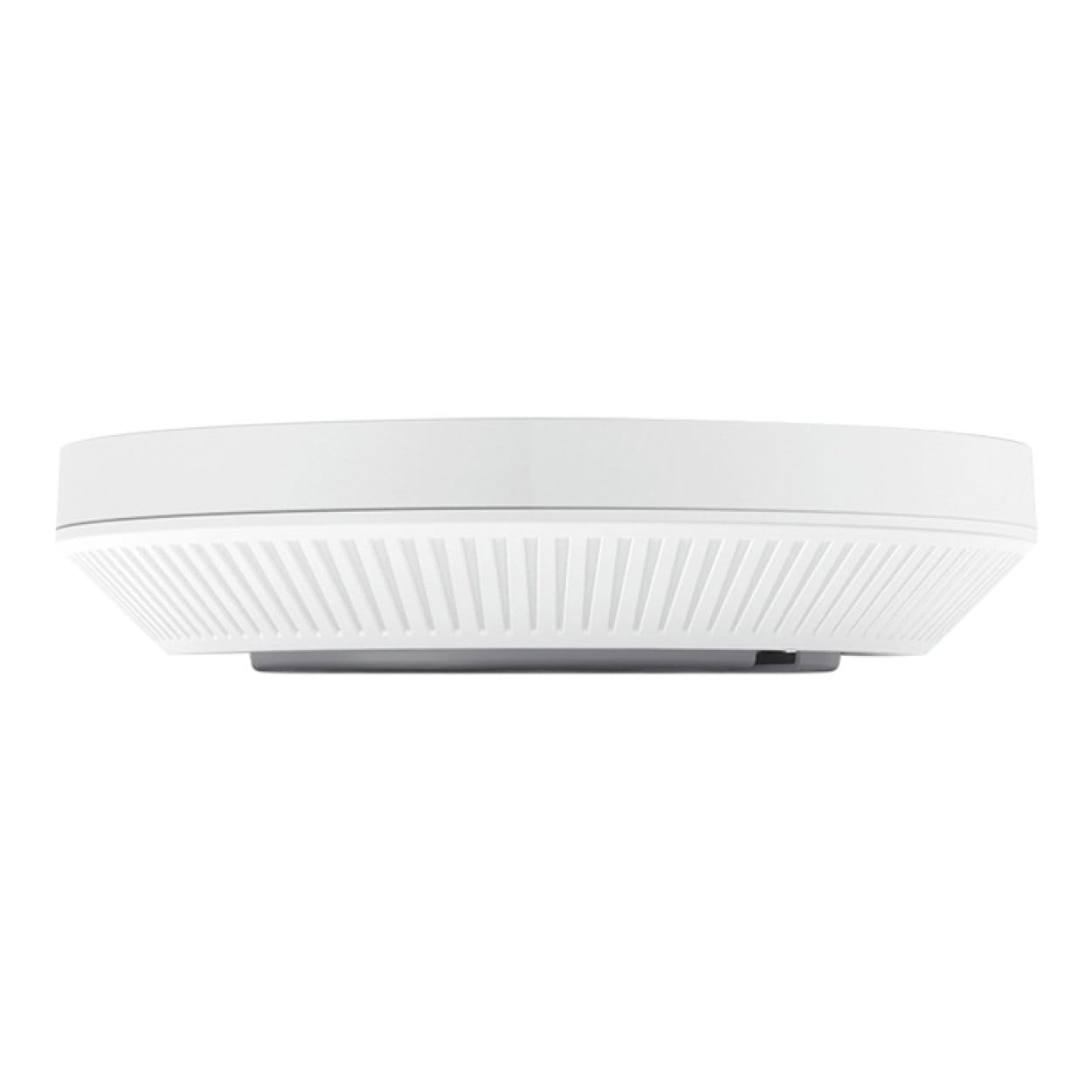

EAP653

Technical Specifications:

Interface: 1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Wireless Standards: IEEE 802.11ax/ac/n/g/b/a

Frequency: 2.4 GHz and 5 GHz

Signal Rate: 5 GHz: Up to 2402 Mbps ; 2.4 GHz: Up to 574 Mbps

Antenna Type: Internal Omni Antenna

• 2.4 GHz: 2x 4 dBi
• 5 GHz: 2x 5 dBi

Wireless Functions

• 1024-QAM
• 4x Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)^‡
• Seamless Roaming ^§
• Omada Mesh^§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

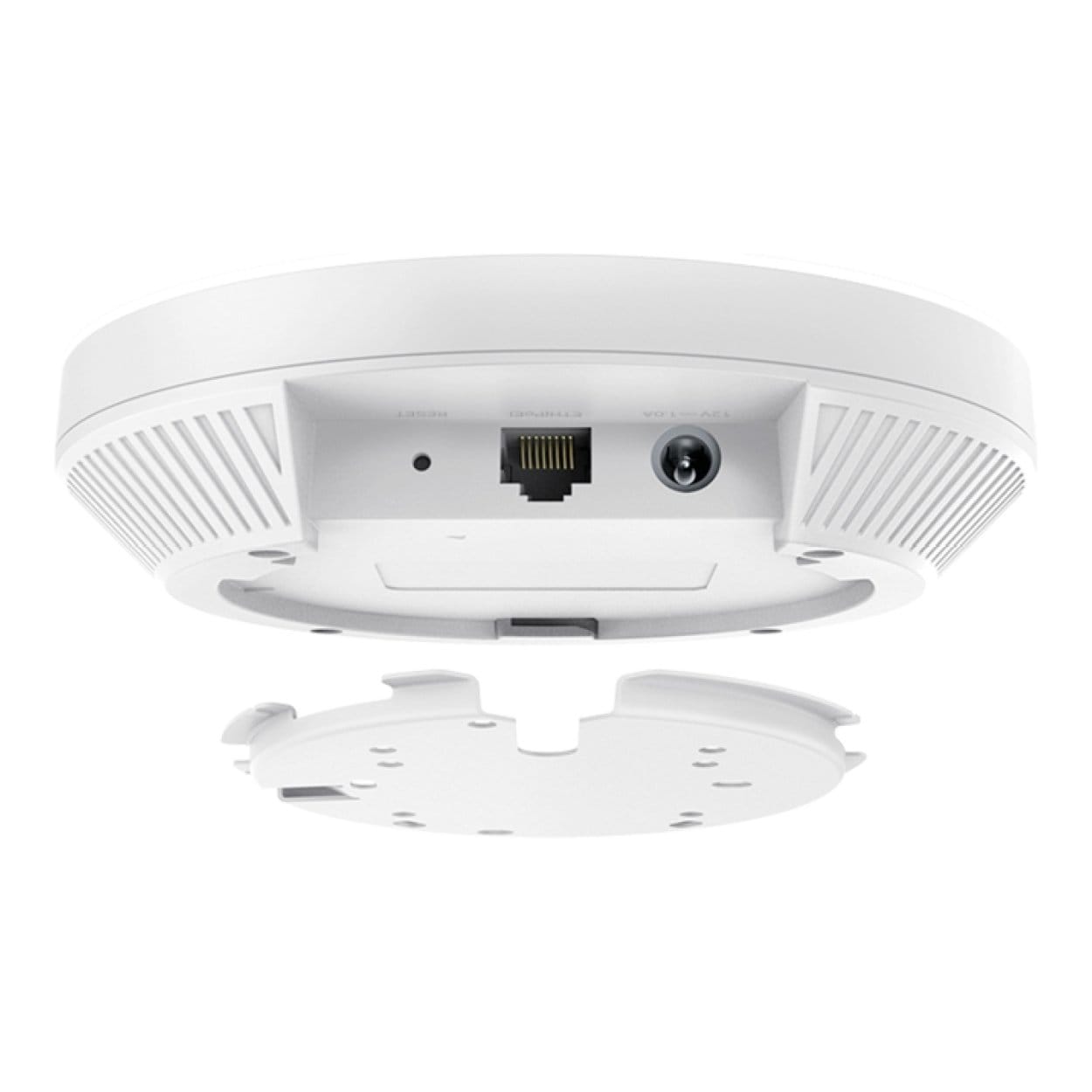

Mounting

• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

Power supply required:

• 802.3at PoE (PoE Power Adapter IS NOT included)
• 12V / 1A DC (Power Adapter IS NOT included)

OC200

Hardware Features

Interface
10/100Mbps Ethernet Port × 2
USB 2.0 Port × 1
Micro USB Port × 1

Power Supply
802.3af/at PoE or Micro USB (DC 5V, Minimum 1A)

Dimensions (W x D x H)
3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Features

Wireless Function
L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fairness
Beamforming
Rate Limit
Wireless Schedule
QoS

Wireless Security
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection

AP Management
Automatic Discovery
Unified Configuration
Reboot Schedule
Batch Firmware Upgrade
LED ON/OFF

Authentication
Captive Portal

Management Features

Omada App
Yes

Centralized Management
Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
Up to 1,000 Clients

Cloud Access
Yes

L3 Management
Yes

Multi-site Management
Yes

Additional Management Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

Others

Certification
CE, FCC, RoHS

System Requirements
Microsoft Windows 10, 8, 7, Vista, XP, or MAC OS, NetWare, UNIX, or Linux

Environment
Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–70℃ (-40℉–158℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

What's in the Box:

• 10 x EAP653
• 1 x OC200
• Quick Installation Guide
