TP-Link EAP723 Promotion: Buy 10 X EAP723 And Get 1 Free OC200 TP-PROMO5

TP-Link EAP723 Promotion: Buy 10 X EAP723 And Get 1 Free OC200 TP-PROMO5

nn

This promotional offer includes ten TP-Link EAP723 Wi-Fi 6 access points. The bundle provides one free TP-Link OC200 Omada Controller. The EAP723 supports dual-band operation with speeds up to 2.97 Gbps. It features MU-MIMO and OFDMA technology for efficient network management. The OC200 controller allows for centralised management of the access points via a web interface. This package is suitable for small to medium-sized businesses requiring reliable wireless coverage.

nn

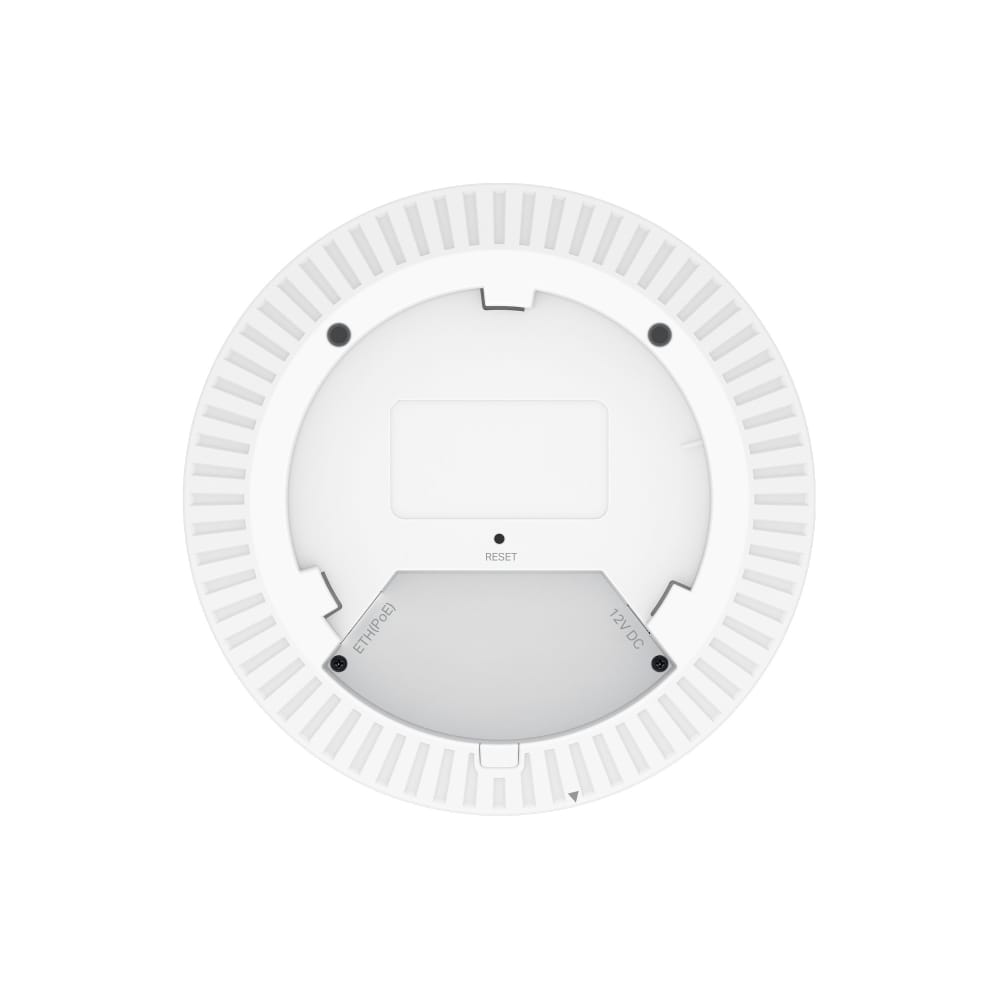

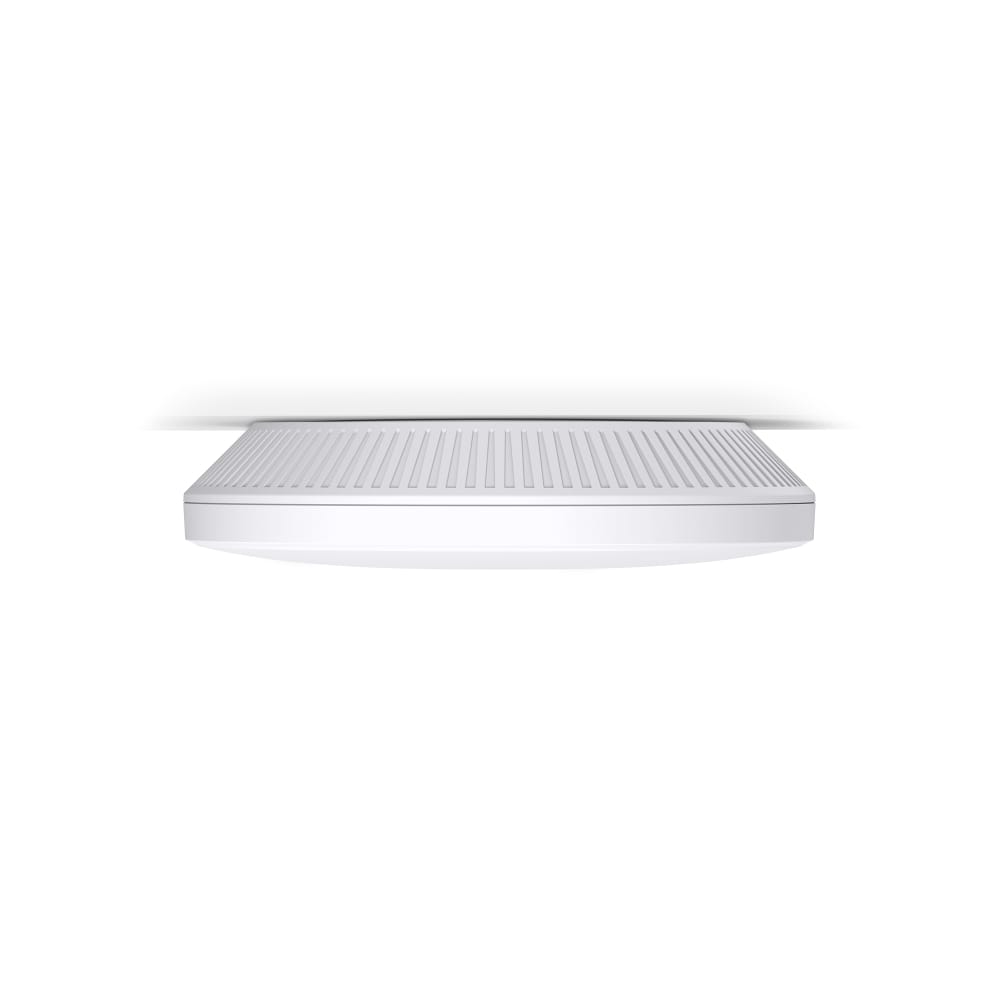

EAP723

nn

nn

Technical Specification

nn

Interface: 1x 2.5G Ethernet Port

nn

Button: Reset

nn

Antenna

nn

n
• 2.4 GHz: 2× 4.0 dBi

n

• 5 GHz: 2× 5.0 dBi

n

nn

Coverage: Up to 140m² (1500 ft²)

nn

Concurrent Clients: 250+

nn

Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be

nn

Frequency: 2.4 GHz and 5 GHz

nn

Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)

nn

Wireless Functions

nn

n
• 4K-QAM

n

• Seamless Roaming

n

• MU-MIMO

n

• EHT160

n

• Mesh

n

• OFDMA

n

• Load Balance

n

• Band Steering

n

• Beamforming

n

• Airtime Fairness

n

• Multiple SSIDS:16(8 on each band)

n

• Wireless Schedule

n

• Reboot Schedule

n

• QoS(WMM)

n

• Rate Limit

n

• Static IP/Dynamic IP

n

• RADIUS Accounting

n

• MAC Authentication

n

nn

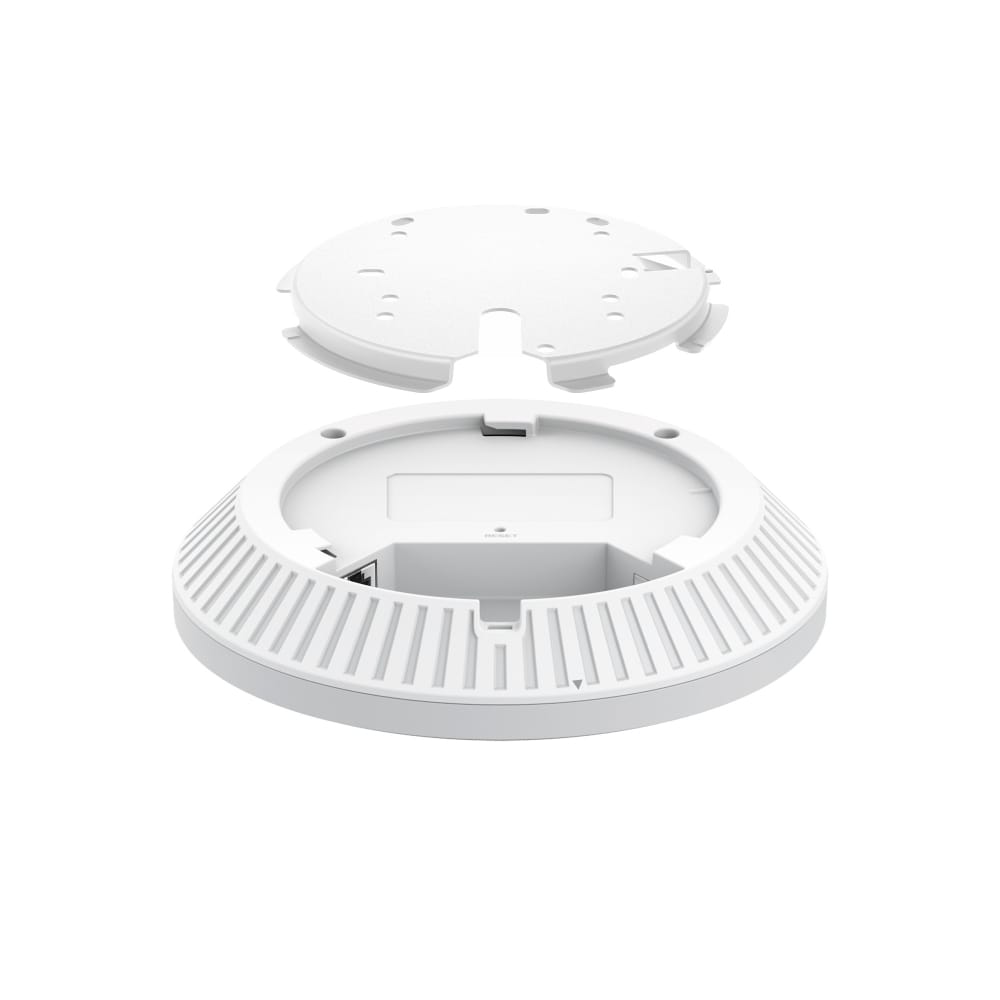

Mounting: Ceiling / Wall Mounting (Kits Included)

nn

Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)

nn

nn

OC200

nn

nn

Hardware Features

nn

Interface
n10/100Mbps Ethernet Port × 2
nUSB 2.0 Port × 1
nMicro USB Port × 1

nn

Power Supply
n802.3af/at PoE or Micro USB (DC 5V, Minimum 1A)

nn

Dimensions (W x D x H)
n3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

nn

Features

nn

Wireless Function
nL3 Management
nMulti-SSID
nLoad Balance
nBand Steering
nAirtime Fairness
nBeamforming
nRate Limit
nWireless Schedule
nQoS

nn

Wireless Security
nCaptive Portal Authentication
nAccess Control
nWireless MAC Address Filtering
nWireless Isolation Between Clients
nSSID to VLAN Mapping
nRogue AP Detection

nn

AP Management
nAutomatic Discovery
nUnified Configuration
nReboot Schedule
nBatch Firmware Upgrade
nLED ON/OFF

nn

Authentication
nCaptive Portal

nn

Management Features

nn

Omada App
nYes

nn

Centralized Management
nUp to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
nUp to 1,000 Clients

nn

Cloud Access
nYes

nn

L3 Management
nYes

nn

Multi-site Management
nYes

nn

Additional Management Features
nAutomatic Device Discovery
nBatch Configuration
nBatch Firmware Upgrading
nIntelligent Network Monitoring
nAbnormal Event Warnings
nUnified Configuration
nReboot Schedule
nCaptive Portal Configuration

nn

Others

nn

Certification
nCE, FCC, RoHS

nn

System Requirements
nMicrosoft Windows 10, 8, 7, Vista, XP, or MAC OS, NetWare, UNIX, or Linux

nn

Environment
nOperating Temperature: 0℃–40℃ (32℉–104℉)
nStorage Temperature: -40℃–70℃ (-40℉–158℉)
nOperating Humidity: 10%–90% non-condensing
nStorage Humidity: 5%–90% non-condensing

nn

What's in the Box:

nn

n
• 10 x EAP723

n

• 1 x OC200

n

• Quick Installation Guide

n
