TP-Link LiteWave LS108GP 8-port GbE PoE+ Unmanaged Switch

TP-Link LiteWave LS108GP 8-port GbE PoE+ Unmanaged Switch

nn

The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

nn

Features:

nn

n
• nFull Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.

n

• n62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

n

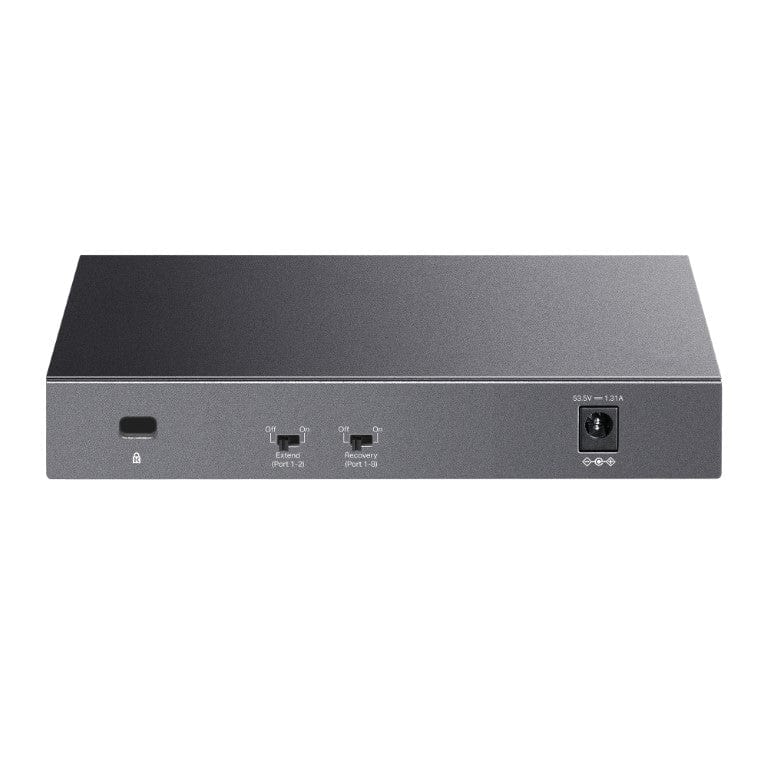

• nUp to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

n

• nPoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.

n

• nPlug and Play: Simply plug and play for instant connectivity with no configuration required.

n

• nSilent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

n

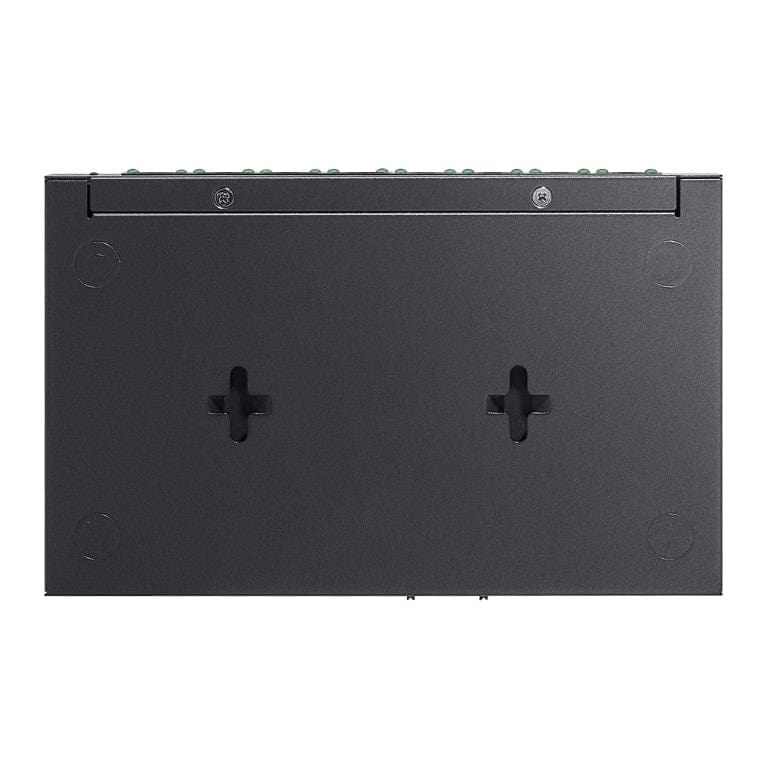

• nReliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

n

nn

Technical Specifications:

nn

Switch type: Unmanaged

nn

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

nn

Basic switching RJ-45 Ethernet ports quantity: 8

nn

MAC address table: 4000 entries

nn

Switching capacity: 16 Gbit/s

nn

Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE

nn

DC input voltage: 53.5 V

nn

Power connector: DC-in jack

nn

Power over Ethernet (PoE)

n
