TP-Link M8550 5G Mobile Wi-Fi Router

TP-Link M8550 5G Mobile Wi-Fi Router

nn

Share 5G Speed with Reliable Wi-Fi

nn

Thanks to cutting-edge 5G tech, M8550 boosts up to 3.4 Gbps download speeds fulfills your devices’ needs. Armed with WiFi 6E technology, M8550 is designed to deliver a huge boost in coverage, speed, and total capacity.

nn

Features:

nn

n
• Superior 5G - Up to 3.4 Gbps Download Speed

n

• Powerful Wi-Fi 6E - Tri-Band AXE3600 Network

n

• Gigabit WAN/LAN Port - Provide Stable and Versatile Wired Connection

n

• Touch Screen - Easy Management at your fingertip

n

• VPN Encryption - Secure Access to Remote Servers

n

• Easy Network Sharing - Supports up to 32 devices simultaneously

n

nn

nn

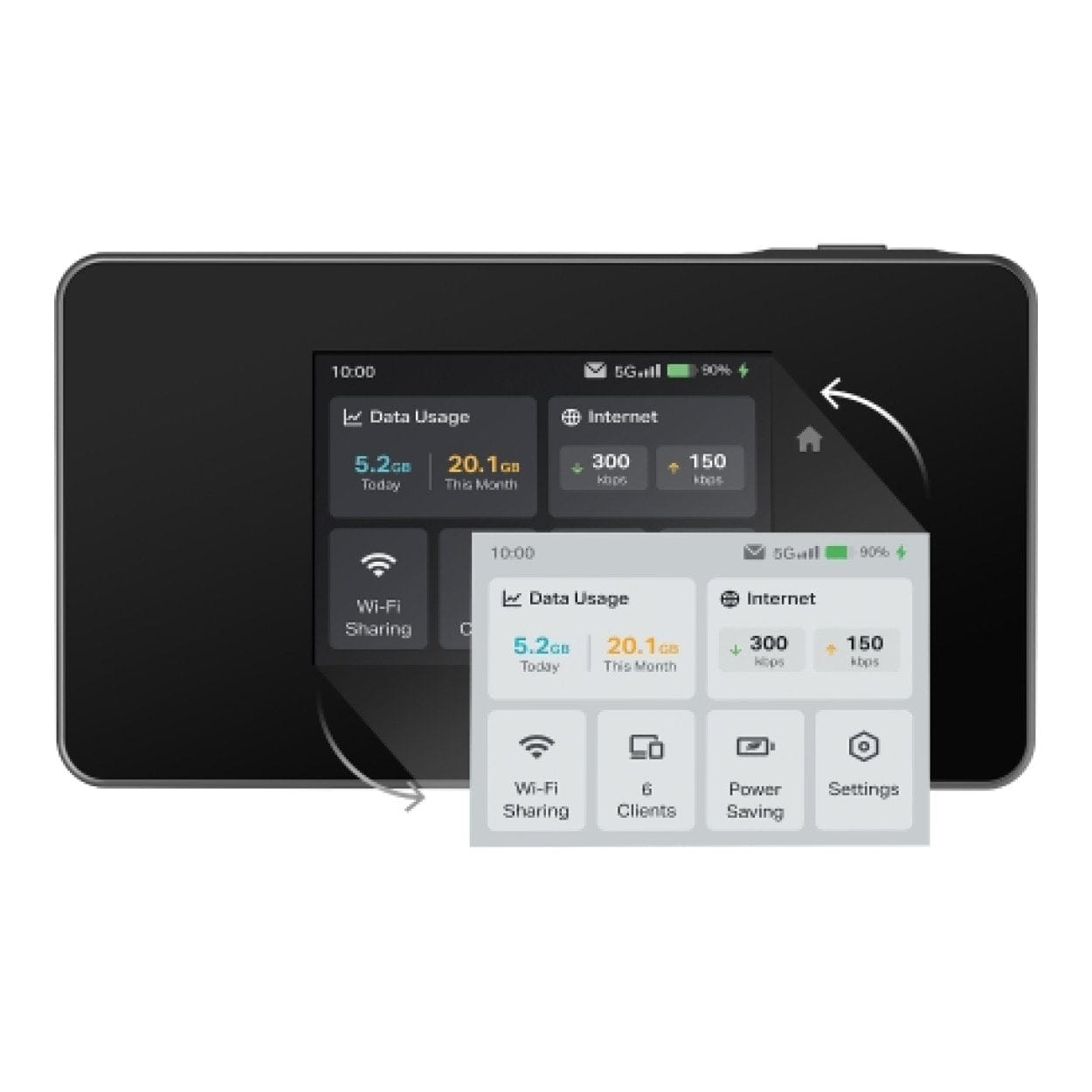

Premium Touchscreen, Instant Access

nn

The intuitive screen display of M8550 makes it easy to stay within your data budget and avoids going over the monthly data cap. The screen also displays other much more information of battery life, signal strength, Wi-Fi status, connected users and more.

nn

VPN Enhance Your Security

nn

For professionals on the move, M8550 ensures safe and reliable access to corporate networks without individual device VPN installation and configuration. With WireGuard VPN, your data stays encrypted, protecting sensitive information while you work remotely. Stay productive, stay secure.

nn

nn

Technical Specifications:

nn

HARDWARE FEATURES

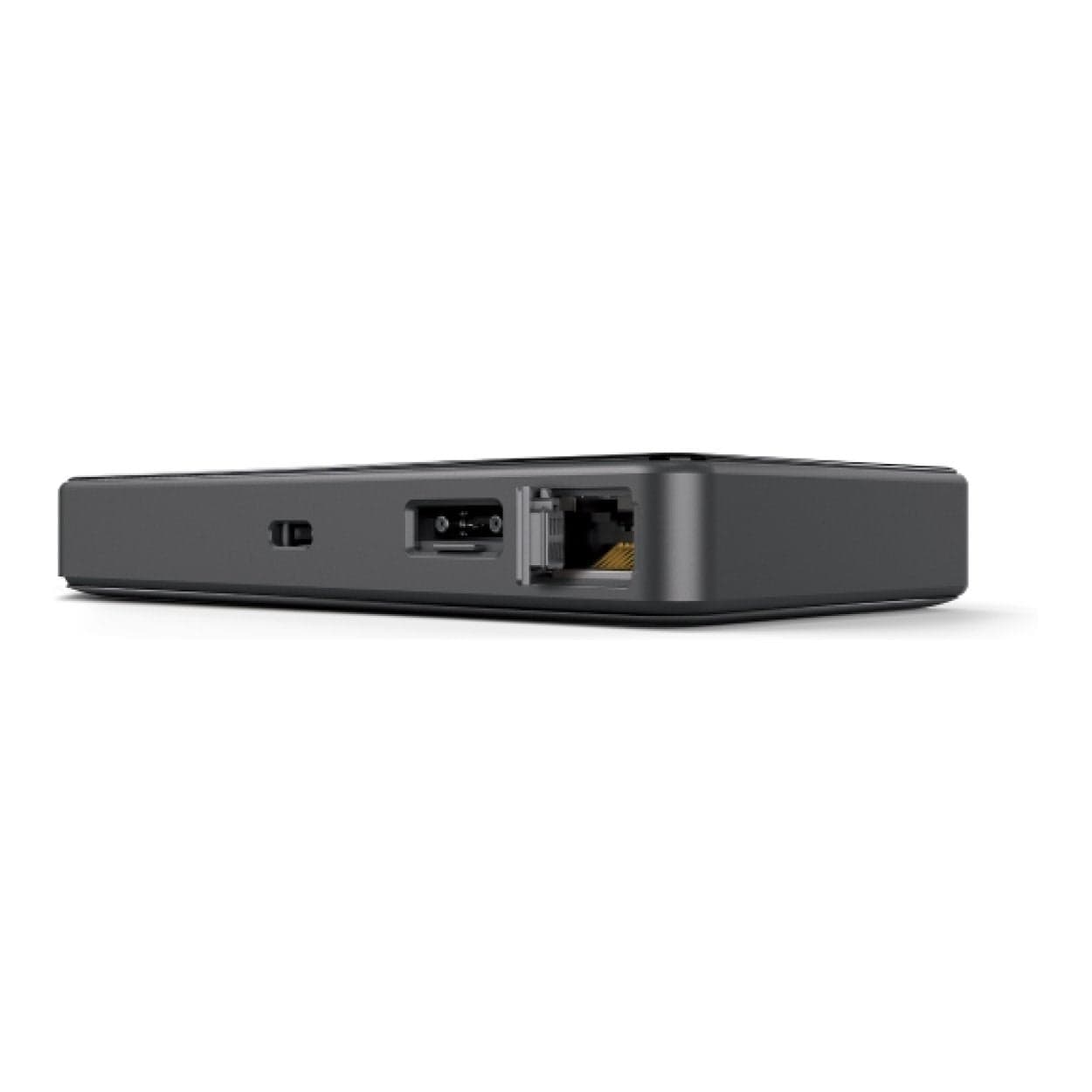

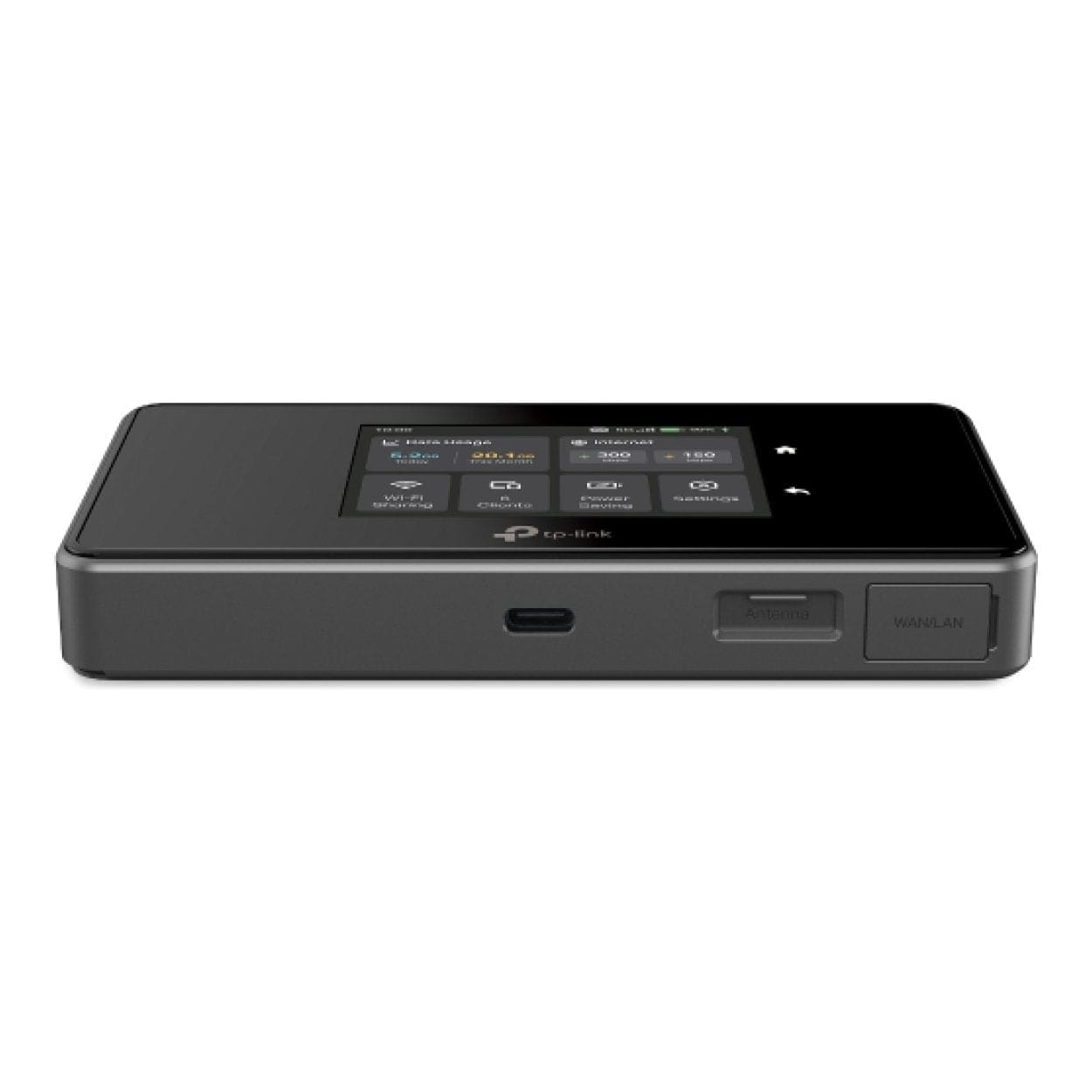

nInterface: 1× USB-C Port for Power Supply, 1× Gigabit WAN/LAN Port, 1× Nano SIM Card Slot, 1× Micro SD Card Slot, 2× TS-9 Antenna Ports
nButton: Power On/Off
nPower Supply: 4680 mAh Rechargeable Battery; Charge Voltage: 5V-3A, 9V-2A, 12V-1.5A

nn

Network Type: US Version
n5G: N2/N5/N12/N14/N25/N29/N30/N41/N48/N66/N71/N77
n4G FDD-LTE: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71
n4G TDD-LTE: B41/B46/B48

nn

Data Rates
n5G Downlink: 3.4 Gbps
n5G Uplink: 900 Mbps
nLTE/4G Downlink: 1.6 Gbps
nLTE/4G Uplink: 200 Mbps

nn

Dimensions (W x D x H): 135 × 73.7 × 20.5 mm
nAntenna: Internal Antenna
nMicro SD Card Reader: Up to 2 TB (SD card sold separately)
nScreen Display: 2.4 inch TFT Touch Screen

nn

WIRELESS FEATURES
nWireless Standards: IEEE 802.11 a/b/g/n/ac/ax
nSpeeds: 688 Mbps (2.4 GHz), 2880 Mbps (5 GHz), 2880 Mbps (6 GHz)
nFrequency: 2.4 GHz, 5 GHz, 6 GHz
nWireless Modes: 2.4 GHz Only, 5 GHz Only, 6 GHz Only, 2.4 GHz & 5 GHz, 2.4 GHz & 6 GHz
nWireless Security: WPA-PSK/WPA2-PSK, Wireless MAC Filtering
nDHCP: DHCP server, DHCP Client List
nTransmission Power: 2.4G < 20 dBm, 5G < 23 dBm

nn

VPN
nWireguard

nn

OTHERS
nNetwork Services Enabled by Default
nWeb Server (Port 80/443, HTTP/HTTPS)
nDNS (Port 53, UDP)
nDHCP Server (Port 67/547, DHCP/DHCPv6)
nSSH for app (Port 20001, SSH)
nTmpd for app (Port 20002, Tmpd)

nn

Certification: CE, RoHS

nn

Package Content: 5G AXE3600 Mobile Router M8550, Power Adapter, USB-C Cable, 4680 mAh Battery, Quick Installation Guide

nn

System Requirements: Windows 11/10/8/7/Vista/XP, Mac OS, Android, iOS, Windows Phone

nn

Power Supply: 5V-3A, 9V-2A, 12V-1.5A
