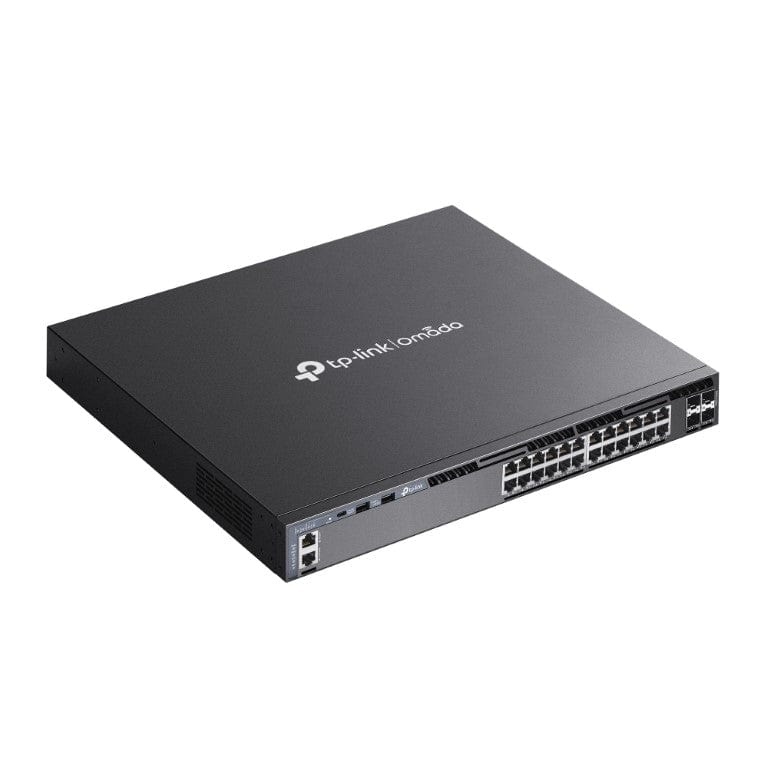

TP-Link Omada 24-port Gigabit Stackable L3 Managed Switch with 4x10G Slots SG6428X

TP-Link Omada 24-port Gigabit Stackable L3 Managed Switch with 4x10G Slots SG6428X

nn

What This Product Does
nOmada SG6428X is a high-performance L3 managed switch tailored for the convergence layer, featuring L3 routing, fast 10 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 24× Gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG6428X offers a dependable networking solution for SMBs, enterprises, and ISPs.
n
nHigh-speed Connectivity and Powerful Stacking
n24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 512 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.
n
nAbundant Layer 3 Capabilities
nComes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
n
nHighly Available

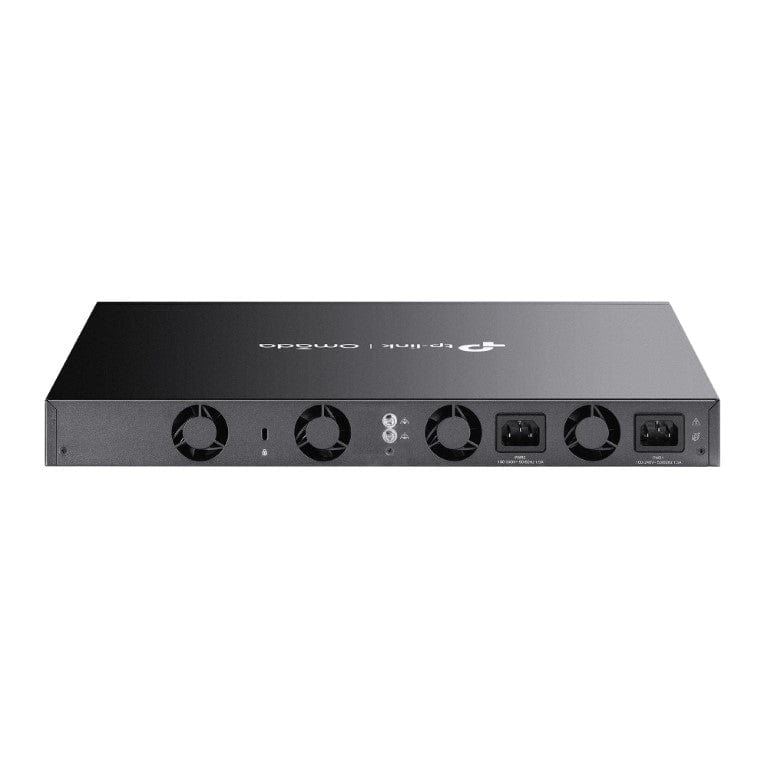

nInternal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
n
nEnhanced Security Functions
nDefend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
n
nOmada SDN
nIntegration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
n
nApart from the ability to be centrally managed via the web or the Omada app, SG6428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

nn

Specifications:

nn

Switch type: Managed

nn

Switch layer: L3

nn

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

nn

Basic switching RJ-45 Ethernet ports quantity: 24

nn

USB 2.0 ports quantity: 2

nn

Console port: RJ-45/USB Type-C

nn

MAC address table: 32000 entries

nn

Switching capacity: 128 Gbit/s

nn

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x

nn

Rack mounting

nn

Form factor: 1U

nn

3 year limited warranty for normal product and 5 year warranty for managed switch
