TP-Link Omada AX6000 Ceiling Mount Wi-Fi 6 Wireless Access Point EAP683 UR

TP-Link Omada AX6000 Ceiling Mount Wi-Fi 6 Wireless Access Point EAP683 UR

nn

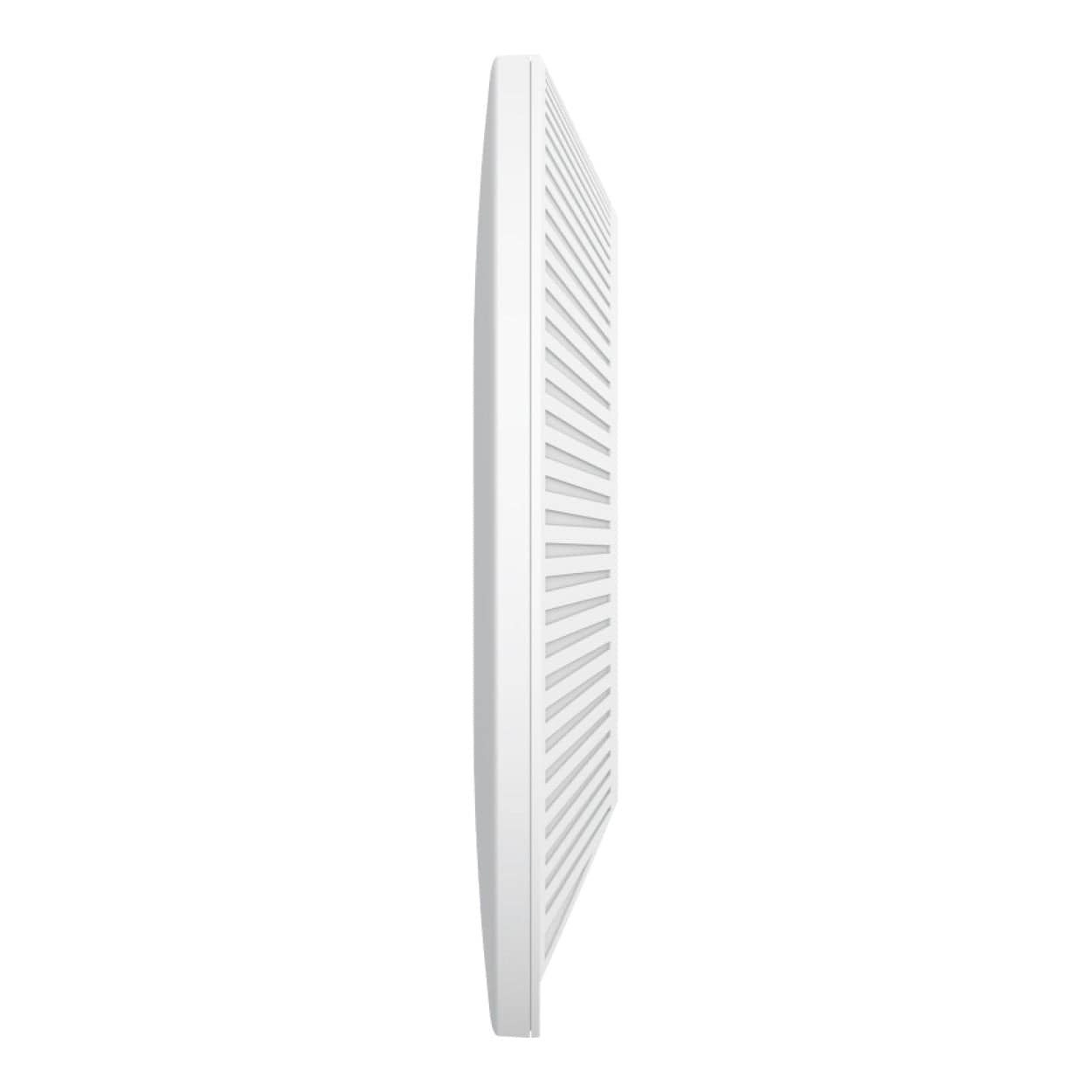

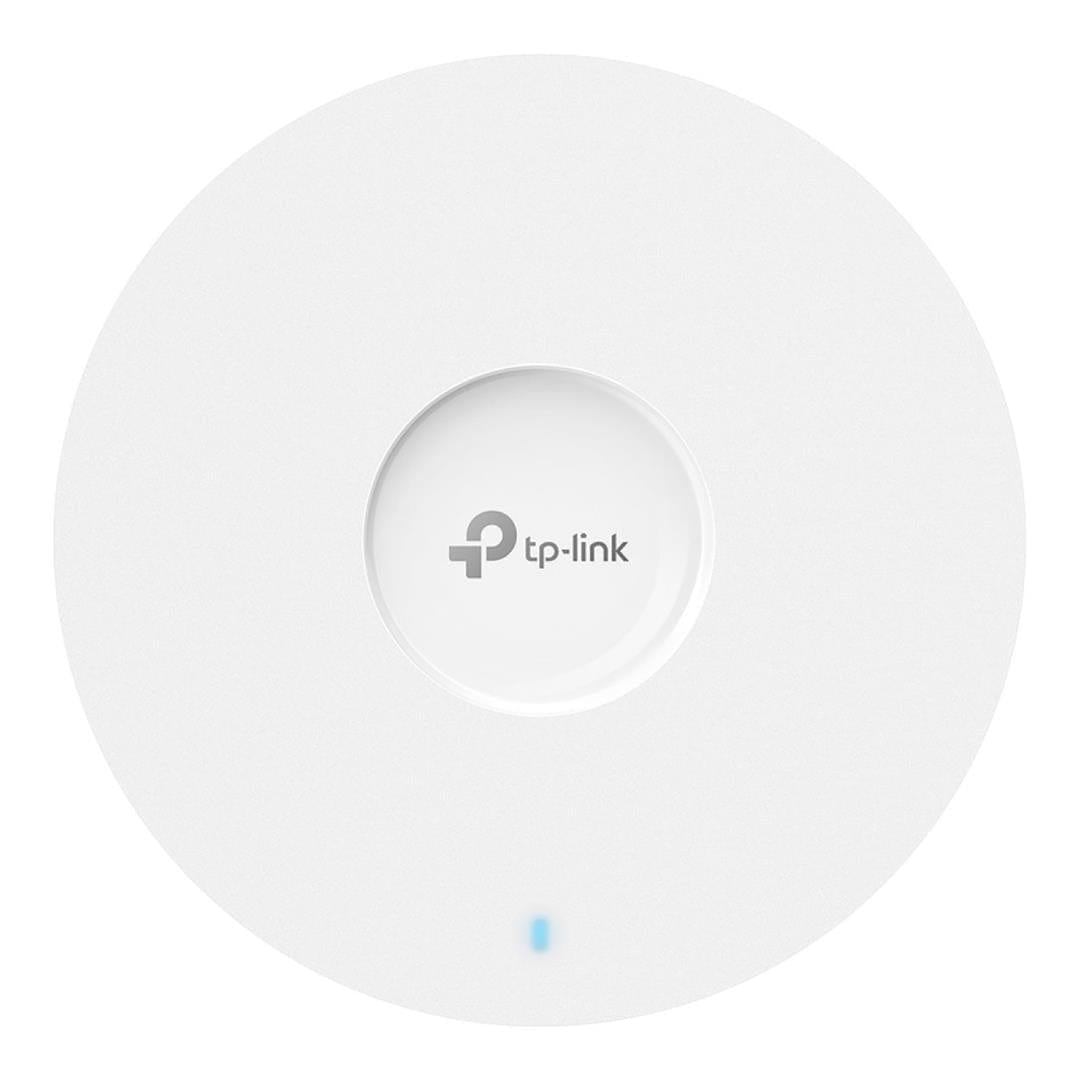

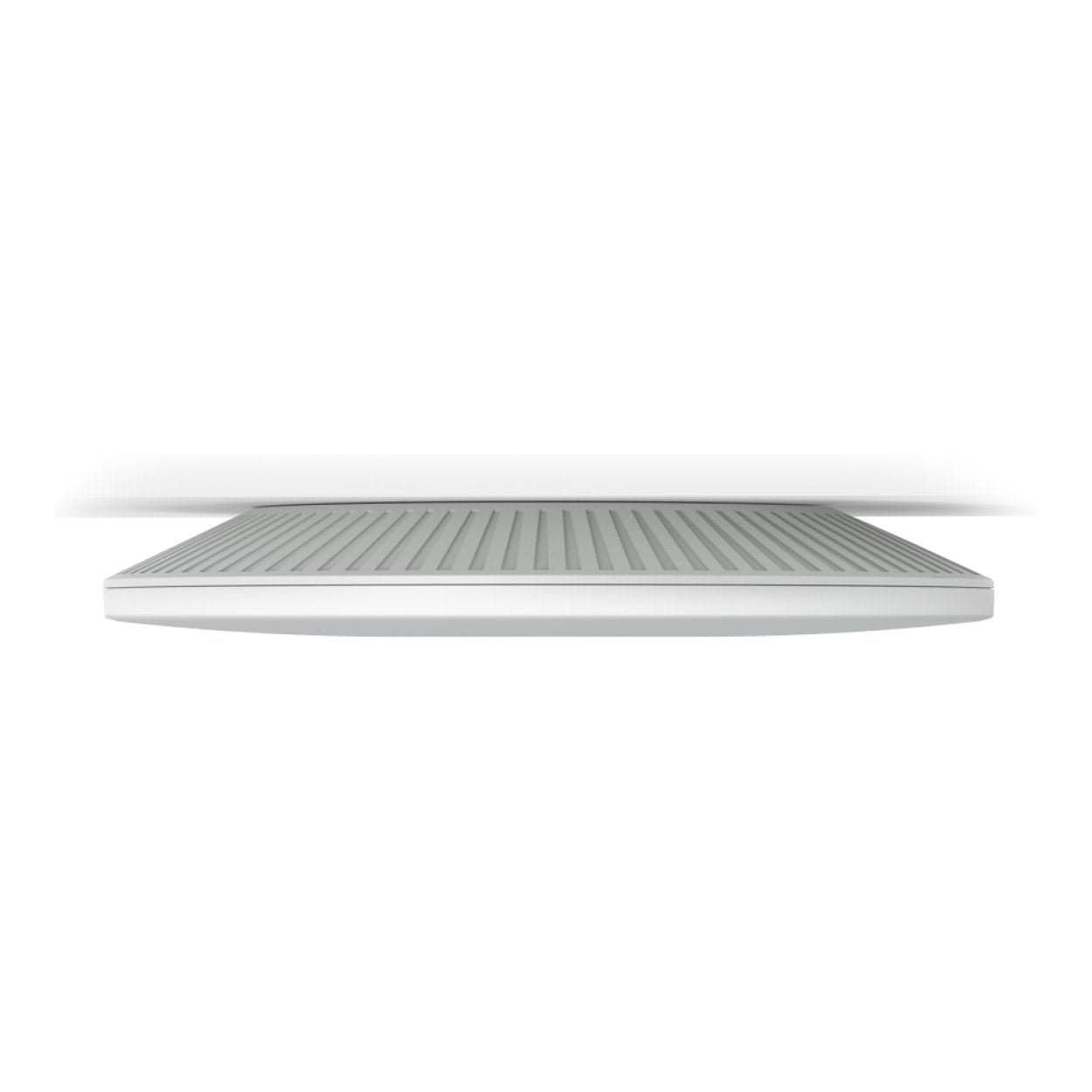

With its slim design, the EAP683 UR AX6000 Dual-Band Wi-Fi 6 Access Point from TP-Link blends in with most environments while delivering fast and reliable coverage.

nn

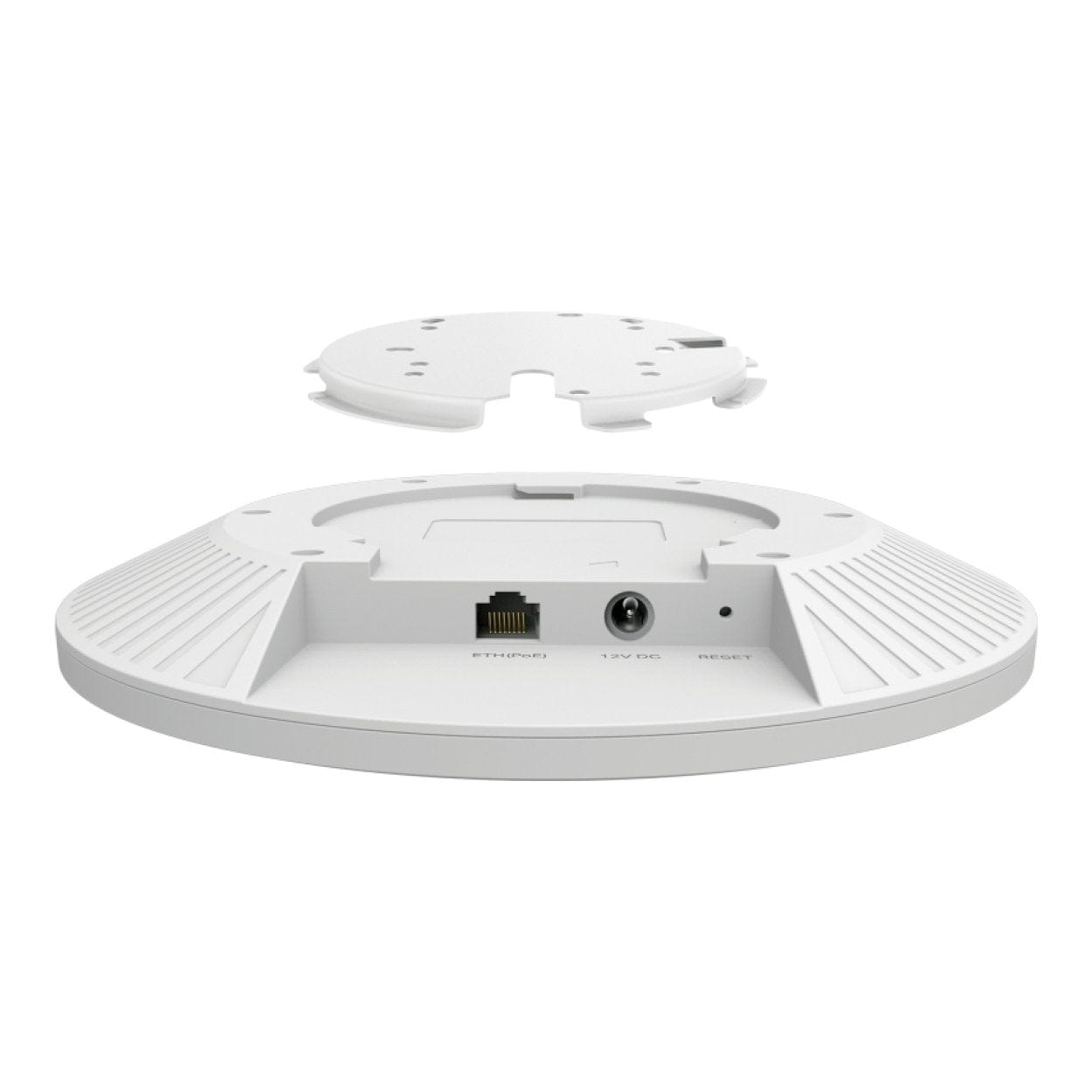

Supporting over 510 concurrent clients with up to 2000 square feet of coverage, this access point features a total throughput of 5952 Mb/s across the 2.4 GHz and 5 GHz bands with compatible devices. Connecting the 2.5G Ethernet uplink port to a PoE+ compatible device allows you to transfer both power and data to the access point using a single cable. Or you can use a separately purchased power adapter. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.

nn

Features:

nn

n
• Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz^†n

n

• Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.

n

• Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.^‡n

n

• Integrates with the Omada SDN platform for centralized management.

n

• Advanced Features: Omada Mesh, Seamless Roaming, and more.^§n

n

• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).

n

nn

Fast Wi-Fi

nn

By taking advantage of the 160 MHz channels, this access point can reach speeds of up to 5952 Mb/s over the 5 GHz and 2.4 GHz bands. OFDMA and MU-MIMO 4x4 technologies help to ensure reliable and efficient connections to compatible devices.

nn

Omada SDN Integration

nn

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network that's controlled from a single interface.

nn

Omada Mesh Technology

nn

Mesh technology allows Omada access points to wirelessly extend your Wi-Fi signal for broad coverage, reaching hard-to-wire areas.

nn

Optimized Network Performance

nn

Intelligent self-organization optimizes the best path between devices while self-healing ensures you stay online even when one AP is disrupted.

nn

Fast Roaming

nn

Help ensure customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

nn

Boosted Network Security

nn

Separate access privileges with support for up to 16 SSIDs. Configure a guest network and customize a captive portal to help ensure only authorized users have access. Your wireless network is protected by WPA3 encryption. Band steering, load balance, and airtime fairness features automatically optimize your network performance.

nn

Technical Specifications:

nn

2.4 GHz, 5 GHz

nn

Maximum data transfer rate: 6000 Mbit/s

nn

Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH

nn

Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

nn

Power over Ethernet (PoE)

nn

Product colour: White
