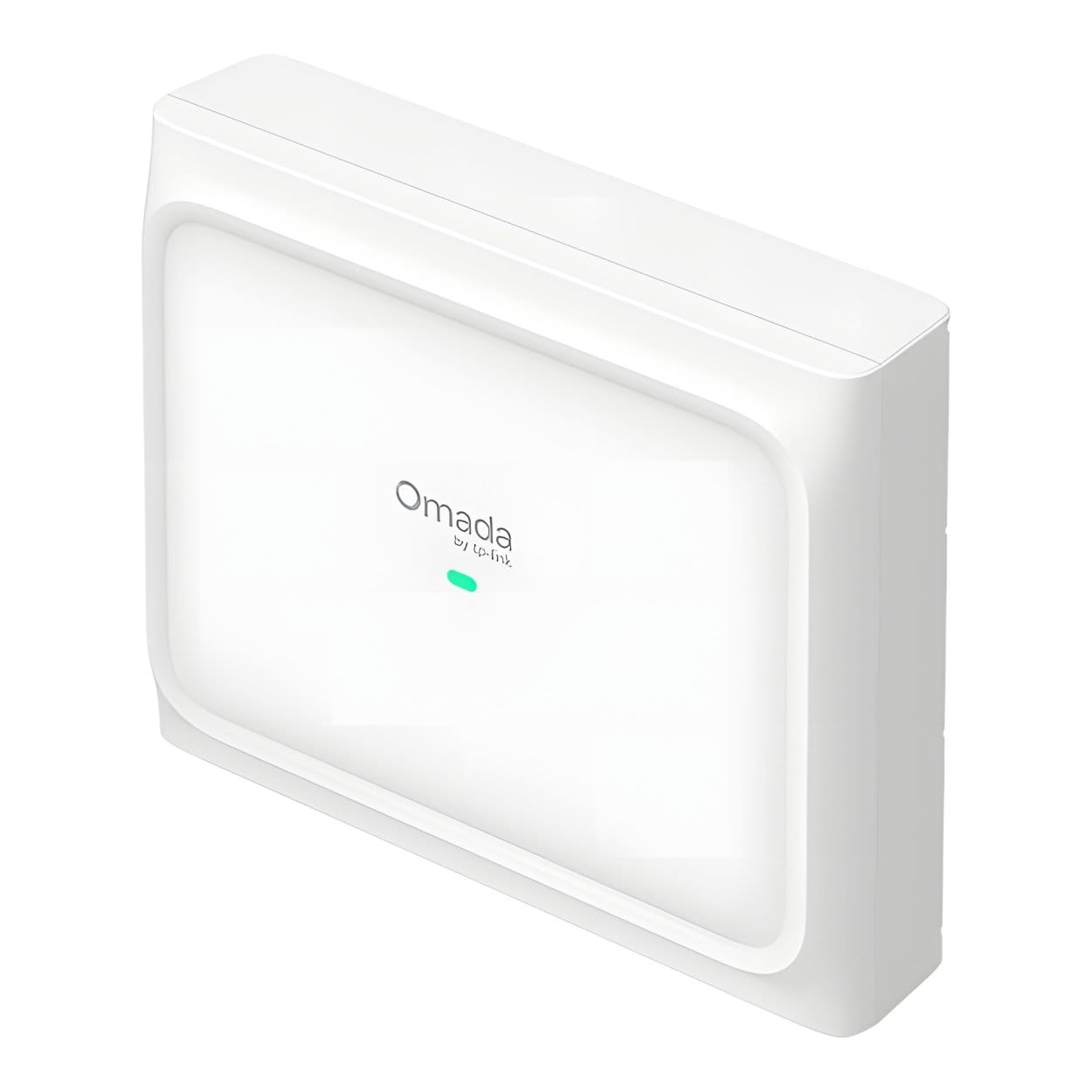

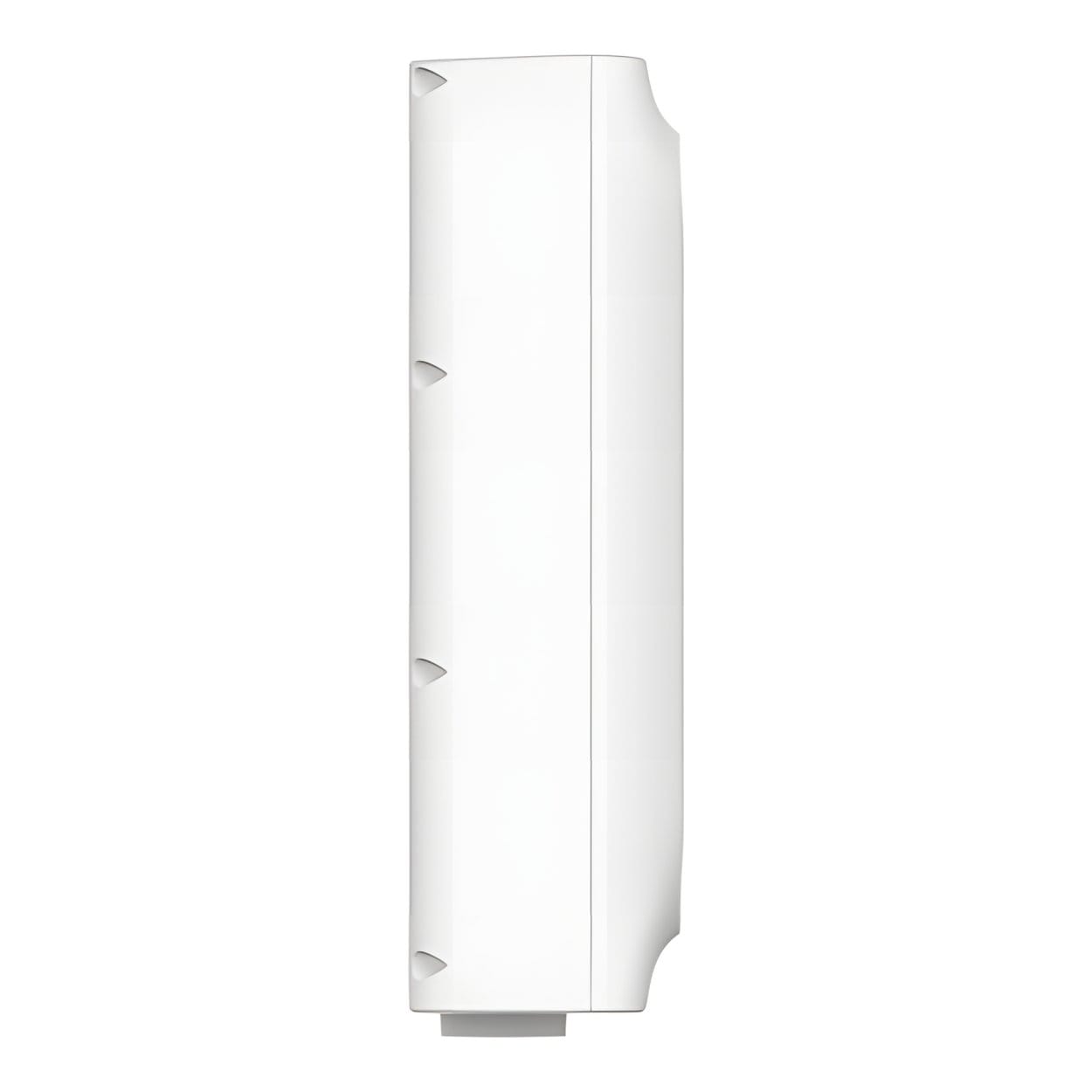

TP-Link Omada EAP650 D30 Directional AX3000 Indoor Outdoor Wi-Fi 6 Access Point

TP-Link Omada EAP650 D30 Directional AX3000 Indoor Outdoor Wi-Fi 6 Access Point

nn

Features:

nn

n
• nSuperior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

n

• Directional Ultra-Range Coverage: Equipped with built-in 30° high-gain directional antennas to deliver precise and extended coverage.*

n

• Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.

n

• 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.

n

• Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.

n

• Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.

n

nn

nn

Designed for Warehouses

nn

The EAP650 D30-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable

nn

of withstanding submersion in water. It is ideal for warehouse environments.

nn

Elevate WiFi Experience for Shelf Areas with Directional Antennas

nn

Equipped with 4× built-in dual-band (2×2.4GHz + 2× 5GHz) directional antennas with high gain to ensure the optimal WiFi

nn

experience ideal for precise and extended coverage.*

nn

Stay Smooth with Sealess Roaming
nEnsure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points
nwith the optimal signals.

nn

nn

Technical Specifications:

nn

Hardware Features

nn

Interface

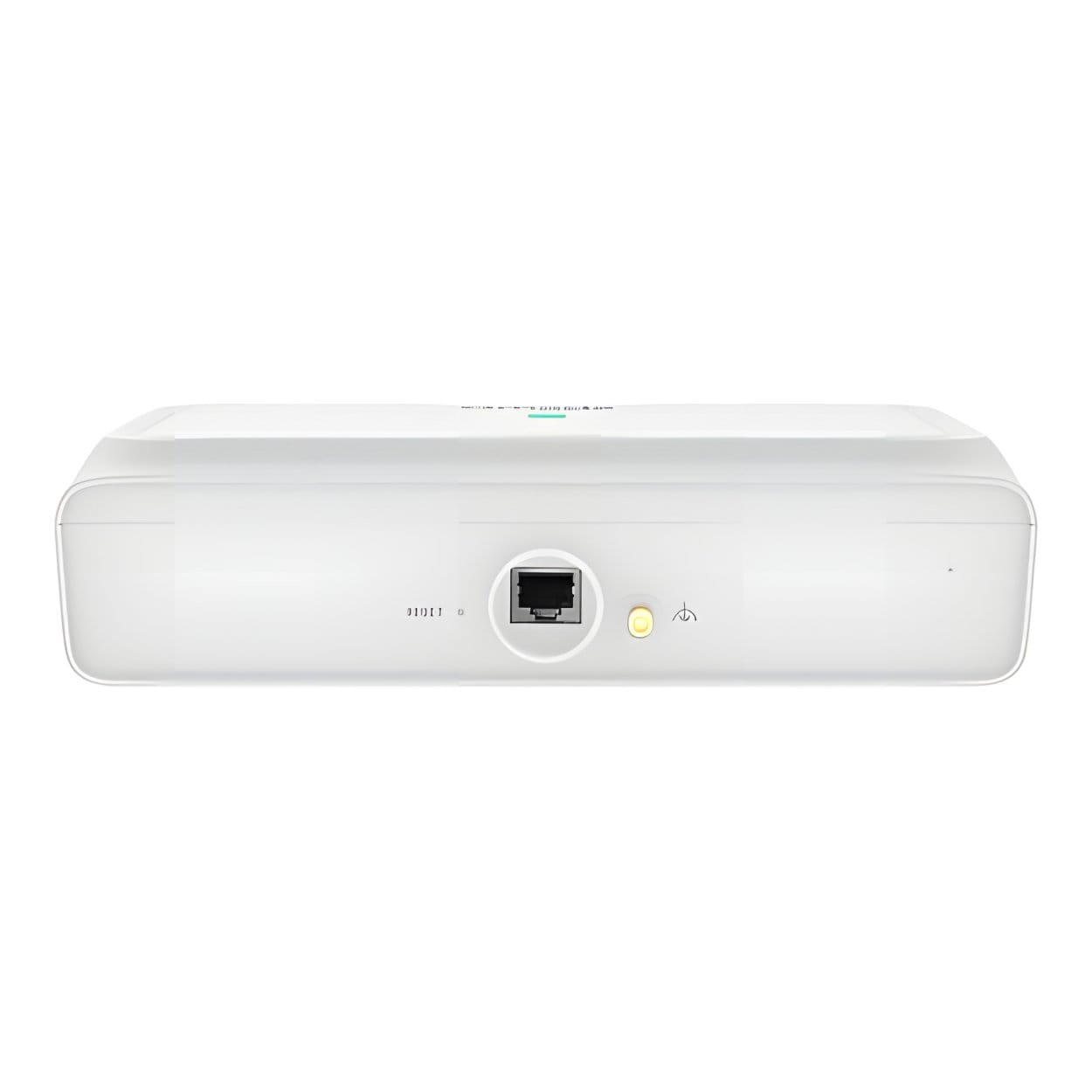

n1 × Gigabit Ethernet Port (Supports 802.3at PoE Or 48 V Passive PoE)

nn

Button
nReset

nn

Power Supply

nn

n
• 802.3at PoE

n

• 48 V Passive PoE

n

nn

Maximum Power Consumption

nn

n
• EU: 12.5 W (802.3at PoE Or Passive PoE)

n

• US: 14.7 W (802.3at PoE Or Passive PoE)

n

nn

Antenna
nBuilt-In Directional Antennas:

nn

n
• 2.4 GHz: 2 × 12 dBi

n

• 5 GHz: 2 × 15 dBi

n

nn

Beamwidth:

nn

n
• 30° Horizontal

n

• 30° Vertical

n

nn

Bluetooth
nYes

nn

Weatherproof Enclosure
nIP68

nn

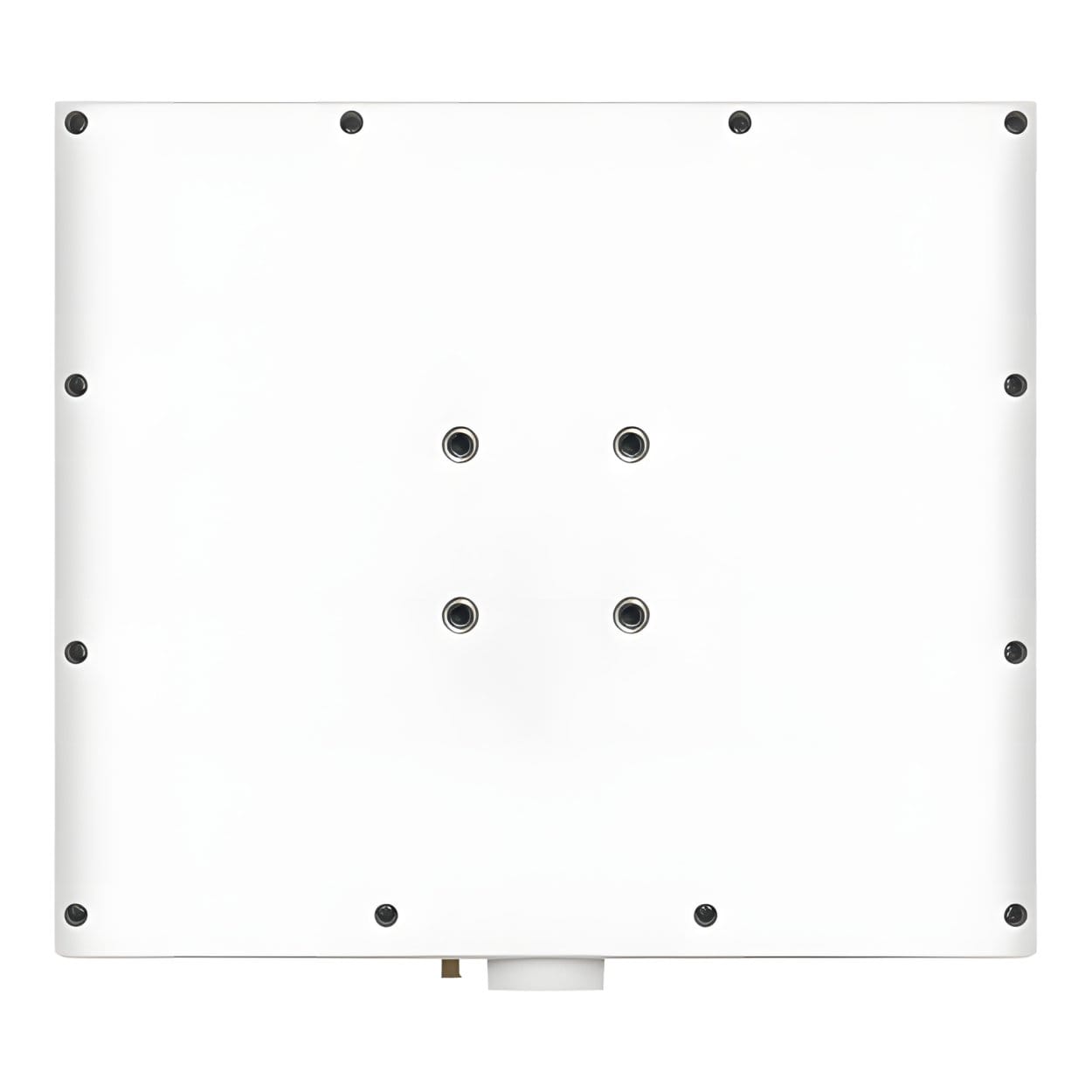

Mounting Options
nWall
nPole
nCeiling

nn

Dimensions (W × D × H)
n207.5 × 58 × 230 mm

nn

Wireless Features

nn

Concurrent Clients
n250+

nn

Wireless Standards
nIEEE 802.11 a/b/g/n/ac/ax

nn

Frequency
n2.4 GHz
n5 GHz

nn

Signal Rate
n574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)

nn

Wireless Functions

nn

n
• 1024-QAM

n

• DL/UL OFDMA

n

• Multiple SSIDs (Up To 16 SSIDs, 8 Per Band)

n

• Enable/Disable Wireless Radio

n

• Enable/Disable SSID Broadcast

n

• Guest Network

n

• Automatic Channel Assignment

n

• Transmit Power Control (Adjustable In dBm)

n

• QoS (WMM)

n

• 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO

n

• Omada Mesh

n

• Seamless Roaming (802.11k/v/r)

n

• Band Steering

n

• Load Balance

n

• Airtime Fairness

n

• Beamforming

n

• RADIUS Accounting

n

• MAC Authentication

n

• Reboot Schedule

n

• Wireless Schedule

n

• Wireless Statistics

n

• Static IP / Dynamic IP

n

nn

Wireless Security

nn

n
• Captive Portal Authentication

n

• Access Control

n

• Wireless MAC Address Filtering

n

• Wireless Isolation Between Clients

n

• SSID To VLAN Mapping

n

• Rogue AP Detection

n

• 802.1X Support

n

• WPA-Personal/Enterprise

n

• WPA2-Personal/Enterprise

n

• WPA3-Personal/Enterprise

n

nn

Transmission Power

nn

n
• EU: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz Band 1 & Band 2, EIRP); < 30 dBm (5 GHz Band 3, EIRP)

n

• US: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)

n

nn

Management Features

nn

Omada App Support
nYes

nn

Restore & Backup
nYes

nn

NTP Support
nYes

nn

Centralized Management

nn

n
• Omada Cloud-Based Controller

n

• Omada Hardware Controller

n

• Omada Software Controller

n

• Omada App

n

nn

Cloud Access
nYes (Requires Omada Controller)

nn

Email Alerts
nYes

nn

LED On/Off Control
nYes

nn

Management MAC Access Control
nYes

nn

SNMP Support
nv1
nv2c
nv3

nn

System Logging
nLocal / Remote Syslog

nn

SSH Support
nYes

nn

Web-Based Management
nYes

nn

Multi-Site Management
nYes

nn

Zero-Touch Provisioning
nYes (Requires Omada Cloud-Based Controller)

nn

System Requirements

nn

Microsoft Windows XP
nMicrosoft Windows Vista
nMicrosoft Windows 7
nMicrosoft Windows 8
nMicrosoft Windows 10
nMicrosoft Windows 11
nLinux

nn

Environmental

nn

Operating Temperature
n-30°C To 70°C

nn

Storage Temperature
n-40°C To 70°C

nn

Operating Humidity
n10% To 90% RH, Non-Condensing

nn

Storage Humidity
n5% To 90% RH, Non-Condensing

nn

Certifications

nn

Compliance Certifications
nCE
nFCC
nRoHS

nn

What's in the Box:

nn

n
• Access Point EAP650 D30-Outdoor

n

• Mounting Kits

n

• Installation Guide

n

• Waterproof Kit

n
