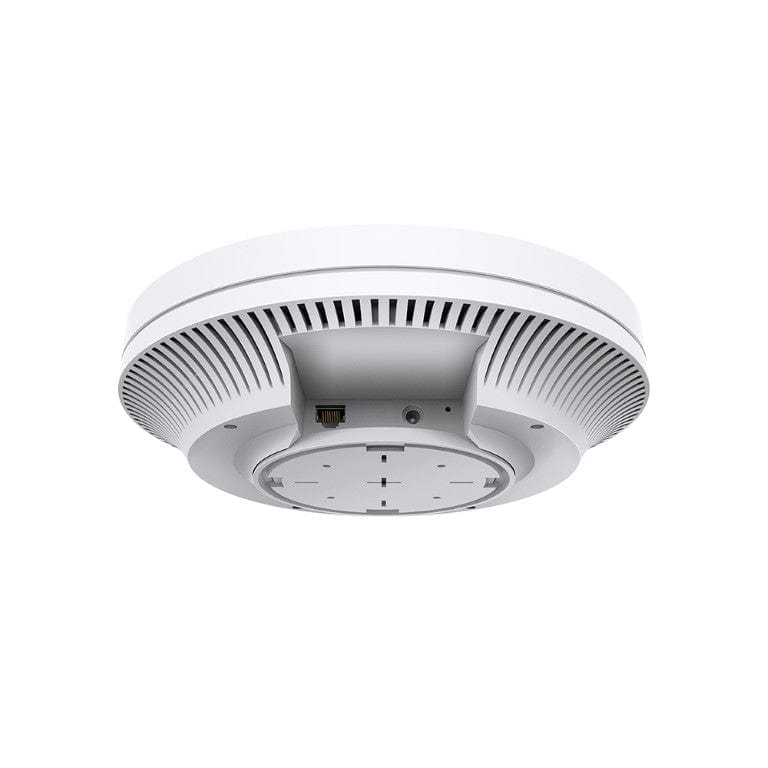

TP-Link Omada EAP660 HD AX3600 Dual-band Wi-Fi 6 Multi-Gigabit Access Point

TP-Link Omada EAP660 HD AX3600 Dual-band Wi-Fi 6 Multi-Gigabit Access Point

nn

Ultra-High Performing AX3600 Enterprise Wireless for High-Density Environments

nn

Features

nn

n
• nUltra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.

n

• nHigh-Density Connectivity: 4x increased capacity to connect more devices simultaneously.

n

• nIntegrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

n

• nCentralized Management: Cloud access and Omada app for ultra convenience and easy management.

n

• n2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.

n

• nSeamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

n

• nPoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

n

• nSecure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

n

nn

High-Density Connectivity with 4x Increased Capacity

nn

OFDMA^* and Uplink & Downlink MU-MIMO^** increase network capacity by up to 4x versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

nn

Blazing Fast Speed with 8 Spatial Streams

nn

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

nn

Omada SDN—Smarter Cloud Solution for Business Networking

nn

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

nn

Optimized Wired Performance with 2.5 GE PoE+ Port

nn

Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

nn

Seamless Roaming

nn

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

nn

Boost Network Efficiency in All Aspects With Rich Advanced Features

nn

n
• Band Steering: Automatically moves dual band devices onto the wider 5GHz band for faster connections.

n

• Load Balance: ensures large numbers of users have smooth network experiences in high-density business networks

n

• Airtime Fairness: Increases average network throughput in heavily congested environments

n

nn

Technical Specifications:

nn

Maximum data transfer rate: 2402 Mbit/s

nn

Security algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK

nn

Ethernet LAN data rates: 25000 Mbit/s

nn

Power over Ethernet (PoE)

nn

Product colour: White
