TP-Link Omada Gigabit PoE++ Injector POE170S

TP-Link Omada Gigabit PoE++ Injector POE170S

nn

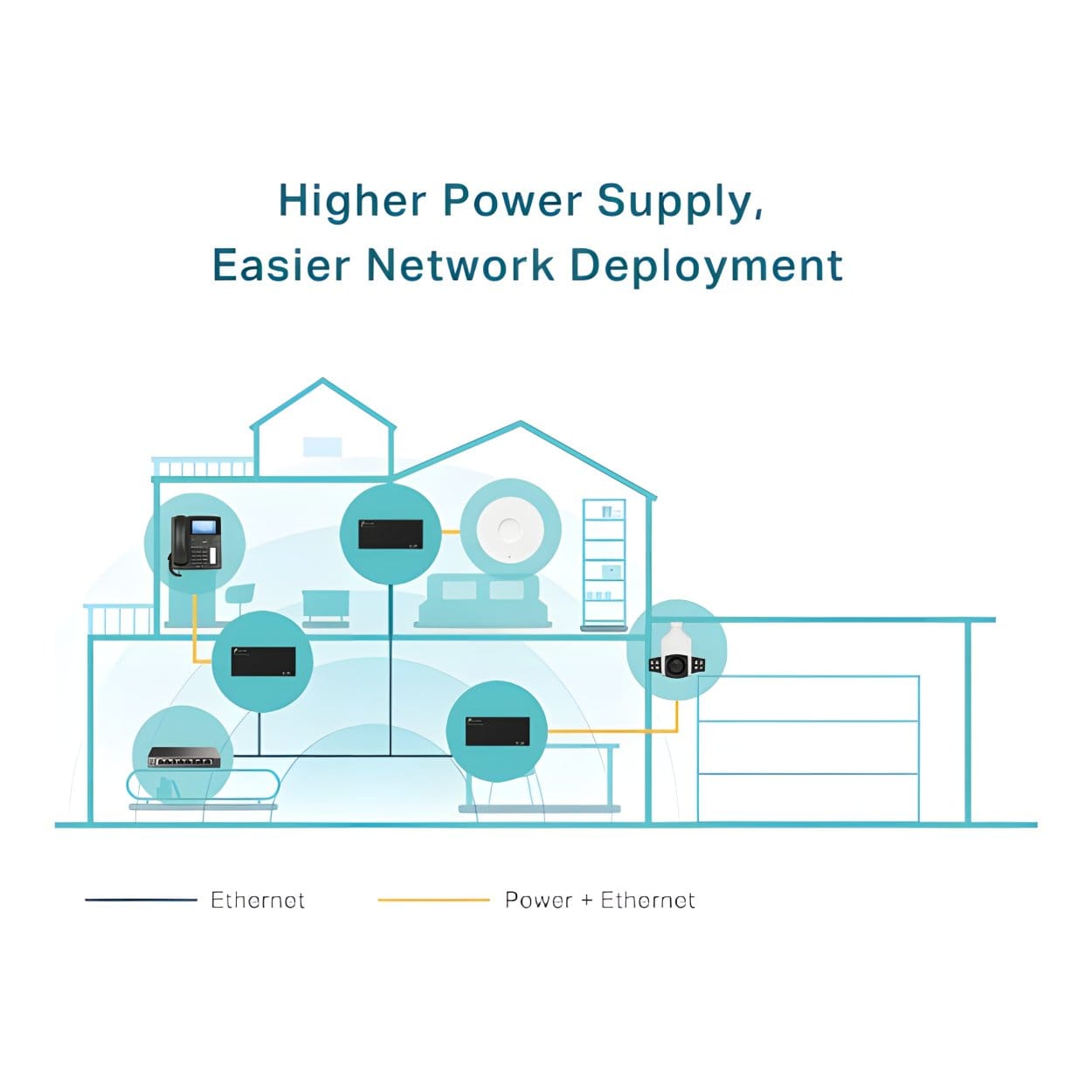

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.

nn

Features:

nn

n
• 2 Gigabit ports ensure faster transmission

n

• Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W

n

• Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

n

• Automatically determines and supplies the exact power to meet the device's need

n

• Wall-mounting and desktop design accommodates most installation scenarios

n

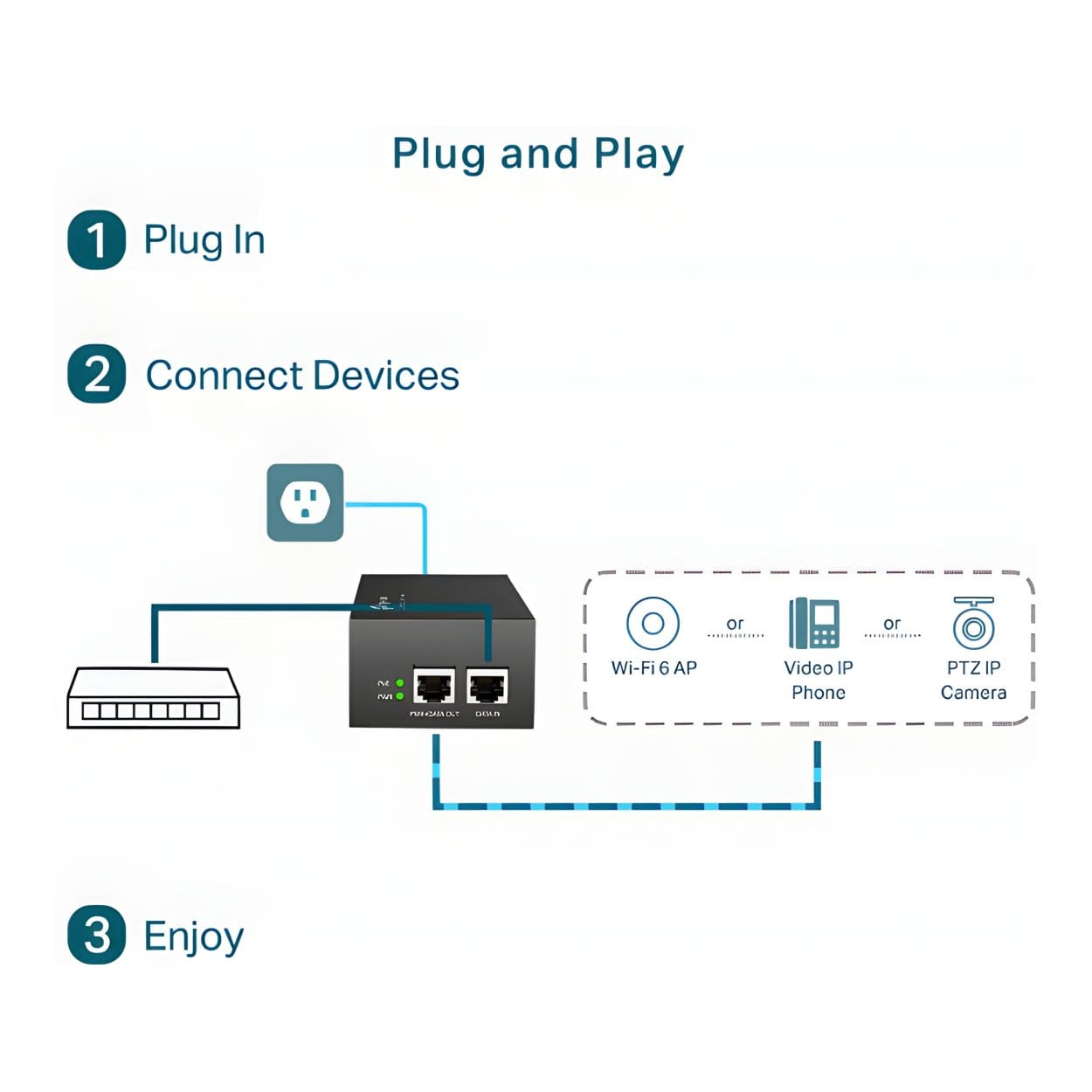

• Plug & Play installation, requires no configuration

n

• Integrated power supply

n

• Durable metal casing

n

nn

nn

Technical Specifications:

nn

Network

nn

Standards And Protocols
nIEEE 802.3i
nIEEE 802.3u
nIEEE 802.3ab
nIEEE 802.3af
nIEEE 802.3at
nIEEE 802.3bt

nn

Hardware Features

nn

Network Media

nn

n
• 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100 m), EIA/TIA-568 100Ω STP (Maximum 100 m)

n

• 100BASE-TX: UTP Category 5, 5e Cable (Maximum 100 m), EIA/TIA-568 100Ω STP (Maximum 100 m)

n

• 1000BASE-T: UTP Category 5, 5e, 6 Cable (Maximum 100 m)

n

nn

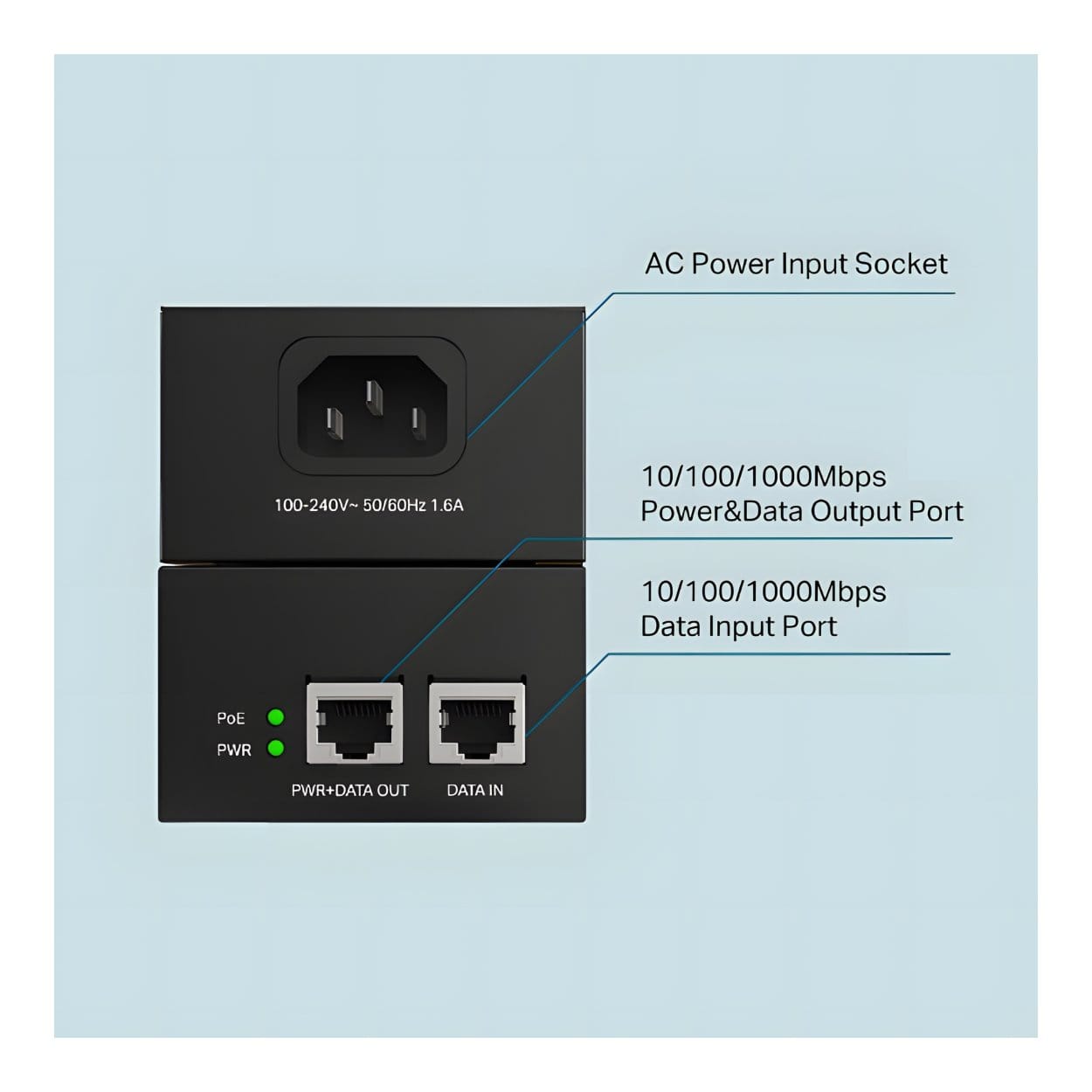

Ports

nn

n
• 1 × 10/100/1000 Mbps RJ45 Data-In Port

n

• 1 × 10/100/1000 Mbps RJ45 Power + Data-Out Port

n

• 1 × AC Socket

n

nn

Power Consumption
nInput: 100–240 V, 50/60 Hz, 1.6 A
nOutput: Auto-Determine Required Power (Maximum 60 W)

nn

Basic Functions

nn

n
• Auto-Sensing Algorithm Enables Power Delivery With 802.3af/at/bt PD

n

• Automatically Determines Required Power Levels

n

• Wall-Mounting And Desktop Installation Supported

n

• Plug-And-Play Operation

n

nn

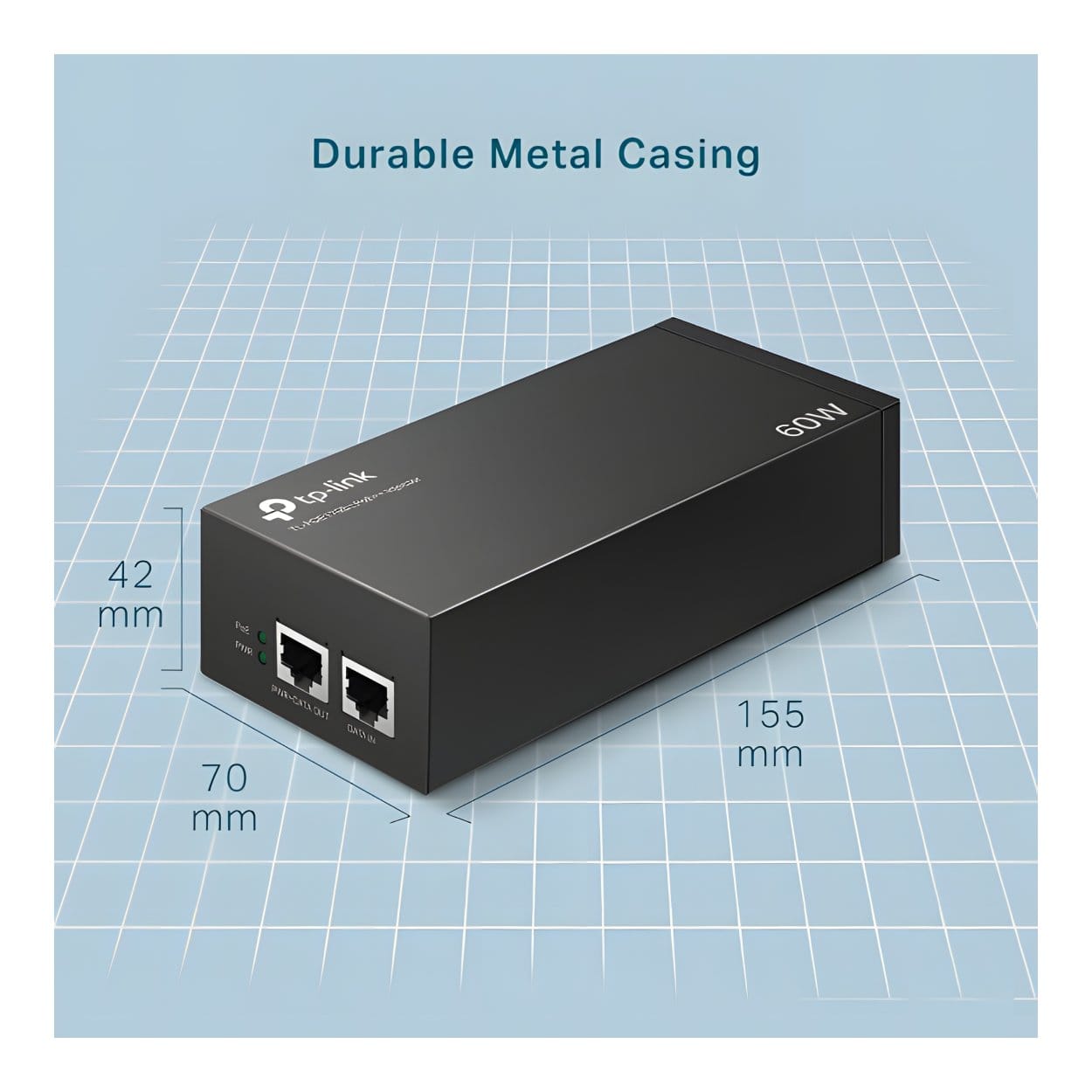

Dimensions (W × D × H)
n155 × 70 × 42 mm

nn

Material
nMetal Casing

nn

Environmental

nn

Operating Temperature
n0°C To 45°C

nn

Storage Temperature
n-40°C To 70°C

nn

Operating Humidity
n10% To 90% RH, Non-Condensing

nn

Storage Humidity
n5% To 90% RH, Non-Condensing

nn

Certifications

nn

Compliance Certifications
nFCC
nCE
nRoHS

nn

What's in the Box:

nn

n
• PoE++ Injector TL-POE170S

n

• Installation Guide

n

• Power Cord

n

• RJ45 Cable

n
