TP-Link Omada MC100CM Fast Ethernet Multi-Mode Media Converter

TP-Link Omada MC100CM Fast Ethernet Multi-Mode Media Converter

nn

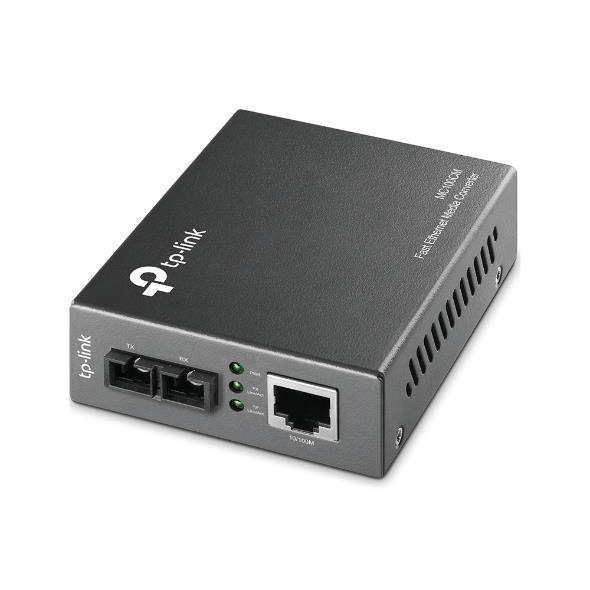

The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).

nn

Features:

nn

n
• Complies with 802.3u 10/100Base-TX, 100Base-FX standards

n

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

n

• Extends fiber distance up to 1.2 miles (2km)

n

nn

Technical Specifications:

nn

Maximum data transfer rate: 100 Mbit/s

nn

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

nn

Ethernet LAN data rates: 10,100 Mbit/s

nn

Maximum transfer distance: 2000 m

nn

Wavelength: 1310 nm

nn

Fiber mode structure: Multi-mode

nn

Product colour: Black

nn

Fiber optic connector: SC

nn

Connectivity technology: Wired

nn

Power consumption (max): 2.4 W
