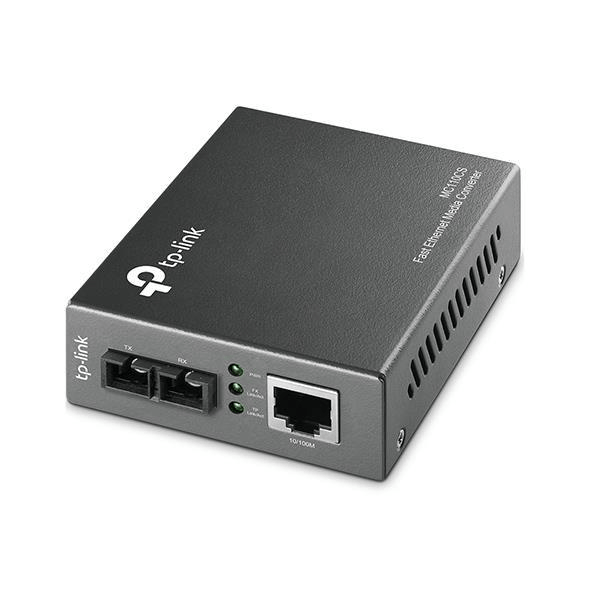

TP-Link Omada MC110CS Fast Ethernet Single-Mode Media Converter

TP-Link Omada MC110CS Fast Ethernet Single-Mode Media Converter

nn

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

nn

Features:

nn

n
• Complies with 802.3u 10/100Base-TX, 100Base-FX standards

n

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

n

• Extends fiber distance up to 20km

n

nn

nn

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

nn

Use the MC110CS 10/100 Mb/s Single-Mode Media Converter from TP-Link to connect 100BASE-FX fiber to 100BASE-TX copper lines together. This media converter supports 802.3, 802.3u, 802.3x IEEE network standards and extends single-mode fiber ranges up to 12.5 miles. The MC110CS supports full wire transfer rates of up to 100 Mb/s and works at the 1310nm wavelength transmitting and receiving data with Full-Duplex mode for the FX port. This device includes one 100M SC port, a single 10/100 Ethernet port, and an external power adapter.

nn

Transmits and receives data with in Full-Duplex mode for the FX port

nn

Supports auto MDI/MDIX for TX port

nn

Extends single-mode fiber range up to 12.5 miles

nn

1310nm wavelength on both transmitting and receiving data

nn

Convenient, easy-to-view LED indicators for monitoring network activity

nn

External power supply

nn

nn

Technical Specifications:

nn

Standards and Protocols
nIEEE 802.3, IEEE 802.3u, IEEE 802.3x

nn

Basic Function
nAuto-negotiation of Half-Duplex / Full-Duplex transfer mode
nFull Duplex Flow Control (IEEE 802.3x)
nHalf Duplex Flow Control (Backpressure)
nExtends fiber distance up to 20km

nn

Interface
n1× 100M SC/UPC port
n1× 10/100M RJ45 port (Auto MDI/MDIX)

nn

Wave Length
n1310nm

nn

Network Media 10BASE-T
nUTP category 3, 4, 5 cable (maximum 100m)
nEIA/TIA-568 100Ω STP (maximum 100m)

nn

Network Media 100BASE-T
nUTP category 5, 5e cable (maximum 100m)
nEIA/TIA-568 100Ω STP (maximum 100m)

nn

Network Media 100BASE-FX
nSingle-mode Fiber

nn

Dimensions (W × D × H)
n3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm)

nn

Power Supply
nExternal power supply

nn

Max. Power Consumption
n2.4W

nn

LED
nPWR, Link/Act

nn

Safety & Emission
nFCC, CE, RoHS

nn

Environment
nOperating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
nStorage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
nOperating Humidity: 10% ~ 90% non-condensing
nStorage Humidity: 5% ~ 90% non-condensing

nn

What's in the Box:

nn

n
• MC110CS

n

• Power Adapter

n

• Installation Guide

n
