TP-Link Omada MC200CM Gigabit Multi-Mode Media Converter

TP-Link Omada MC200CM Gigabit Multi-Mode Media Converter

nn

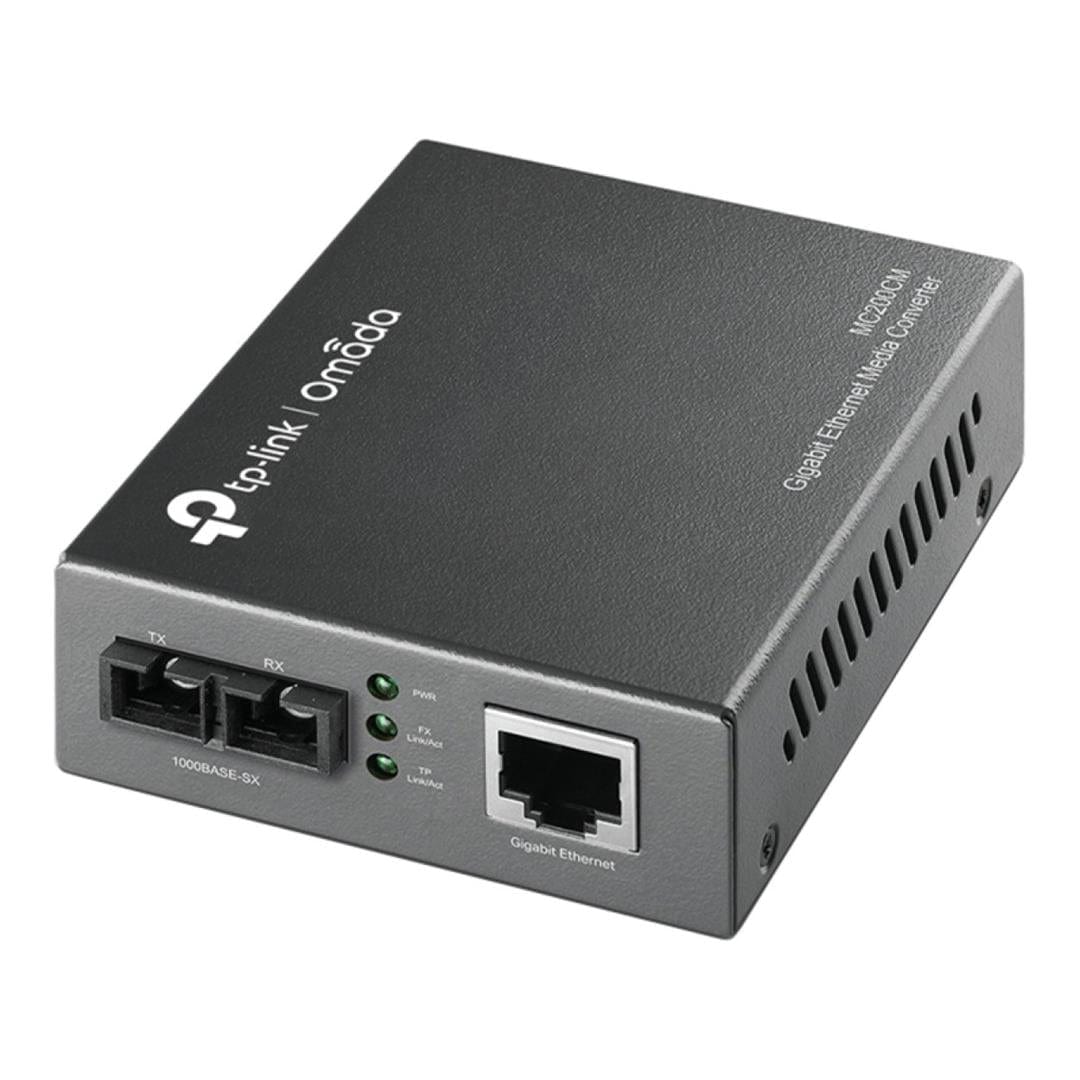

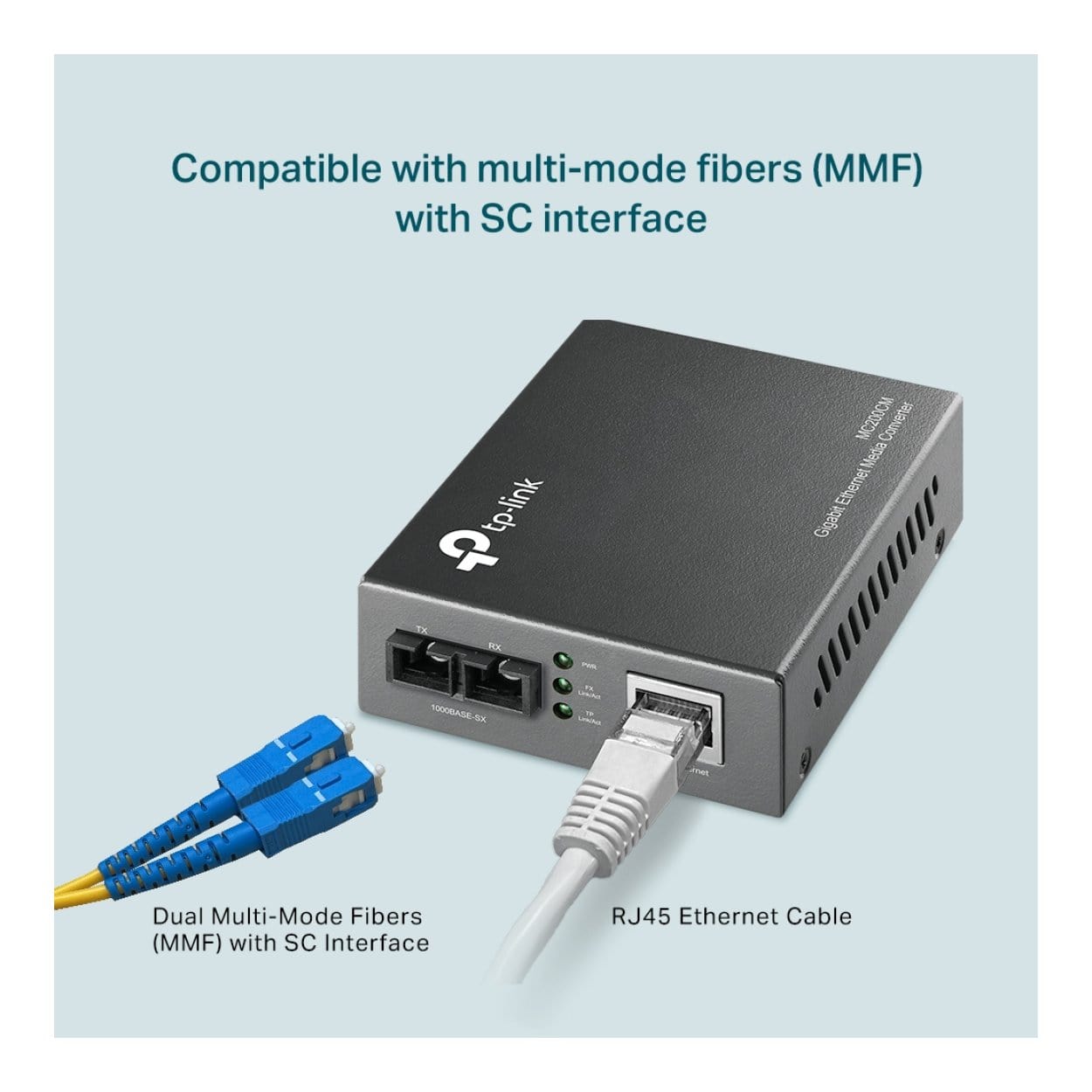

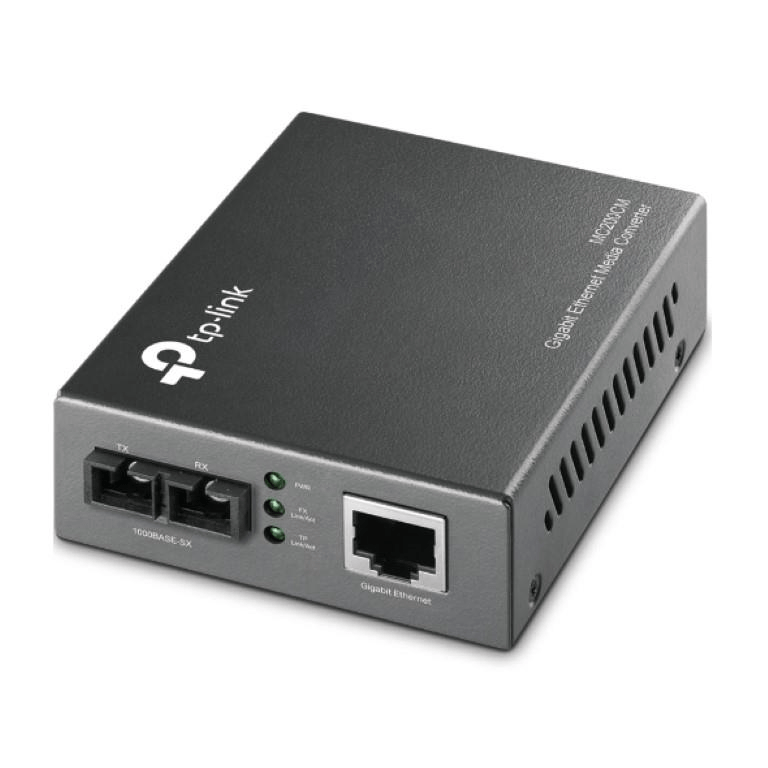

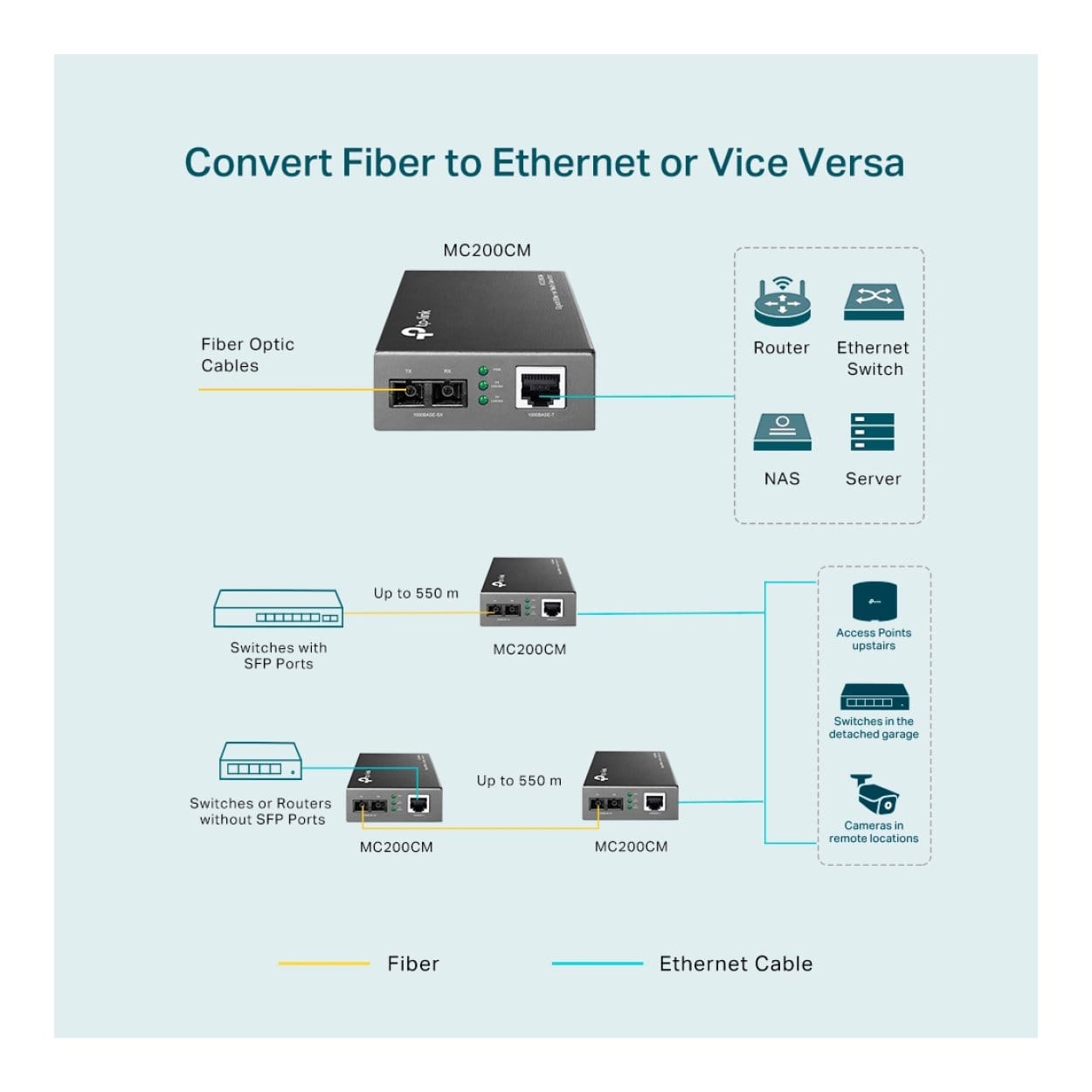

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data

nn

Features:

nn

n
• 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX

n

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

n

• Complies with IEEE 802.3ab and IEEE 802.3z

n

• Extends fiber distance up to 1,800 feet (550m)

n

nn

nn

 Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).

nn

nn

Technical Specifications:

nn

Standards and Protocols
nIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

nn

Basic Function
nAuto-negotiation of Half-Duplex / Full-Duplex transfer mode
nExtends fiber distance up to 0.55 km using 50/125 μm fiber
nExtends fiber distance up to 0.22 km using 62.5/125 μm fiber

nn

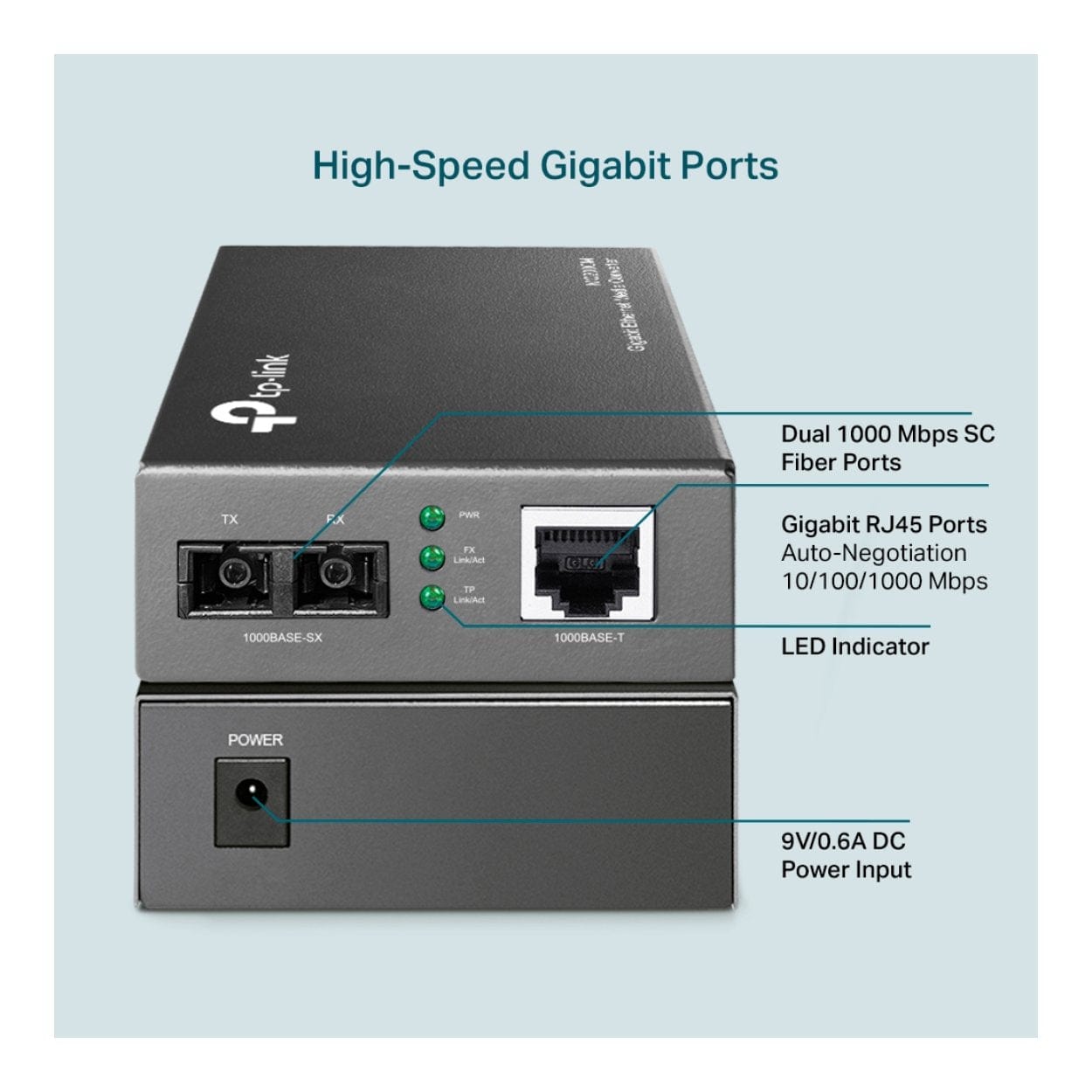

Interface
n1× 1000M SC/UPC port
n1× 10/100/1000M RJ45 port (Auto MDI/MDIX)

nn

Wavelength
n850 nm

nn

Network Media 1000BASE-SX
nMulti-mode Fiber

nn

Network Media 1000BASE-T
nUTP Category 5, 5e cable (maximum 100 m)
nEIA/TIA-568 100Ω STP (maximum 100 m)

nn

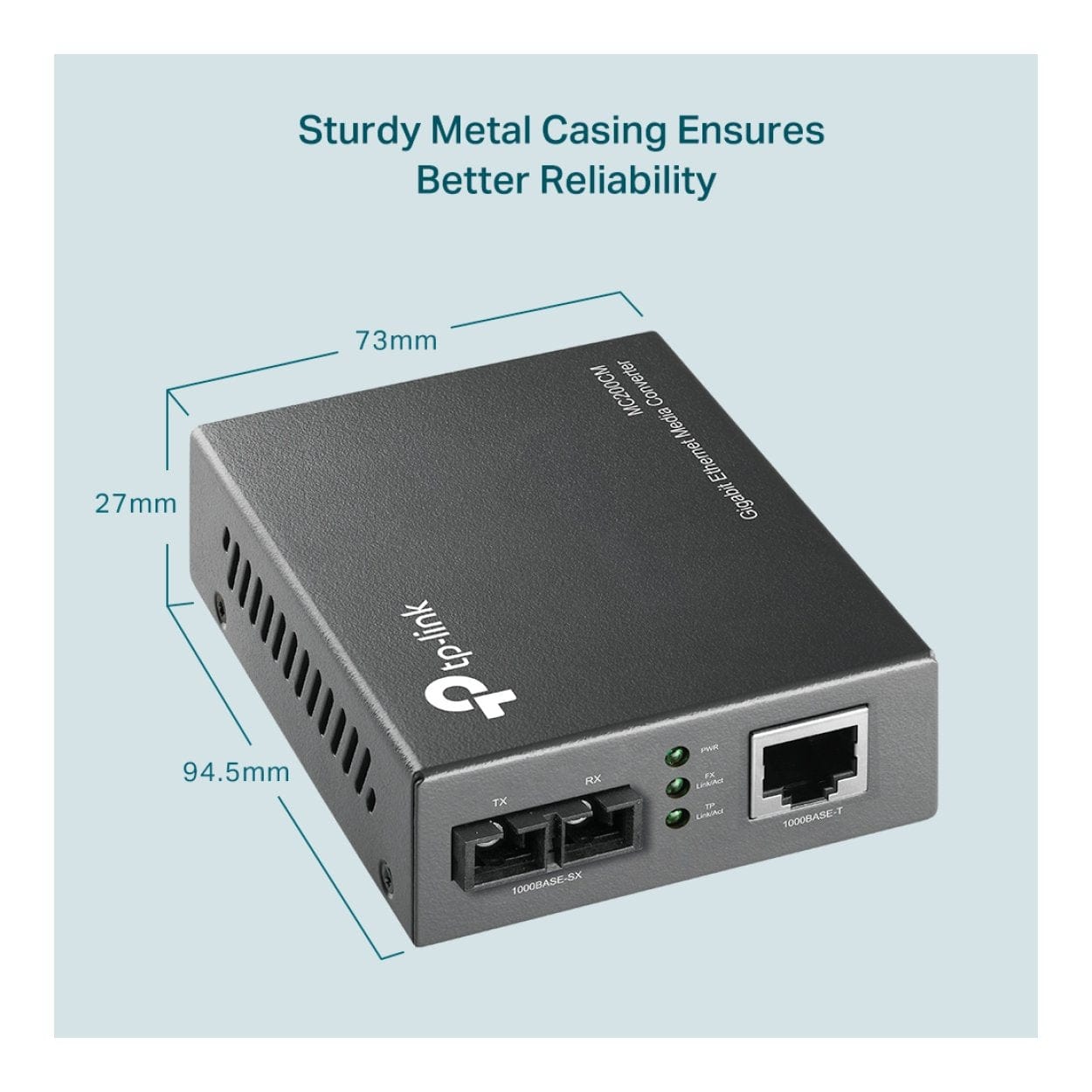

Dimensions (W × D × H)
n3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm)

nn

Power Supply
nExternal Power Adapter

nn

Max. Power Consumption
n1.66 W

nn

LED
nPWR, Link/Act

nn

Safety & Emission
nFCC, CE, RoHS

nn

Environment
nOperating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
nStorage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
nOperating Humidity: 10% ~ 90% non-condensing
nStorage Humidity: 5% ~ 90% non-condensing

nn

What’s in the Box:

nn

n
• MC200CM

n

• Power Adapter

n

• Installation Guide

n
