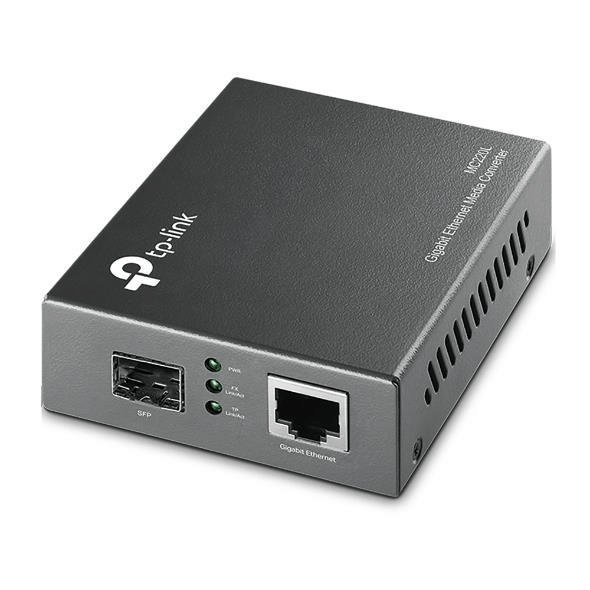

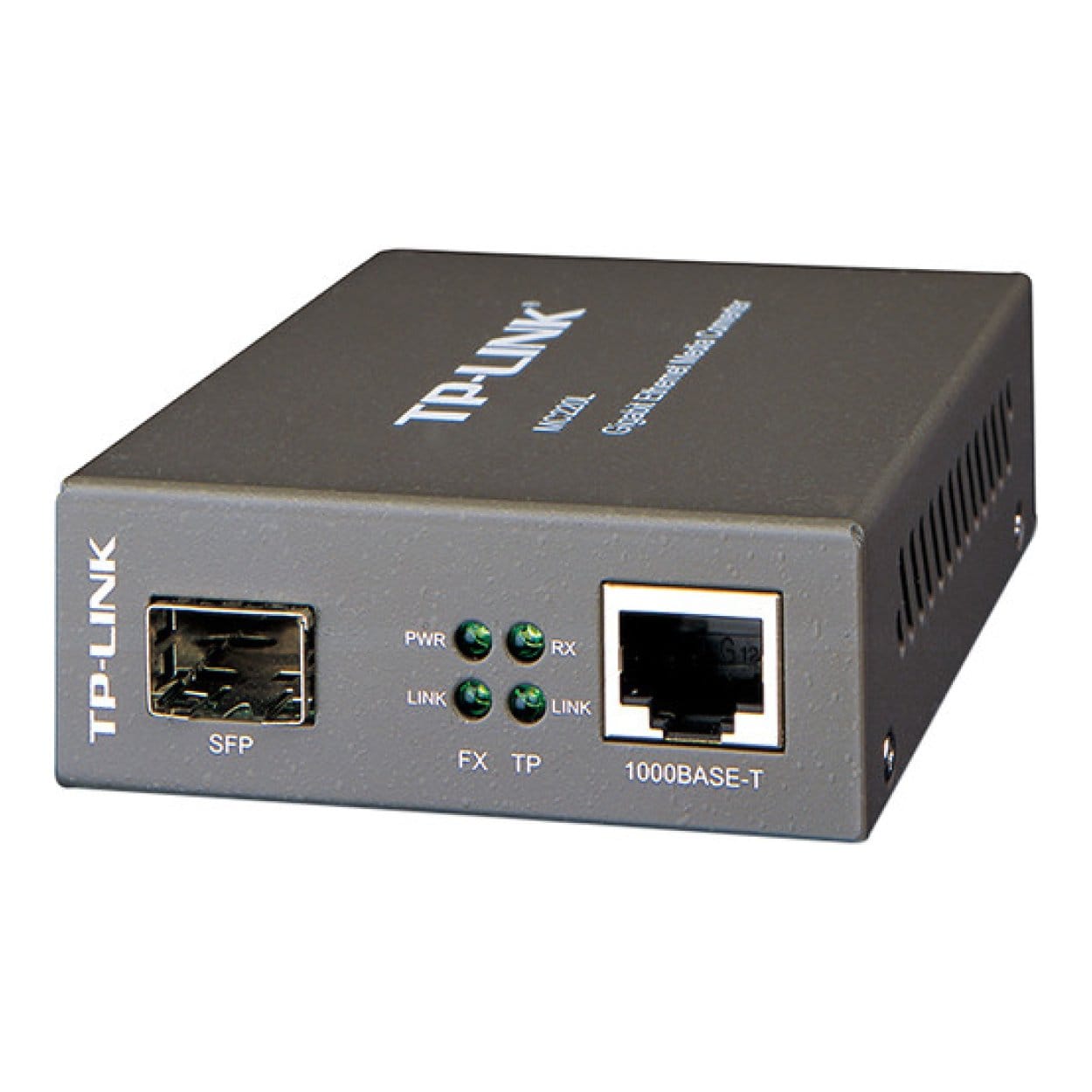

TP-Link Omada MC220L Gigabit SFP Media Converter

TP-Link Omada MC220L Gigabit SFP Media Converter

nn

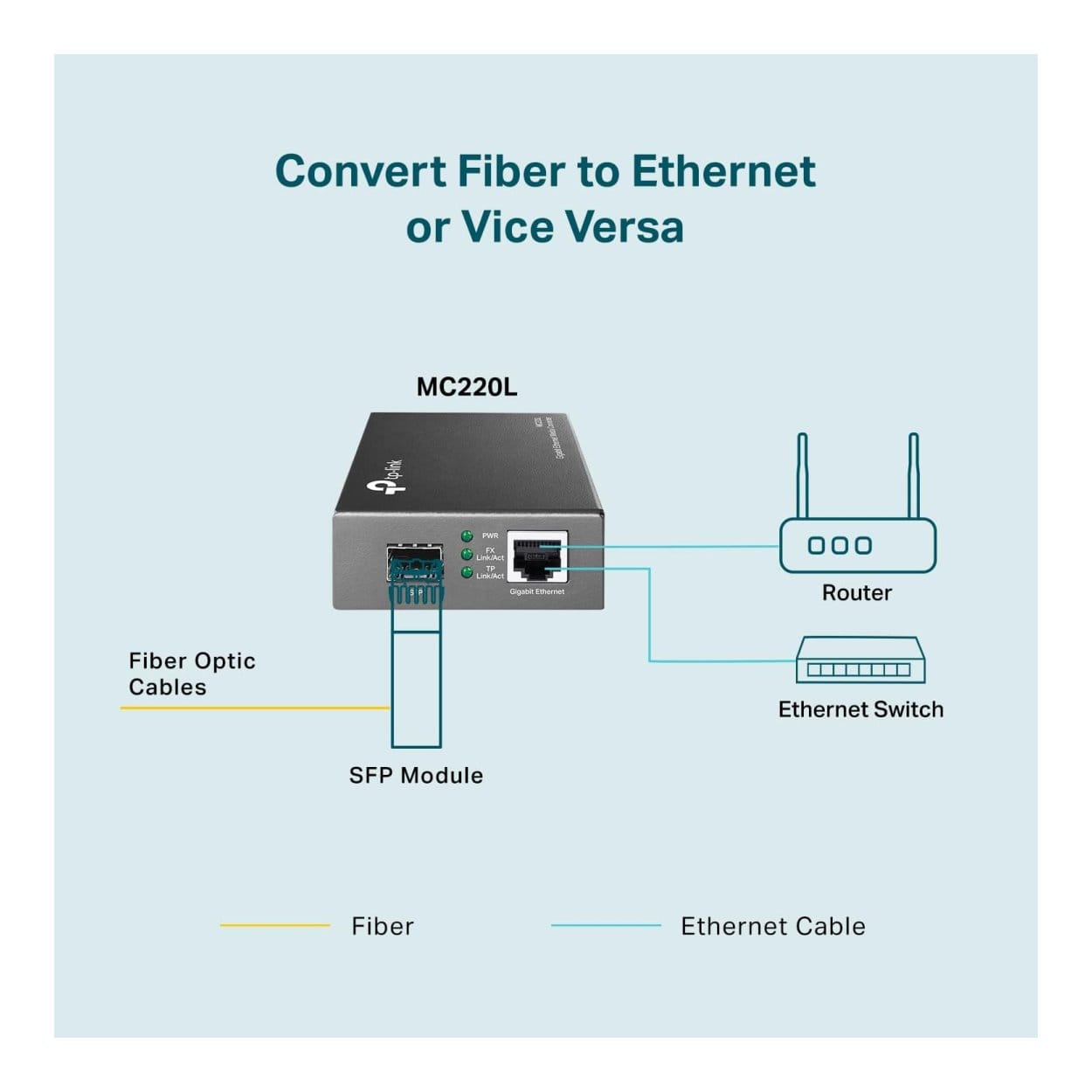

The MC220L is a media converter designed to convert between 1000BASE-SX/LX fiber and 10/100/1000Base-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC220L applies the IEEE802.3ab 1000Base-T & IEEE802.3z 1000Base-SX/LX standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

nn

Features:

nn

n
• 1× 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

n

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

n

• Complies with IEEE 802.3ab and IEEE 802.3z

n

• FX port supports hot-swappable

n

• Maximum transmission distance depends on the inserting SFP

n

nn

nn

MC220L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.

nn

nn

Technical Specifications

nn

Standards and Protocols
nIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

nn

Basic Function
nAuto-negotiation of Half-Duplex / Full-Duplex transfer mode
nMaximum transmission distance depends on the inserting SFP module

nn

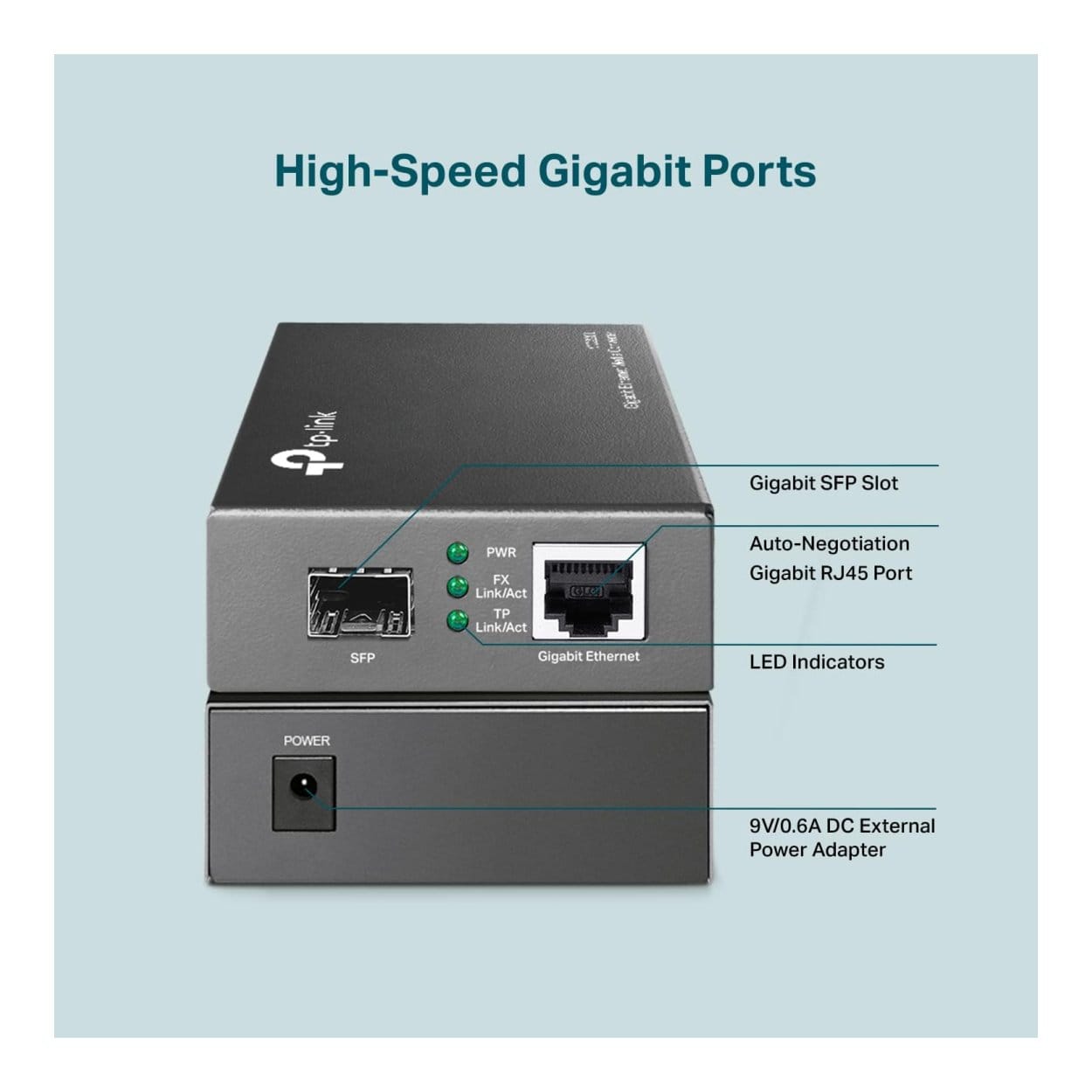

Interface
n1× 1000M SFP port
n1× 10/100/1000M RJ45 port (Auto MDI/MDIX)

nn

Wave Length
nDepends on the used SFP module

nn

Network Media 1000BASE-X

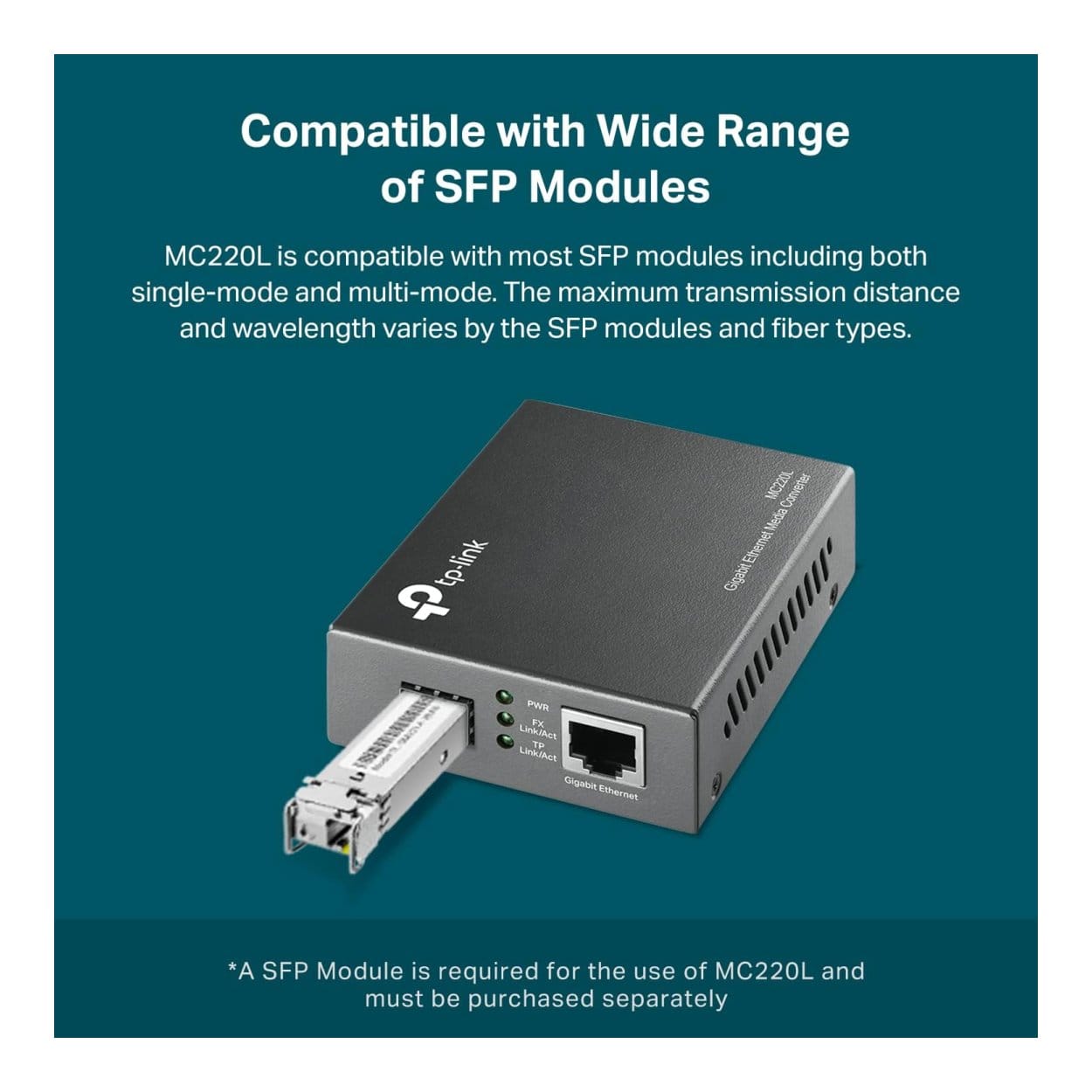

nMulti-mode/Single-mode SFP module

nn

Network Media 1000BASE-T
nUTP category 5, 5e cable (maximum 100m)
nEIA/TIA-568 100Ω STP (maximum 100m)

nn

Dimensions (W x D x H)
n3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm)

nn

Power Supply
nExternal Power Adapter

nn

Max. Power Consumption
n1.7 W

nn

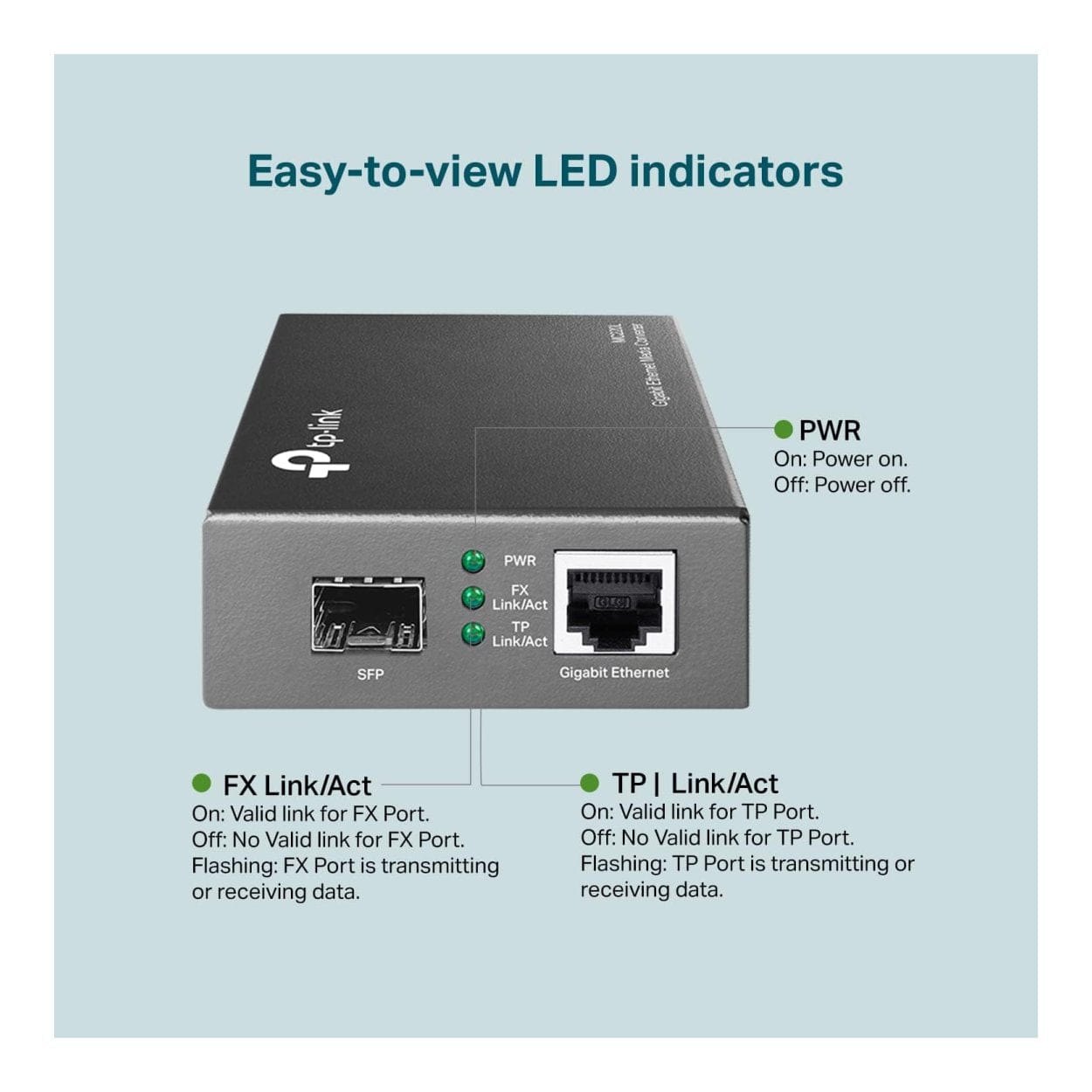

LED
nPWR, Link/Act

nn

Safety & Emission
nFCC, CE, RoHS

nn

Environment
nOperating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
nStorage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
nOperating Humidity: 10% ~ 90% non-condensing
nStorage Humidity: 5% ~ 90% non-condensing

nn

What's in the Box:

nn

n
• MC220L

n

• Power Adapter

n

• Installation Guide

n
