TP-Link Omada OC220 2x GE Hardware Controller

TP-Link Omada OC220 2x GE Hardware Controller

nn

A Mini yet Mighty
nOmada Hardware Controller that Works Without a Running PC/Server

nn

Features:

nn

n
• nCentralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs*

n

• nFree Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.

n

• nOn-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.

n

• nHardware Design for Businesses: Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.

n

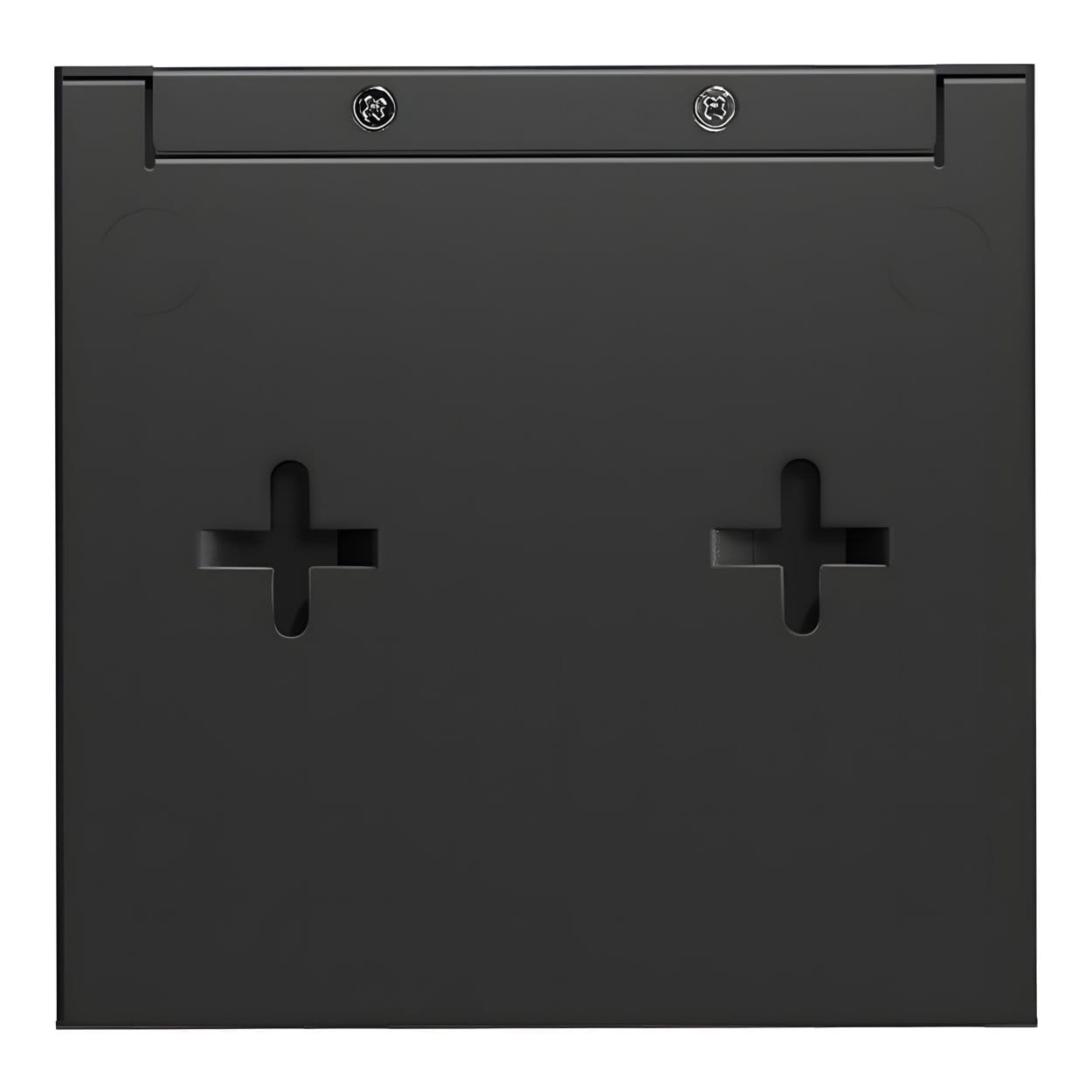

• nFlexible Deployment: Powerd via 802.3af PoE or Micro USB (DC 5V/Minimum 1A) with a compact desktop or wall mount installation.

n

nn

nn

Hybrid Cloud Management for Maximum Convenience

nn

Remotely or locally manage up to 100 Omada access points, 10 gateways, 20 switches, and two DeltaStream GPON OLTs via the Omada App or Web UI.

nn

nn

Technical Specifications:

nn

Hardware Features

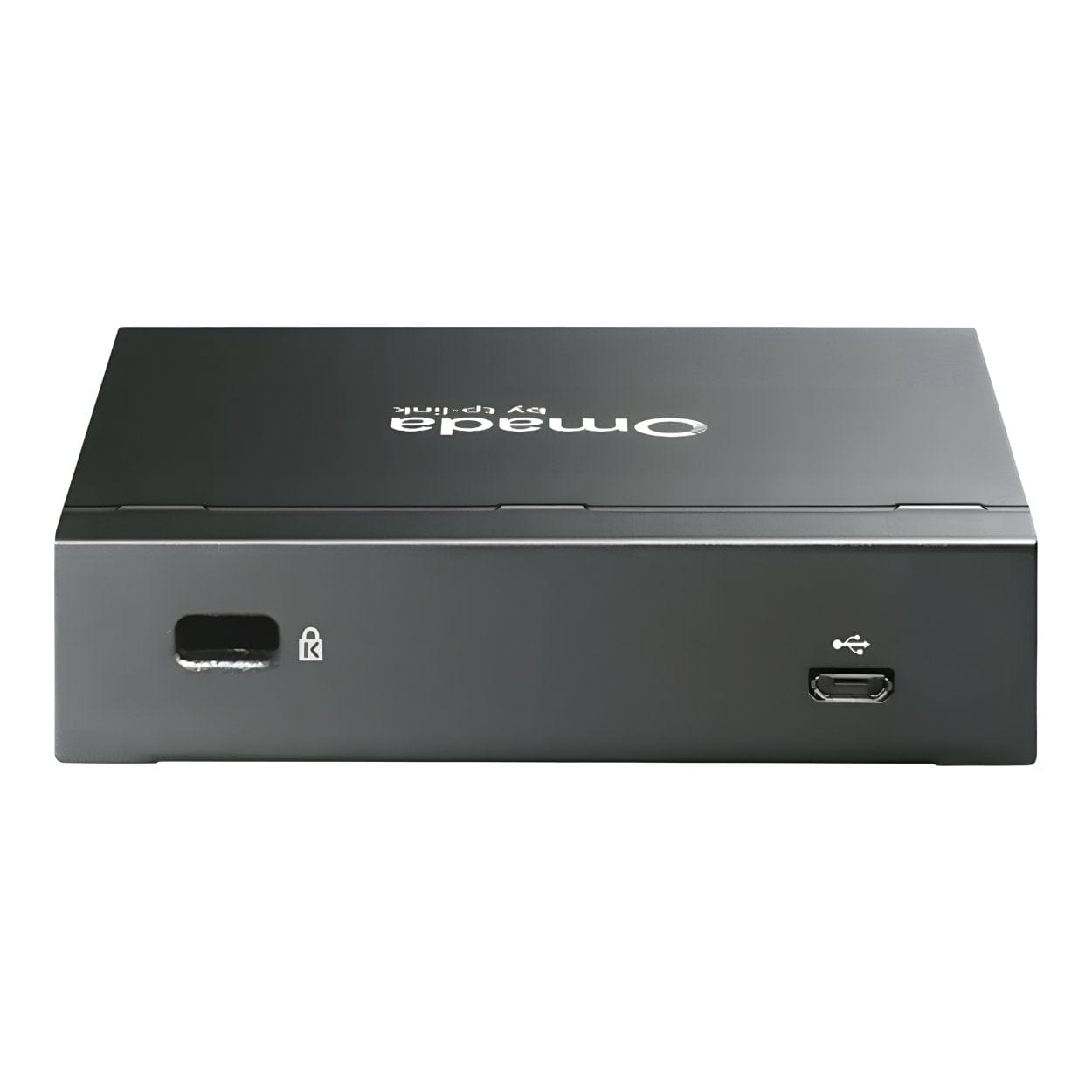

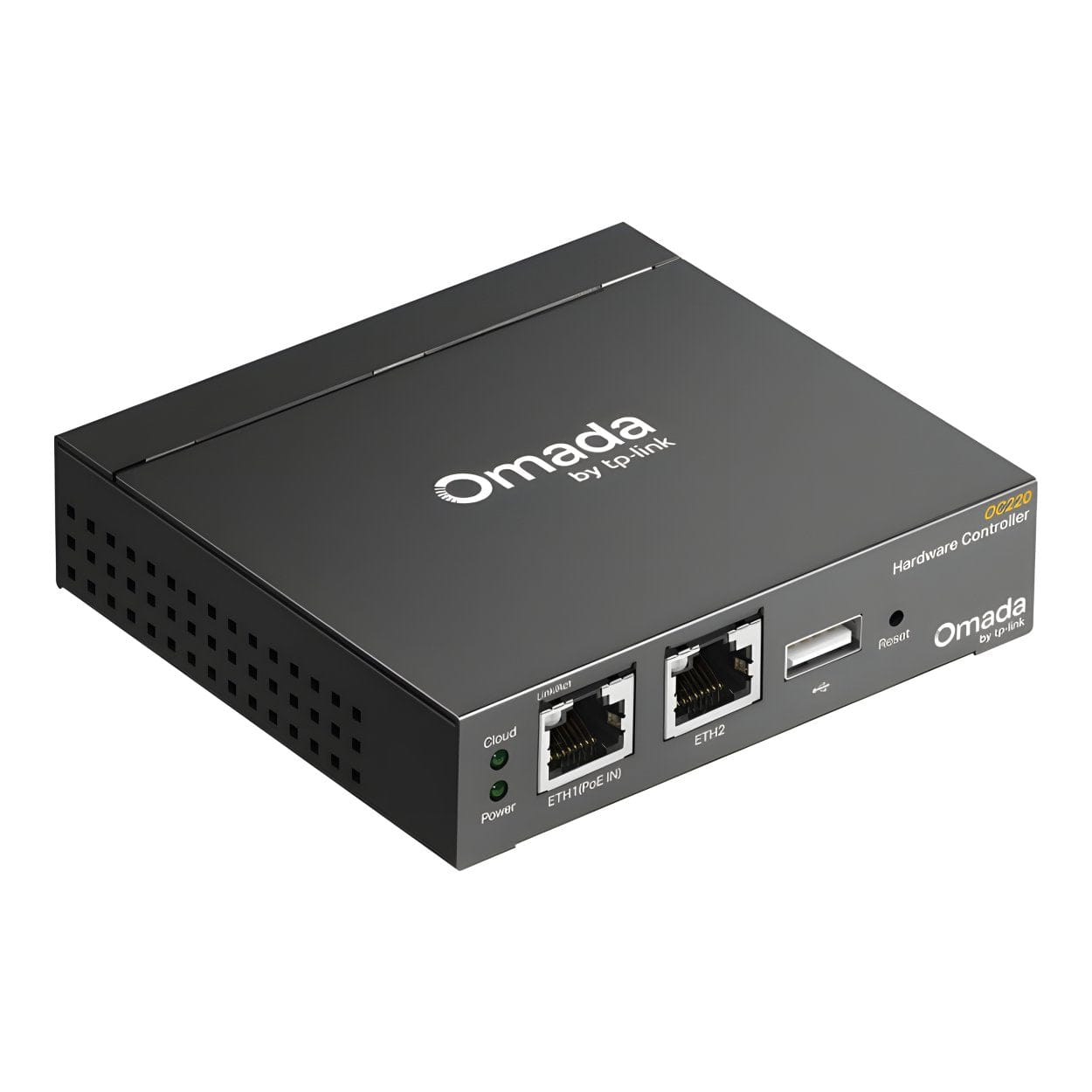

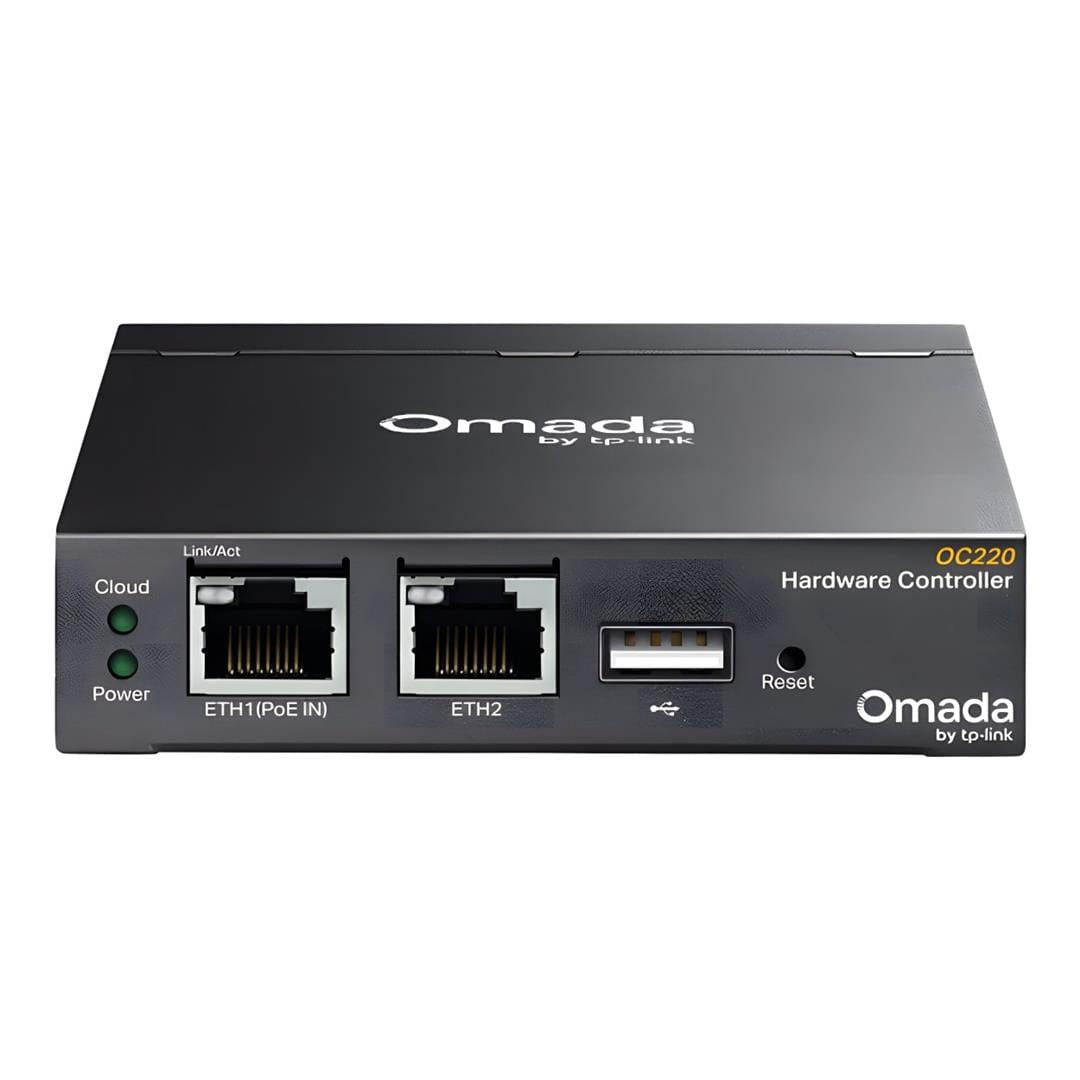

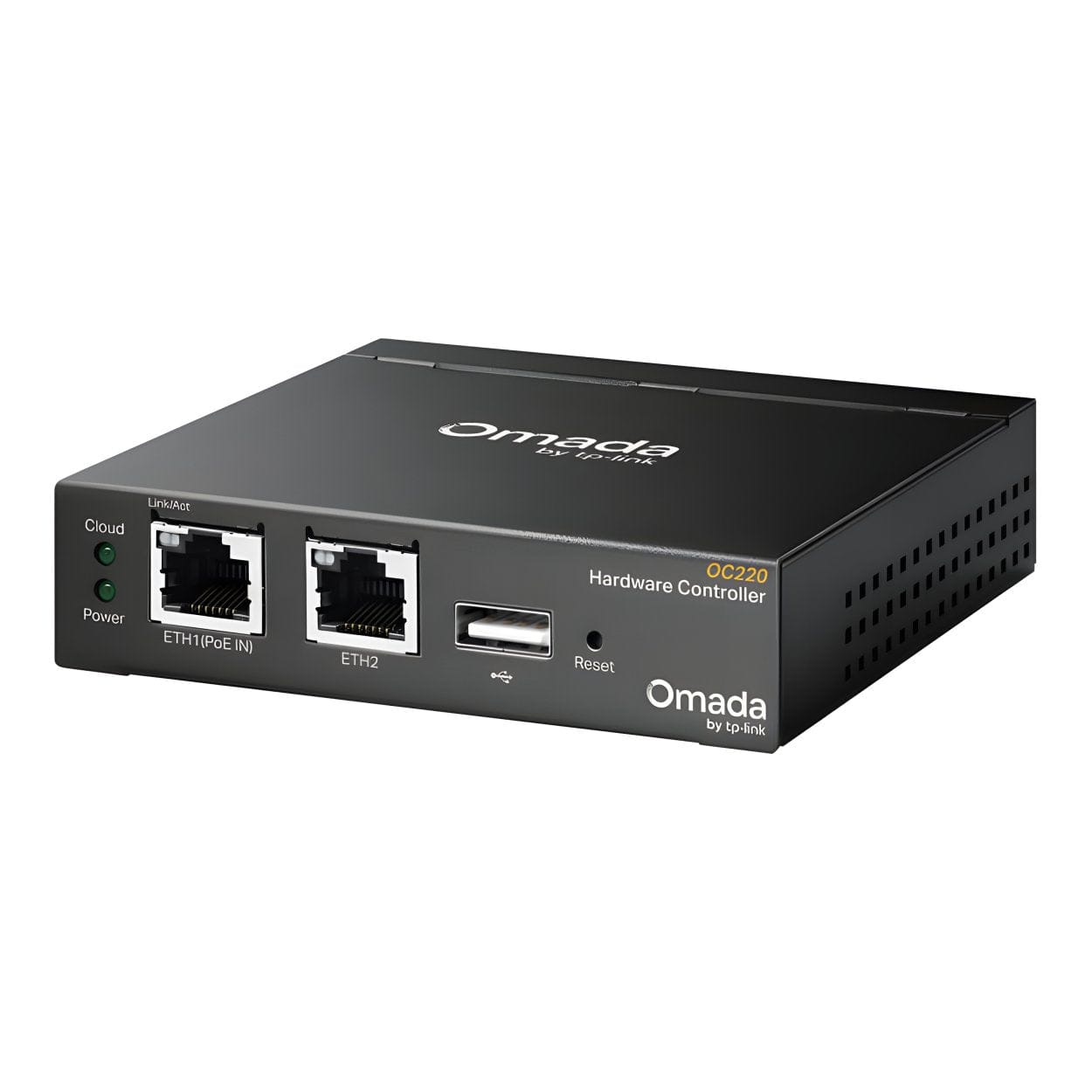

nInterface: 2× Gigabit Ethernet ports, 1× USB 2.0 port, 1× Micro USB port
nPower Supply: 802.3af PoE, Micro USB DC 5 V (minimum 1 A)
nDimensions (W × D × H): 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

nn

Management Features
nOmada App: Yes
nCentralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and up to two supported DeltaStream GPON OLTs
nCloud Access: Yes
nL3 Management: Yes
nMulti-site Management: Yes
nManagement Functions: Automatic device discovery, batch configuration, batch firmware upgrading, intelligent network monitoring, abnormal event warnings, unified configuration, reboot schedule, captive portal configuration

nn

System Requirements
nSupported Operating Systems: Windows 7, 8, 10, 11, Vista, XP, macOS, NetWare, UNIX, Linux

nn

Environment
nOperating Temperature: -5 °C to 50 °C (23 °F to 122 °F)
nStorage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
nOperating Humidity: 10% to 90% RH, non-condensing
nStorage Humidity: 5% to 90% RH, non-condensing

nn

Certifications
nCE, FCC, RoHS

nn

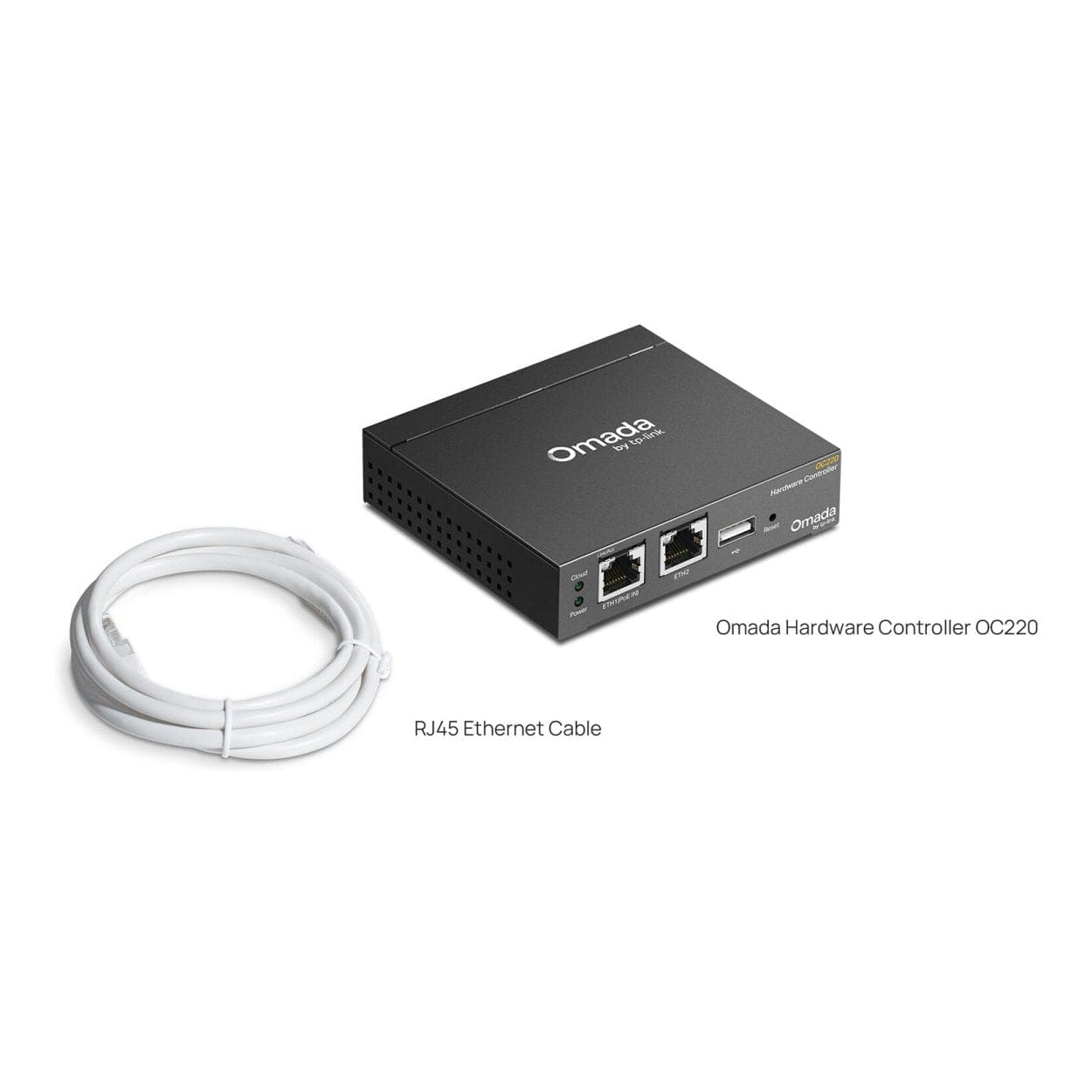

What’s in the Box:

nn

n
• Omada Hardware Controller OC220

n

• Quick Installation Guide

n

• RJ45 Ethernet Cable
