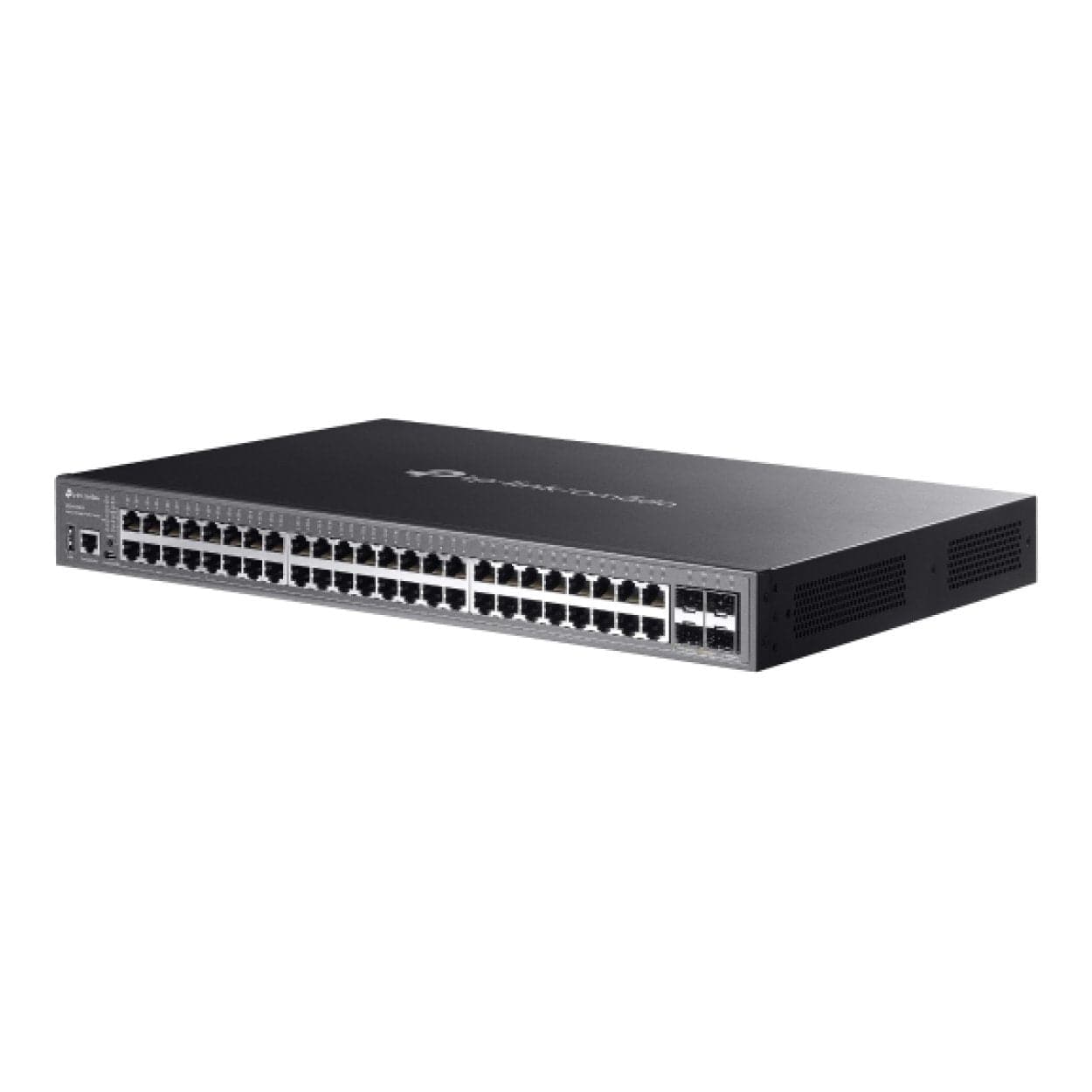

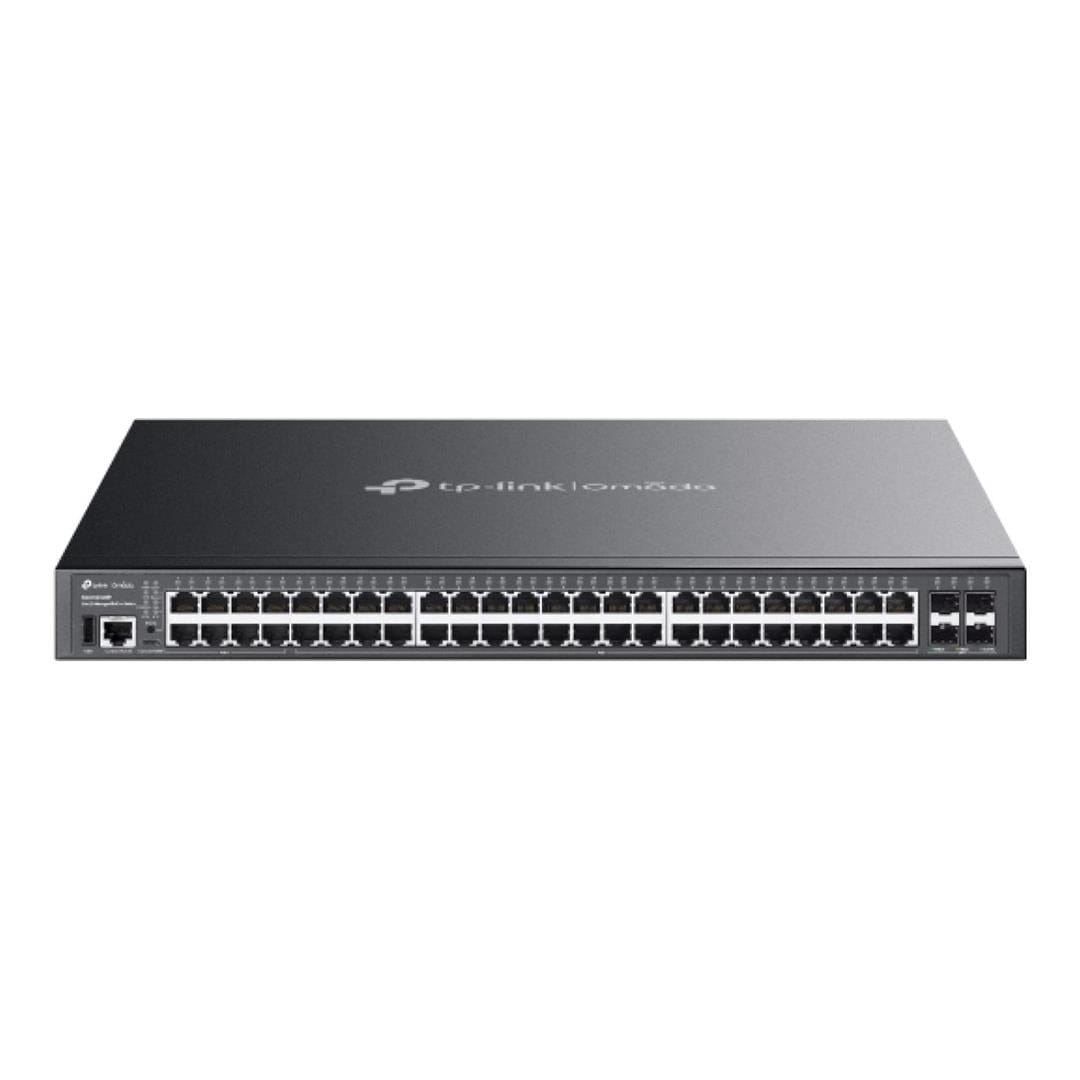

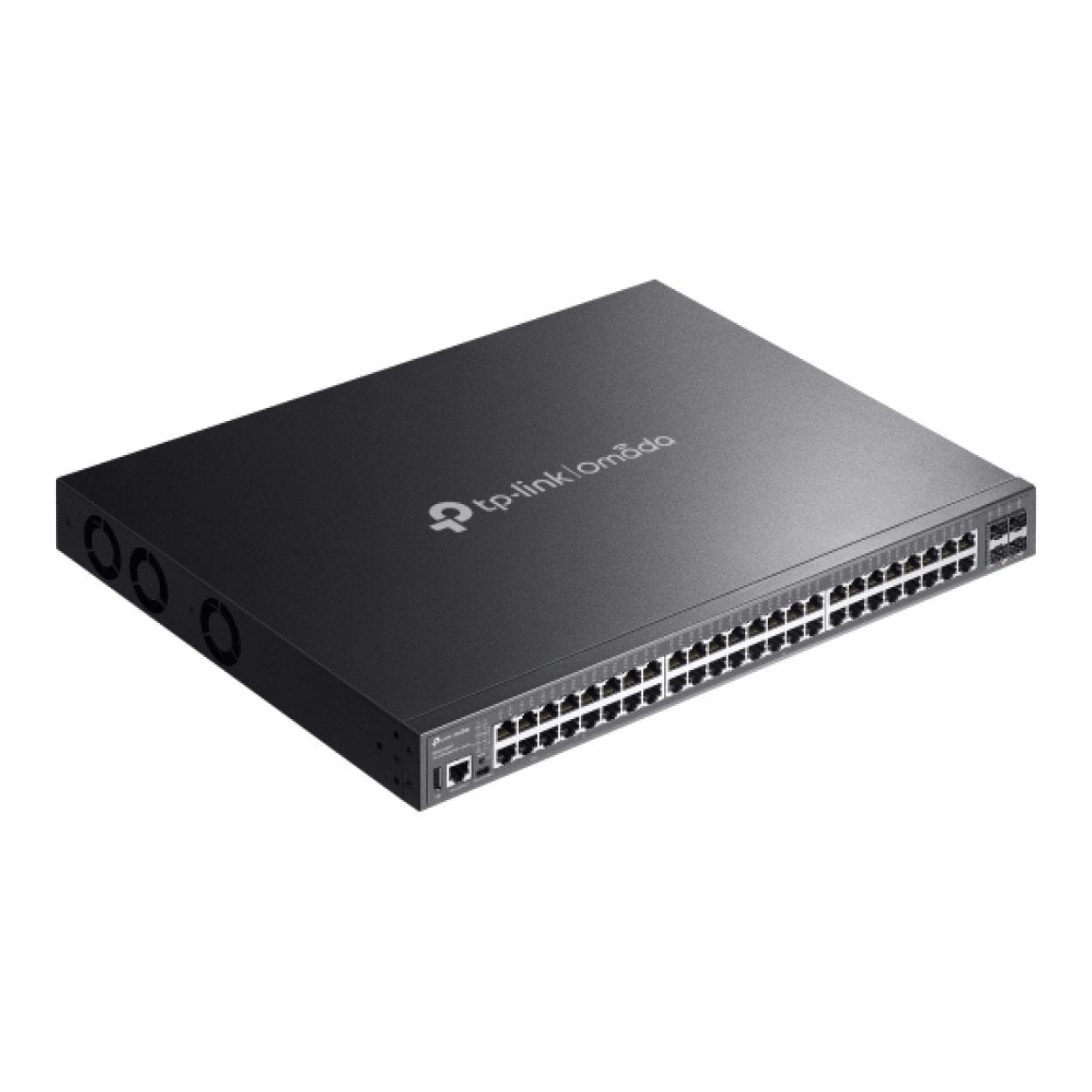

TP-Link Omada SG5452XMPP 48-port Gigabit Stackable Lite L3 PoE++ with 4× 10G Slots Managed Switch

TP-Link Omada SG5452XMPP 48-port Gigabit Stackable Lite L3 PoE++ with 4× 10G Slots Managed Switch

nn

Omada SG5452XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 770W PoE budget,* 48× gigabit RJ45 ports (8× PoE++, 40× PoE+), 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452XMPP offers a reliable networking solution for SMEs, and ISPs.

nn

Features:

nn

n
• 8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)

n

• 40× Gigabit 802.3af/at PoE+ ports (Max 30W per port)

n

• 4× 10 Gbps SFP+ slots

n

• Up to 770W total PoE budget*

n

• Fast PoE and Perpetual PoE

n

• Physical stacking up to 4 units for built-in redundancy and performance

n

• L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay

n

• Security strategies: ACL, Port Security, DoS Defend, 802.1X

n

• ERPS supports rapid protection and recovery in a ring topology

n

• Centralized cloud management via the Omada SDN controller

n

• Standalone management via web, CLI, SNMP, and RMON

n

nn

nn

IEEE 802.3af/at/bt-compliant Power over Ethernet

nn

8× IEEE 802.3af/at/bt-compliant and 40× IEEE 802.3af/at-compliant PoE ports supply up to 770W total power to 802.3af, 802.3at, and 802.3bt devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.

nn

High-speed Connectivity and Powerful Stacking

nn

48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

nn

Abundant Layer 3 Capabilities

nn

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

nn

Highly Available

nn

ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

nn

Enhanced Security Functions

nn

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

nn

Omada SDN

nn

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

nn

Apart from the ability to be centrally managed via the web or the Omada app, SG5452XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

nn

nn

Technical Specifications:

nn

Hardware Features
nInterface: 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+), 4× 1/10 Gbps SFP+ Slots, 1× USB 2.0 Port, 1× RJ45 Console Port, 1× USB Type-C Console Port
nFan Quantity: 3
nPower Supply: 100–240 V~ 50/60 Hz
nPoE Ports: 802.3af/at/bt compliant; Ports 1–8 PoE++ (up to 90W per port); Ports 9–48 PoE+ (up to 30W per port); Power Budget 770W; Fast PoE; Perpetual PoE
nDimensions: 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in)
nMounting: Rackmountable
nMax Power Consumption: 893.6 W (220V/50Hz) with 770W PD @25°C; 942.7 W (110V/60Hz) with 770W PD @25°C
nMax Heat Dissipation: 3047.18 BTU/hr (220V/50Hz) with 770W PD @25°C; 3214.61 BTU/hr (110V/60Hz) with 770W PD @25°C

nn

Performance
nSwitching Capacity: 176 Gbps per unit
nStacking: Up to 4 units; 10G SFP+ ports used for stacking; Up to 40 Gbps bandwidth (max 2 stacking ports)
nPacket Forwarding Rate: 130.94 Mpps
nMAC Address Table: 16K
nPacket Buffer Memory: 12 Mbit
nJumbo Frame: 9 KB

nn

Software Features

nn

Quality of Service
nClass of Service: 8 priority queues; Port Priority; IEEE 802.1p Priority; DSCP Priority; Queue Min-Bandwidth; Schedule Mode (SP, WRR, SP+WRR)
nBandwidth Control: Rate Limit; Storm Control
nVoice VLAN; User-Defined OUI; QoS Remark (802.1P, DSCP)

nn

L3 Features
nIP Interfaces: IPv4 Max 128; IPv6 Max 128
nStatic Routing: IPv4 Max 512; IPv6 Max 128
nHost Route Table: Max 1,024 entries
nRIP v1/v2: Max 1,796
nOSPF v2/v3: v2 Max 1,796; v3 Max 450
nStatic ARP: 512 entries
nDynamic ARP: 2,000 entries
nProxy ARP
nDHCP Server: Max 64 IP Pools; Max 1,000 Manual Bindings
nDHCP Relay: Relayed Interface; Relayed VLAN

nn

L2 and L2+ Features
nLink Aggregation; Spanning Tree Protocol; Loopback Detection (Port/VLAN); 802.3x Flow Control; ERPS; Port Mirroring; RSPAN
nMulticast: IGMP Snooping; MLD Snooping; L2 Multicast Table Max 2,000; Fast Leave; MVR; Static Multicast Groups; Multicast Filtering

nn

Advanced Features
nAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule
nISP Features: 802.3ah OAM; L2PT; DLDP; DDM; sFlow

nn

VLAN
nMax 4K VLAN Groups (802.1Q); Tagged VLAN; MAC VLAN Entries 60; Multicast VLAN; Management VLAN; QinQ Max 256 entries; GVRP; Protocol VLAN (16 templates, 12 entries); Voice VLAN; Private VLAN

nn

Security
nPort Isolation; CPU-Defend; Dynamic ARP Inspection; DoS Defend
nIP-MAC-Port Binding: 1,024 entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard
nIPv6-MAC-Port Binding: 1,024 entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard
nDHCP Filter
nPort Security: Static/Dynamic; Up to 64 MAC addresses per port
nStorm Control: Broadcast/Multicast/Unknown Unicast (kbps/ratio mode)
n802.1X: Port-based; MAC-based; VLAN Assignment; MAB; Guest VLAN; RADIUS support
nAAA (TACACS+)
nSecure Management: HTTPS (SSLv3/TLS 1.2); SSHv2
nIP/Port/MAC-based Access Control

nn

Management Features
nOmada App: Yes (requires Omada Controller)
nCentralized Management: Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller (version 5.15.20 or later)
nCloud Access: Yes (requires Omada Controller)
nZero-Touch Provisioning: Yes (Omada Cloud-Based Controller required)
nWeb GUI; CLI (Console/Telnet); SNMP v1/v2c/v3; RMON (1,2,3,9); SDM Template; DHCP/BOOTP Client; LLDP/LLDP-MED; DHCP Auto Install; Dual Image; Dual Configuration; CPU Monitoring; Cable Diagnostics; Password Recovery; SNTP; System Log; IEEE 802.3az EEE

nn

Others

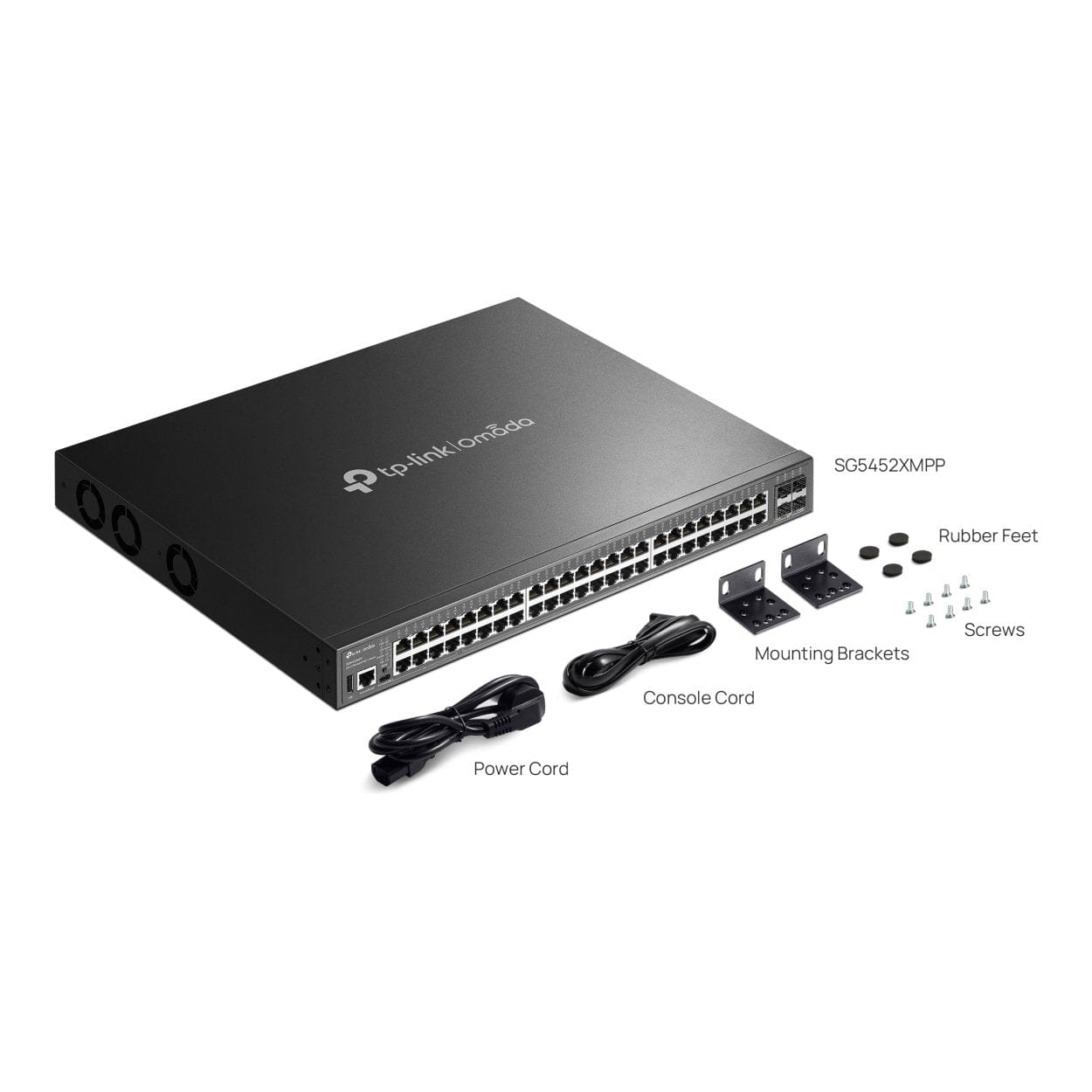

nPackage Contents: SG5452XMPP Switch; Power Cord; Console Cable; Rackmount Kits; Rubber Feet; Quick Installation Guide
nSystem Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10/11; macOS; NetWare; UNIX; Linux
nEnvironment: Operating Temperature -5°C to 40°C; Storage Temperature -40°C to 70°C; Operating Humidity 10–90% RH non-condensing; Storage Humidity 5–90% RH non-condensing
