TP-Link Omada TL-FC311A-2 Gigabit WDM Media Converter

TP-Link Omada TL-FC311A-2 Gigabit WDM Media Converter

nn

TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

nn

Features:

nn

n
• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX

n

• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

n

• Adopts WDM technology, transmitting and receiving data on one single fiber

n

• Extends fiber distance up to 2 km

n

nn

TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2. Other Features Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

nn

Technical Specifications:

nn

Maximum data transfer rate: 1000 Mbit/s

nn

Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z

nn

Ethernet interface type: Gigabit Ethernet

nn

Maximum transfer distance: 2000 m

nn

Fiber mode structure: Single-mode

nn

Fiber cable diameters supported (core/cladding): 9/125 µm

nn

LED indicators: Activity, Link, Power

nn

Product colour: Black

nn

Fiber optic connector: SC

nn

Connectivity technology: Wired

nn

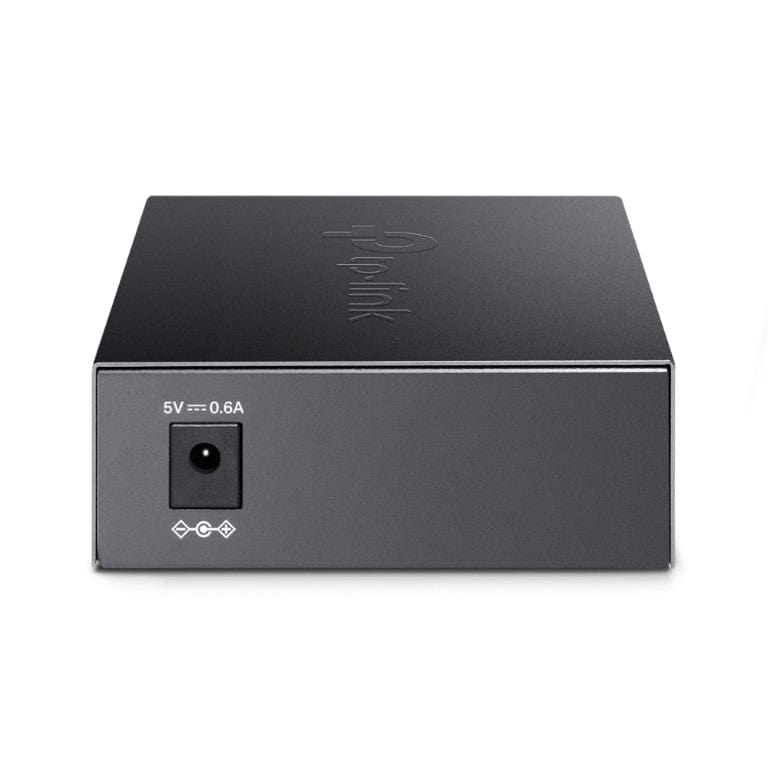

Output voltage: 5 V

nn

Output current: 0.6 A

n
