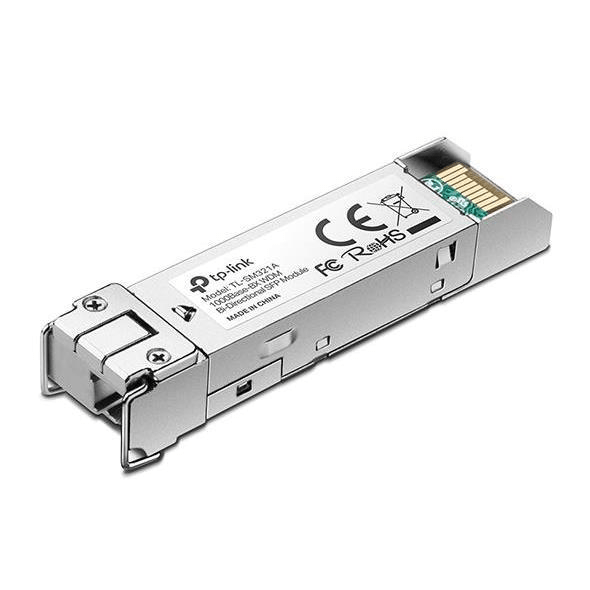

TP-Link Omada TL-SM321A 1Gbps Base-BX WDM Bi-Directional SFP Single-Mode Transceiver Module

TP-Link Omada TL-SM321A 1Gbps Base-BX WDM Bi-Directional SFP Single-Mode Transceiver Module

nn

TP-LINK´s TL-SM321A-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321A-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).

nn

Features:

nn

n
• Adopts the latest standard 1000Base-BX

n

• Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)

n

• Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)

n

• Supports Digital Diagnostic Monitoring (DDM)

n

• Supports Hot Swappable

n

nn

Also, TL-SM321A-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

nn

TP-Link's TL-SM321A-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.

nn

Technical Specifications:

nn

SFP transceiver type: Fiber optic

nn

Maximum data transfer rate: 1250 Mbit/s

nn

Interface type: SFP

nn

Compliance certificates: RoHS
