TP-Link Pharos CPE610 5GHz 300Mbps 23dBi Wi-Fi Outdoor CPE Antenna

TP-Link Pharos CPE610 5GHz 300Mbps 23dBi Wi-Fi Outdoor CPE Antenna

nn

2×2 MIMO

nn

MAXtream TDMA

nn

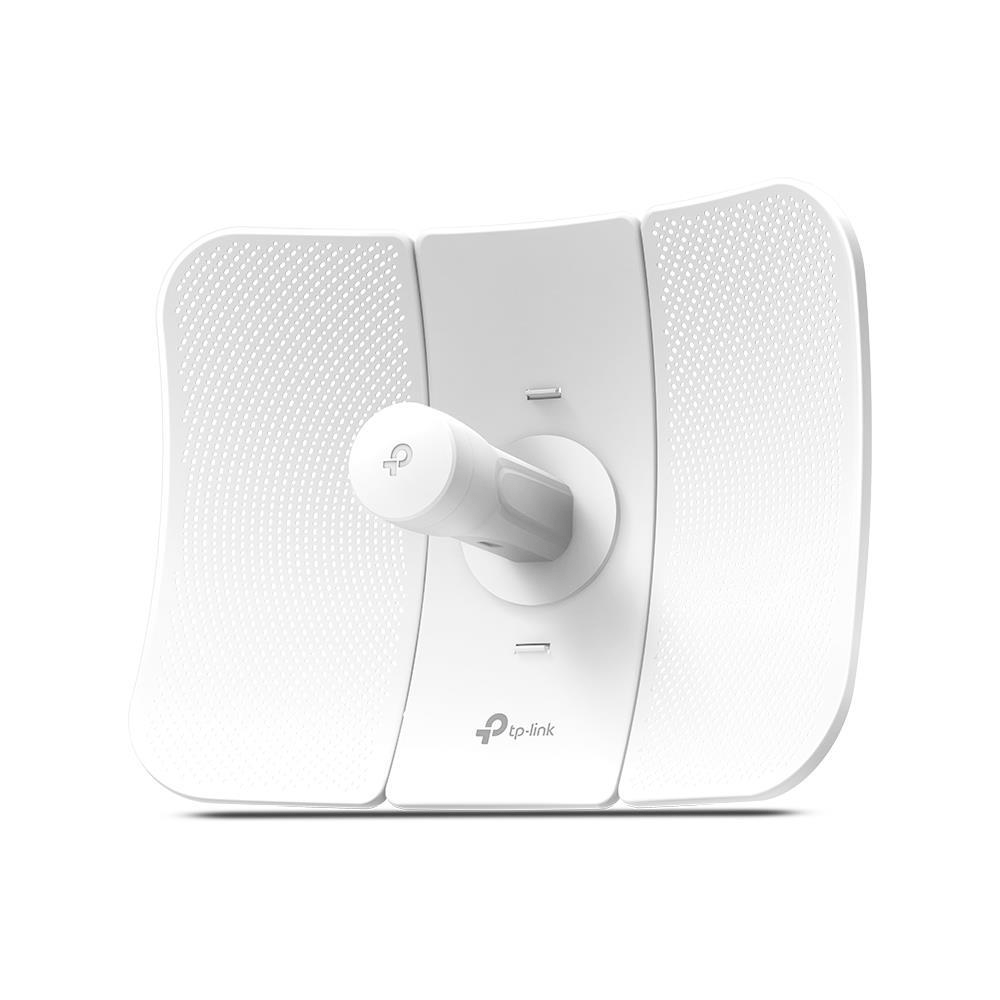

23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission

nn

Features:

nn

n
• Up to 300Mbps on 5GHz wireless data rates

n

• 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application

n

• Excellent beam directivity, improved latency and noise cancellation

n

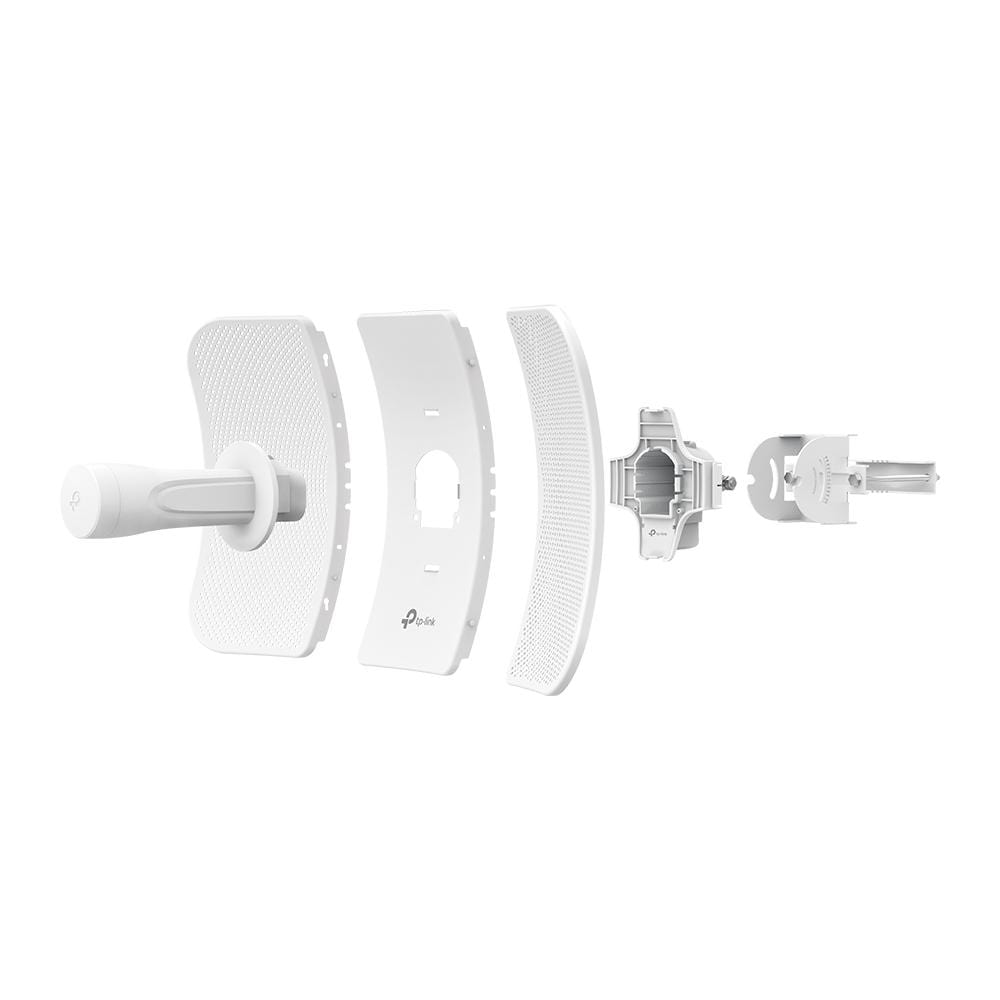

• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds

n

• Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability

n

• TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance

n

• Pharos Control gives administrators a free, centralized management system

n

• Passive PoE supports to allow flexible deployment and convenient installation

n

nn

nn

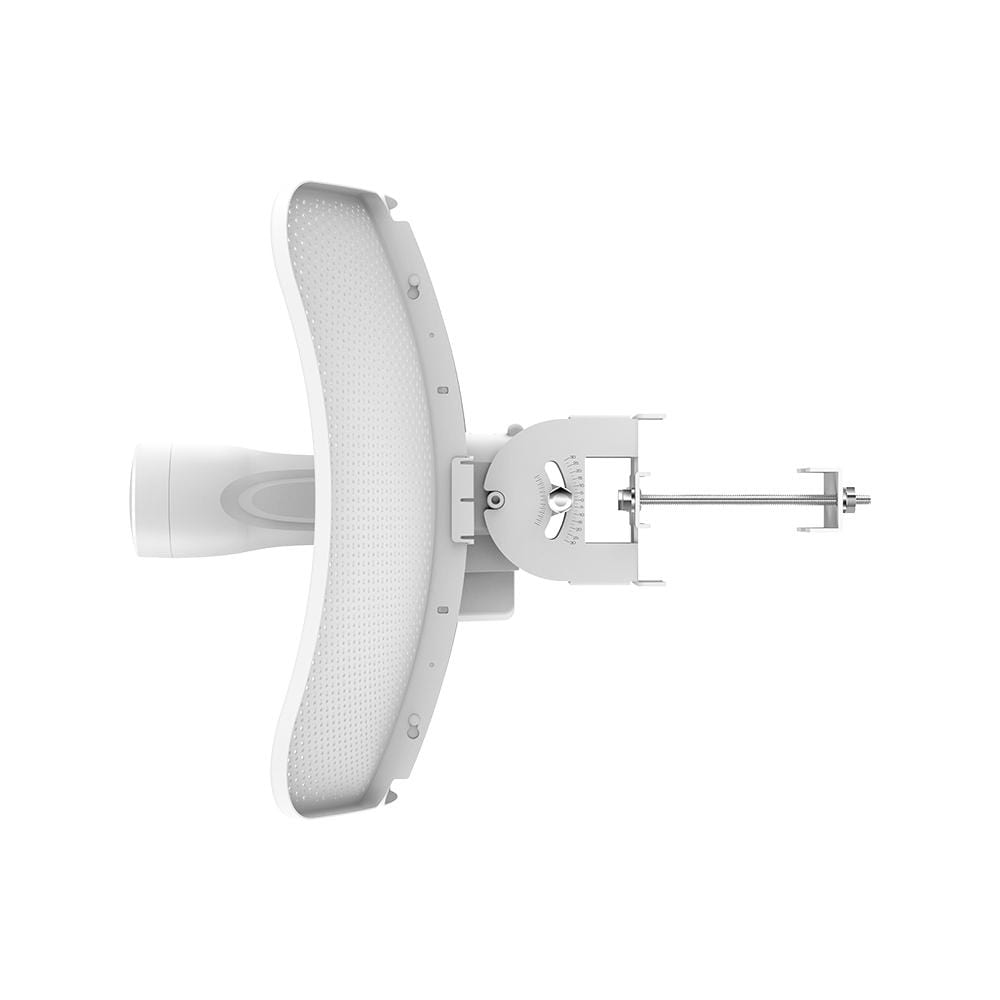

Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission

nn

With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.

nn

Compact and Lightweight Packaging

nn

Small and lightweight boxes benefit shipping, logistics and retail.

nn

Pharos Control – Centralized Management System

nn

CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device iscovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method, and allows professionals to access more detailed configurations.

nn

nn

Technical Specifications:

nn

Hardware Features
nProcessor
nQualcomm 560MHz CPU, MIPS 74Kc

nn

Memory
n64MB DDR2 RAM, 8MB Flash

nn

Interface
n1× 10/100Mbps Shielded Ethernet Port (LAN/PoE)
n1× Reset Button

nn

Power Supply
nPassive Power over Ethernet via LAN (+4,5 pins; -7,8 pins)
nVoltage Range: 16–27 VDC

nn

Max. Power Consumption
n7.41 W
nNote: When deployed using Passive PoE, power drawn will vary depending on cable length.

nn

Dimensions (W × D × H)
n366 × 280 × 207 mm (14.4 × 11.0 × 8.1 in.)

nn

Antenna Gain
n23 dBi

nn

Antenna Beamwidth
n9° (Azimuth), 7° (Elevation)

nn

Protection
n15KV ESD Protection
n6KV Lightning Protection

nn

Enclosure
nMaterial: Outdoor PC stabilized plastic
nWeatherproof: IP65 water and dust-proof design

nn

Wireless Features
nWireless Standards
nIEEE 802.11a/n

nn

Proprietary Protocol
nTDMA Mode (with Pharos MAXtream enabled)

nn

Wireless Speeds
nUp to 300 Mbps (40 MHz, dynamic)
nUp to 144.4 Mbps (20 MHz, dynamic)
nUp to 72.2 Mbps (10 MHz, dynamic)
nUp to 36.1 Mbps (5 MHz, dynamic)

nn

Frequency
n5.15–5.85 GHz

nn

Transmission Power
nMax. 25 dBm (adjustable in 1 dBm steps)

nn

Software Features
nNetwork Configuration
nWAN: Static / Dynamic / PPPoE / L2TP / PPTP
nLAN: Static / Dynamic / DHCP
nForwarding: ALG, UPnP, Virtual Server, Port Trigger
nSecurity: SPI Firewall, Ping Forbidden, DoS Protection
nAccess Control
nStatic Routing
nBandwidth Control
nIP & MAC Binding

nn

Wireless Configurations
nPharos MAXtream TDMA Technology
nSelectable Channel Width: 5/10/20/40 MHz
nAuto Channel Selection
nTransmit Power Control
nDynamic Frequency Selection (DFS)
nWDS Enable/Disable
nSecurity: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP
nSSID Broadcast Enable/Disable
nMulti-SSID with VLAN Tagging (AP Mode only)
nDistance / ACK Timeout Setting
nWireless MAC Address Filtering
nWireless Advanced:
nBeacon Interval, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, WMM

nn

Management Features
nDiscovery & Remote Management via Pharos Control
nHTTP/HTTPS Web-based Management
nSystem Log
nSNMP Agent (v2c)
nPing Watchdog
nDynamic DDNS
nSSH Server

nn

System Tools
nIndicators: Signal Strength, Noise, Transmit CCQ, CPU, Memory
nMonitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, DHCP
nSpectrum Analyzer
nSpeed Test
nPing / Traceroute

nn

System-Level Optimizations
nOptimized IGMP Snooping / Proxy for multicast
nHardware Watchdog

nn

PoE Adapter Features
nDimensions (W × D × H)
n85.8 × 43.9 × 29.7 mm

nn

Interfaces
n1× AC Jack with Earth Ground
n1× 10/100Mbps Shielded Ethernet Port (Power + Data)
n1× 10/100Mbps Shielded Ethernet Port (Data)

nn

Button
nRemote Reset Button

nn

Power Status LEDs
nGreen

nn

Input
n100–240VAC, 50/60Hz

nn

Output
n24VDC, 0.6A Max
n+4,5 pins; -7,8 pins (supports up to 60 m PoE)

nn

Efficiency

nn

84.29%

nn

Certifications
nCE, FCC, UL, IC, GS, PSB, C-tick, SAA, S-Mark, KC-mark

nn

Others
nCertification
nCE, FCC, IC, RoHS, IP65

nn

System Requirements
nWindows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 10
nMac OS
nNetWare
nUNIX or Linux
nRecommended Browsers: Chrome, Safari, Firefox (IE not recommended)

nn

Environment
nOperating Temperature: −40°C ~ 70°C (−40°F ~ 158°F)
nStorage Temperature: −40°C ~ 70°C (−40°F ~ 158°F)
nOperating Humidity: 10% ~ 90% non-condensing
nStorage Humidity: 5% ~ 95% non-condensing

nn

What's in the Box:

nn

n
• Outdoor Wireless CPE

n

• 24V 0.5A Passive PoE Adapter

n

• Pole Mounting Straps

n

• AC Power Cord

n

• Installation Guide
