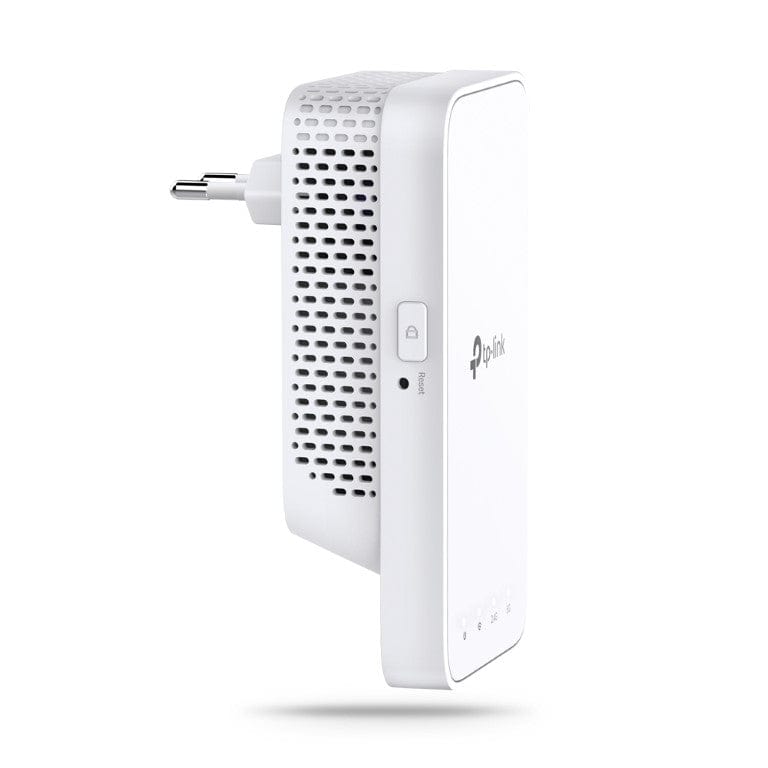

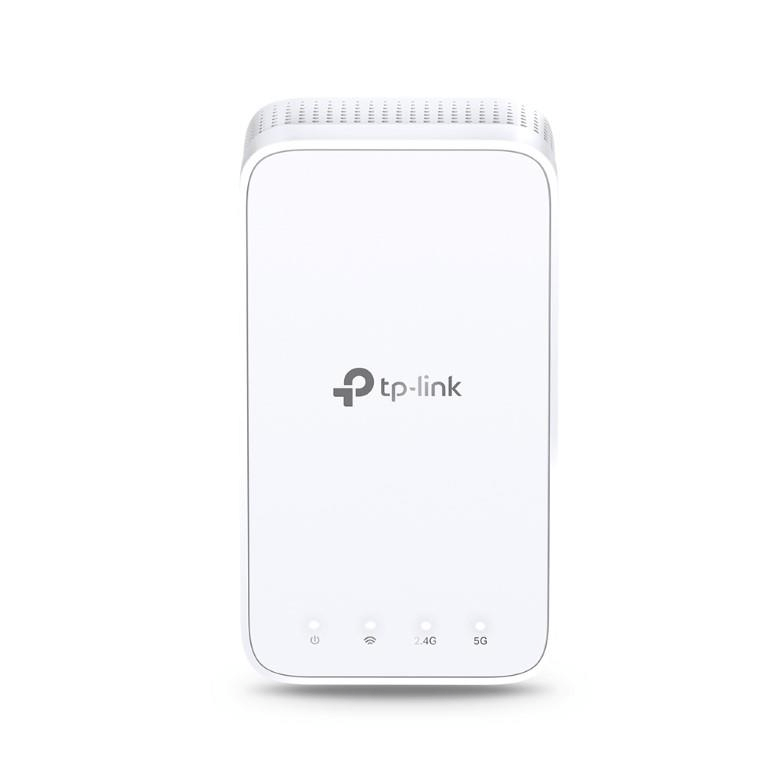

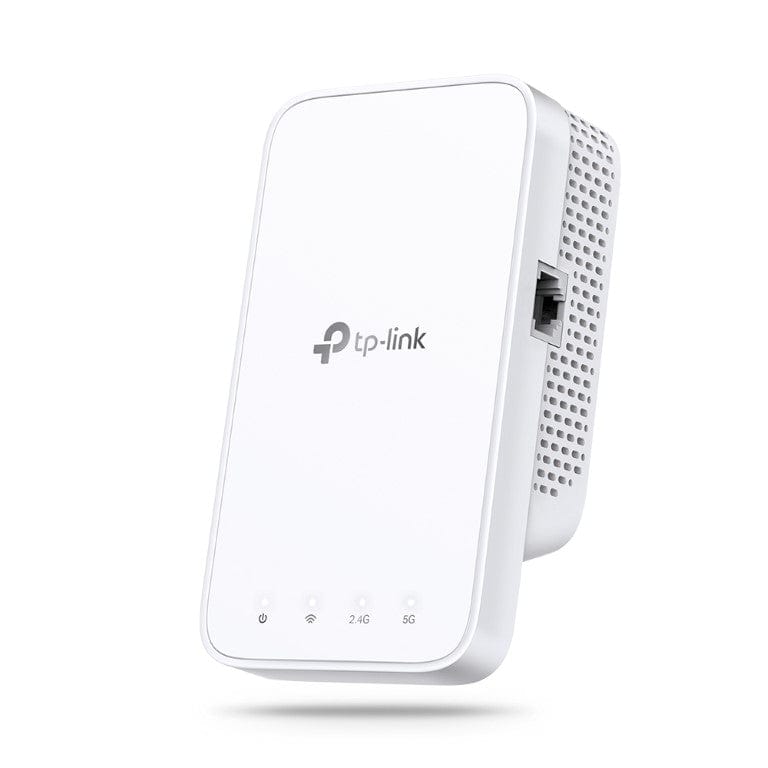

TP-Link RE230 AC750 Wi-Fi Range Extender

TP-Link AC750 Wi-Fi Range Extender

nn

Keep the Whole Home Connected

nn

RE230 wirelessly connects to your WiFi router, strengthening and expanding its signal into areas it can’t reach on its own. With speeds of up to 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz, put strong, fast WiFi in every room and say goodbye to dead zones.

nn

TP-Link OneMesh

nn

™ OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.

nn

Enjoy a Mesh Network with Your Existing Router

nn

Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set? TP-Link OneMesh™ resolves your dilemma.

nn

High-Speed Dual Band WiFi without Bandwidth Drop Faster AC750 Dual Band WiFi

nn

The RE230 lets you keep more devices connected simultaneously with its 2.4 GHz 300 Mbps and 5 GHz 433 Mbps dual bands.

nn

Keeps Itself Fast

nn

Adaptive Path Selection keeps your network running at top-speed by automatically choosing the fastest connection path to the router.

nn

High Speed Mode

nn

Use both WiFi bands to establish one super-high-speed connection, ideal for HD streaming & gaming.

nn

Secure One-Touch Connection for Easy Setup

nn

Step 1: Simply press the WPS button on your router and, within 2 minutes, the WPS button on RE230 to connect to the network. Step 2: Once connected, place RE230 to the best location—without reconfiguration. Notes: Please connect the extender to the router via the Tether app or Web UI if your router doesn’t support WPS.

nn

Find the Best Location with the Smart Signal Indicator

nn

The smart signal indicator lets you see signal strength from the existing router at a glance. Easily to find the best place to position your range extender to extend your WiFi.

nn

Feature-Rich App for Control in Your Hands

nn

Set up and manage your WiFi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

nn

Specifications:

nn

n
• TP-Link AC750 WI-FI RANGE EXTENDER

n

• Data transfer rate: 750 Mbit/s

n

• Ethernet LAN data rates: 10,100 Mbit/s

n

• Mobile operating systems supported: Android, iOS

n

• Antenna type: Internal

n

• Transmitting power (FCC): 17 dBm

n

• Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

n

• Security algorithms: 64-bit WEP,128-bit WEP,WPA-PSK,WPA2-PSK

n

• Product colour: White

n

• Mounting type: Wall

n

• Certification: FCC

n

• Width: 69 mm, Depth: 52 mm, Height: 124 mm
