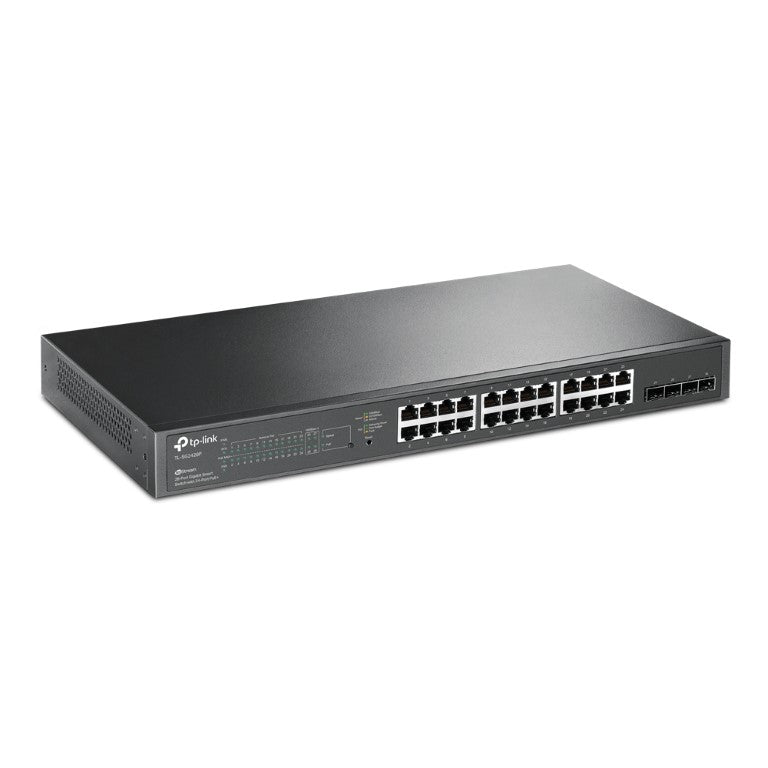

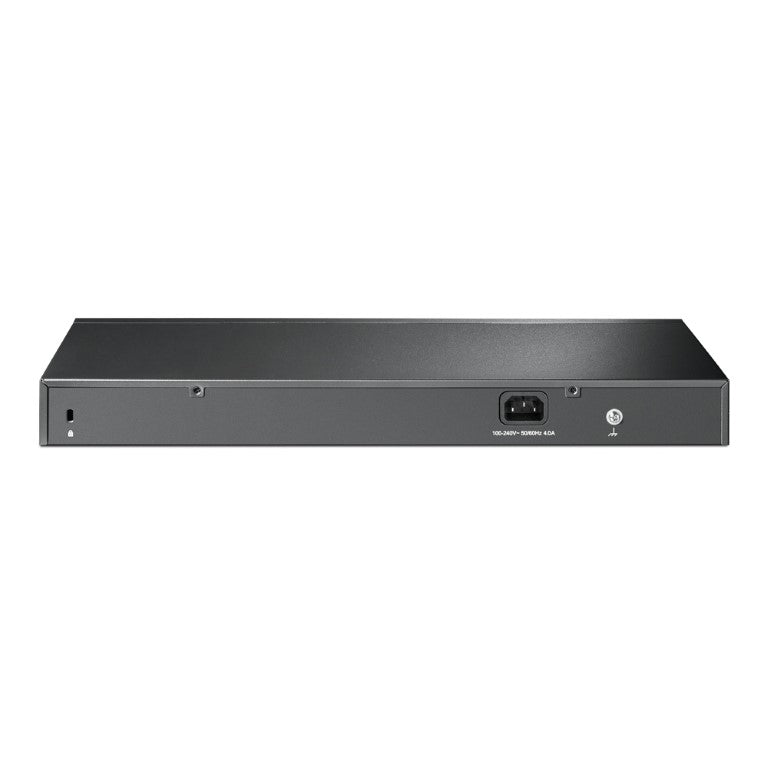

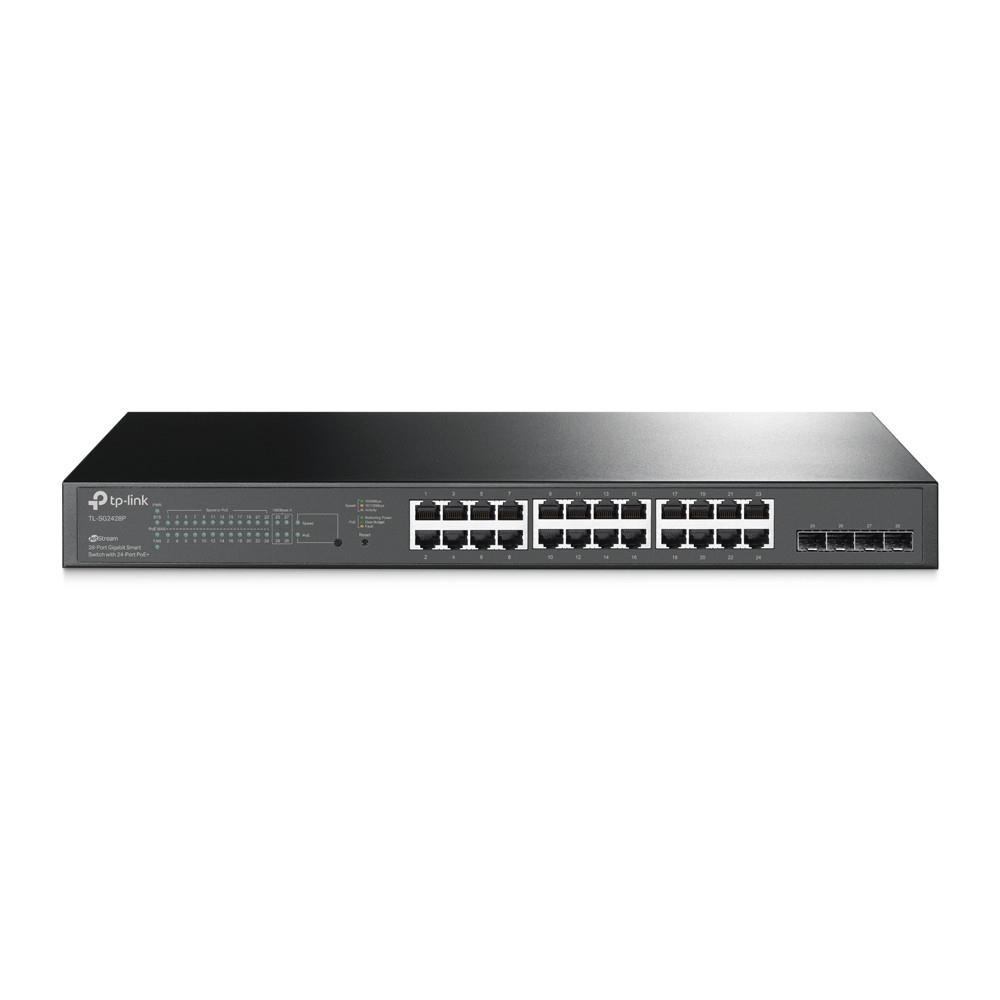

TP-Link SG2428P 24-Port Gigabit Smart Switch with 4 SFP Slots

TP-Link 24-Port Gigabit Smart Switch with 4 SFP Slots

nn

The TP-Link SG2428P Omada 28-Port Gigabit Smart Switch is a Layer 2+ managed PoE+ switch designed for enterprise, surveillance and business networking environments. Featuring 24 Gigabit PoE+ ports, four dedicated Gigabit SFP uplink slots, a 250W PoE power budget and seamless Omada SDN integration, it delivers secure, scalable and centrally managed networking for growing organisations.

nn

Key Features

nn

n
• 24 × Gigabit PoE+ RJ45 ports.

n

• 4 × Dedicated Gigabit SFP uplink slots.

n

• 250W total PoE power budget.

n

• Layer 2+ Smart Managed Switch.

n

• Integrated Omada SDN management.

n

• Supports Static Routing.

n

• Advanced VLAN, QoS and security features.

n

• Rack-mountable metal chassis.

n

nn

nn

Enterprise PoE Connectivity

nn

The SG2428P provides 24 IEEE 802.3af/at compliant PoE+ ports capable of delivering both data and power to wireless access points, IP cameras, VoIP phones and other PoE-enabled devices while maintaining a generous 250W shared power budget.

nn

Omada Software Defined Networking

nn

Fully integrated with the TP-Link Omada SDN platform, the switch supports centralised cloud management, zero-touch provisioning, remote monitoring and simplified administration across multiple network devices.

nn

Advanced Layer 2+ Networking

nn

With Layer 2+ management capabilities including Static Routing, VLANs, QoS, Link Aggregation, Access Control Lists and comprehensive security features, the switch is well suited for professional business networks requiring performance, scalability and reliability.

nn

nn

Technical Specifications

nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Specification	Details
Brand	TP-Link
Manufacturer Part Number	SG2428P
Model	SG2428P
Product Type	Layer 2+ Smart Managed PoE+ Switch
RJ45 Ports	24 × 10/100/1000 Mbps PoE+ RJ45
SFP Ports	4 × Gigabit SFP Slots
PoE Standard	IEEE 802.3af and IEEE 802.3at
Total PoE Budget	250W
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.7 Mpps
MAC Address Table	8K Entries
Jumbo Frame Support	9 KB
Management	Web GUI, CLI, SNMP, RMON and Omada SDN Cloud Management
Layer Features	Layer 2+, Static Routing, VLAN, QoS, ACL, IGMP Snooping, Link Aggregation, STP/RSTP/MSTP and L2/L3/L4 QoS
Network Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.1D, IEEE 802.1w and IEEE 802.1s
Enclosure	Rack-Mountable Metal Chassis
Power Supply	Internal AC Power Supply
Applications	Enterprise Networks, Wireless Access Points, IP Surveillance, VoIP Deployments, Schools, Hospitality, Retail, Offices and Omada SDN Networks
Package Contents	TP-Link SG2428P Switch, Rack Mount Kit, Power Cable, Rubber Feet, Quick Installation Guide

nn

The TP-Link SG2428P Omada Smart Switch combines enterprise-grade Layer 2+ management, 24 PoE+ Gigabit ports, four dedicated SFP uplinks and seamless Omada SDN integration, making it an ideal networking solution for professional business, surveillance and wireless deployments.
