TP-Link TG-3468 Networking Card Ethernet 2000 Mbit/s Internal

TP-Link TG-3468 Networking Card Ethernet 2000 Mbit/s Internal

nn

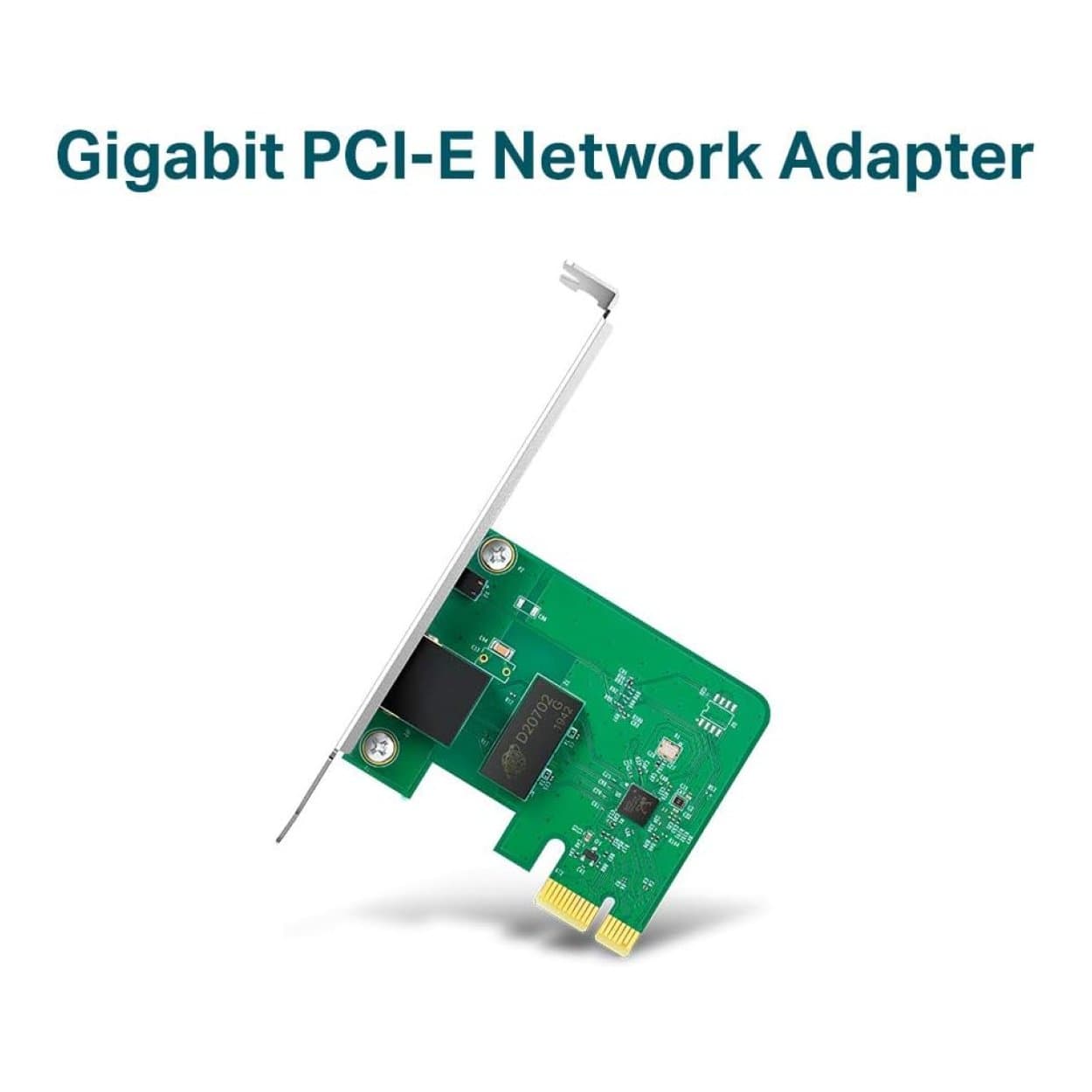

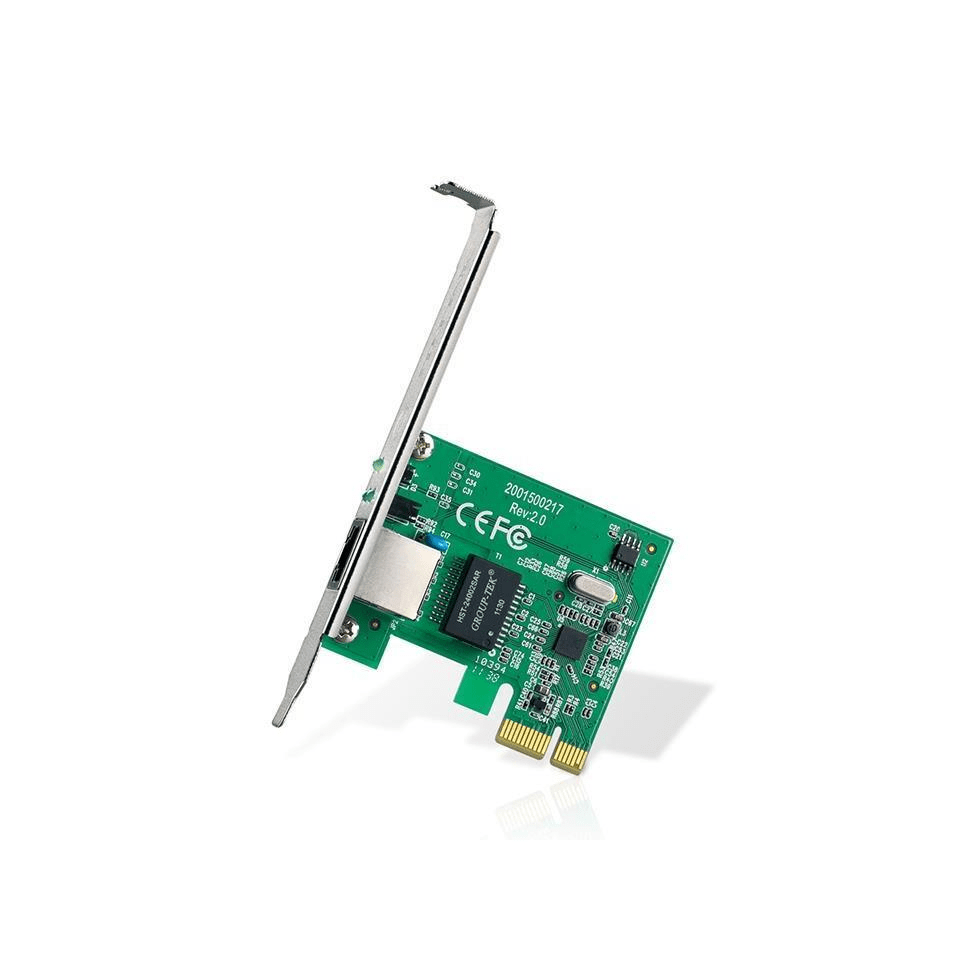

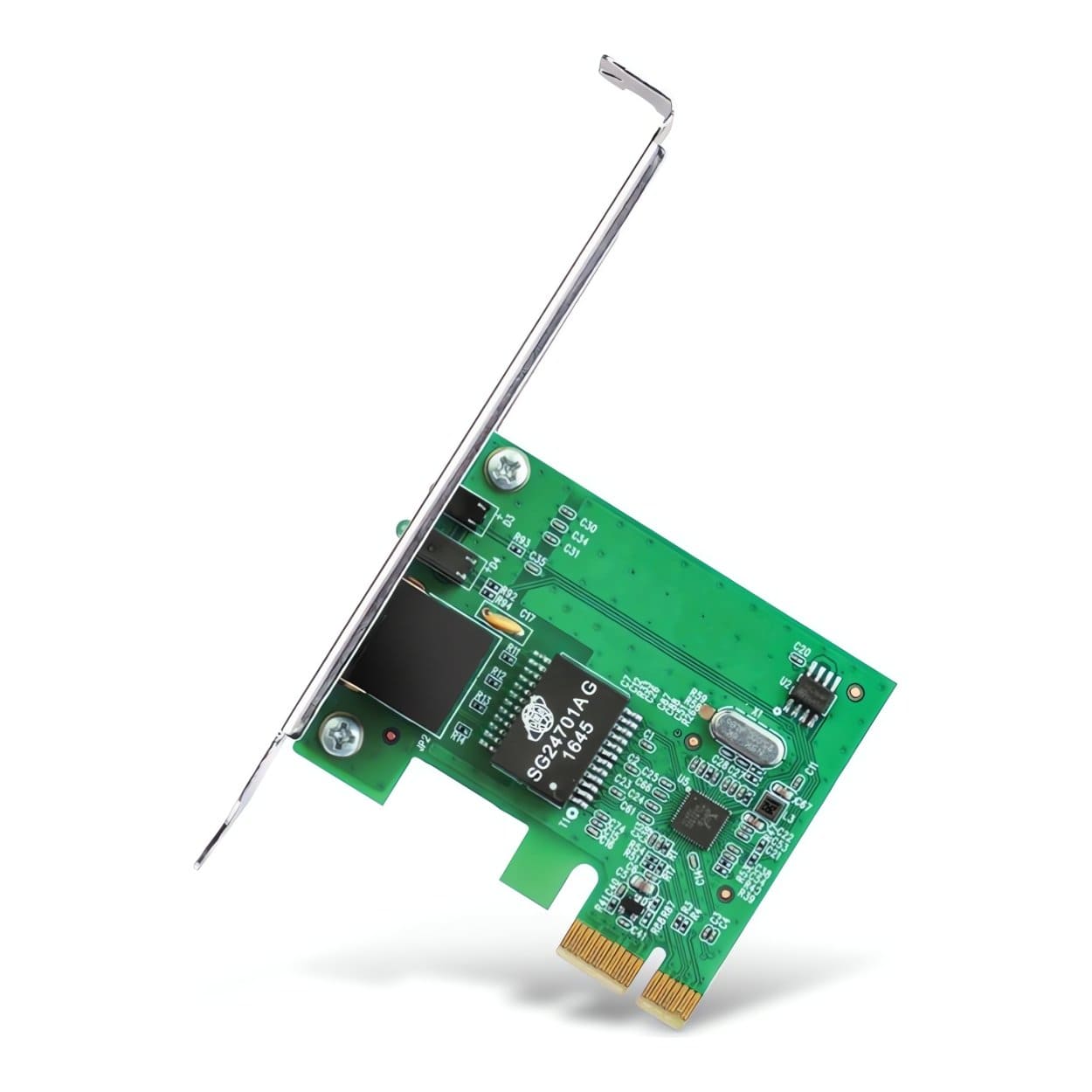

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

nn

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

nn

Features:

nn

n
• 10/100/1000Mbps PCIe Adapter

n

• 32-bit PCIe interface, saving the finite chassis space

n

• Wake-on-LAN, convenient to manage over LAN

n

nn

nn

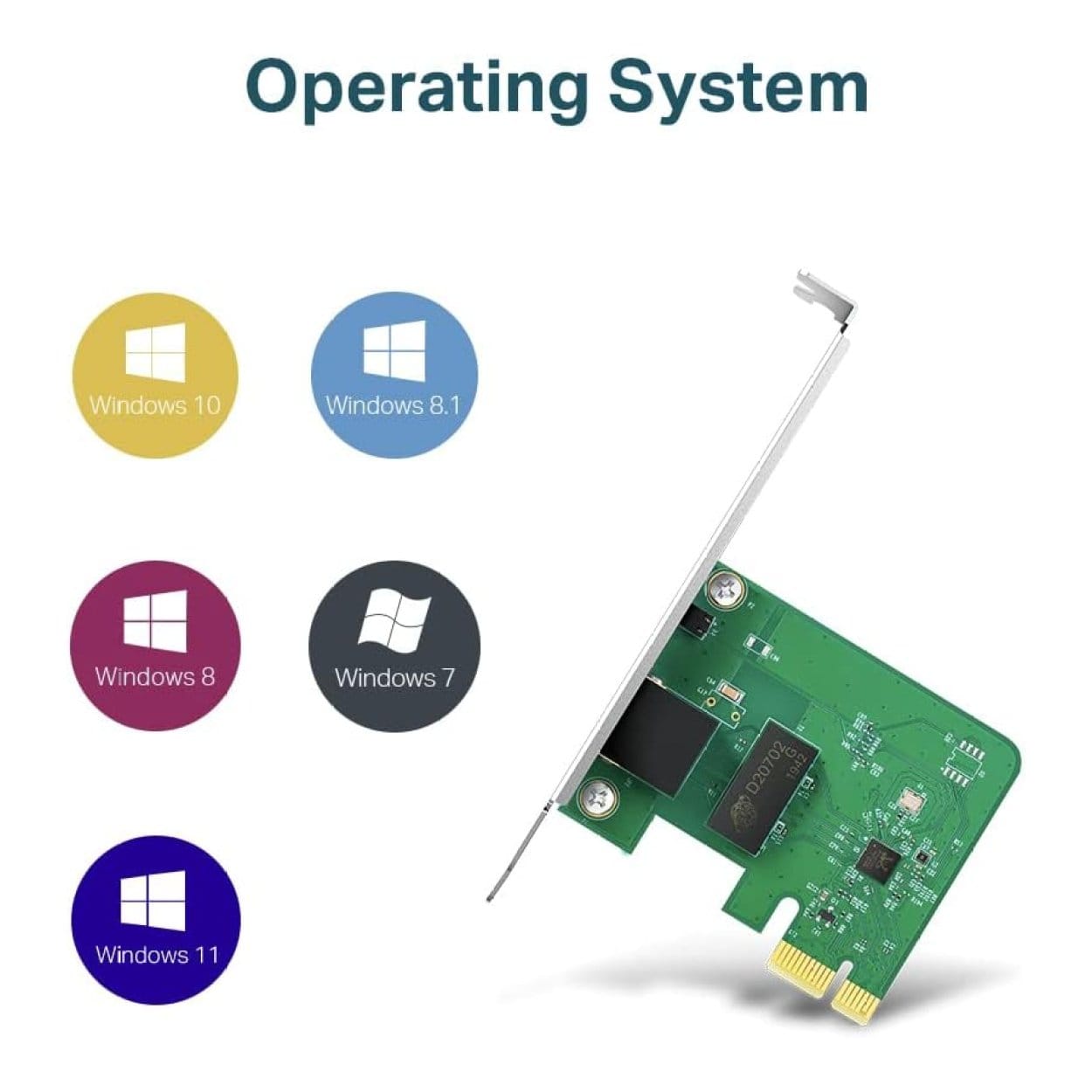

Operating System

nn

Supports operating systems include Windows 10/8.1/8/7/Vista/XP

nn

Low-Profile Bracket

nn

In addition to standard bracket, low-profile bracket is also provided for mini tower computer case

nn

Wake On LAN

nn

Remotely power on/off your computer with WOL, good for centralized management

nn

nn

Technical Specifications:

nn

Standards and Protocols
nIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

nn

Interface
n32-bit PCI Express
n1 × 10/100/1000Mbps RJ45 port

nn

Network Media
n10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
nEIA/TIA-568 100Ω STP (maximum 100m)
n100BASE-TX: UTP category 5, 5e cable (maximum 100m)
nEIA/TIA-568 100Ω STP (maximum 100m)
n1000BASE-T: UTP category 5, 5e cable (maximum 100m)

nn

LED
nStatus

nn

Wireless Standards
nIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

nn

Data Rates
n10/100/1000Mbps for Half-Duplex mode
n20/200/2000Mbps for Full-Duplex mode

nn

Dimensions (W x D x H)
n3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5 mm)

nn

Flow Control
nIEEE 802.3x Flow Control (Full-Duplex)

nn

Others

nn

Certification
nCE, FCC, RoHS

nn

System Requirements
nWindows 10 (32/64-bit), Windows 8.1 (32/64-bit), Windows 8 (32/64-bit), Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP

nn

Environment
nOperating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
nStorage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
nOperating Humidity: 10% ~ 90% non-condensing
nStorage Humidity: 5% ~ 90% non-condensing

nn

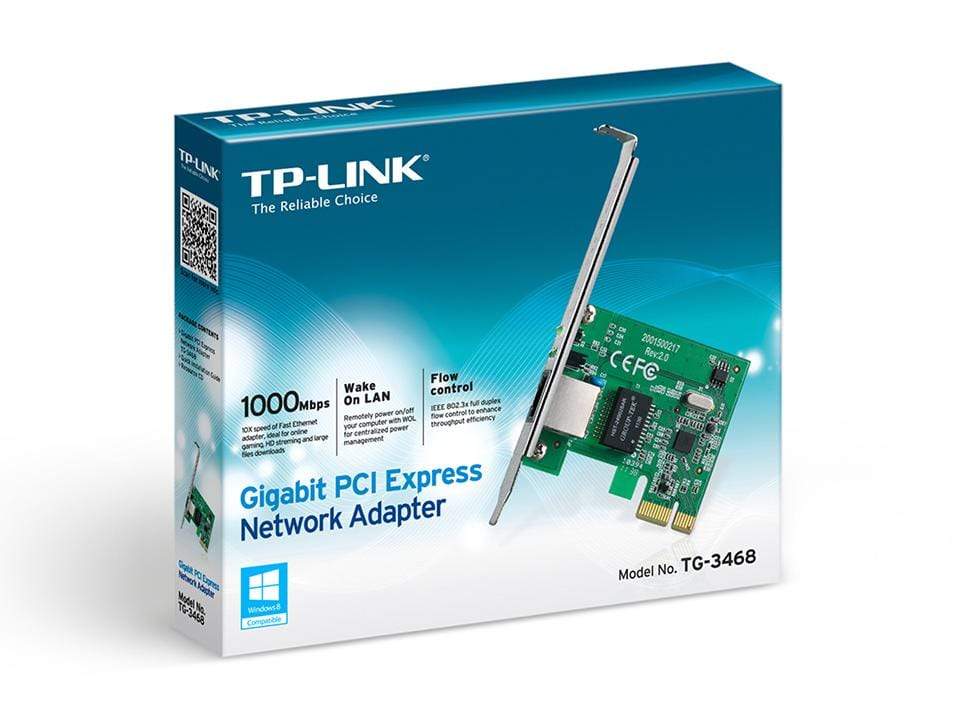

What's in the Box:

nn

n
• Gigabit PCI Express Network Adapter TG-3468

n

• Resource CD

n

• Quick Installation Guide

n

• Low-Profile Bracket
