TP-Link TL-MR150 Wi-Fi 4 Wireless Router Single-band 2.4GHz Fast Ethernet 3G 4G Black

TP-Link TL-MR150 Wi-Fi 4 Wireless Router Single-band 2.4GHz Fast Ethernet 3G 4G Black

nn

Enjoy Wi-Fi on 4G LTE

nn

300 Mbps Wireless N 4G LTE Router

nn

Features:

nn

n
• Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

n

• Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests

n

• Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas

n

• Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

n

nn

Superfast 4G LTE Speed for Reliable Wi-Fi

nn

The TL-MR150 uses 4G LTE technology to achieve speeds of up to 150Mbps download and 50Mbps upload. It also shares a Wi-Fi network with maximum speed of 300Mbps on 2.4GHz for gaming, streaming, and more.

nn

Design for Maximum Network Coverage

nn

Advanced LTE antennas make efficient and stable connections to every device. Power Amplifier and Low Noise Amplifier boost sending and receiving capabilities, creating a wide-coverage Wi-Fi network for your home.

nn

Plug and Play with a Micro SIM Card

nn

Simply insert your 3G/4G Micro SIM card into the built-in slot, turn on the TL-MR150 and start surfing!

nn

Available WAN Connection Backup

nn

With a fully functional WAN/LAN port, TL-MR150 can work as a router which is compatible with cable, fiber, and DSL modems.

nn

Technical Specifications:

nn

Hardware Features

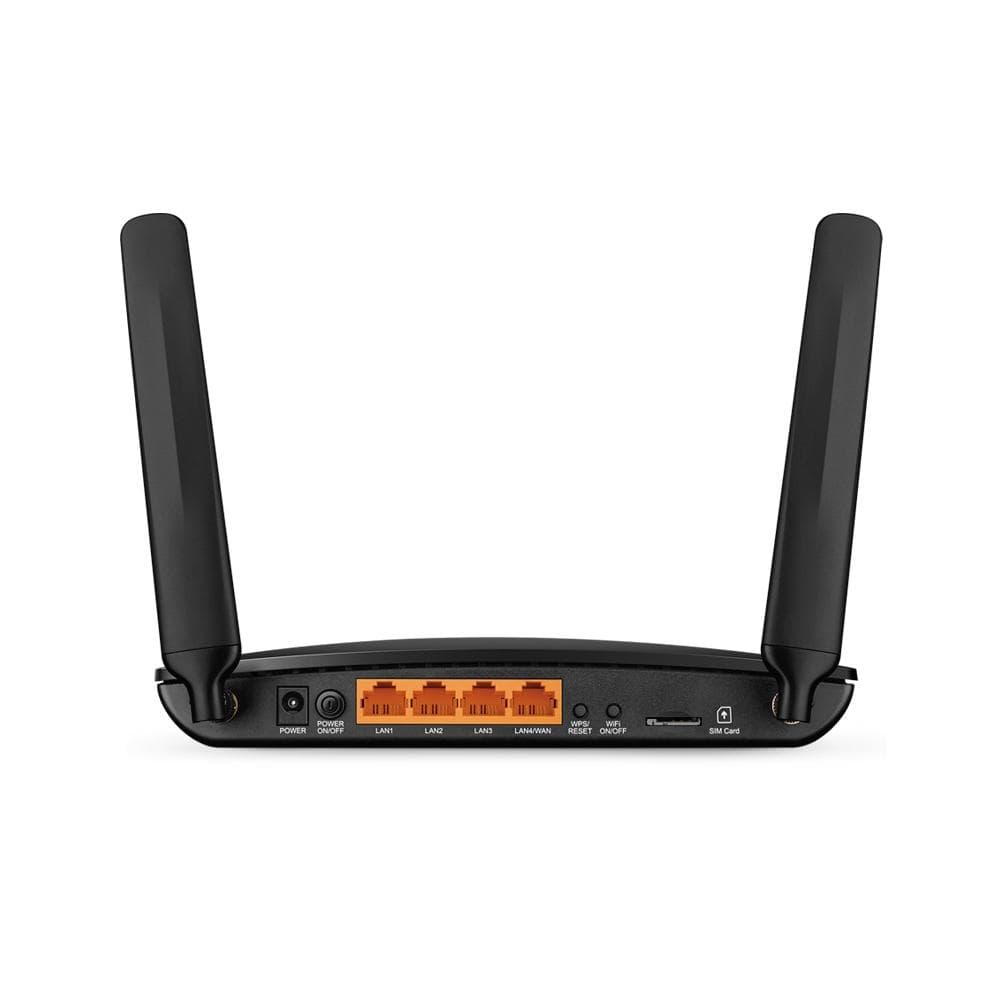

nInterface: 3 × 10/100Mbps LAN Ports, 1 × 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot
nButton: WPS/RESET Button, Wi-Fi ON/OFF Button, POWER ON/OFF Button
nExternal Power Supply: 9V / 0.85A
nDimensions (W × D × H): 7.95 × 5.55 × 1.32 in (202 × 141 × 33.6 mm)
nAntenna Type: 2 × Detachable External 4G LTE Antennas

nn

Wireless Features
nWireless Standards: IEEE 802.11b, 802.11g, 802.11n
nFrequency: 2.4 GHz
nSignal Rate: 300 Mbps at 2.4 GHz
nReception Sensitivity: 11g 54M: -74 dBm; 11n HT20: -71 dBm; 11n HT40: -67 dBm
nTransmit Power: CE < 20 dBm (2.4 GHz)
nWireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
nWAN Failover: Yes
nWireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
nNetwork Type: 4G FDD-LTE Cat4 (800/900/1800/2100/2600 MHz), TDD-LTE (1900/2300/2500/2600 MHz); 3G DC-HSPA+/HSPA+/HSPA/UMTS (900/2100 MHz)

nn

Software Features
nOperating Modes: 3G/4G Router, Wireless Router
nManagement: Access Control, Local Management, Remote Management
nWAN Connection Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
nDHCP: Server, Client, DHCP Client List, Address Reservation
nPort Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
nDynamic DNS: DynDns, NO-IP
nVPN: PPTP VPN, IPSec VPN, OpenVPN
nAccess Control: Parental Controls, Local Management Control, Host List, Access Control
nFirewall Security: DoS, SPI Firewall, IP and MAC Address Binding
nProtocols: IPv4, IPv6
nGuest Network: 2.4GHz guest network

nn

Others
nCertification: CE, RoHS
nSystem Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7, 8, 8.1, macOS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or higher, or other Java-enabled browsers

nn

What’s in the Box:

nn

n
• 300Mbps Wireless N 4G LTE Router TL-MR150

n

• Power Adapter

n

• RJ45 Ethernet Cable

n

• Quick Installation Guide

n

• Micro SIM Card
