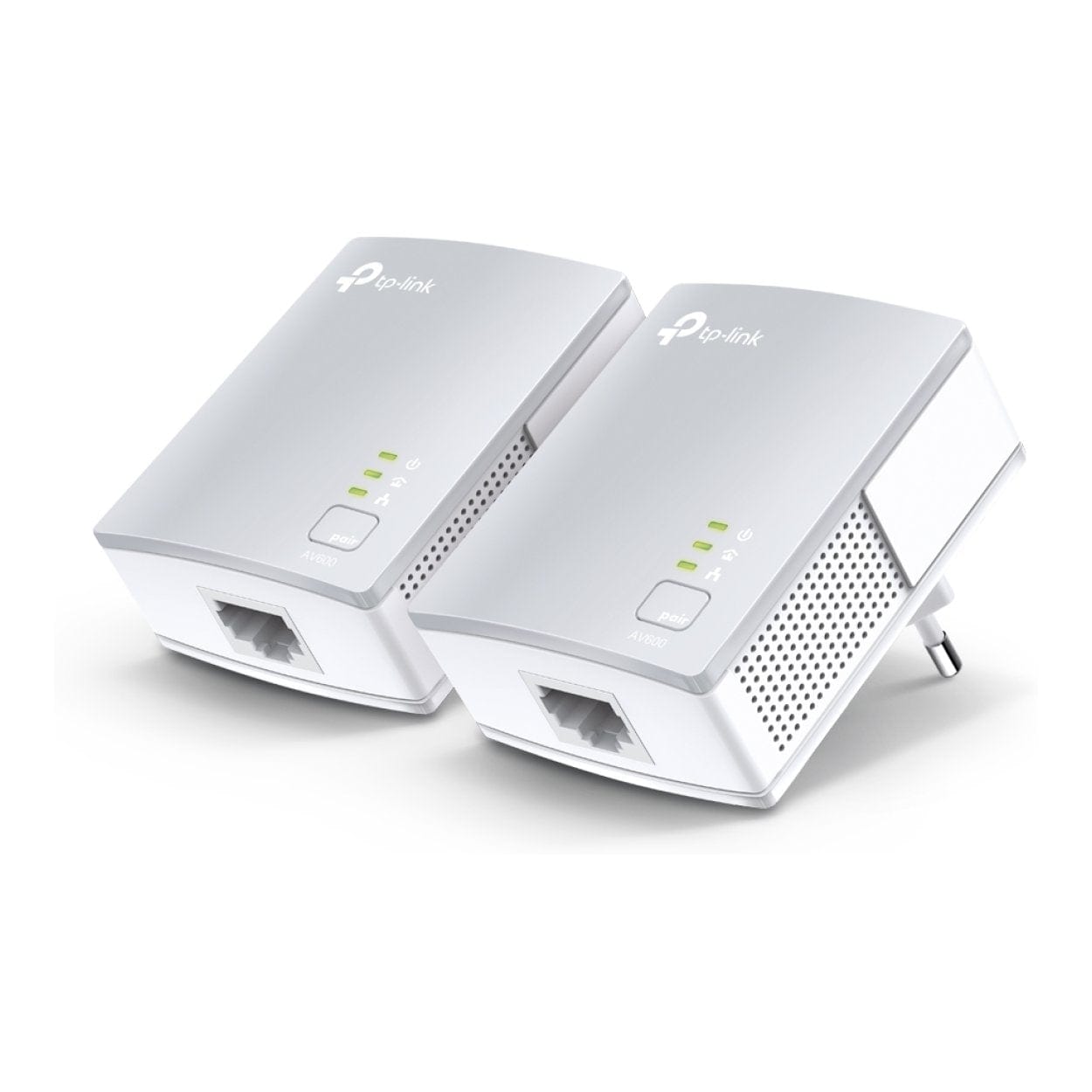

TP-Link TL-PA4010 Kit Powerline 600 Starter 1-Port

TP-Link TL-PA4010 Kit Powerline 600 Starter 1-Port

nn

Features

nn

n
• HomePlug AV standard compliant, high-speed data transfer rates of up to 600Mbps

n

• Miniature design, smaller than most powerline adapters at the market, blends discreetly in front of any power outlet

n

• No new wires, Easy Plug and Play operation, No configuration required

n

• Patented Power-Saving Mode automatically reduces power consumption by up to 85%

n

nn

Internet Goes Further with Your Home's Electricity System

nn

AV600 Powerline Adapter Starter Kit

nn

Extend Wired Network to Any Room Using Existing Electricity System

nn

With advanced HomePlug AV600, the TL-PA4010 KIT transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired network to anywhere there is a power outlet.

nn

n
• nPlease Note: Powerline adapters must be deployed in sets of two or more. And TL-PA4010 KIT is compatible with all Routers and other powerline products.

n

nn

Plug and Play with No Configuration Required

nn

Ditch the complicated setup process for good. Get started with powerline in just two steps:

nn

n
1. nStep1: connect one adapter to your router.

n

2. nStep2: plug in another adapter wherever you need wired internet service.

n

3. nStep2: plug in another adapter wherever you need wired internet service.
   n Tip: Press the Pair button on each adapter to encrypt the data sent between them, enhancing your network security.

n

nn

AV600 Speeds and 300 Meters Range

nn

Using advanced Home Plug AV technology, TL-PA4010 KIT provides stable and high-speed data transmissions of up to 600 Mbps* for ranges of up to 300 meters where there is a power outlet. No interference on electrical or electronic equipment. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

nn

Miniature Design, Ultra-compact

nn

With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than almost general 600Mbps Powerline Products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.

nn

Saves Up to 85% on Power

nn

TL-PA4010 KIT automatically switches from its "Working" mode to efficient "Power-Saving" mode when not in use, reducing energy consumption by up to 85%*.

nn

n
• Actual data will vary because of the network conditions and environmental factors.*

n

nn

Technical Specification

nn

Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u

nn

Interface: 1x 10/100Mbps Ethernet Port

nn

Button: Pair Button

nn

Max. Power Consumption

nn

n
• nMaximum: 4.60W (220V/50Hz)

n

• nTypical: 4.26W (220V/50Hz)

n

• nStandby: 0.88W (220V/50Hz)

n

nn

LED: PWR, PLC, ETH

nn

Dimensions ( W x D x H ): 65 x 52 x 28.5mm

nn

Range: Up to 300 meters/1000 feet over existing electrical wiring

nn

Software Features

nn

Modulation Technology: OFDM

nn

Encryption: 128-bit AES Encryption

nn

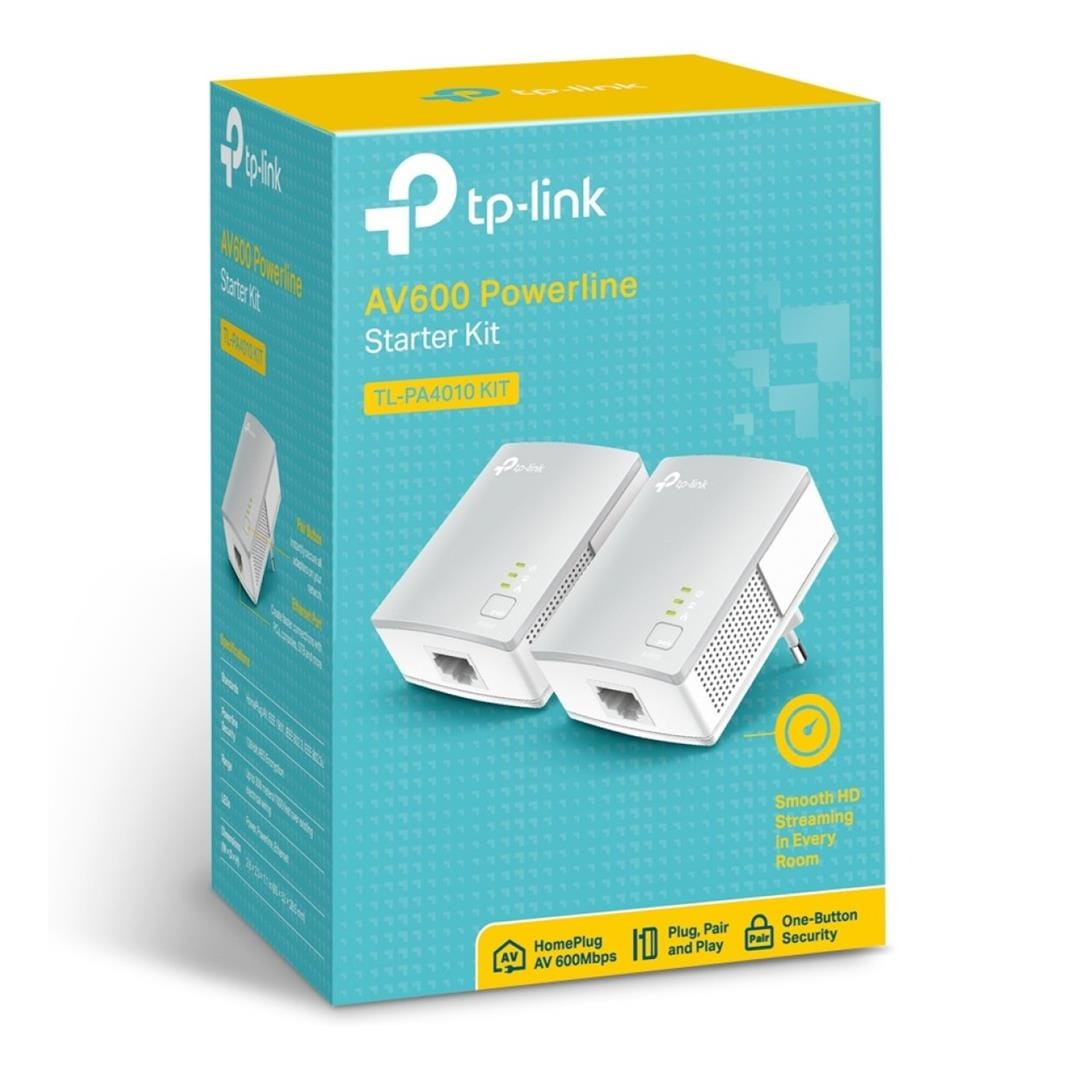

Package Content

nn

n
• Powerline Ethernet Adapter Kit (2-pack)

n

• Ethernet cable (RJ45)

n

• Quick Installation Guide

n
