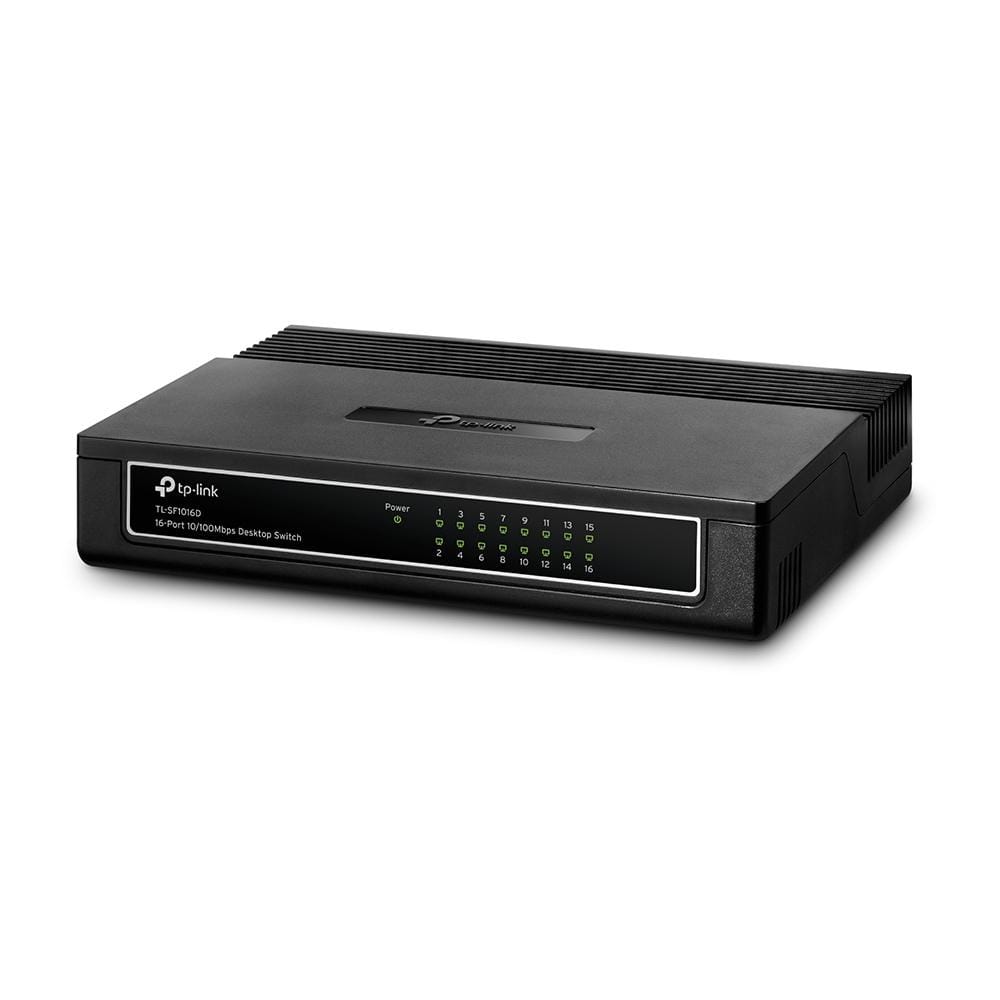

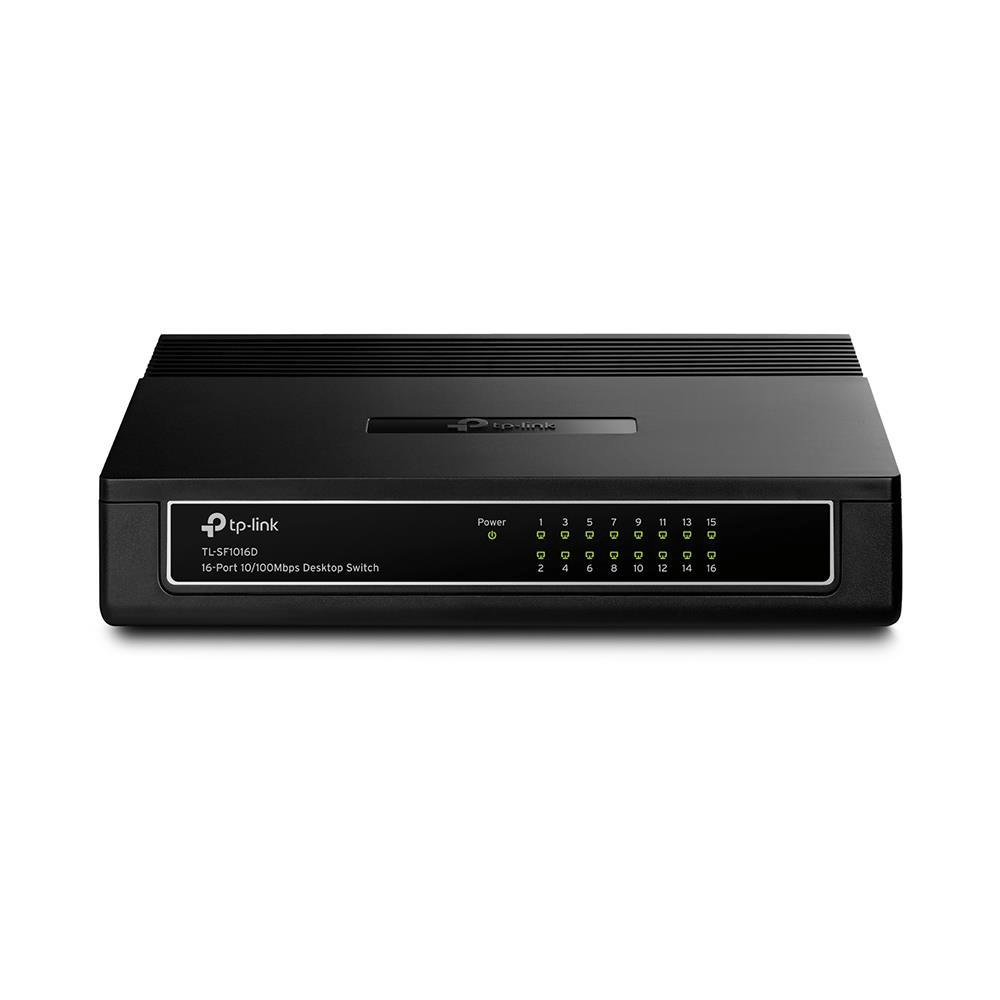

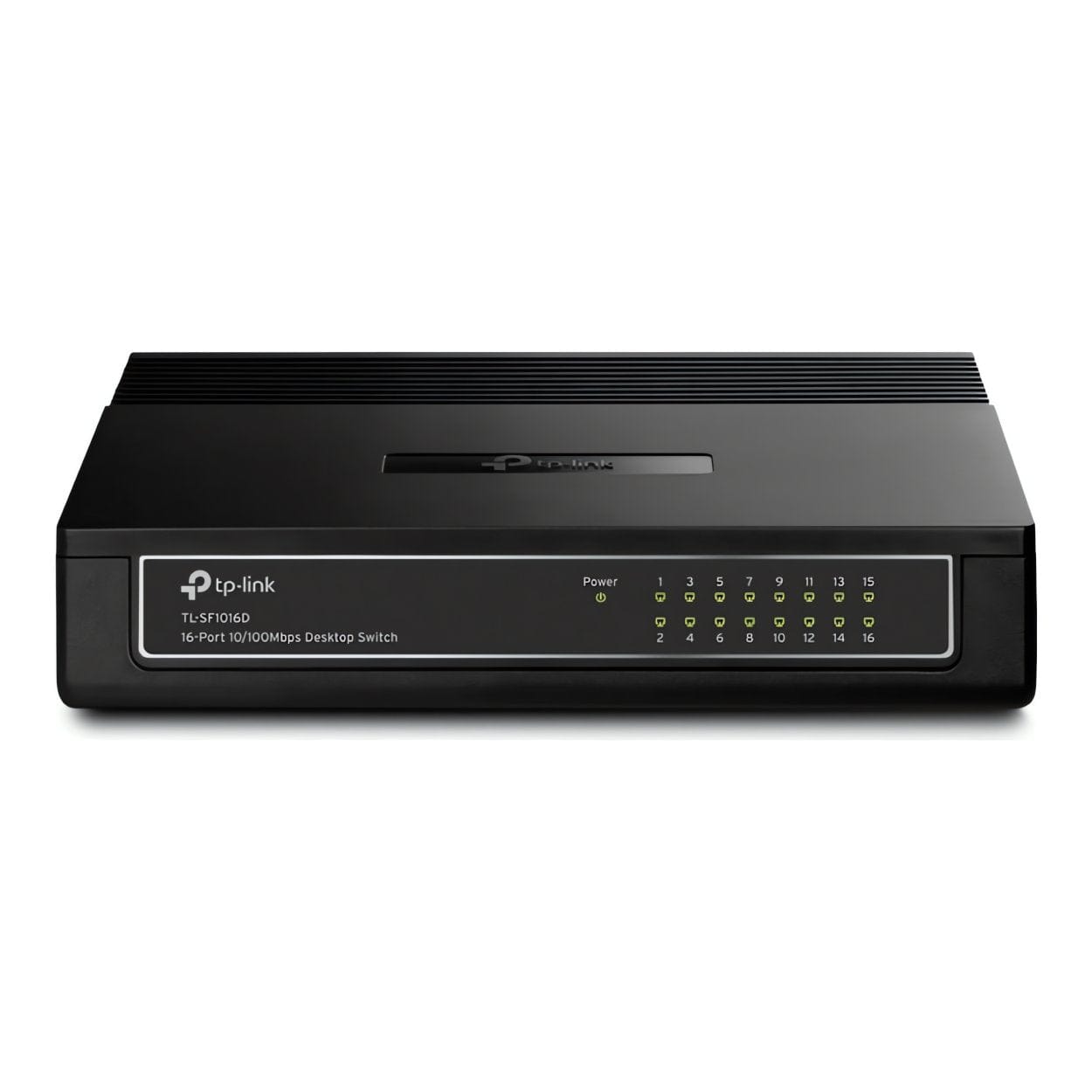

TP-Link TL-SF1016D Network Switch Fast Ethernet 10/100 Mbits Black

TP-Link TL-SF1016D Network Switch Fast Ethernet 10/100 Mbits Black

nn

The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 70%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

nn

Features:

nn

n
• 16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX

n

• Green Ethernet technology saves power consumption

n

• IEEE 802.3x flow control provides reliable data transfer

n

• Plastic case, desktop or wall-mounting design

n

• Plug and play, no configuration required

n

nn

nn

TP-LINK Green Technology

nn

This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

nn

High Performance

nn

The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

nn

Easy to Use

nn

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

nn

nn

Technical Specifications:

nn

Hardware Features

nn

Interface

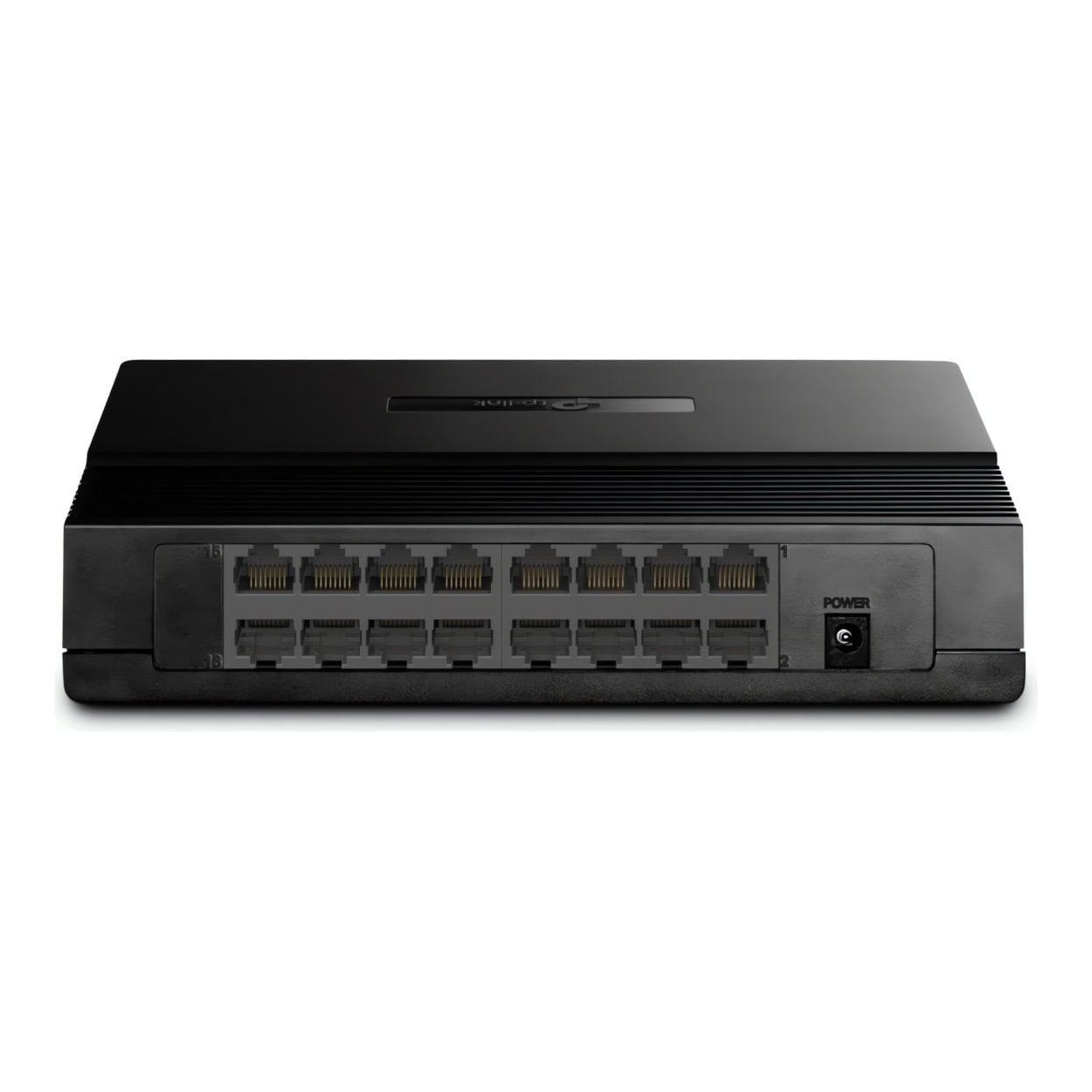

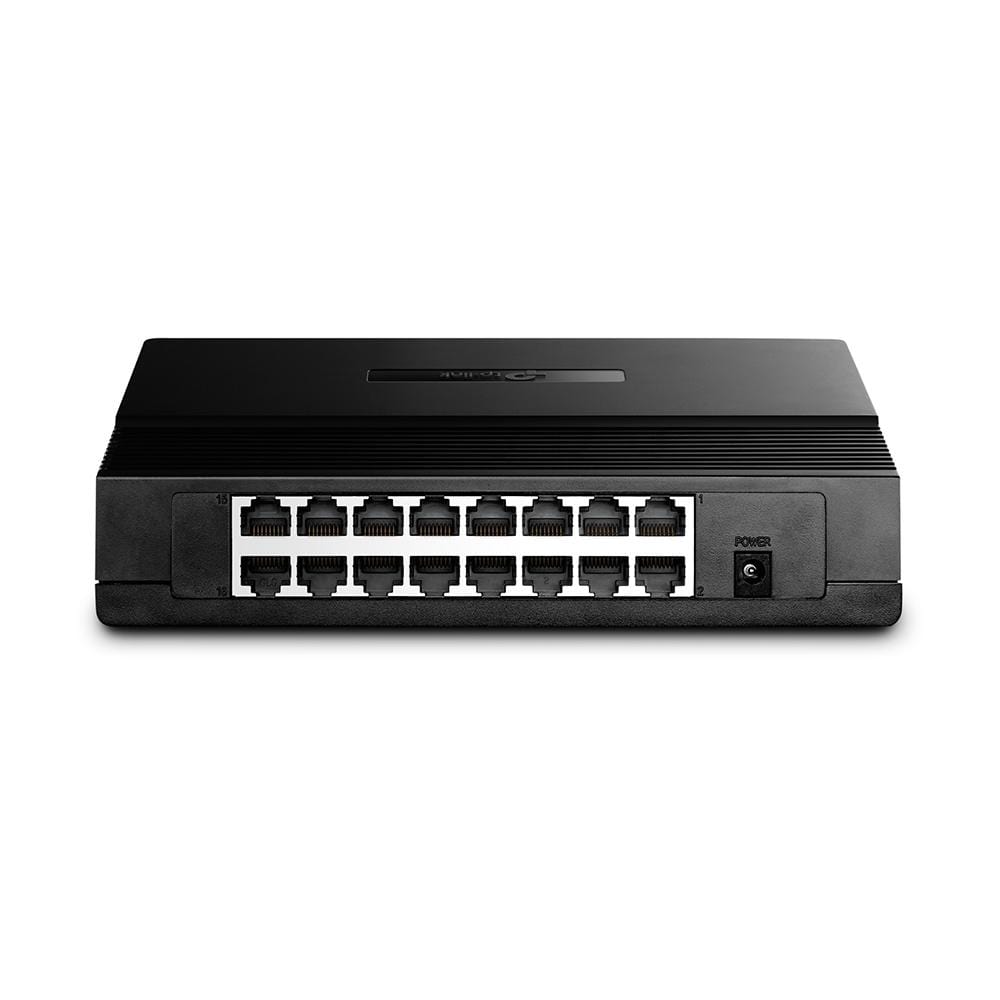

n16× 10/100 Mbps RJ45 Ports
nAuto Negotiation / Auto MDI/MDIX

nn

Fan Quantity
nFanless

nn

Physical Security Lock
nNo

nn

External Power Supply
nExternal Power Adapter (Output: 5.0 VDC / 0.6 A)

nn

MAC Address Table
n2K

nn

Dimensions (W x D x H)
n7.9 x 5.6 x 1.6 in. (200 x 142 x 40 mm)

nn

Max Power Consumption
n3.2 W

nn

Max Heat Dissipation
n11.0 BTU/h

nn

Software Features

nn

Advanced Features
nGreen Technology
n802.3X Flow Control

nn

Transmission Method
nStore and Forward

nn

Others

nn

Certification
nFCC, CE, RoHS

nn

Environment
nOperating Temperature: 0℃~40℃ (32℉~104℉)
nStorage Temperature: -40℃~60℃ (-40℉~140℉)
nOperating Humidity: 10%~90% non-condensing
nStorage Humidity: 5%~90% non-condensing

nn

What's in the Box:

nn

n
• 16-Port 10/100Mbps Desktop Switch TL-SF1016D

n

• Power Adapter

n

• User Guide

n

n
