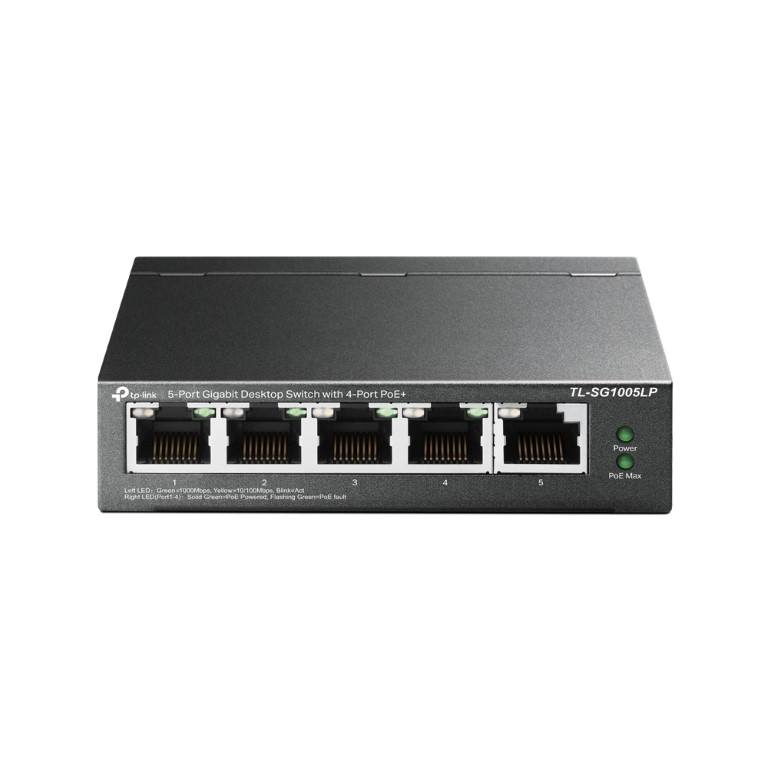

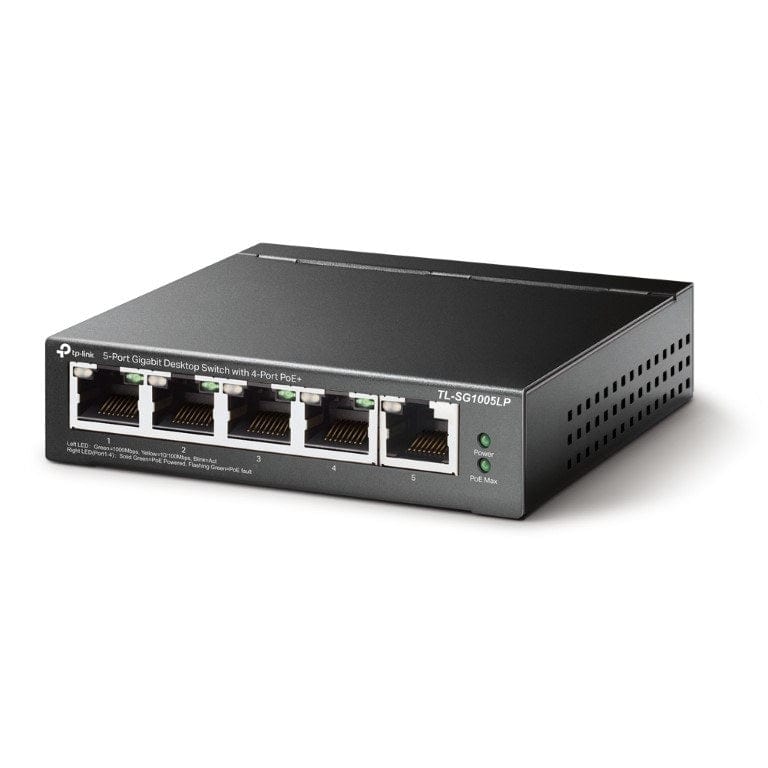

TP-Link TL-SG1005LP Gigabit Ethernet Unmanaged Network Switch

TP-Link Gigabit Ethernet Unmanaged Network Switch

nn

Professional 5-Port Gigabit Switch with 4 PoE+ Ports

nn

Plug and Play, with PoE power supply which meets the needs of diverse devices.

nn

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications

nn

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

nn

Intelligent Power Management

nn

When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

nn

Advanced Functions for Higher Performance

nn

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free. IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

nn

Durable Metal Casing

nn

The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

nn

Specifications:

nn

n
• TP-Link TL-SG1005LP

n

• Switch type: Unmanaged

n

• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

n

• Basic switching RJ-45 Ethernet ports quantity: 5

n

• MAC address table: 2000 entries

n

• Switching capacity: 10 Gbit/s

n

• Networking standards: IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x

n

• Power over Ethernet (PoE)

n

• Wall mountable

n

• External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A) with EU Shuko Clover Power Cable
