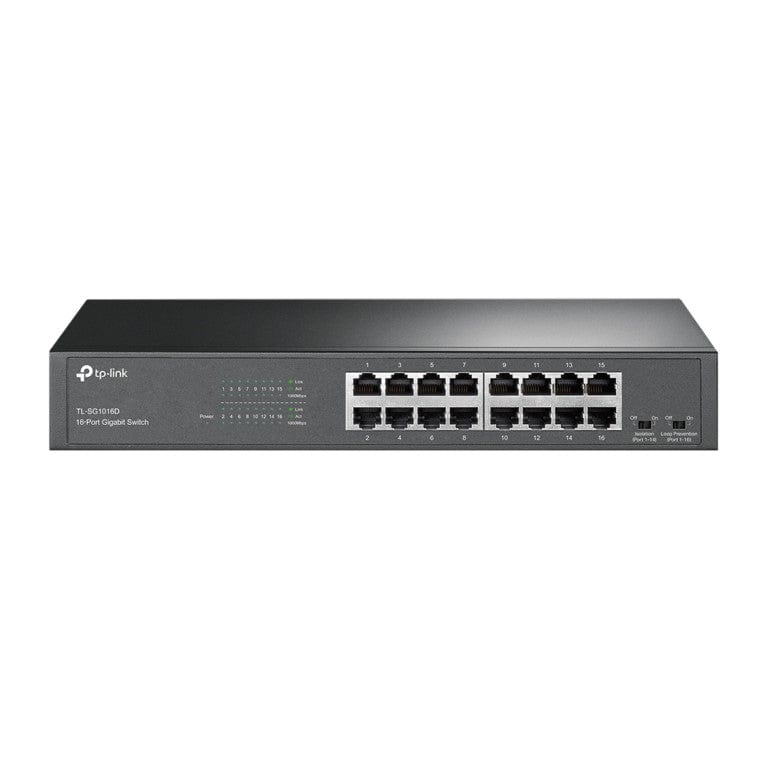

TP-Link TL-SG1016D 16-port GbE Unmanaged Network Switch

TP-Link TL-SG1016D 16-port GbE Unmanaged Network Switch

nn

The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption, making it an eco-friendly solution for your business network.

nn

Features

nn

n
• 16x 10/100/1000Mbps ports

n

• Innovative energy-efficient technology saves power consumption

n

• Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation

n

• Isolation Mode: Ports 1-14

n

• Loop Prevention: Ports 1-16

n

• Plug & play design

n

nn

TP-LINK Green Technology

nn

This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

nn

High Performance

nn

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

nn

Easy to Use

nn

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

nn

Traffic Separation

nn

Isolation Mode easily divides traffic for specific ports with one click to avoid snooping, tampering and isolation broadcast storm for higher security.

nn

Loop Prevention

nn

Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.

nn

n

nn

Technical Specification

nn

nn

nn

nn

nn

nn

n
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

n

• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

n

nn

nn

nn

nn

nn

nn

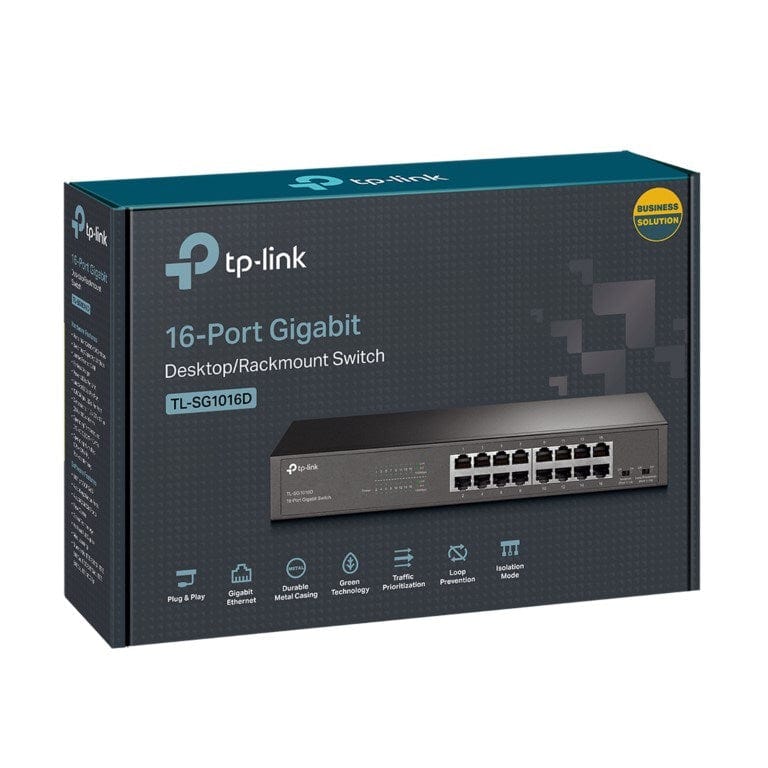

Package Contents

nn

n
• 16-Port Gigabit Desktop/Rackmount Switch

n

• Power Cord

n

• Installation Guide

n

• Rackmount Kits

n

• Rubber Feet

n
