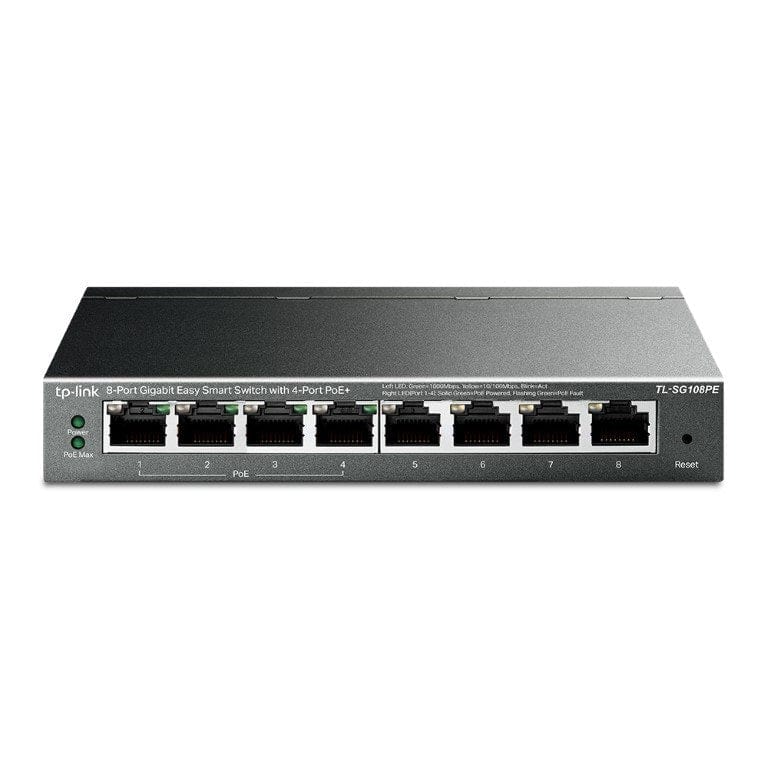

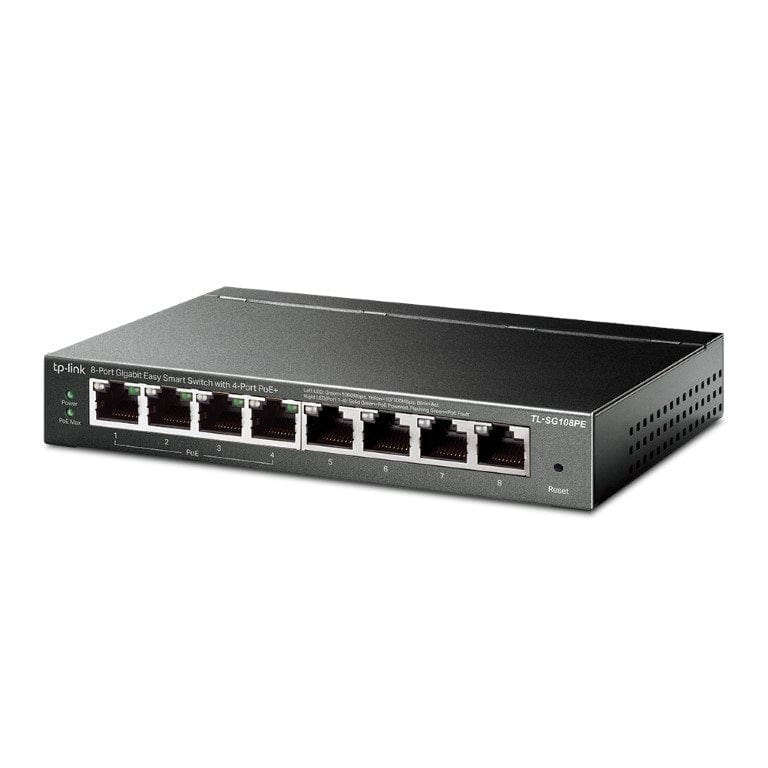

TP-Link TL-SG108PE 8-port Gigabit Easy Smart Switch with 4-port PoE+

TP-Link 8-port Gigabit Easy Smart Switch with 4-port PoE+ TL-SG108PE

nn

The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

nn

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

nn

TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

nn

Features

nn

n
• Eight 10/100/1000Mbps RJ45 ports

n

• Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable

n

• Supports PoE power up to 64 W for all PoE ports*

n

• Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

n

• Simple network set-up on top of plug-and-play connectivity

n

• Web-based user interface and Easy Smart Configuration Utility simplify configuration

n

• Fanless design lowers energy consumption and eliminates operating noise

n

nn

Technical Specification

nn

nn

nn

nn

n
• n
  10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

  n

n

• n
  EIA/TIA-568 100Ω STP (maximum 100m)

  n

n

• n
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)

  n

n

• n
  EIA/TIA-568 100Ω STP (maximum 100m)

  n

n

• n
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

  n

n

• n
  EIA/TIA-568 100Ω STP (maximum 100m)

  n

n

nn

nn

nn

nn

n
• n
  Standard: 802.3 af/at compliant

  n

n

• n
  PoE Ports: Port 1- Port 4

  n

n

• n
  PoE Power Budget: 64W

  n

n

nn

nn

nn

nn

nn

nn

nn

n
• n
  TL-SG108PE

  n

n

• n
  Power Adapter

  n

n

• Installation Guide

n

• Rubber Feet
