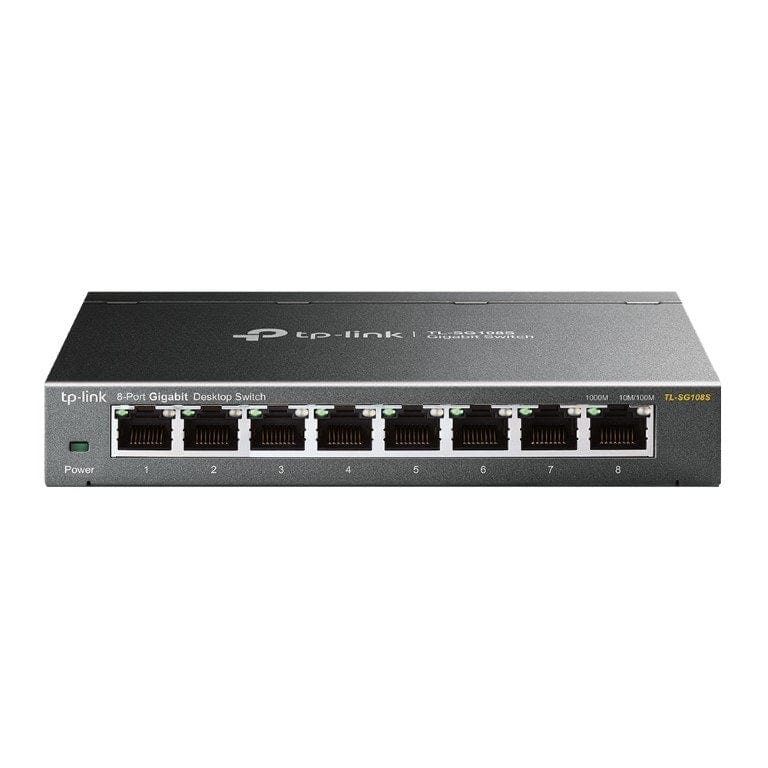

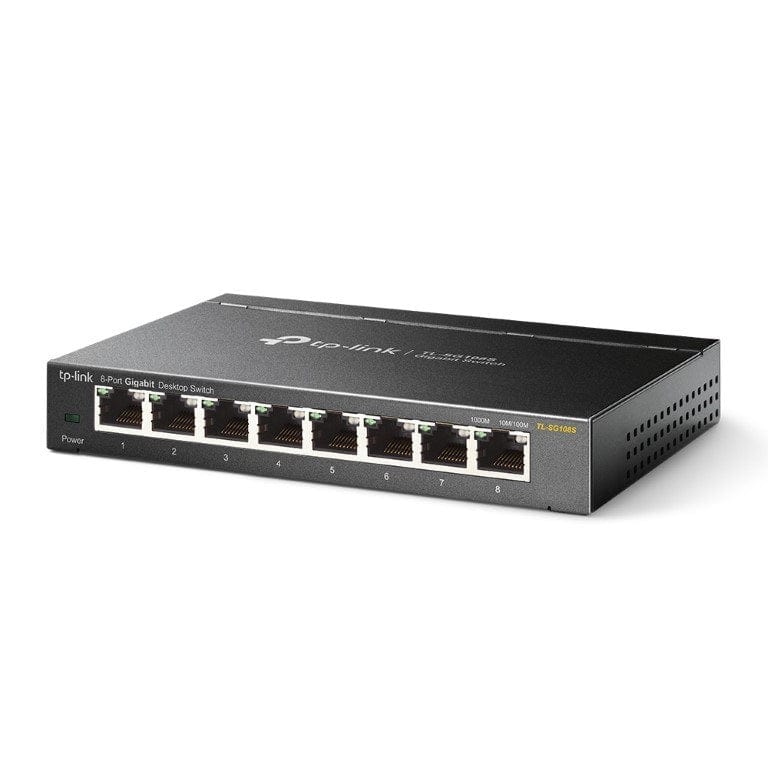

TP-Link TL-SG108S 8-port Gigabit Desktop Unmanaged Switch

TP-Link TL-SG108S 8-port Gigabit Desktop Unmanaged Switch

The TP-Link 8-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG108S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108S can save power consumption, making it an eco-friendly solution for your home or office network.

Features:

• 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS and IGMP Snooping function
• Plug and play, with no configuration needed

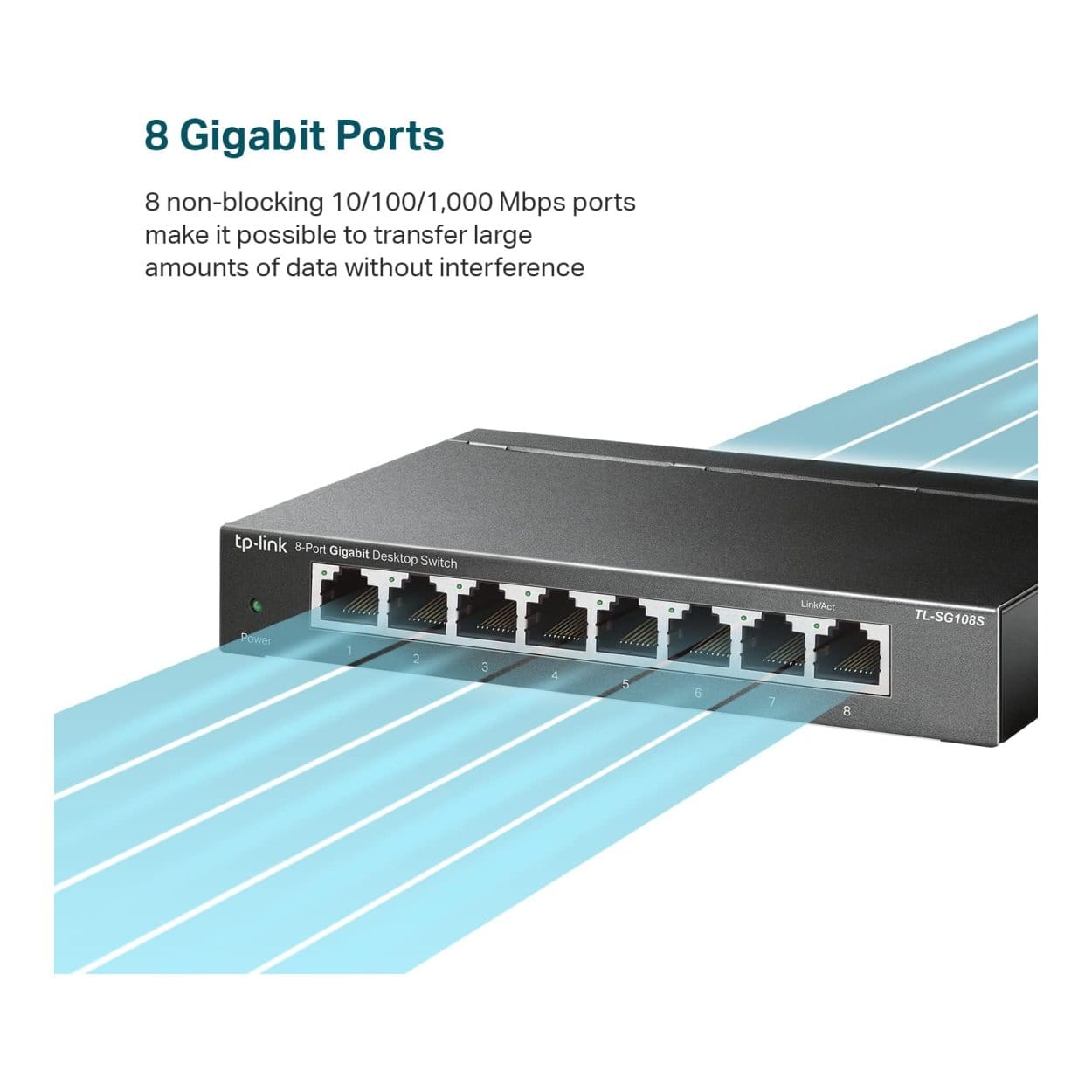

Gigabit Switch

Featured with 8 10/100/1000Mbps ports, TL-SG108S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108S 8-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

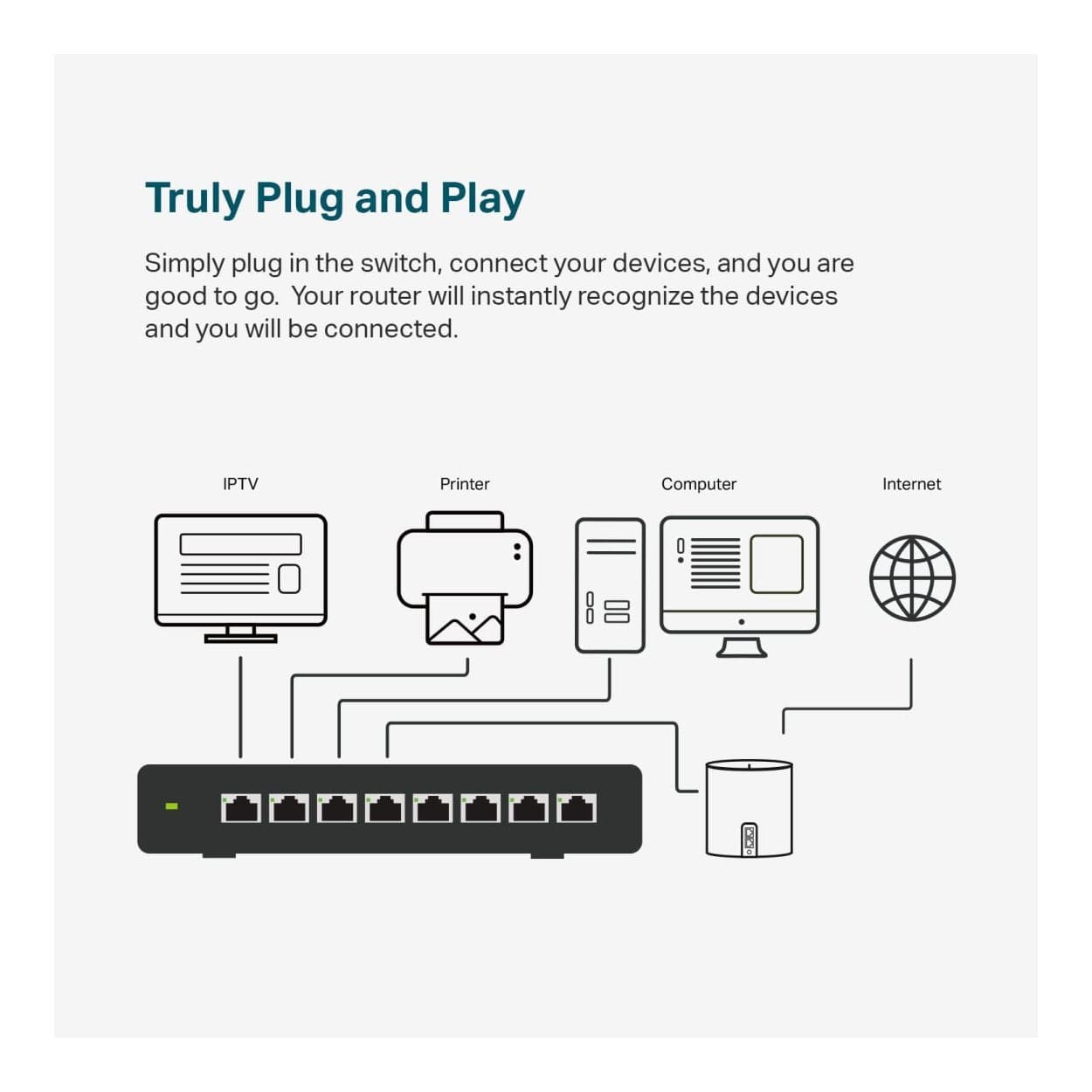

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

Technical Specifications:

Hardware Features

Standards and Protocols
IEEE 802.3i / 802.3u / 802.3ab / 802.3x / 802.1p

Interface
8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity
Fanless

Max. Power Consumption
Maximum: 3.31W (220V / 50Hz)

External Power Supply
External Power Adapter (Output: 9VDC / 0.6A)

LED
System Power, Link/Act indicators per port built into each RJ-45 port

Buffer Size
1.5 Mb

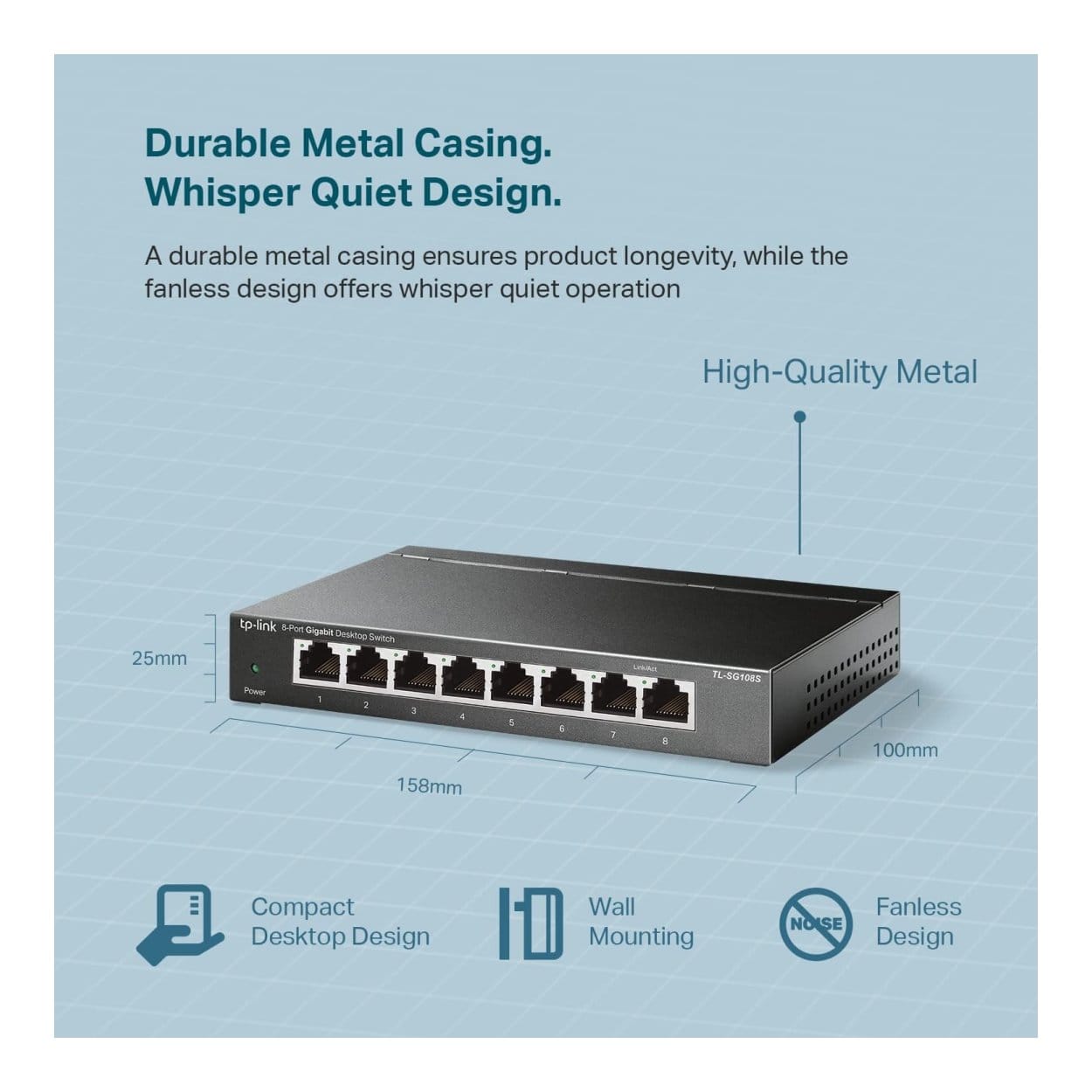

Dimensions (W x D x H)
6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)

Performance

Packet Forwarding Rate
11.9 Mpps

MAC Address Table
4K

Packet Buffer Memory
1.5 Mb

Jumbo Frame
16 KB

Software Features

Advanced Features
Green Technology, saving power up to 82%
802.3X Flow Control
802.1p / DSCP QoS
IGMP Snooping

Transmission Method
Store and Forward

Others

Certification
CE, FCC, RoHS

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90%, non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the Box:

• 8-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• Installation Guide
• Rubber Feet
