TP-Link TL-SG1210MP 10-port Gigabit PoE Unmanaged Switch

TP-Link TL-SG1210MP 10-port Gigabit PoE Unmanaged Switch

nn

TP-Link TL-SG1210MP is an unmanaged switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

nn

Features:

nn

n
• 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port

n

• 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W^*n

n

• Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

n

• Up to 250 m data and power transmission range under Extend Mode^**n

n

• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

n

• Isolation Mode allows one-click client traffic separation for higher security and performance

n

• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.

n

• Plug and play with no configuration required

n

• Fanless design reduces power consumption and works silently in its location

n

nn

Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications

nn

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

nn

Keep Your Network Smooth and Safe with Abundant Functions

nn

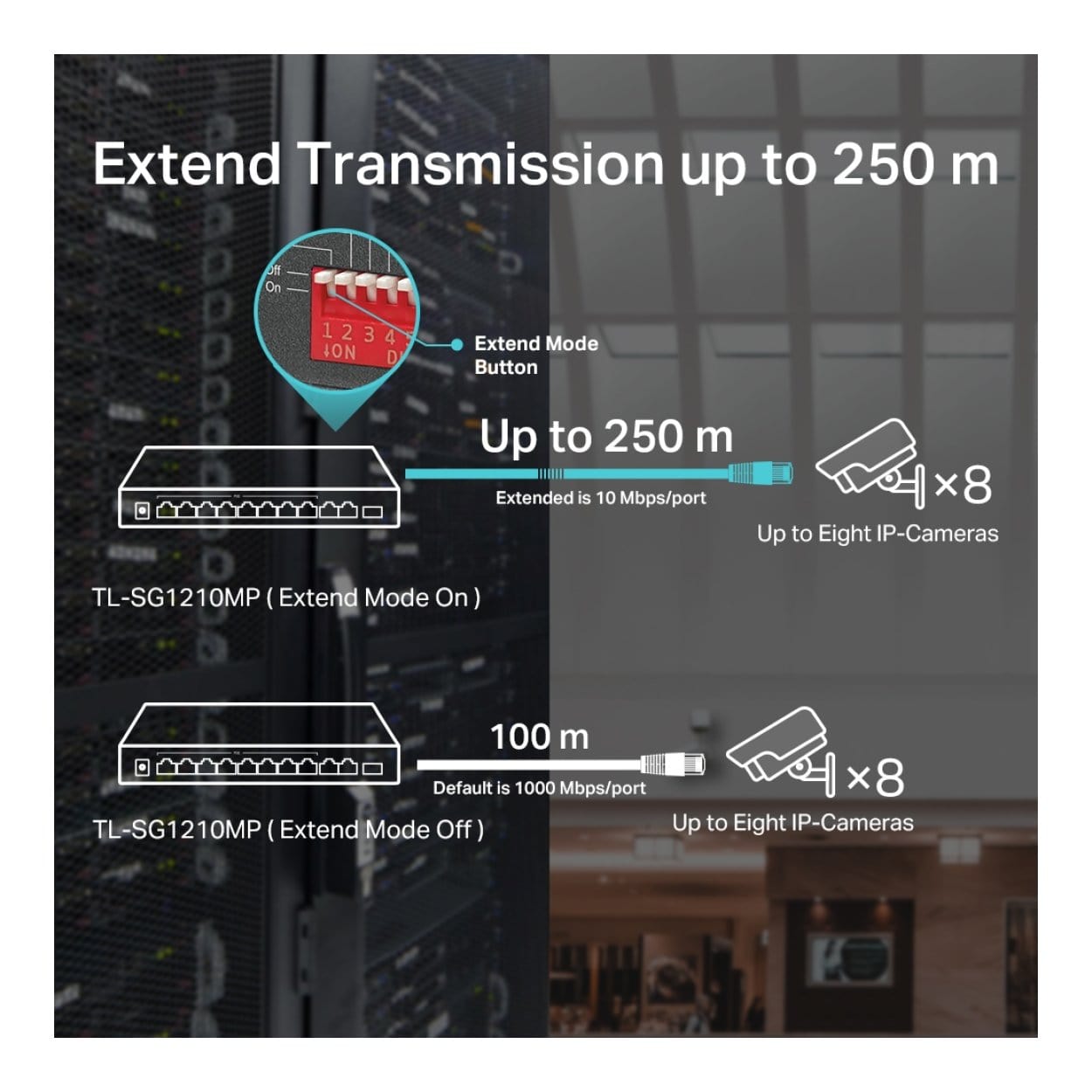

With extend mode, the PoE transmission distance reaches up to 250 m^**—perfect for IP Camera deployment in large areas.

nn

Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-2.

nn

Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.

nn

System Self-Healing with PoE Auto Recovery

nn

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.

nn

Durable Metal Casing

nn

The interior components of TL-SG1210MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MP delivers switching performance you can depend on.

nn

Intelligent Power Management

nn

When total power consumption exceeds 123 W, intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

nn

Technical Specifications:

nn

Switch type: Unmanaged

nn

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

nn

Basic switching RJ-45 Ethernet ports quantity: 9

nn

MAC address table: 4000 entries

nn

Switching capacity: 20 Gbit/s

nn

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

nn

Power over Ethernet (PoE)

n
