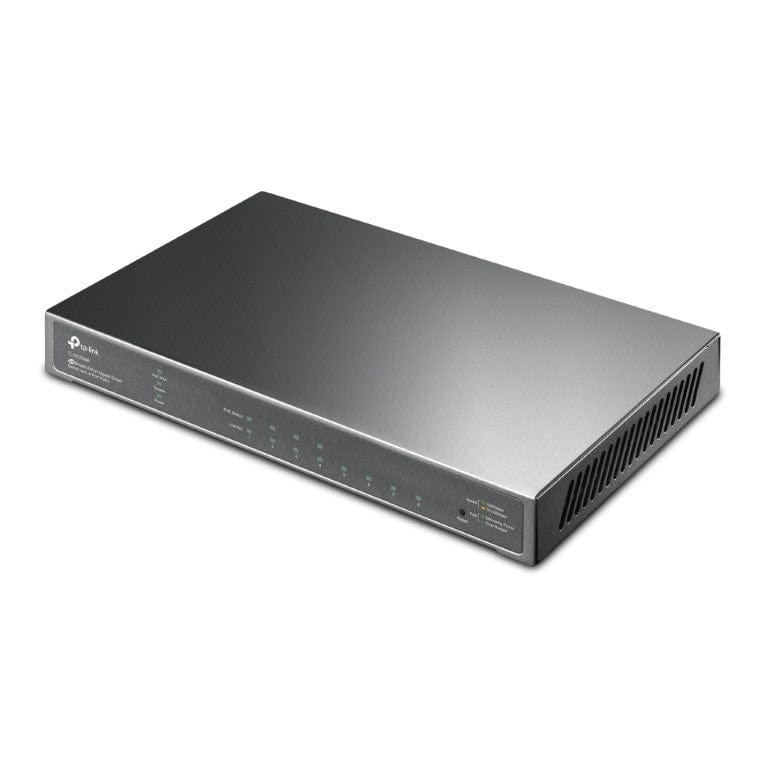

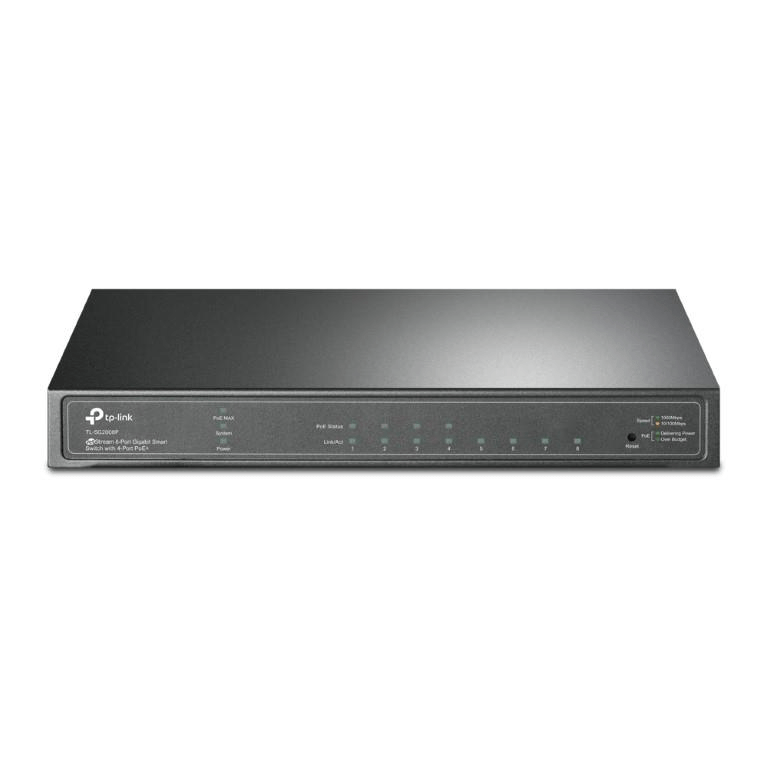

TP-Link TL-SG2008P JetStream 8-port Gigabit Smart Managed Switch with 4-port PoE+

TP-Link JetStream 8-port Gigabit Smart Managed Switch with 4-port PoE+ TL-SG2008P

nn

Multiple Application Scenarios

nn

The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

nn

Power over Ethernet for Simplified Network Deployment

nn

Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

nn

Access Control List (ACL)

nn

ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

nn

QoS for Lag-Free Experience

nn

Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free.

nn

VLAN for Security

nn

Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.

nn

Omada SDN—Smarter Cloud Solution for Business Networking

nn

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

nn

Features

nn

n
• n

  62 W PoE Budget: 4x 802.3at/af-compliant PoE+ ports with a total power supply of 62 W^*.

  n

n

• n

  Full Gigabit Ports: 4x gigabit PoE+ ports and 4x gigabit non-PoE ports provide high-speed connections.

  n

n

• n

  Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.

  n

n

• n

  Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

  n

n

• n

  Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

  n

n

• n

  Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

  n

n

nn

nn

Technical Specification

nn

Product: TP-Link JetStream 8-port Gigabit Smart Managed Switch with 4-port PoE+

nn

Interface:

nn

n

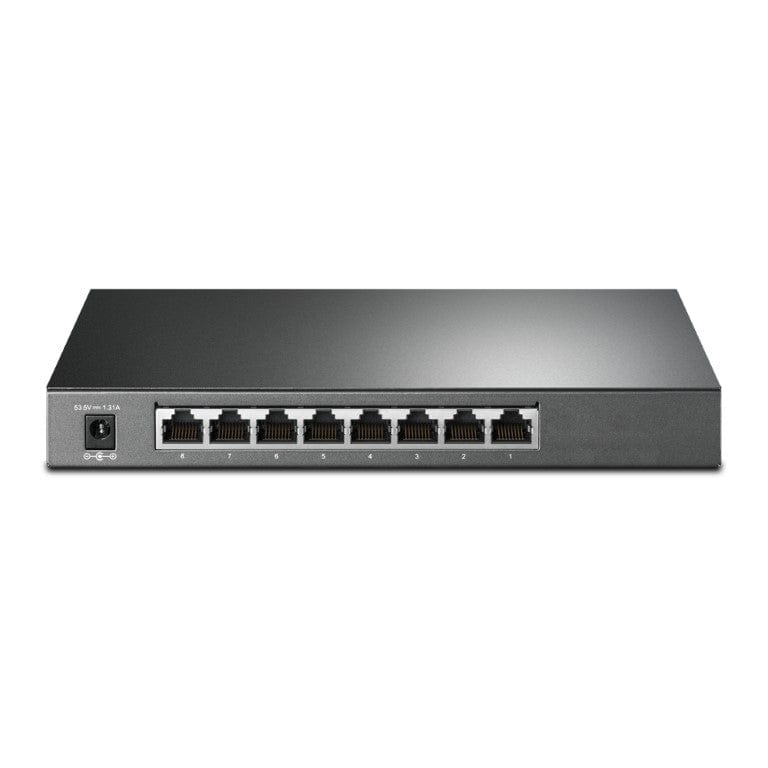

• 8x 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)

n

• Auto-Negotiation/Auto MDI/MDIX

n

nn

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

nn

Power Supply: External Power Adapter (Output: 53.5 VDC/ 1.3 A)

nn

PoE Ports (RJ45)

nn

n
• Standard: 802.3af/at compliant

n

• PoE Ports: 4 Ports

n

• Power Supply: 62 W*

n

nn

Bandwidth/Backplane: 16 Gbps

nn

MAC Address Table: 8000 entries

n
