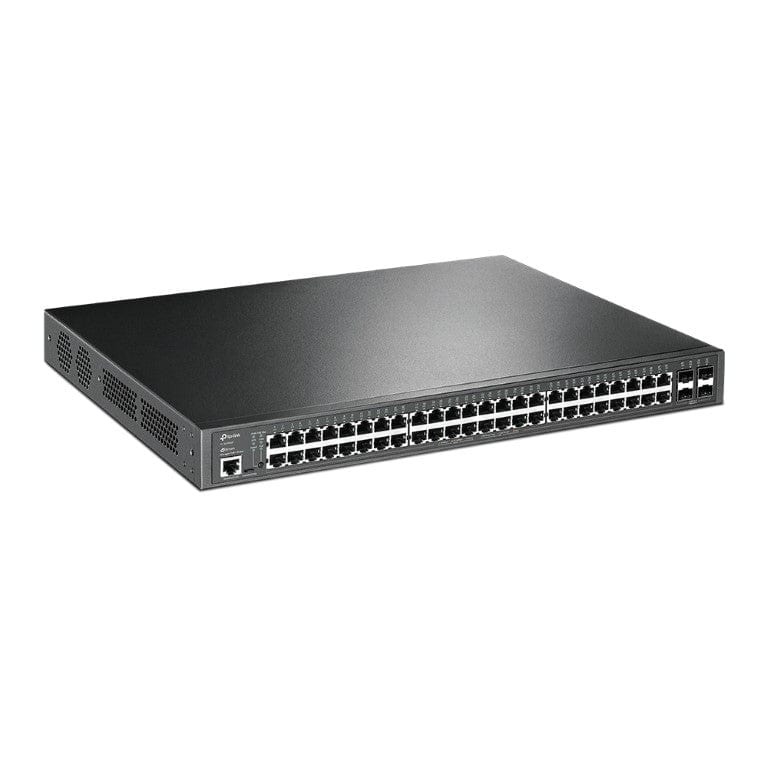

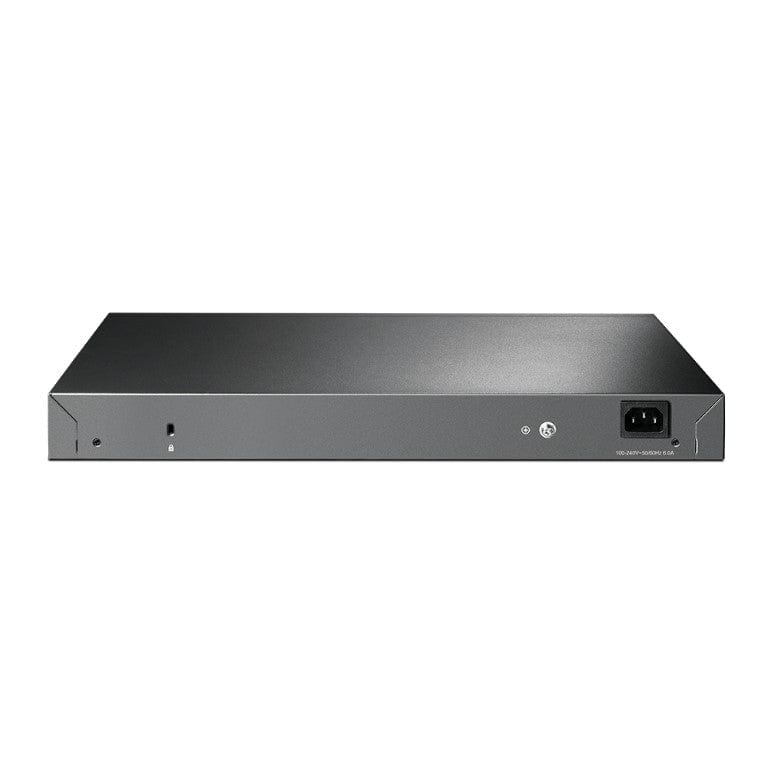

TP-Link TL-SG3452P JetStream 52-port Gigabit L2+ Managed Switch with 48-port PoE+

TP-Link JetStream 52-port Gigabit L2+ Managed Switch with 48-port PoE+ TL-SG3452P

nn

Software-Defined Networking (SDN) with Cloud Access

nn

Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

nn

PoE+ Output

nn

48x Gigabit PoE+ Ports with Total 384 W Power Budget*

nn

Centralized Cloud Management

nn

SDN Solutions Integration for a Highly Efficient Network

nn

Advanced L2+ Features

nn

L2/L3/L4 QoS, ACL, Static Routing and More

nn

Abundant Secure Strategies

nn

LAN Area Investment Protection

nn

Advanced L3 Features

nn

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.

nn

Secure Networking

nn

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

nn

Enterprise Level Features

nn

A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

nn

Advanced QoS

nn

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

nn

IPv6 Support

nn

IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

nn

Features

nn

n
• n

  384 W PoE Budget: 48× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W^*.

  n

n

• n

  Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.

  n

n

• n

  Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.

  n

n

• n

  Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

  n

n

• n

  Static Routing: Helps route internal traffic for more efficient use of network resources.

  n

n

• n

  Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

  n

n

• n

  Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

  n

n

• n

  Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

  n

n

nn

nn

Technical Specification

nn

Product: TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

nn

Switch type: Managed

nn

Switch layer: L2/L3

nn

Interface:

nn

48x 10/100/1000 Mbps RJ45 Ports
n4x Gigabit SFP Slots
n1x RJ45 Console Port
n1x Micro-USB Console Port

nn

MAC address table: 16000 entries

nn

Switching capacity: 104 Gbit/s

nn

Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x

nn

Power over Ethernet (PoE+): 48-Ports

nn

Max Power Consumption: 52.5 W (no PD connected), 485.4 W (110 V/60 Hz) (with 384 W PD connected)

nn

Rack mounting: Yes

nn

Form factor: 1U

n
