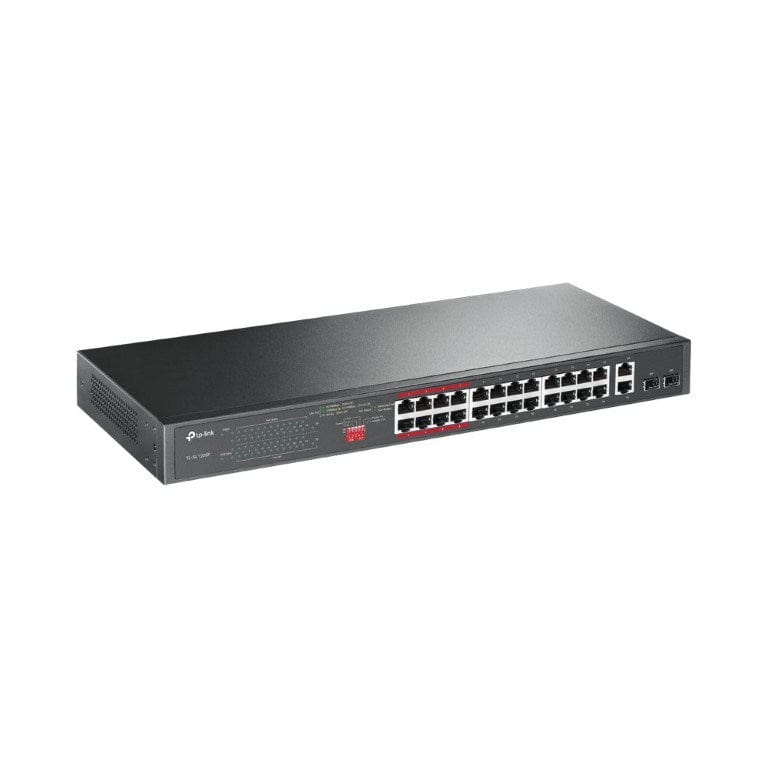

TP-Link TL-SL1226P 24-port PoE+ Fast Ethernet Unmanaged Switch with 2x Gigabit RJ45 and Combo SFP Ports

TP-Link TL-SL1226P 24-port PoE+ Fast Ethernet Unmanaged Switch with 2x Gigabit RJ45 and 2x combo Gigabit SFP ports

nn

Medium Business IP Surveillance

nn

Data and Power Transmission for Surveillance up to 250 m

nn

250 W PoE Power Supply

nn

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 250W PoE power budget* for the 24x PoE ports makes it ideal for small to medium business surveillance systems.

nn

Dedicated Design for IP Surveillance

nn

With extend mode, the PoE transmission distance reaches up to 250 m** - perfect for IP Camera deployment in large areas.

nn

**The speed of the ports in extend mode will downgrade to 10 Mbps. Actual transmission distance may vary due to cable quality.

nn

Higher Performance and Security

nn

Priority Mode and Isolation Mode make surveillance smoother and safer.

nn

Enjoy Ultra HD Video Screen

nn

TL-SL1226P provides 24x 10/100 M RJ45 ports and 2x gigabit ports. 10/100 Mbps ports or 10 Mbps bandwidth in extend mode are enough to provide smooth streaming even when 24x HD IP cameras work simultaneously.

nn

Features

nn

n
• 24x PoE+ 10/100 Mbps RJ45 ports, 2x Gigabit RJ45 ports, and 2x combo Gigabit SFP slots

n

• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*

n

• Up to 250m data and power PoE transmission range under Extend Mode**, ideal for surveillance system

n

• Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor

n

• Isolation Mode allows one-click client traffic separation for higher security and performance

n

• Plug and play, with no configuration and installation needed

n

nn

Technical Specification

nn

nn

nn

nn

nn

nn

nn

nn

nn

n
• n
  Standard: 802.3at/802.3af compliant

  n

n

• n
  PoE Ports: Port 1 – Port 24

  n

n

• n
  PoE Power Budget: 250 W
