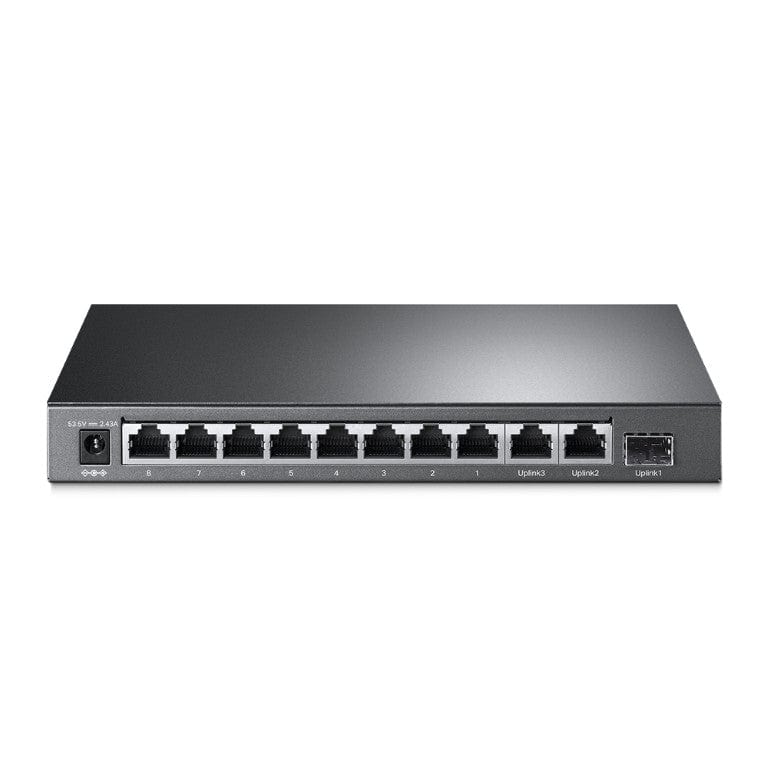

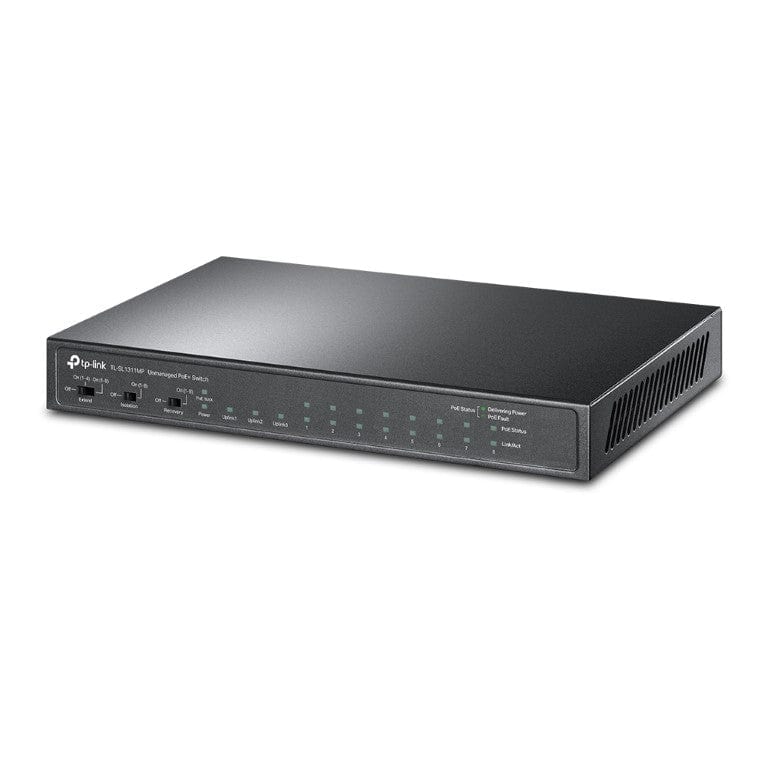

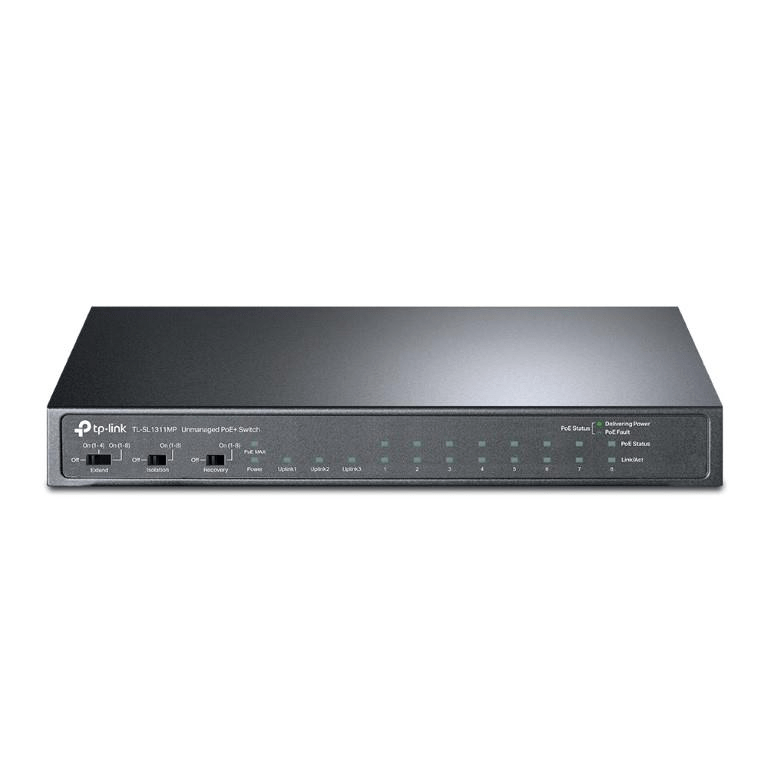

TP-Link TL-SL1311MP 8-Port Gigabit Desktop Switch

TP-Link 8-Port Gigabit Desktop Switch

nn

What This Product Does

nn

TP-Link desktop switch TL-SL1311MP is an unmanaged switch with 8× 10/100Mbps ports and 3× Gigabit ports that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

nn

Professional 11-Port Switch with 8-Port PoE+ (124 W Budget) for Numerous Applications

nn

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 124 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

nn

Ideal for IP Surveillance—Long-Range PoE Transmission and One-Click Traffic Separation

nn

With Extend Mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas. With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm for higher security and performance.

nn

Intelligent Power Management

nn

When total power consumption exceeds 124 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

nn

Durable Metal Casing

nn

The interior components of TL-SL1311MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in their locations. Having passed an array of stringent reliability tests, TL-SL1311MP delivers switching performance you can depend on.

nn

Specifications:

nn

n
• TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

n

• Switch type: Unmanaged

n

• Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

n

• Basic switching RJ-45 Ethernet ports quantity: 10

n

• MAC address table: 2000 entries

n

• Switching capacity: 7.6 Gbit/s

n

• Networking standards: IEEE 802.3af,IEEE 802.3at

n

• DC input voltage: 53.5 V

n

• Power connector: DC-in jack

n

• Power over Ethernet (PoE)
