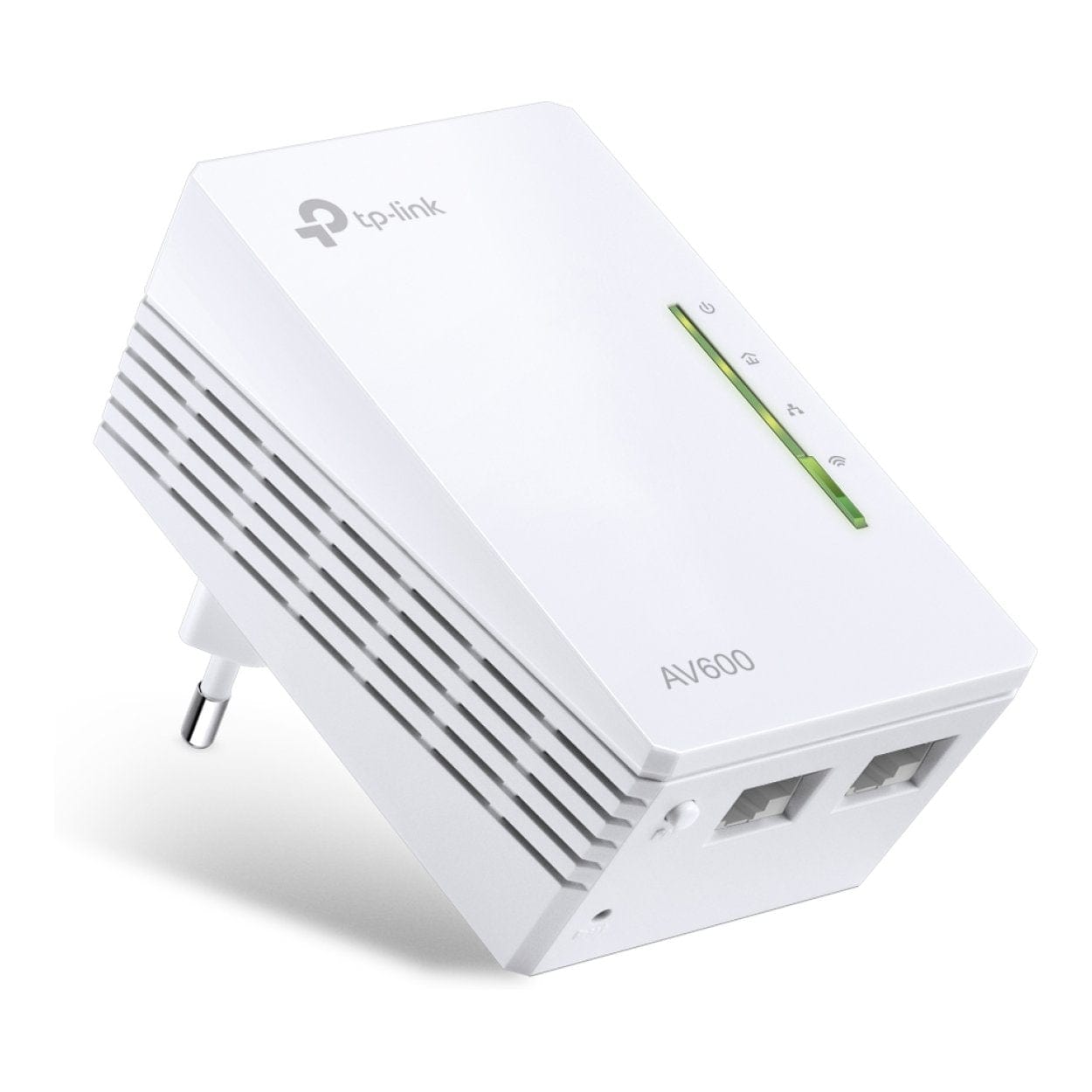

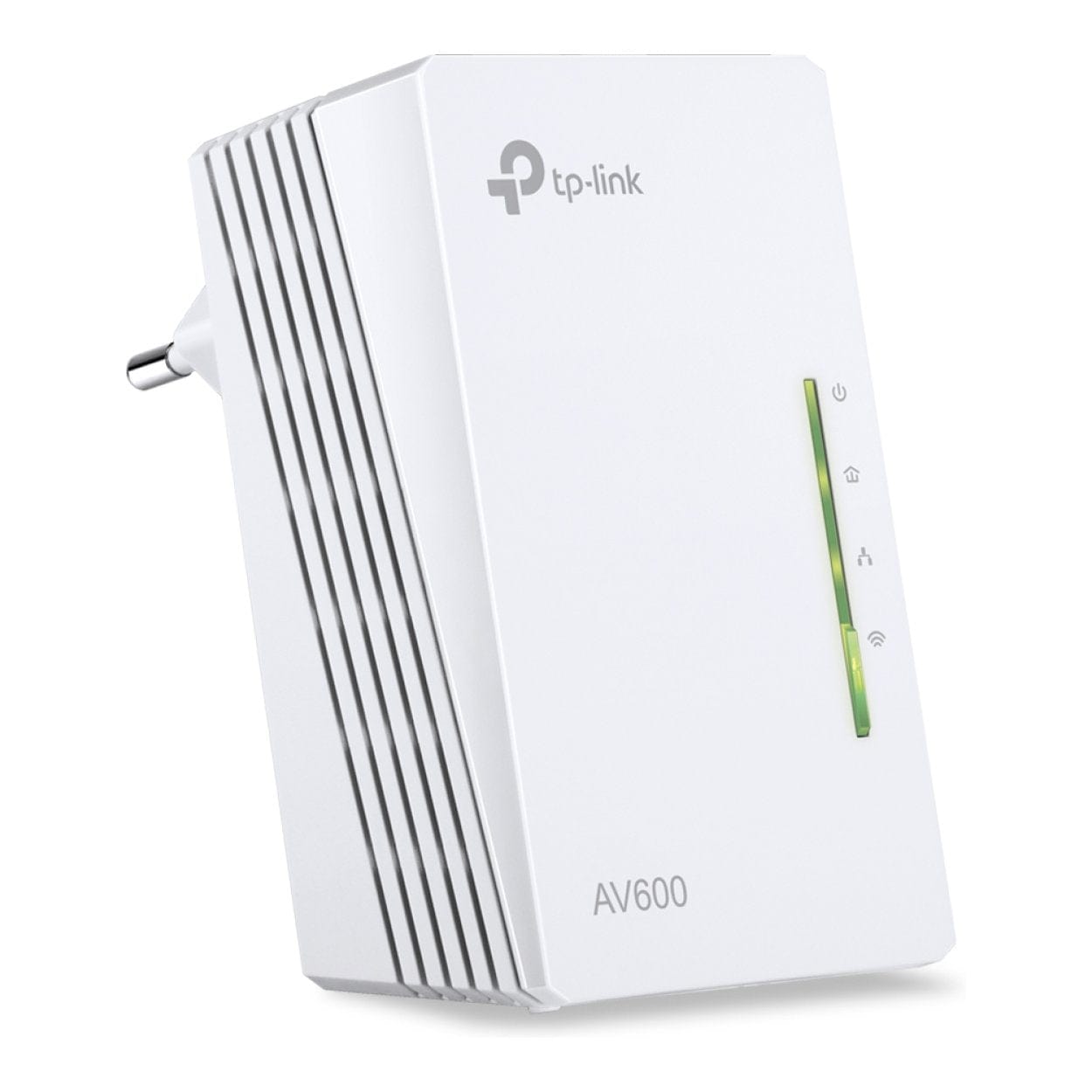

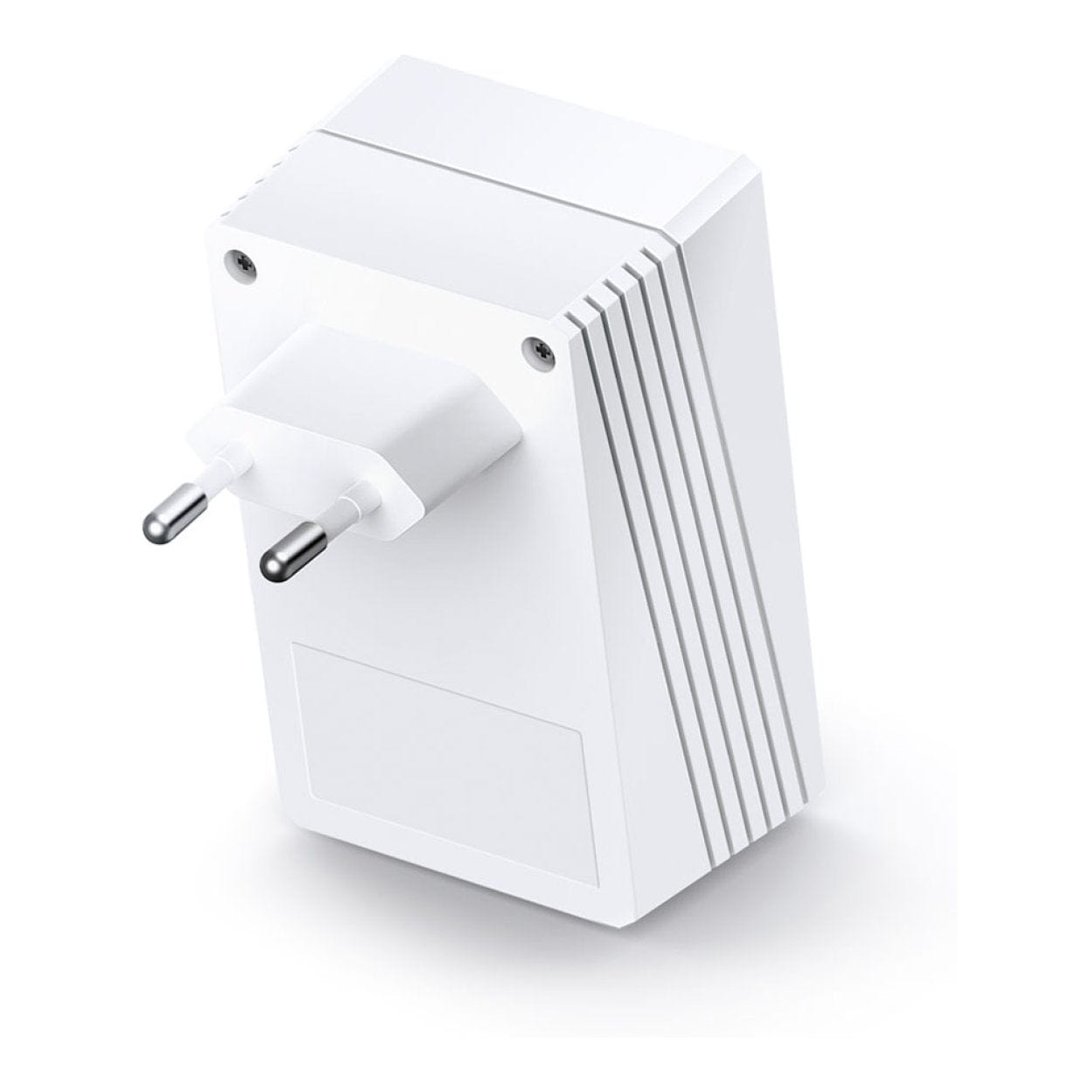

TP-Link TL-WPA4220 AV600 300Mbps Wi-Fi Powerline Extender Single-Pack

TP-Link TL-WPA4220 AV600 300Mbps Wi-Fi Powerline Extender Single-Pack

nn

Features

nn

n
• nHomePlug AV2 Standard - Provides fast powerline transfer speeds of up to 600 Mbps*

n

• n300 Mbps Wi-Fi - Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office*

n

• nPlug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes

n

• n2x Ethernet Ports - Provides reliable high-speed wired connection for game consoles, smart TVs and more

n

• nOne-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network

n

• nWi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices

n

• nEasy Management - Gives you easy control of your network through a powerful web interface, the user-friendly tpPLC Utility and the intuitive tpPLC mobile app

n

nn

Extend Your Network to Any Room Using Existing Powerline

nn

The TL-WPA4220 transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling. With advanced HomePlug AV2, TL-WPA4220, an add-on unit, is perfect for further extending the existing powerline network, providing stable and high-speed data transfer rates of up to 600 Mbps on a line length of up to 300 meters and bringing wired and wireless network simultaneously to anywhere there is a power outlet.

nn

n
• TL-WPA4220 is an add-on unit and it must be deployed on the same circuit with other adapters in a set of two or more. There is no need to buy or deploy additional Ethernet cable, and TL-WPA4220 is compatible with any powerline adapters.

n

nn

Plug & Play, No Configuration Required

nn

Plug the powerline adapter in the wall and connect it to the router with an Ethernet cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! No configuration is required. Just enjoy the seamless, high speed wired and wireless network.

nn

Pair for More Security

nn

Press the “Pair” button on both adapters to create a more secure network.

nn

n
• *Powerline adapters need to be connected to the same electrical circuit.

n

nn

Wi-Fi Auto-Sync for Unified Wi-Fi Network

nn

Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

nn

Two Fast Ethernet Ports for Wired Connections

nn

With two fast Ethernet ports, the TL-WPA4220 can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. One Ethernet cable is included in the box.

nn

Technical Specification

nn

Hardware Features

nn

Standards and Protocols: HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n

nn

Plug Type: EU

nn

Interface: 2x 10/100Mbps Ethernet Port

nn

Button: Pair, Reset, Wi-Fi/Wi-Fi Clone

nn

Max. Power

nn

n
• Consumption Maximum: 5.6W

n

• Typical: 5.2W

n

nn

LED: Power, Powerline, Ethernet, Wi-Fi

nn

Range: Up to 300 meters/1000 feet over existing electrical wiring

nn

Wireless Features

nn

Frequency: 2.4-2.4835GHz

nn

Signal Rate

nn

n
• 11n: Up to 300Mbps(dynamic)

n

• 11g: Up to 54Mbps(dynamic)

n

• 11b: Up to 11Mbps(dynamic)

n

nn

Advanced Features: Enable/DisableWireless Radio,WMM, Wireless Statistics

nn

Software Features

nn

Modulation Technology: OFDM (PLC)

nn

Encryption

nn

n
• Powerline Security: 128-bit AES Encryption

n

• Wireless Security: WPA-PSK / WPA2-PSK, WEP Encryptions

n

nn

Package Content

nn

n
• 1x TL-WPA4220 AV600 Powerline Wi-Fi Extender

n

• 1x Ethernet Cable

n

• 1x Quick Installation Guide

n

n
