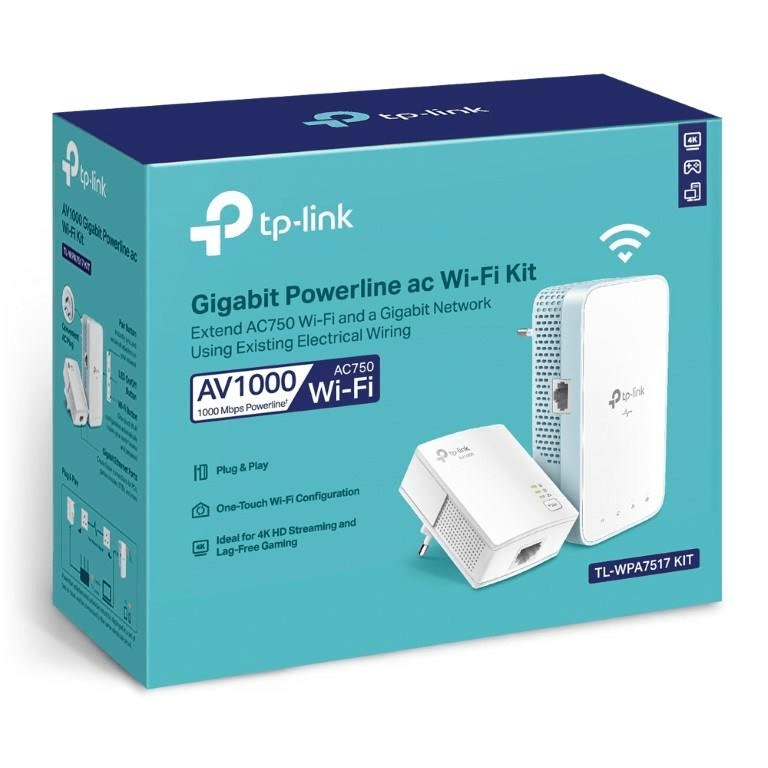

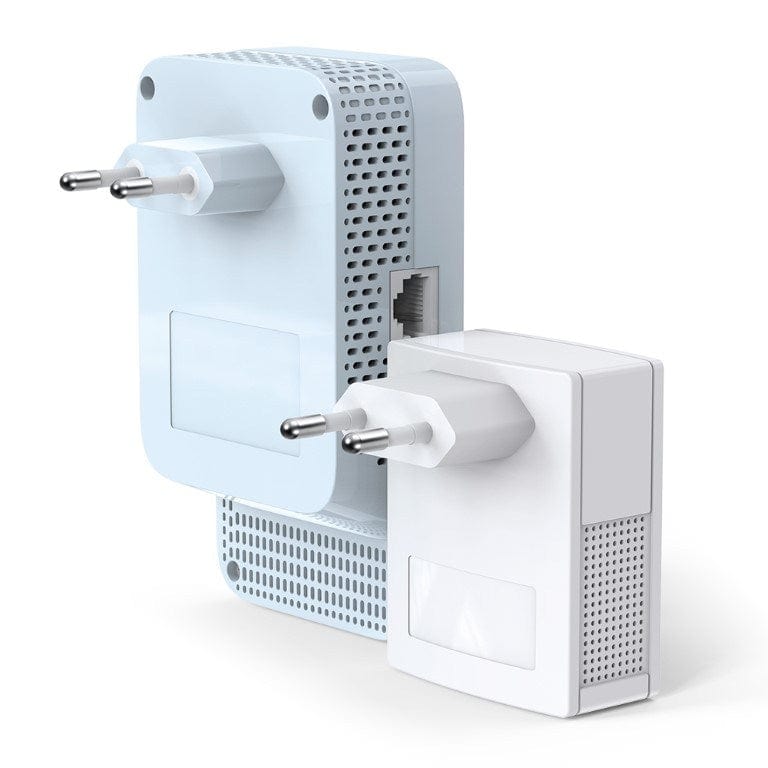

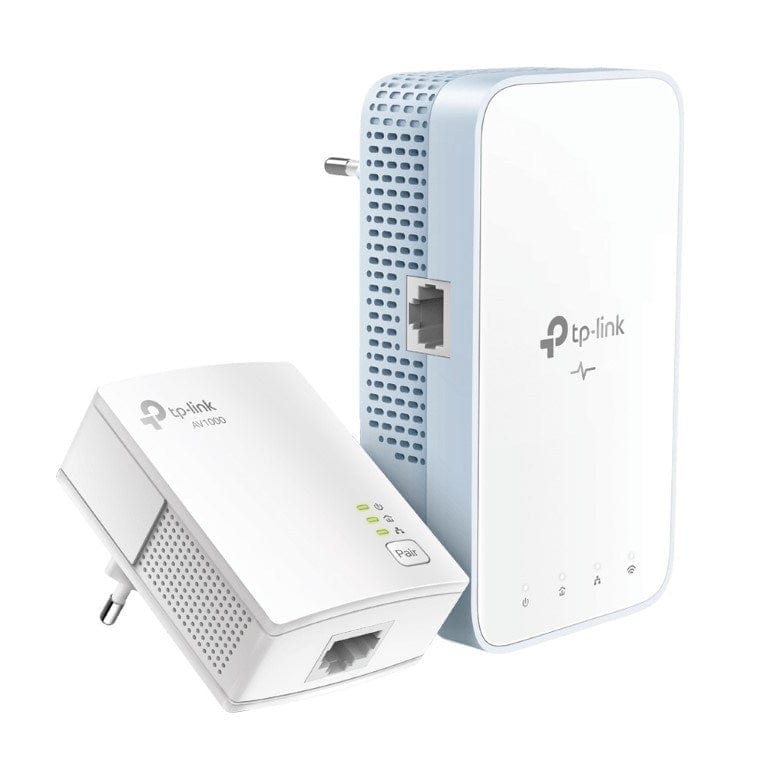

TP-Link TL-WPA7517 Kit AV1000 Gigabit Powerline AC Wi-Fi Extender 2-pack

TP-Link TL-WPA7517 Kit AV1000 Gigabit Powerline AC Wi-Fi Extender 2-pack

nn

Extend AC750 Wi-Fi to Every Room Using Existing Electrical System

nn

AV1000 Gigabit Powerline ac Wi-Fi Kit

nn

Extend Wired and Wireless Network Using Electrical System

nn

TL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.

nn

n
• No need for drilling or wire installation

n

• Network passes through walls and floors

n

• Expand coverage by adding more extenders

n

• Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuit

n

nn

AV1000 Speeds and 300 Meters Range

nn

Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

nn

AC750 Wi-Fi for an Advanced Online Experience

nn

With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.

nn

One Tap for a Unified Network

nn

One-Touch Wi-Fi Configuration

nn

Instantly copies your network name and password from your router for easy setup.

nn

Wi-Fi Auto-Sync

nn

Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.

nn

Features

nn

n
• Homeplug AV2 standard compliant - Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters

n

• Dual band 802.11ac Wi-Fi - AC1200 dual band Wi-Fi (867Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home

n

• Wi-Fi Auto-Sync - Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move

n

• Gigabit Ethernet Port - Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS

n

• Plug, Pair and Play - Quickly set up a secured Powerline network

n

• TP-Link OneMesh - Works with your TP-Link OneMesh router to form a unified mesh network for seamless streaming while moving around your home

n

nn

Technical Specification

nn

Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)

nn

Interface:

nn

n
• TL-WPA7517: 1 Ethernet Port

n

• TL-PA7017: 1 Ethernet Port

n

nn

Button: Pair, Reset, Wi-Fi Clone, LED On/Off

nn

Power Consumption:

nn

n
• TL-WPA7517: Maximum: 11W, Typical: 6.5W

n

• TL-PA7017: Maximum: 2.9W, Typical: 2.6W

n

nn

LED Indicator: Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)

nn

Range: Up to 300 meters/1000 feet over existing electrical wiring

nn

Compatibility: Compatible with all HomePlug AV & AV2 standard powerline adapters

nn

Transmission Speeds:

nn

n
• Powerline: Up to 1000 Mbps

n

• Ethernet: 10/100/1000 Mbps

n

nn

Package Contents:

nn

n
• AV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017

n

• 2x Ethernet Cable

n

• Quick Installation Guide
